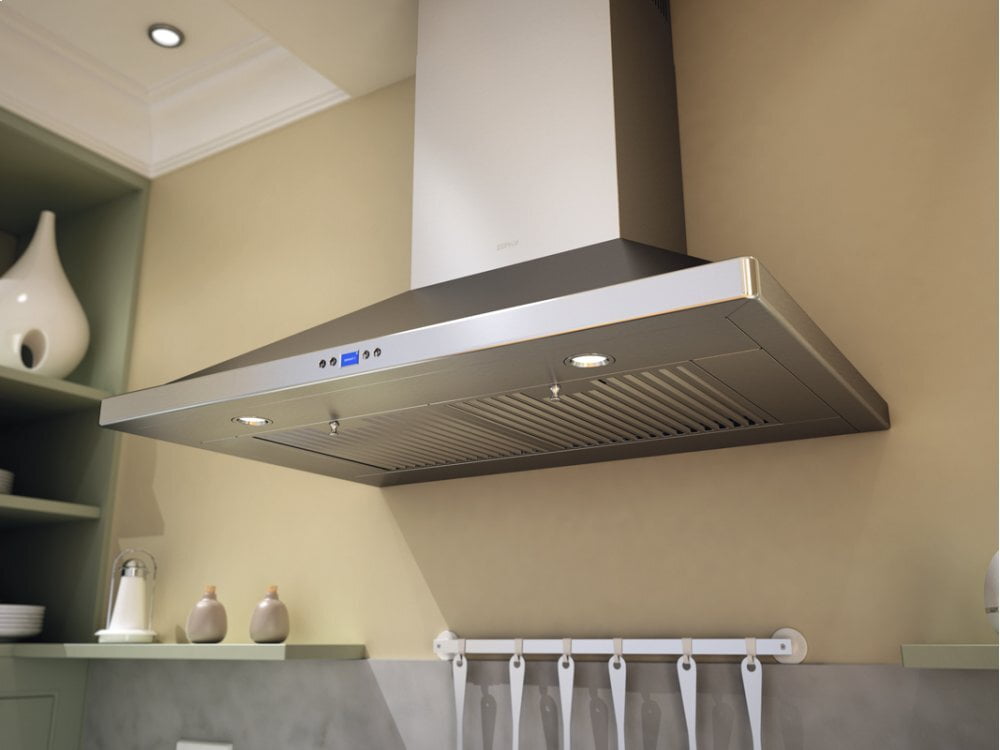

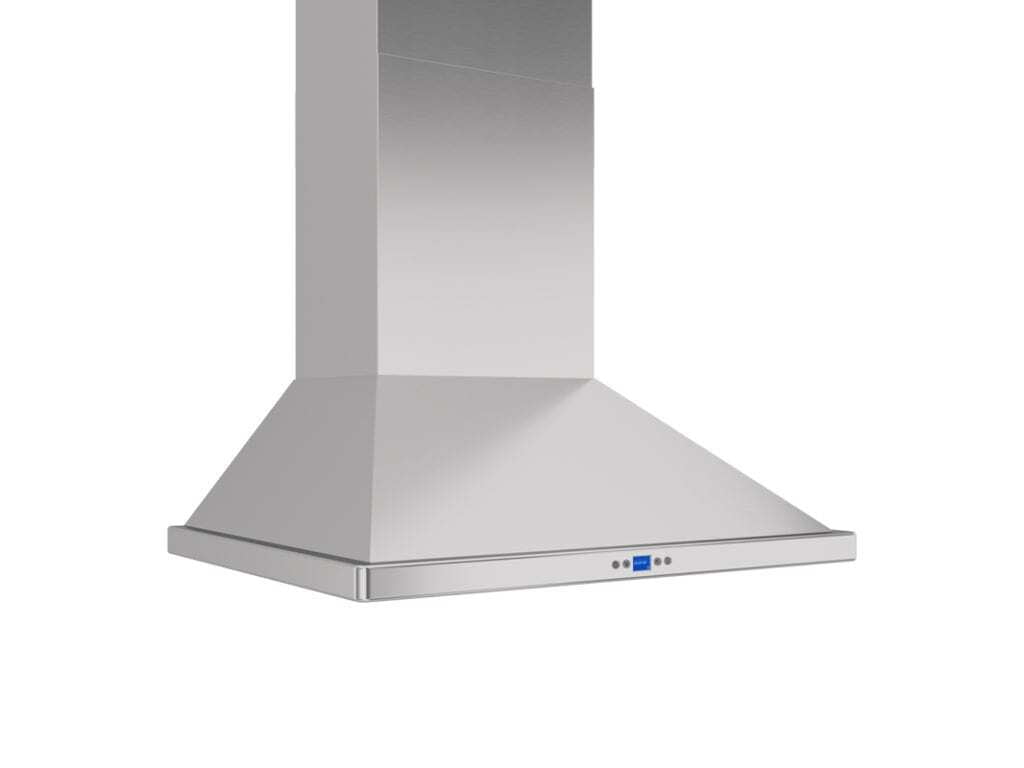

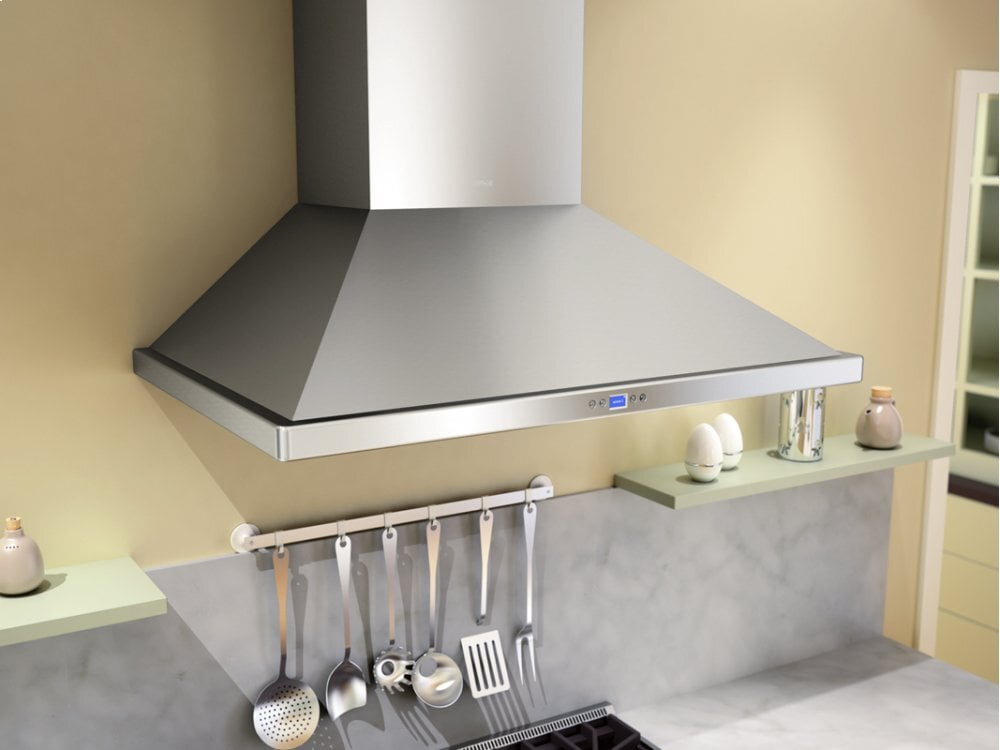

Zephyr ZVEE30CS 30" Venezia Wall
A Timeless And Classic Design, Venezia'S Formidable Pyramid Design Now Includes Baffle Filters An... Read more...
SKU:ZVEE30CS
UPC:646328004049
A Timeless And Classic Design, Venezia'S Formidable Pyramid Design Now Includes Baffle Filters And Zephyr'S Dcbl Suppression System® Elevating This Ageless Range Hood To Unparalleled Levels Of Performance. With Directional Bloom™ Hd Led Light Bulbs, Venezia'S 24-Inch Deep Capture Area Is Fully Illuminated With Warm Halogen-Caliber Light, While Remaining Cool To The Touch. Now Available With An Optional Wireless Remote Control.
- 290, 390, 590, 715 CFM
- Recirculating
- Baffle Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 5.8
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- Airflow Control Technology(TM) (ACT(TM))
- Baffle Filters
- CleanAir Function
- DCBL Suppression System(R)
- Directional Lighting
- Electronic LCD Controls
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Optional Wireless Remote Control
- Ultra-Quiet Performance
| UPC | 646328004049 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 715 |
| BLOWER CFM w/ACT | 590, 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.8 |
| CONTROLS TYPE | Electronic LCD |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 4 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 24 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 27 - 44 |
| WEIGHT, LBS | 40.1 |
| SHIPPING HEIGHT, INCHES | 30.08 |
| SHIPPING WIDTH, INCHES | 34.8 |
| SHIPPING LENGTH, INCHES | 15.75 |
| SHIPPING WEIGHT, LBS | 50.4 |
Description
A Timeless And Classic Design, Venezia'S Formidable Pyramid Design Now Includes Baffle Filters And Zephyr'S Dcbl Suppression System® Elevating This Ageless Range Hood To Unparalleled Levels Of Performance. With Directional Bloom™ Hd Led Light Bulbs, Venezia'S 24-Inch Deep Capture Area Is Fully Illuminated With Warm Halogen-Caliber Light, While Remaining Cool To The Touch. Now Available With An Optional Wireless Remote Control.
Features
- 290, 390, 590, 715 CFM
- Recirculating
- Baffle Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 5.8
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- Airflow Control Technology(TM) (ACT(TM))
- Baffle Filters
- CleanAir Function
- DCBL Suppression System(R)
- Directional Lighting
- Electronic LCD Controls
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Optional Wireless Remote Control
- Ultra-Quiet Performance
Specifications
| UPC | 646328004049 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 715 |
| BLOWER CFM w/ACT | 590, 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.8 |
| CONTROLS TYPE | Electronic LCD |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 4 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 24 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 27 - 44 |
| WEIGHT, LBS | 40.1 |
| SHIPPING HEIGHT, INCHES | 30.08 |
| SHIPPING WIDTH, INCHES | 34.8 |
| SHIPPING LENGTH, INCHES | 15.75 |
| SHIPPING WEIGHT, LBS | 50.4 |
