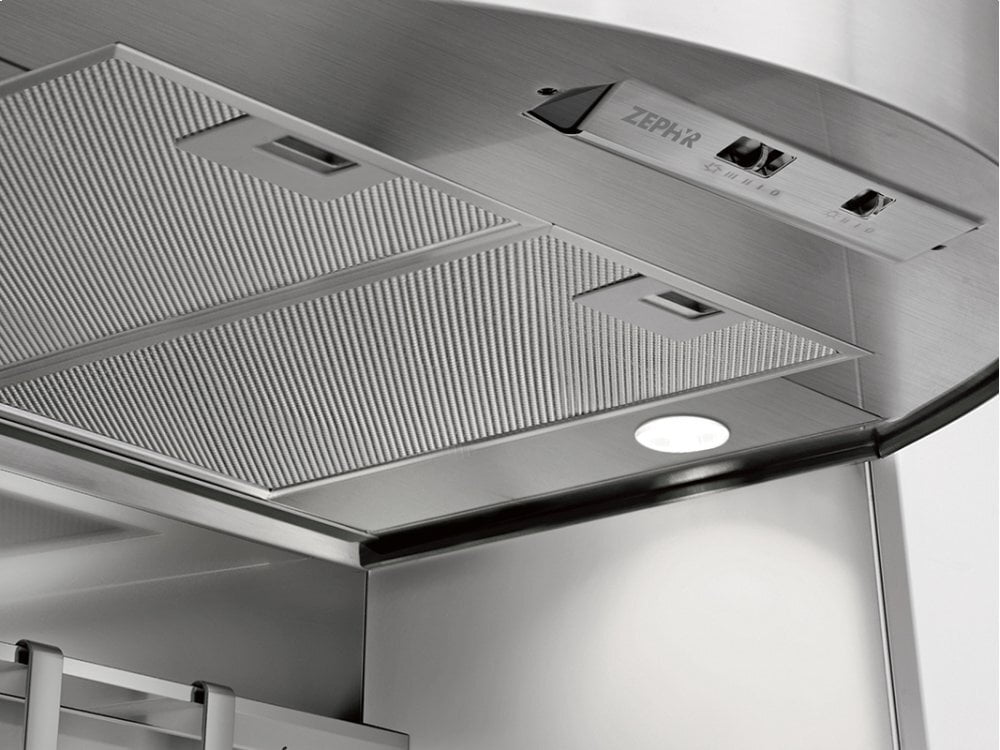

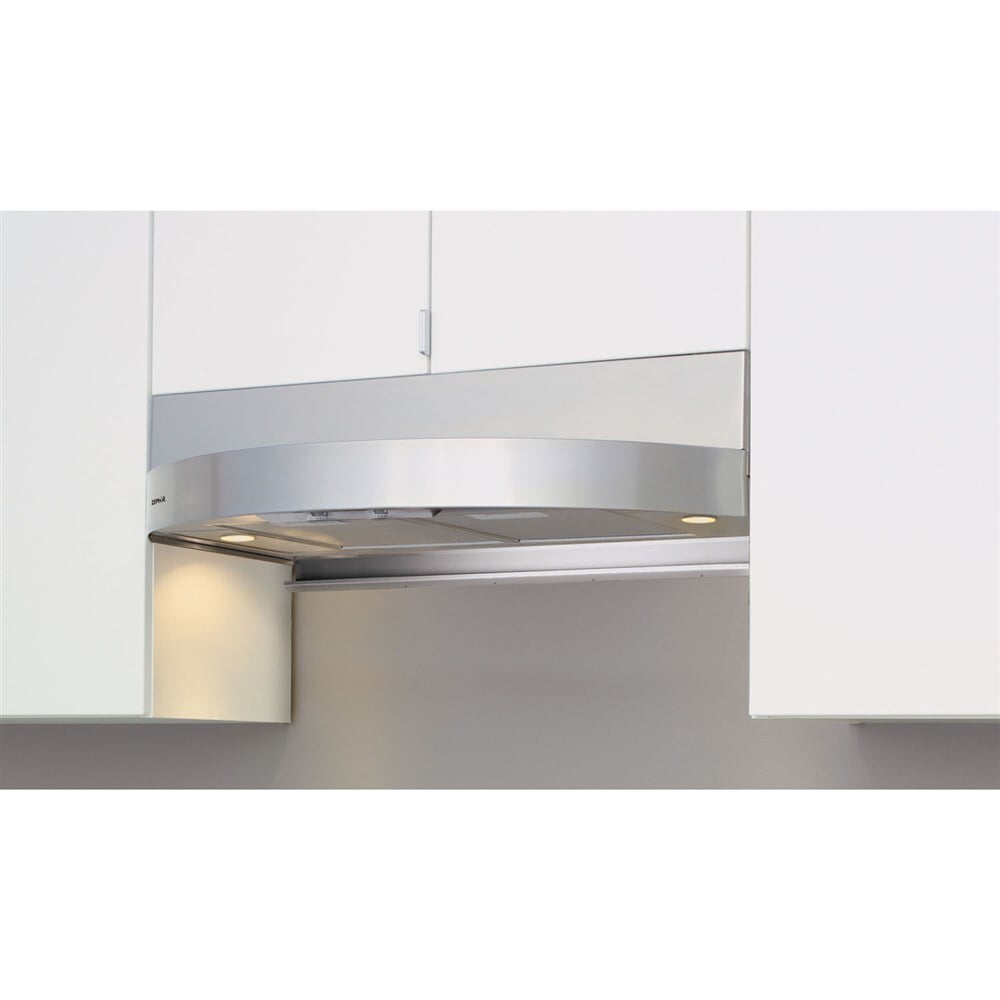

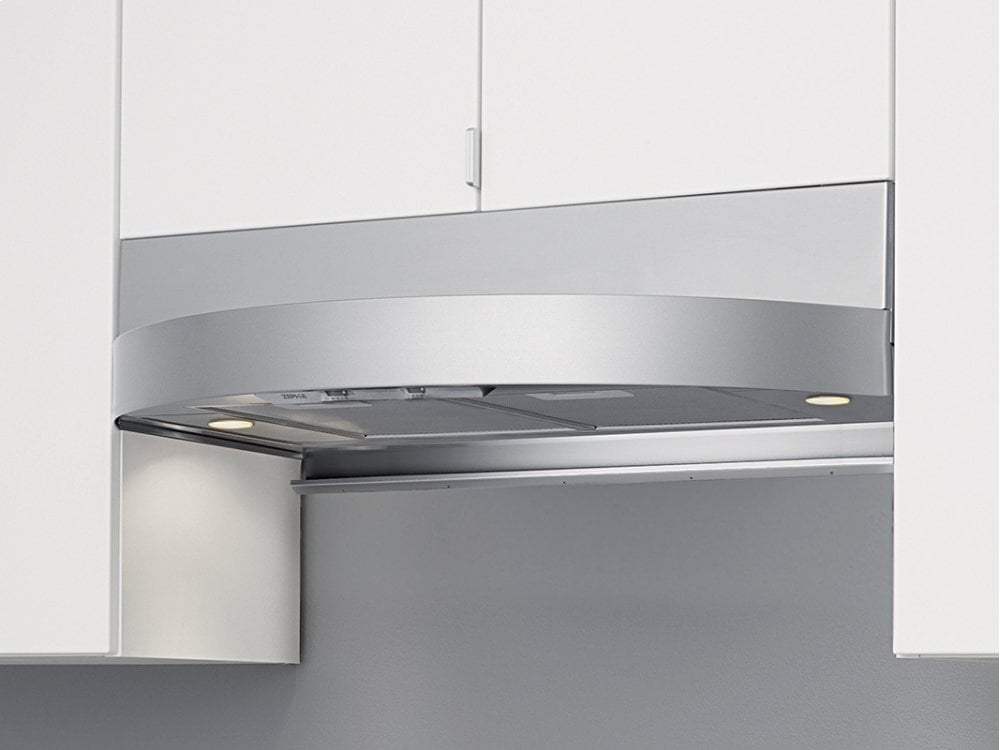

  • Zephyr ZTAE30AS290 30" Tamburo Under-Cabinet

    With Tamburo, We'Ve Thrown A Major Curve To The Typical Under-Cabinet Configuration, With A Fresh... Read more...

    Click to Call

    To order or learn more please call us at: 800-288-1647

    When Will I Get My Order?
    With Tamburo, We'Ve Thrown A Major Curve To The Typical Under-Cabinet Configuration, With A Fresh Approach That'S Designed To Fit Your Life. This True Original Also Offers Halogen Lighting, Three Speeds And An Adjustable Utensil Bar To Keep All Of Your Larger Cooking Utensils Right Where You Want Them-Above The Cooking Surface. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
    • 290 CFM
    • Recirculating
    • Mesh Filter
    • Stainless Steel
    • Vertical and Horizontal Ducting
    • Max Sones 3.2
    • Dual-Level Lighting
    • Halogen Lighting
    • Adjustable Utensil Bar
    • Aluminum Mesh Filters
    • Mechanical Slide Controls
    • Optional Recirculating Kit
    • Vertical or Horizontal Ducting
    UPC 646328000737
    BLOWER INCLUDED YES/NO yes
    INTERNAL BLOWER 1 CFM 290
    INTERNAL BLOWER 1 SONES 3.2
    CONTROLS TYPE Mechanical slide
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF no
    CLEANAIR FUNCTION no
    LIGHTS TYPE (INCLUDED) halogen
    LIGHTS QUANTITY 2
    WATTS PER BULB 50
    LIGHTS LEVELS 2
    FILTER TYPE mesh
    DUCT DISCHARGE vertical or horizontal
    DUCT SIZE, VERTICAL, INCHES 7, 3.25 x 10
    DUCT SIZE, HORIZONTAL, INCHES 3.25 x 10
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 32
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE 2
    NOMINAL WIDTH, INCHES 30
    NET WIDTH, INCHES 29.9375
    DEPTH, INCHES 21.125
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 7.375
    WEIGHT, LBS 27.9
    SHIPPING HEIGHT, INCHES 25.98
    SHIPPING WIDTH, INCHES 33.94
    SHIPPING LENGTH, INCHES 12.44
    SHIPPING WEIGHT, LBS 35.5

    Description

    With Tamburo, We'Ve Thrown A Major Curve To The Typical Under-Cabinet Configuration, With A Fresh Approach That'S Designed To Fit Your Life. This True Original Also Offers Halogen Lighting, Three Speeds And An Adjustable Utensil Bar To Keep All Of Your Larger Cooking Utensils Right Where You Want Them-Above The Cooking Surface. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.

    Features

    • 290 CFM
    • Recirculating
    • Mesh Filter
    • Stainless Steel
    • Vertical and Horizontal Ducting
    • Max Sones 3.2
    • Dual-Level Lighting
    • Halogen Lighting
    • Adjustable Utensil Bar
    • Aluminum Mesh Filters
    • Mechanical Slide Controls
    • Optional Recirculating Kit
    • Vertical or Horizontal Ducting

    Specifications

    UPC 646328000737
    BLOWER INCLUDED YES/NO yes
    INTERNAL BLOWER 1 CFM 290
    INTERNAL BLOWER 1 SONES 3.2
    CONTROLS TYPE Mechanical slide
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF no
    CLEANAIR FUNCTION no
    LIGHTS TYPE (INCLUDED) halogen
    LIGHTS QUANTITY 2
    WATTS PER BULB 50
    LIGHTS LEVELS 2
    FILTER TYPE mesh
    DUCT DISCHARGE vertical or horizontal
    DUCT SIZE, VERTICAL, INCHES 7, 3.25 x 10
    DUCT SIZE, HORIZONTAL, INCHES 3.25 x 10
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 32
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE 2
    NOMINAL WIDTH, INCHES 30
    NET WIDTH, INCHES 29.9375
    DEPTH, INCHES 21.125
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 7.375
    WEIGHT, LBS 27.9
    SHIPPING HEIGHT, INCHES 25.98
    SHIPPING WIDTH, INCHES 33.94
    SHIPPING LENGTH, INCHES 12.44
    SHIPPING WEIGHT, LBS 35.5
