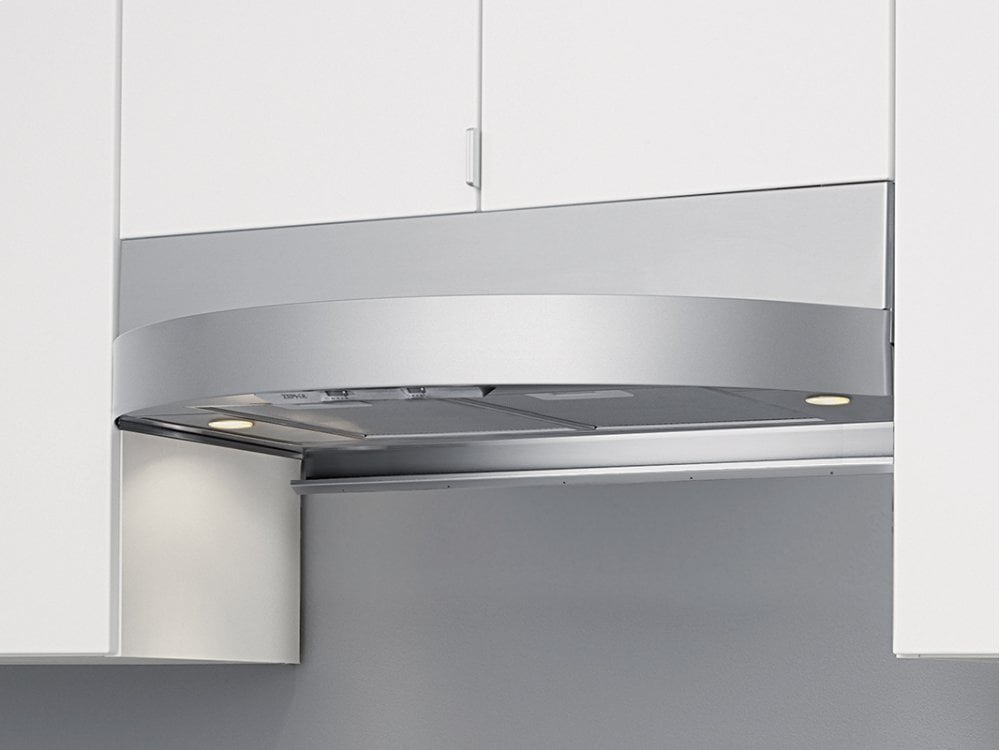

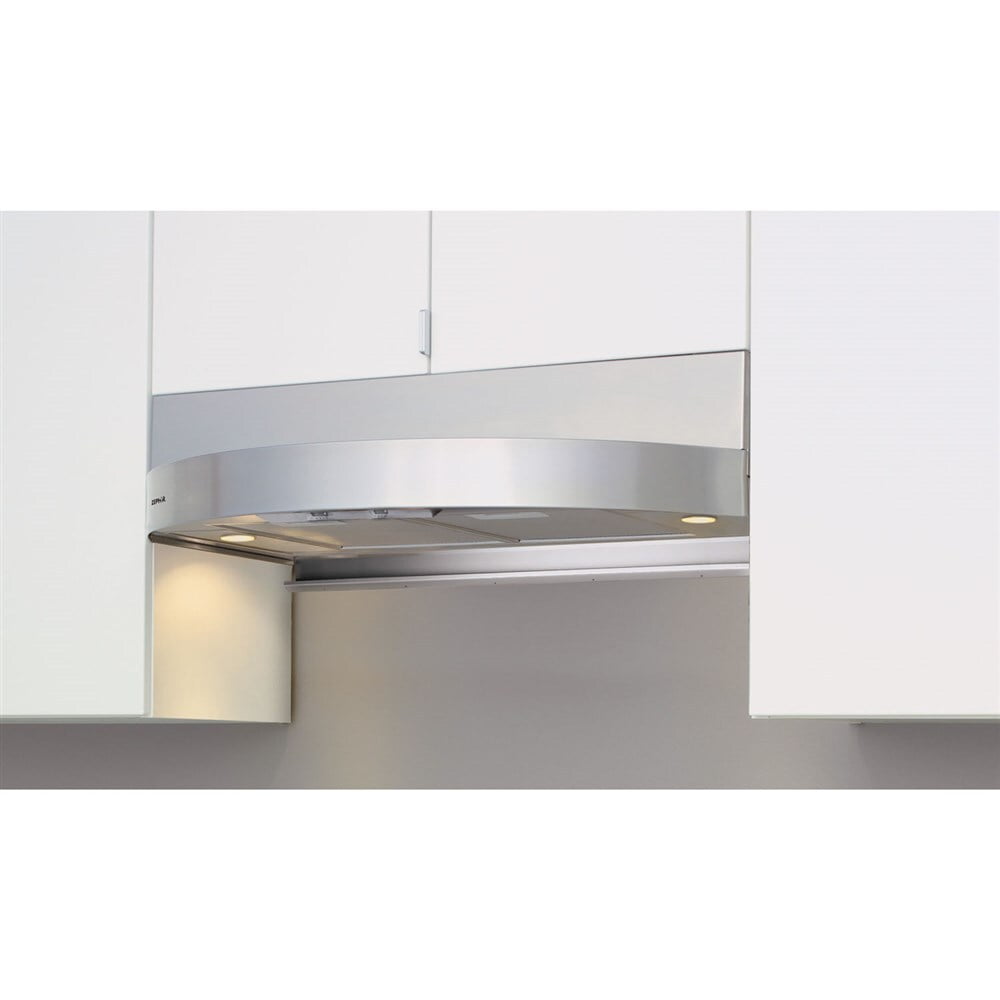

Zephyr ZTAE30AS 30" Tamburo Under-Cabinet
With Tamburo, We'Ve Thrown A Major Curve To The Typical Under-Cabinet Configuration, With A Fresh... Read more...
SKU:ZTAE30AS
UPC:646328130038
With Tamburo, We'Ve Thrown A Major Curve To The Typical Under-Cabinet Configuration, With A Fresh Approach That'S Designed To Fit Your Life. This True Original Also Offers Halogen Lighting, Three Speeds And An Adjustable Utensil Bar To Keep All Of Your Larger Cooking Utensils Right Where You Want Them-Above The Cooking Surface. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
- 400 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Adjustable Utensil Bar

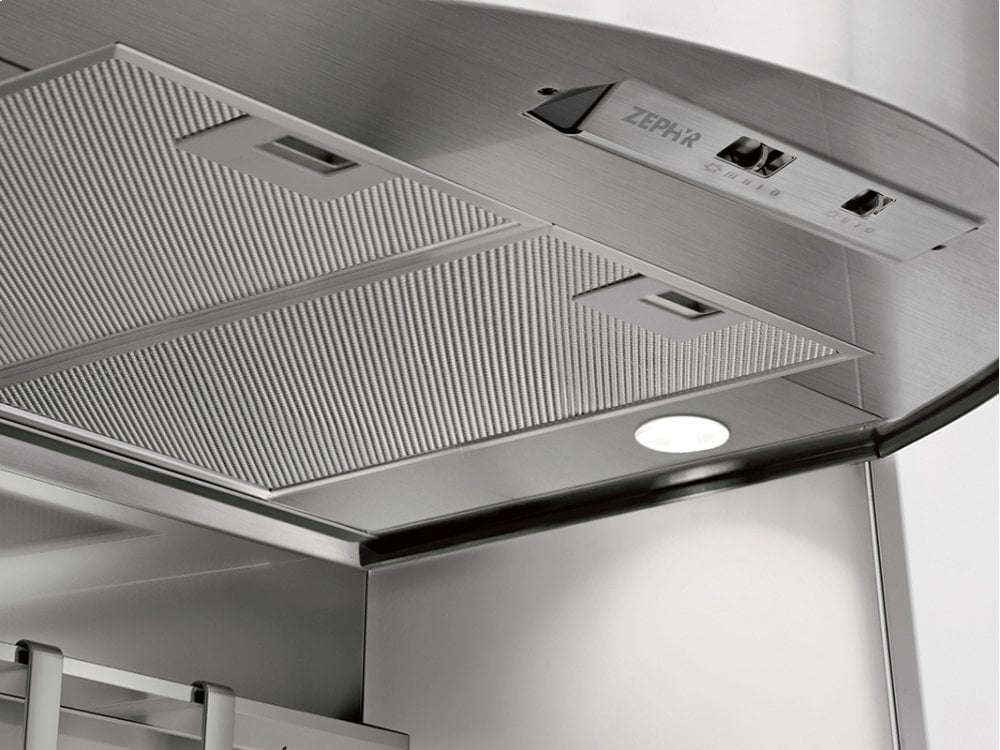

- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Vertical or Horizontal Ducting
| UPC | 646328130038 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 400 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 21.125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
| WEIGHT, LBS | 27.9 |
| SHIPPING HEIGHT, INCHES | 25.98 |
| SHIPPING WIDTH, INCHES | 33.94 |
| SHIPPING LENGTH, INCHES | 12.44 |
| SHIPPING WEIGHT, LBS | 35.5 |
Description
With Tamburo, We'Ve Thrown A Major Curve To The Typical Under-Cabinet Configuration, With A Fresh Approach That'S Designed To Fit Your Life. This True Original Also Offers Halogen Lighting, Three Speeds And An Adjustable Utensil Bar To Keep All Of Your Larger Cooking Utensils Right Where You Want Them-Above The Cooking Surface. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
Features
- 400 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Adjustable Utensil Bar
- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Vertical or Horizontal Ducting
Specifications
| UPC | 646328130038 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 400 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 21.125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
| WEIGHT, LBS | 27.9 |
| SHIPPING HEIGHT, INCHES | 25.98 |
| SHIPPING WIDTH, INCHES | 33.94 |
| SHIPPING LENGTH, INCHES | 12.44 |
| SHIPPING WEIGHT, LBS | 35.5 |
