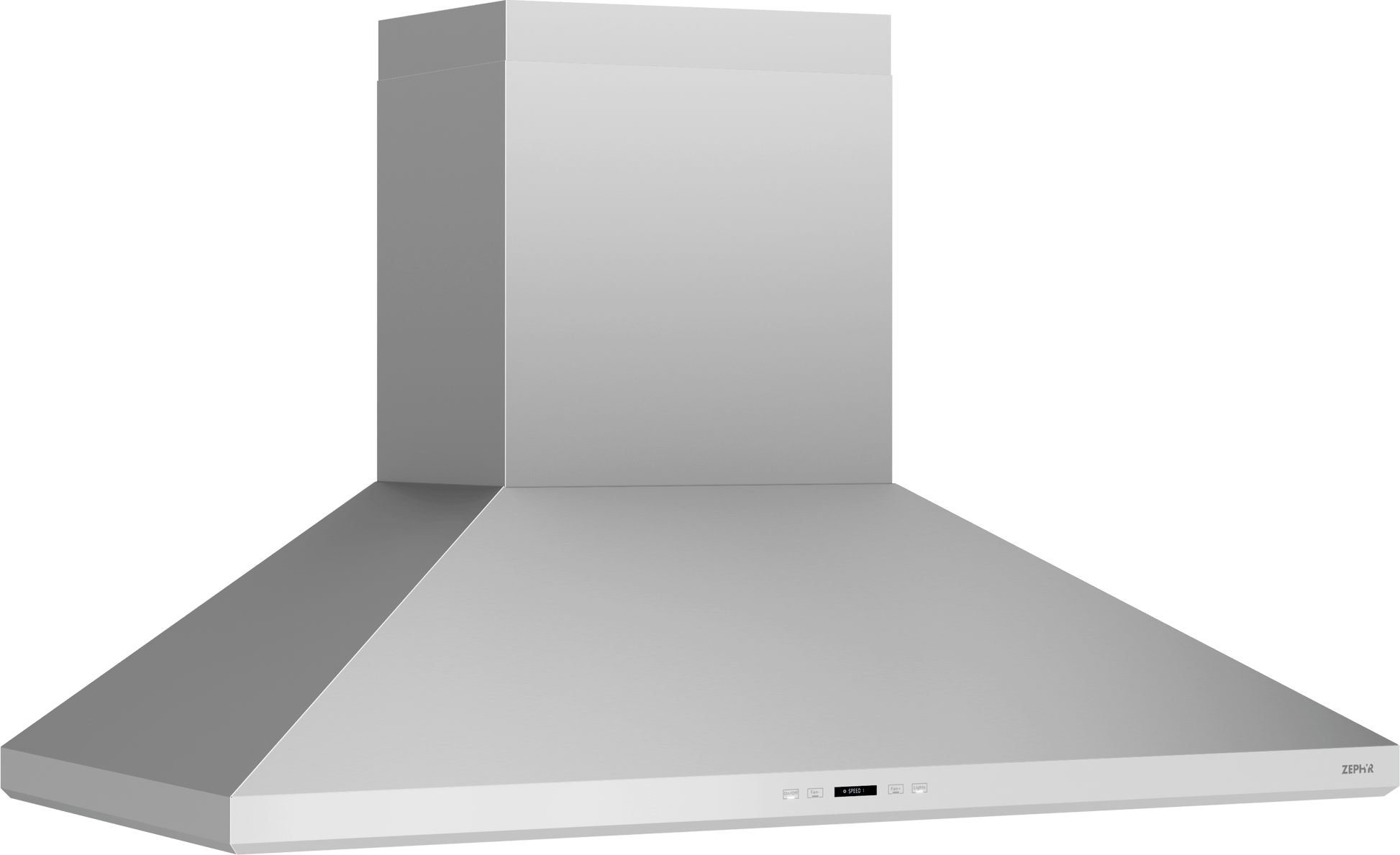

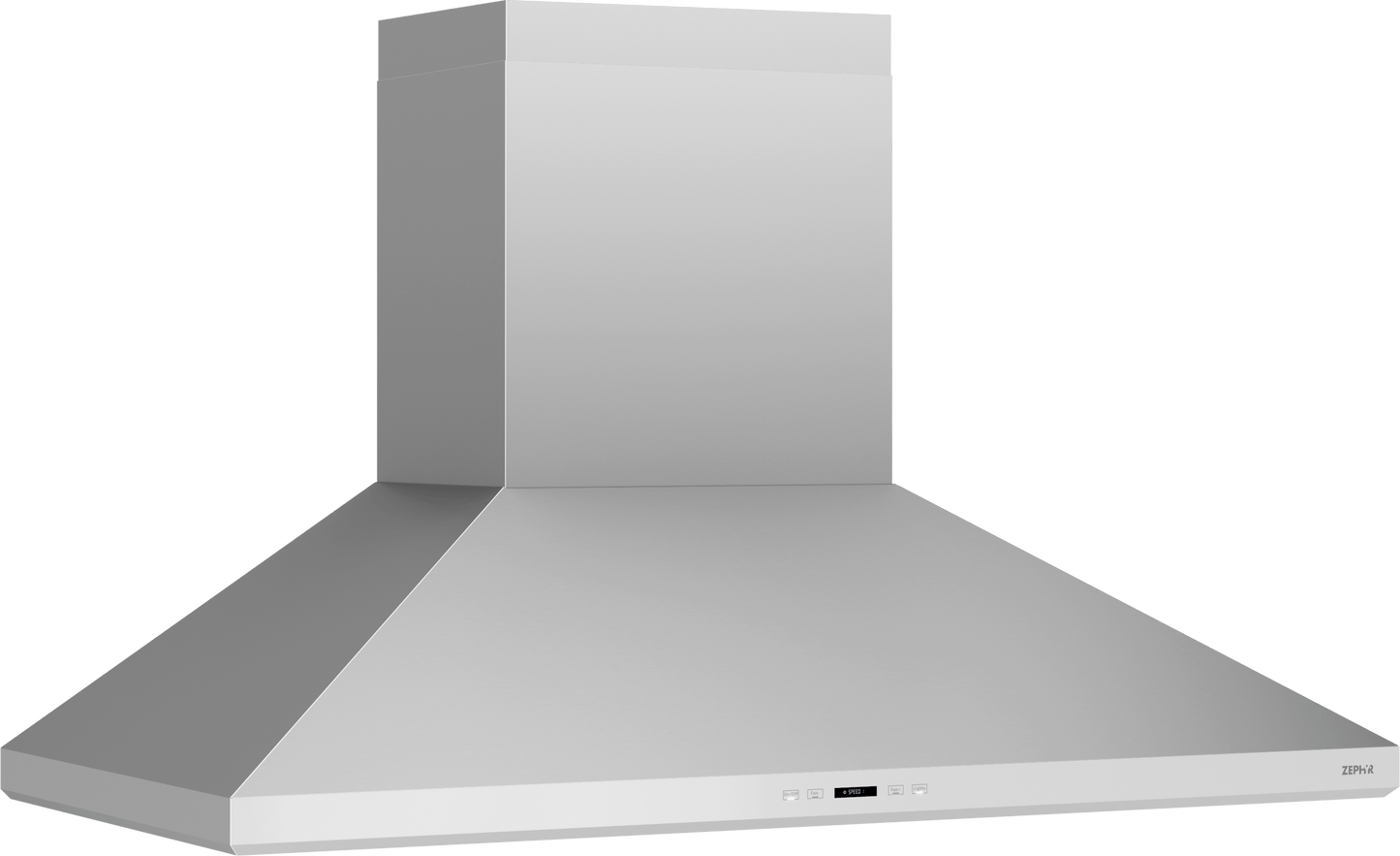

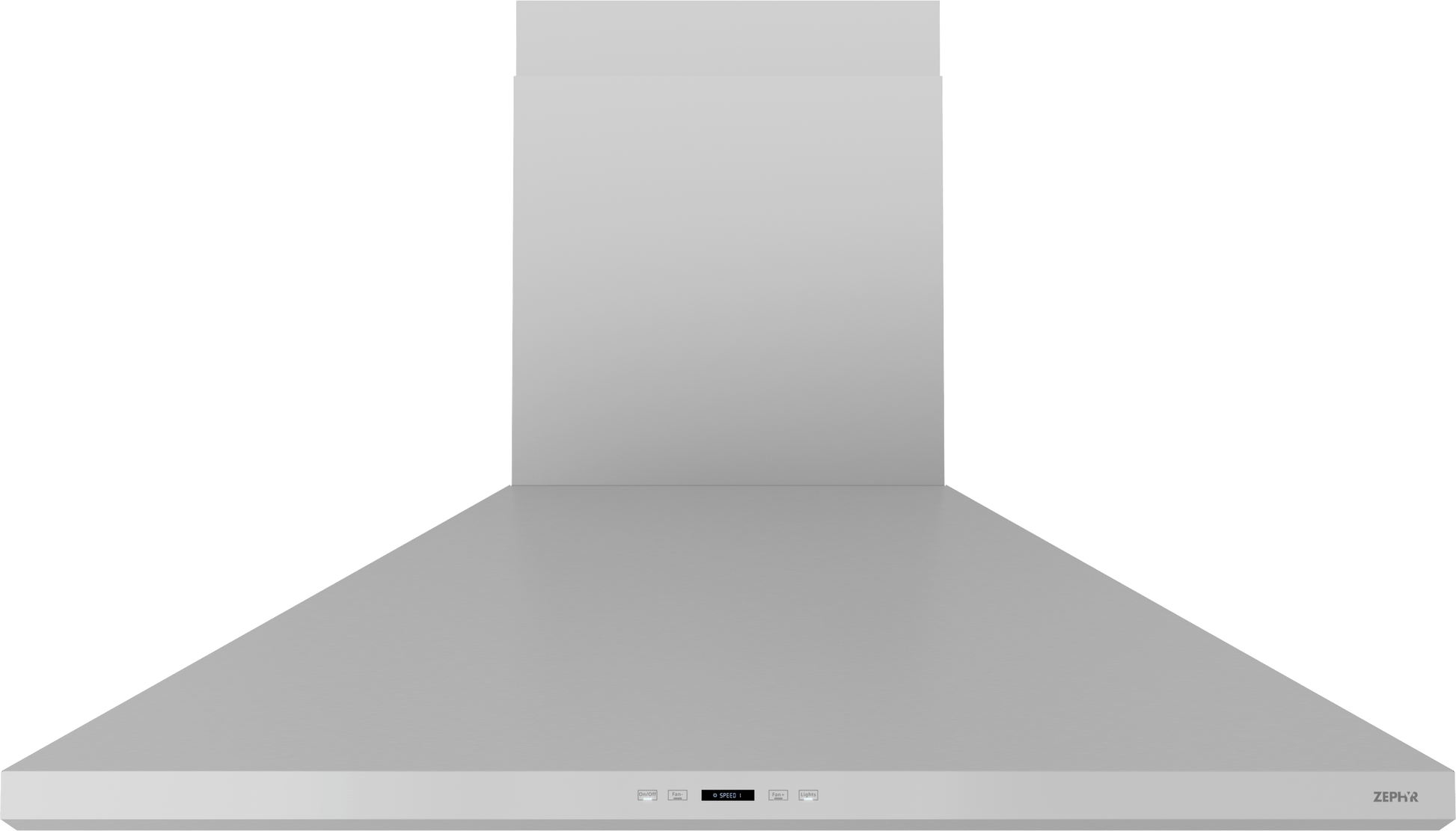

Zephyr ZSPE48DS Siena Pro, Wall, 48", Ss, Led, Act
- Airflow Control Technology™ (ACT™)
- ICON Touch® LCD Controls
- Hybrid Baffle Filters
- LumiLight LED Lighting with TruHue™
- Powerful 1200-CFM Blowers
- Optional Extension Duct Cover Kit
- Optional Wireless Remote Control (RC-0002)
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328012334 |
| GTIN | 00646328012334 |
| Country of Origin | Taiwan |
| Model Group | ZSP-D |
| Model Name | Siena Pro Wall |
| Collection | Core Collection |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390 |
| Internal Blower 1 CFM | 1200 |
| Internal Blower 1 Min. Sones | 2 |
| Internal Blower 1 Max Sones | 9 |
| Minimum CFM | 350 |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | ICON Touch® |
| Blower Speeds | 5 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 2 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Hybrid Baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210041 |
| Duct Discharge | Vertical |
| Duct Size; Horizontal; IN | N/A |
| Duct Size; Vertical; IN | 10 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 9 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | RC-0002, Z1C-00SP, AK1718, MUA010A |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| CEC Title 24 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 1080 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.9375 |
| Net Depth; IN | 24 |
| Net Height; IN | 29 - 42 |
| Weight; LBS | 52.6 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 17 |
| Chimney Width in. | 16.68 |
| Chimney Depth in. | 12.18 |
| Shipping Length; IN | 53.2 |
| Shipping Width; IN | 18.1 |
| Shipping Height; IN | 30.5 |
| Shipping Weight; LBS | 77.2 |
| Shipping Method | Small Parcel |
| Freight Class | 200 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
