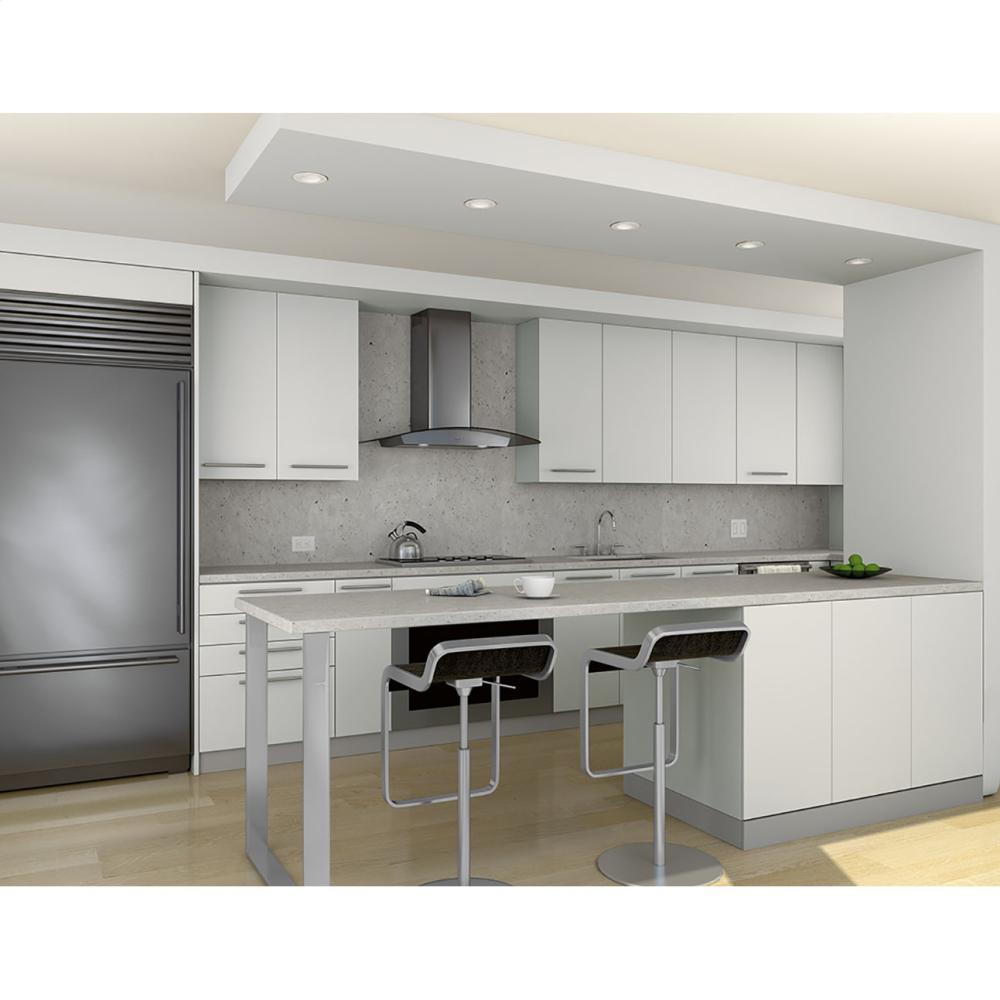

Zephyr ZRVM90BBSGG Essentials Series 36-In. Ravenna Wall Mount Range Hood In Black Stainless With Grey Glass
Zephyr ZRVM90BBSGG Essentials Series 36-In. Ravenna Wall Mount Range Hood In Black Stainless With Grey Glass
SKU: ZRVM90BBSGG
UPC: 646328005336
The Delicate Curve Of A Glass Canopy Arching Over Your Cooktop Will Add An Elegance To Your Every... Read more...
When Will I Get My Order?
x
When Will I Get My Order?
x
Zephyr ZRVM90BBSGG Essentials Series 36-In. Ravenna Wall Mount Range Hood In Black Stainless With Grey Glass

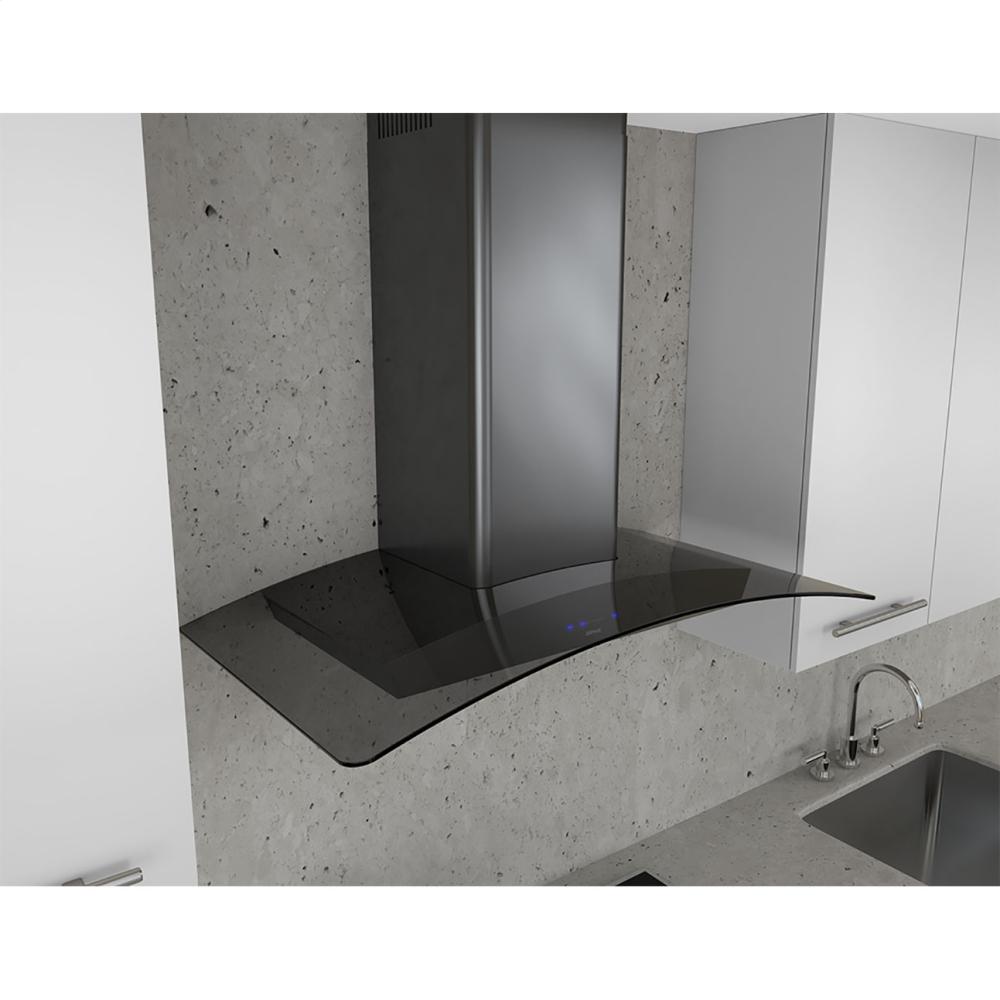

The Delicate Curve Of A Glass Canopy Arching Over Your Cooktop Will Add An Elegance To Your Everyday Cooking Experience. Updated With Zephyr'S Trend-Setting Black Stainless Steel, The Ravenna Combines 21St Century Know-How With Timeless Beauty. Featuring Clear And Smoke-Gray Glass Canopy Options, As Well As Act™ Technology, Icon Touch® Controls, Britestrip™ Led Lighting And A Powerful, Yet Quiet, 600 Cfm Blower.
- 290, 390, 600 CFM
- Recirculating
- Mesh Filter
- Black Stainless Steel
- Vertical Ducting
- Max Sones 6
- Dual-Level Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Aluminum Mesh Filters
- BriteStrip(TM) LED Lighting
- ICON Touch(R) Controls
- Multiple Color Options
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Smoke Gray Glass Canopy
- 36-In. Ravenna Wall Mount Range Hood
- Internal min/max blower CFM: 200-600 CFM
- Internal min/max sones: 1 - 6 sones
- ACT technology lets you limit max CFM to meet local codes
- Five powerful speed levels
- ICON Touch controls
- One aluminum mesh filter
- LED BriteStrip illuminates the cooktop surface
- Five-minute auto delay off
- Dual-level lighting
- Vertical duct specifications: 6" round
- Horizontal duct specification: NA
- Mounting Height: 26" - 34"
- Recirulating option
- Smoke-gray glass
- Color: Black stainless steel with grey glass canopy
- Black Stainless color is titanium coated for extra durability and does not oxidize
- Anti-smudge coating for easy cleaning
- PVD process provides a uniform and durable coating that is eco-friendly; no harsh chemicals are used
| UPC | 646328005336 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 600 |
| BLOWER CFM w/ACT | 390, 290 |
| INTERNAL BLOWER 1 SONES | 6 |
| CONTROLS TYPE | ICON Touch® |
| BLOWER SPEEDS | 5 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 9 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 5 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.1875 |
| DEPTH, INCHES | 19.75 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 23 - 42.5 |
| WEIGHT, LBS | 43.5 |
| SHIPPING HEIGHT, INCHES | 25.35 |
| SHIPPING WIDTH, INCHES | 38.58 |
| SHIPPING LENGTH, INCHES | 21.65 |
| SHIPPING WEIGHT, LBS | 60.1 |
