  • Zephyr ZPYE36AS 36" Pyramid Under-Cabinet

    Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style U... Read more...

    Click to Call

    To order or learn more please call us at: 800-288-1647

    When Will I Get My Order?

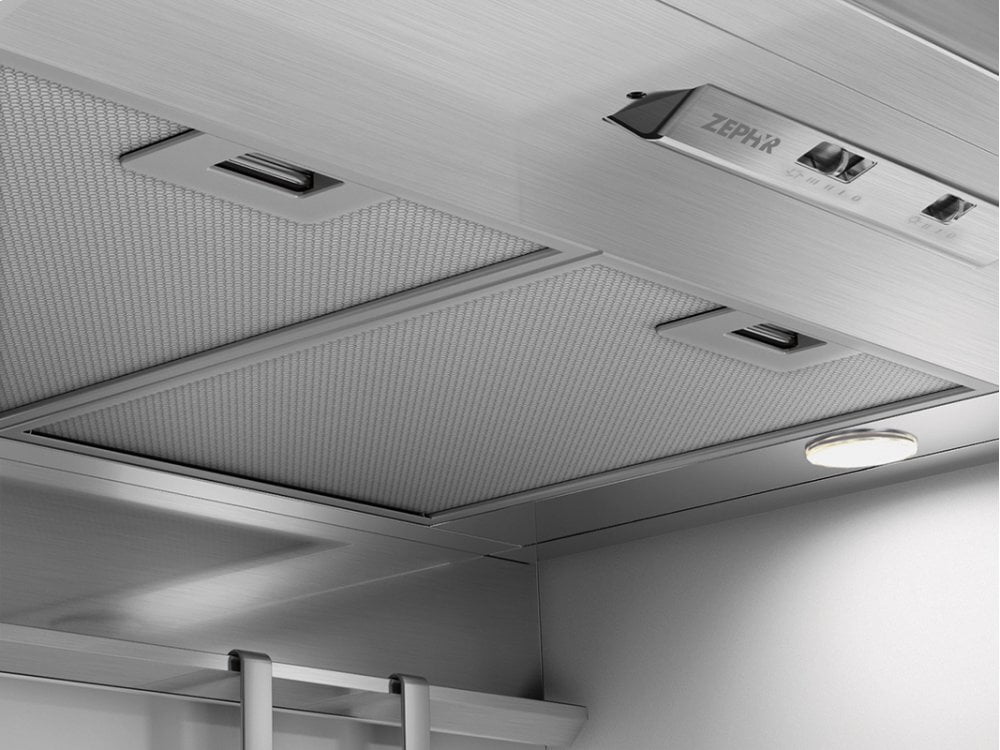

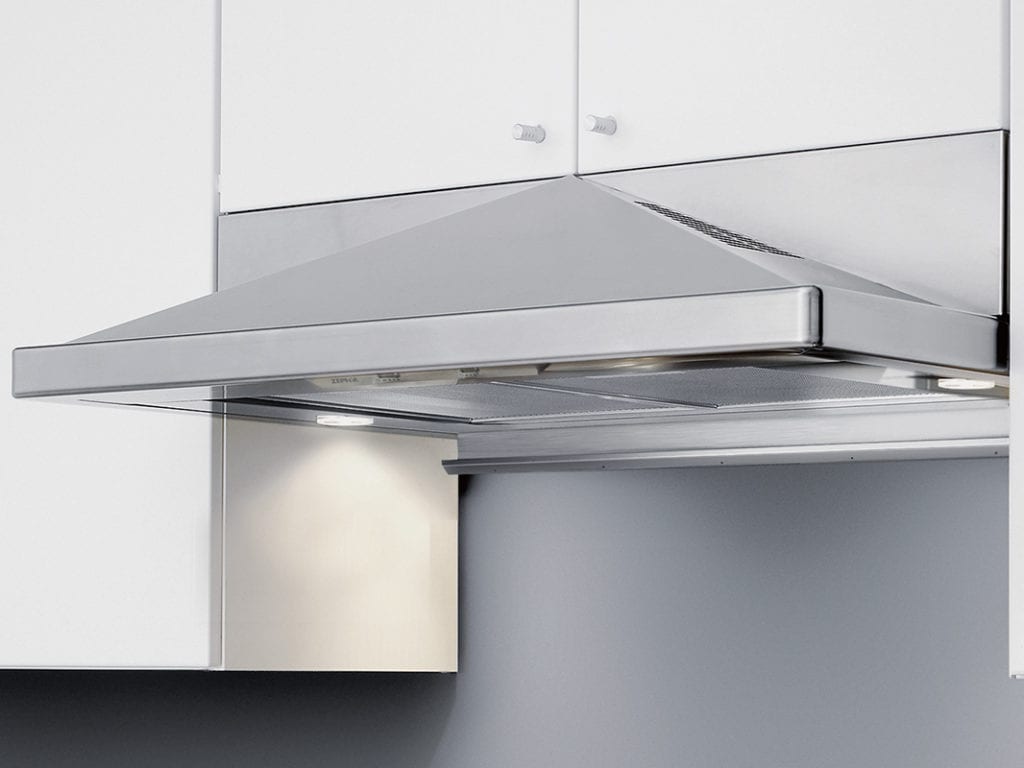

    Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style Under-Cabinet Hood. This Expressive Yet Utilitarian Design Also Features An Adjustable Back-Panel Utensil Bar That Accommodates A Variety Of Cabinet Depths To Put Cooking Utensils Within Easy Reach. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
    • 400 CFM
    • Recirculating
    • Mesh Filter
    • Stainless Steel
    • Vertical and Horizontal Ducting
    • Max Sones 5
    • Dual-Level Lighting
    • Halogen Lighting
    • Adjustable Utensil Bar
    • Aluminum Mesh Filters
    • Mechanical Slide Controls
    • Optional Recirculating Kit
    • Vertical or Horizontal Ducting
    UPC 646328089039
    BLOWER INCLUDED YES/NO yes
    INTERNAL BLOWER 1 CFM 400
    INTERNAL BLOWER 1 SONES 5
    CONTROLS TYPE Mechanical slide
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF no
    CLEANAIR FUNCTION no
    LIGHTS TYPE (INCLUDED) halogen
    LIGHTS QUANTITY 2
    WATTS PER BULB 50
    LIGHTS LEVELS 2
    FILTER TYPE mesh
    DUCT DISCHARGE vertical or horizontal
    DUCT SIZE, VERTICAL, INCHES 7, 3.25 x 10
    DUCT SIZE, HORIZONTAL, INCHES 3.25 x 10
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 32
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE 2
    NOMINAL WIDTH, INCHES 36
    NET WIDTH, INCHES 35.9375
    DEPTH, INCHES 21
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 7.375
    WEIGHT, LBS 31.3
    SHIPPING HEIGHT, INCHES 26.14
    SHIPPING WIDTH, INCHES 39.41
    SHIPPING LENGTH, INCHES 12.6
    SHIPPING WEIGHT, LBS 39.8

    Description

    Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style Under-Cabinet Hood. This Expressive Yet Utilitarian Design Also Features An Adjustable Back-Panel Utensil Bar That Accommodates A Variety Of Cabinet Depths To Put Cooking Utensils Within Easy Reach. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.

    Features

    • 400 CFM
    • Recirculating
    • Mesh Filter
    • Stainless Steel
    • Vertical and Horizontal Ducting
    • Max Sones 5
    • Dual-Level Lighting
    • Halogen Lighting
    • Adjustable Utensil Bar
    • Aluminum Mesh Filters
    • Mechanical Slide Controls
    • Optional Recirculating Kit
    • Vertical or Horizontal Ducting

    Specifications

    UPC 646328089039
    BLOWER INCLUDED YES/NO yes
    INTERNAL BLOWER 1 CFM 400
    INTERNAL BLOWER 1 SONES 5
    CONTROLS TYPE Mechanical slide
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF no
    CLEANAIR FUNCTION no
    LIGHTS TYPE (INCLUDED) halogen
    LIGHTS QUANTITY 2
    WATTS PER BULB 50
    LIGHTS LEVELS 2
    FILTER TYPE mesh
    DUCT DISCHARGE vertical or horizontal
    DUCT SIZE, VERTICAL, INCHES 7, 3.25 x 10
    DUCT SIZE, HORIZONTAL, INCHES 3.25 x 10
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 32
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE 2
    NOMINAL WIDTH, INCHES 36
    NET WIDTH, INCHES 35.9375
    DEPTH, INCHES 21
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 7.375
    WEIGHT, LBS 31.3
    SHIPPING HEIGHT, INCHES 26.14
    SHIPPING WIDTH, INCHES 39.41
    SHIPPING LENGTH, INCHES 12.6
    SHIPPING WEIGHT, LBS 39.8
