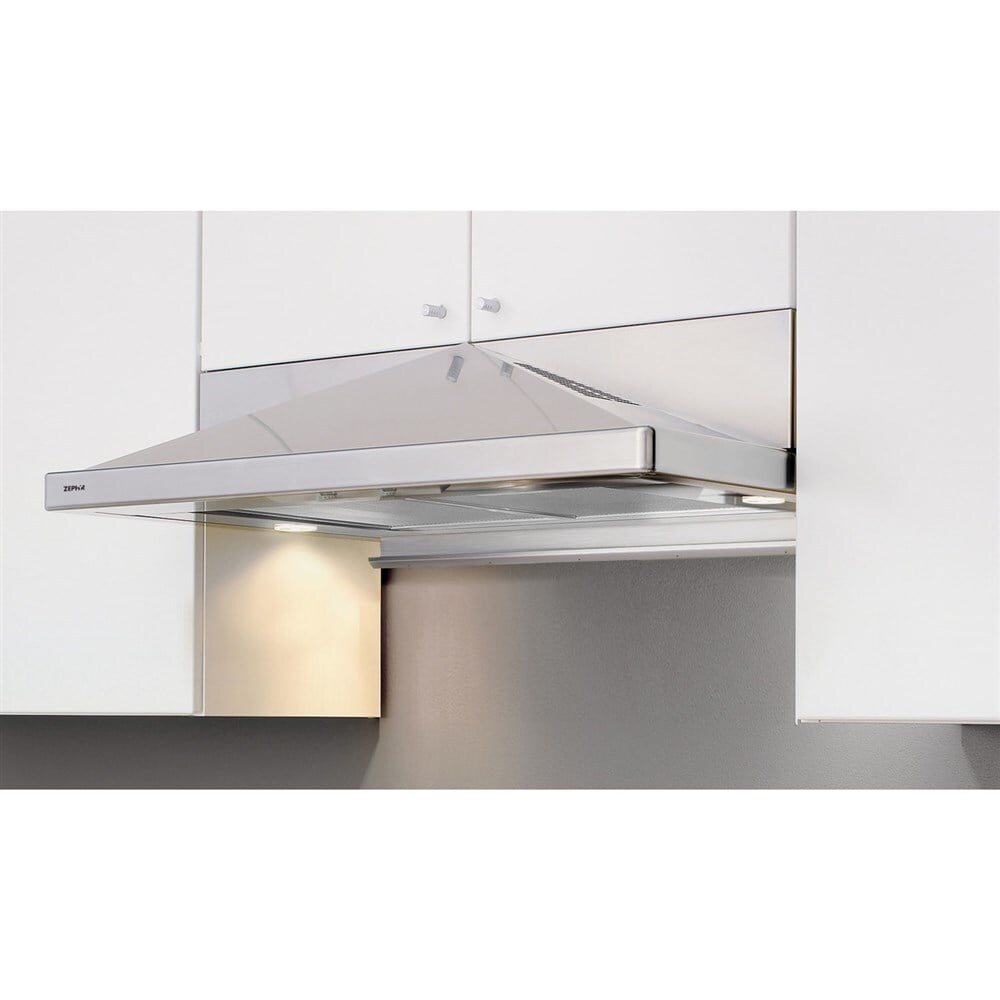

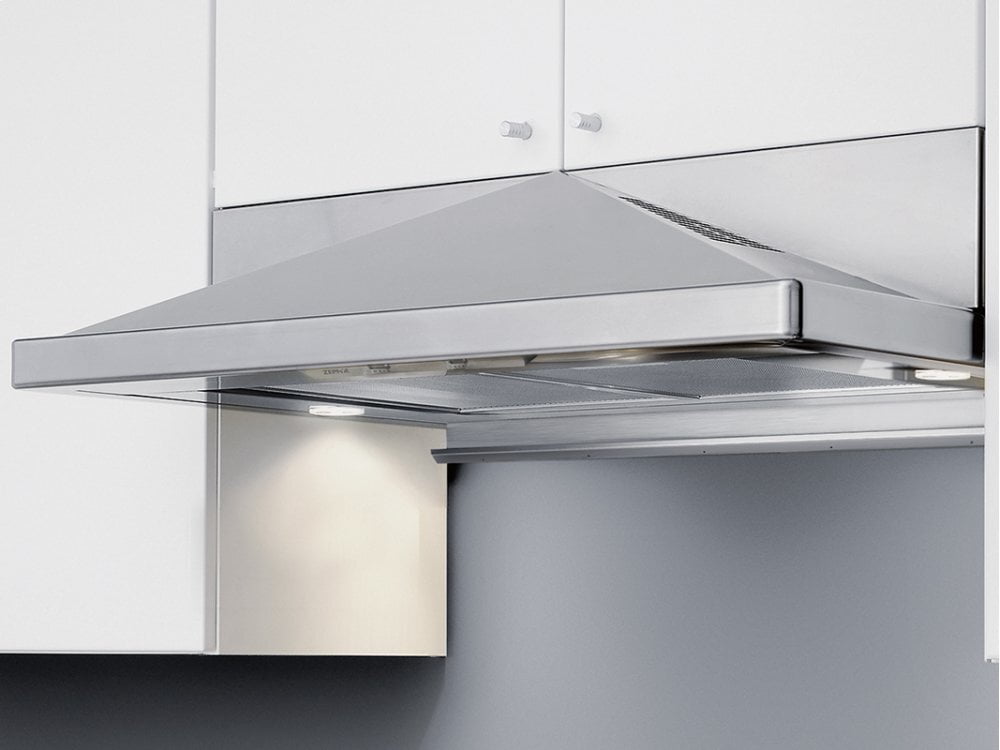

Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style Under-Cabinet Hood. This Expressive Yet Utilitarian Design Also Features An Adjustable Back-Panel Utensil Bar That Accommodates A Variety Of Cabinet Depths To Put Cooking Utensils Within Easy Reach. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
- 290 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 3.2
- Dual-Level Lighting
- Halogen Lighting
- Adjustable Utensil Bar

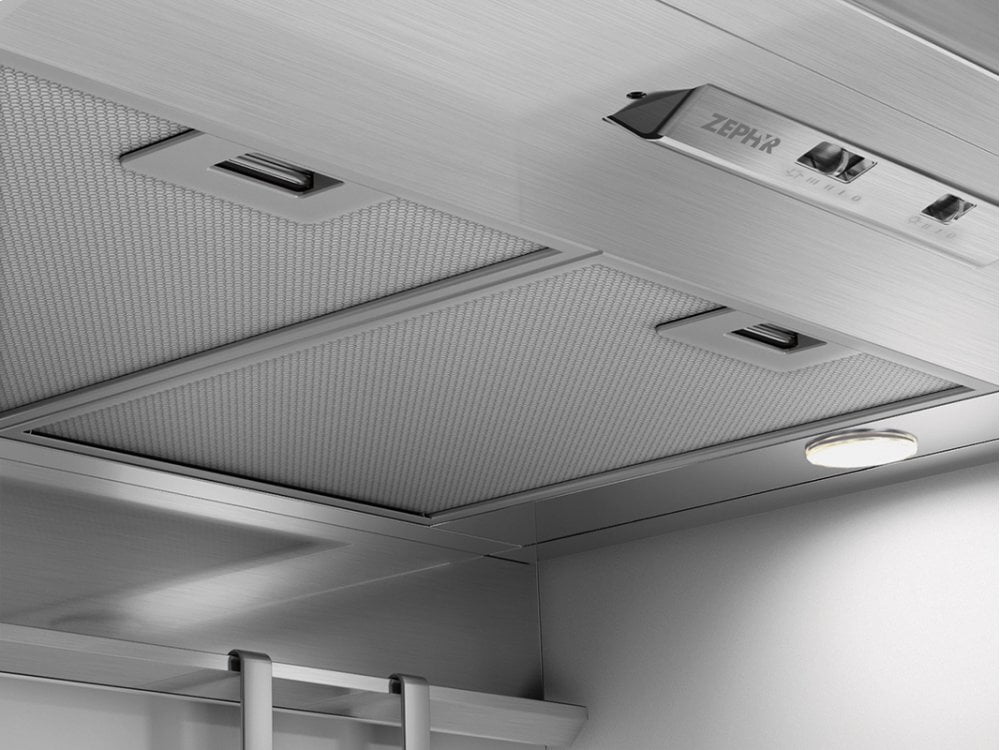

- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Vertical or Horizontal Ducting
UPC | 646328000683 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 290 |
INTERNAL BLOWER 1 SONES | 3.2 |
CONTROLS TYPE | Mechanical slide |
BLOWER SPEEDS | 3 |
AUTOMATIC DELAY-OFF | no |
CLEANAIR FUNCTION | no |
LIGHTS TYPE (INCLUDED) | halogen |
LIGHTS QUANTITY | 2 |
WATTS PER BULB | 50 |
LIGHTS LEVELS | 2 |
FILTER TYPE | mesh |
DUCT DISCHARGE | vertical or horizontal |
DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 2 |
NOMINAL WIDTH, INCHES | 30 |
NET WIDTH, INCHES | 29.9375 |
DEPTH, INCHES | 21 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
WEIGHT, LBS | 27.8 |
SHIPPING HEIGHT, INCHES | 26.14 |
SHIPPING WIDTH, INCHES | 34.13 |
SHIPPING LENGTH, INCHES | 12.6 |
SHIPPING WEIGHT, LBS | 35.5 |
Description
Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style Under-Cabinet Hood. This Expressive Yet Utilitarian Design Also Features An Adjustable Back-Panel Utensil Bar That Accommodates A Variety Of Cabinet Depths To Put Cooking Utensils Within Easy Reach. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
Features
- 290 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 3.2
- Dual-Level Lighting
- Halogen Lighting
- Adjustable Utensil Bar
- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Vertical or Horizontal Ducting
Specifications
UPC | 646328000683 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 290 |
INTERNAL BLOWER 1 SONES | 3.2 |
CONTROLS TYPE | Mechanical slide |
BLOWER SPEEDS | 3 |
AUTOMATIC DELAY-OFF | no |
CLEANAIR FUNCTION | no |
LIGHTS TYPE (INCLUDED) | halogen |
LIGHTS QUANTITY | 2 |
WATTS PER BULB | 50 |
LIGHTS LEVELS | 2 |
FILTER TYPE | mesh |
DUCT DISCHARGE | vertical or horizontal |
DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 2 |
NOMINAL WIDTH, INCHES | 30 |
NET WIDTH, INCHES | 29.9375 |
DEPTH, INCHES | 21 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
WEIGHT, LBS | 27.8 |
SHIPPING HEIGHT, INCHES | 26.14 |
SHIPPING WIDTH, INCHES | 34.13 |
SHIPPING LENGTH, INCHES | 12.6 |
SHIPPING WEIGHT, LBS | 35.5 |
