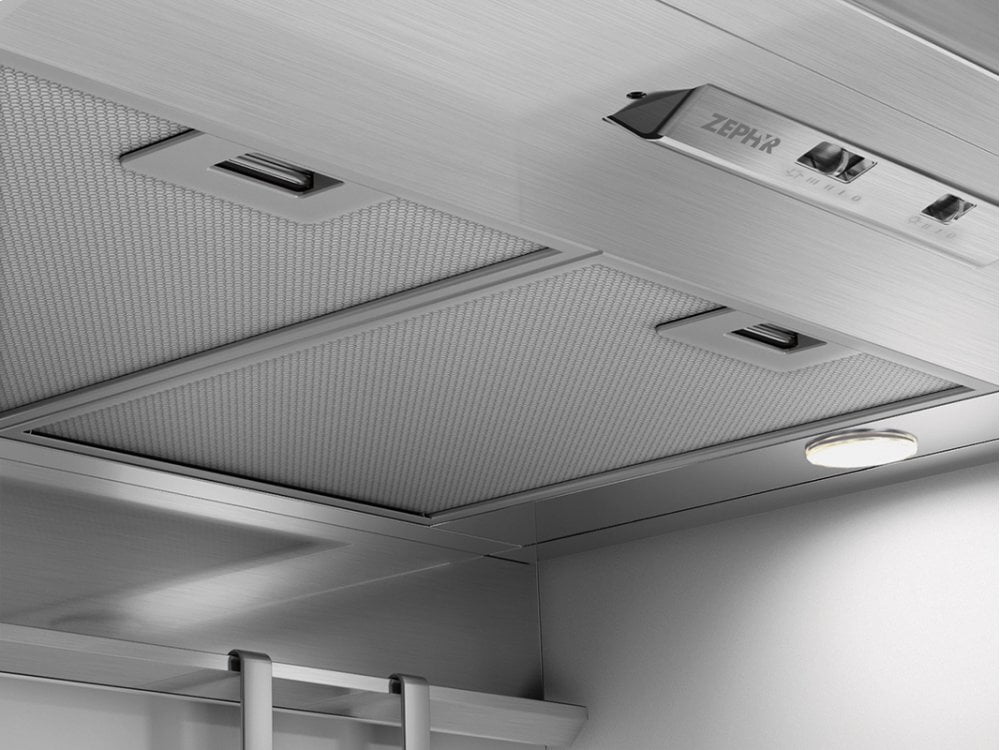

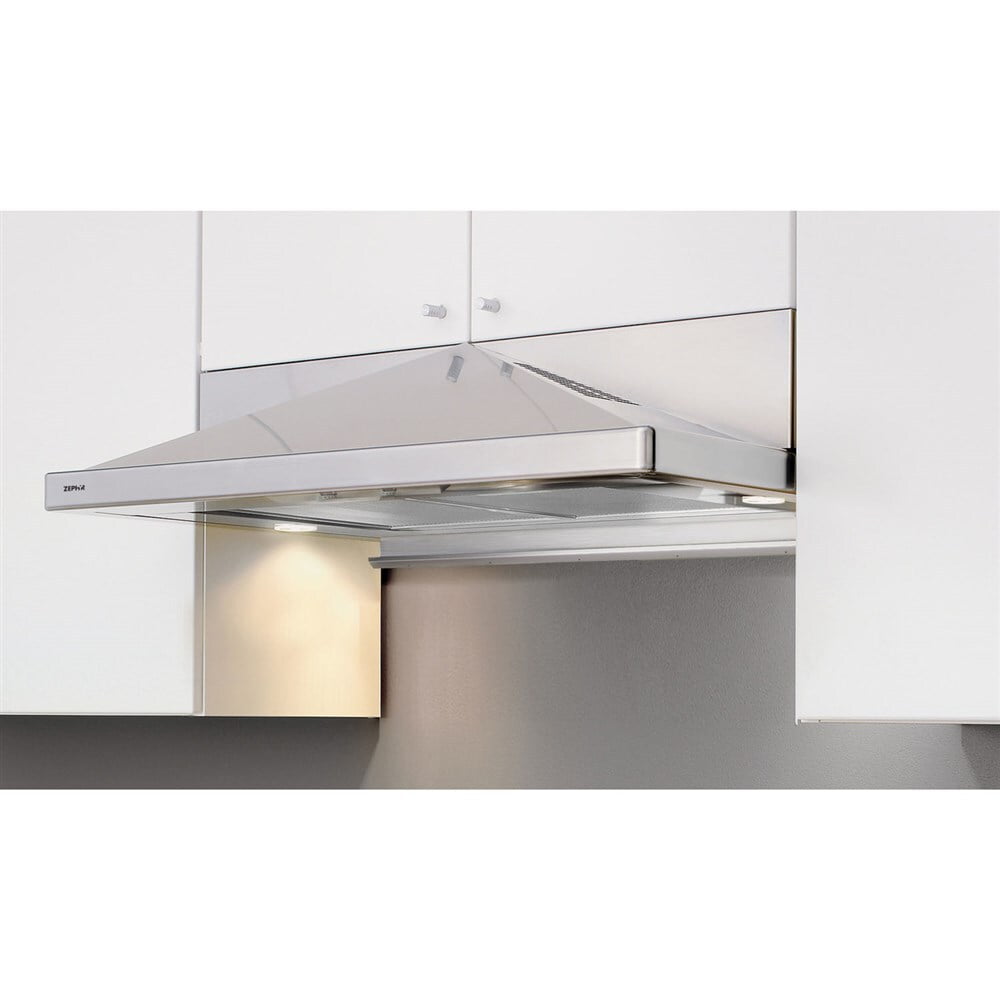

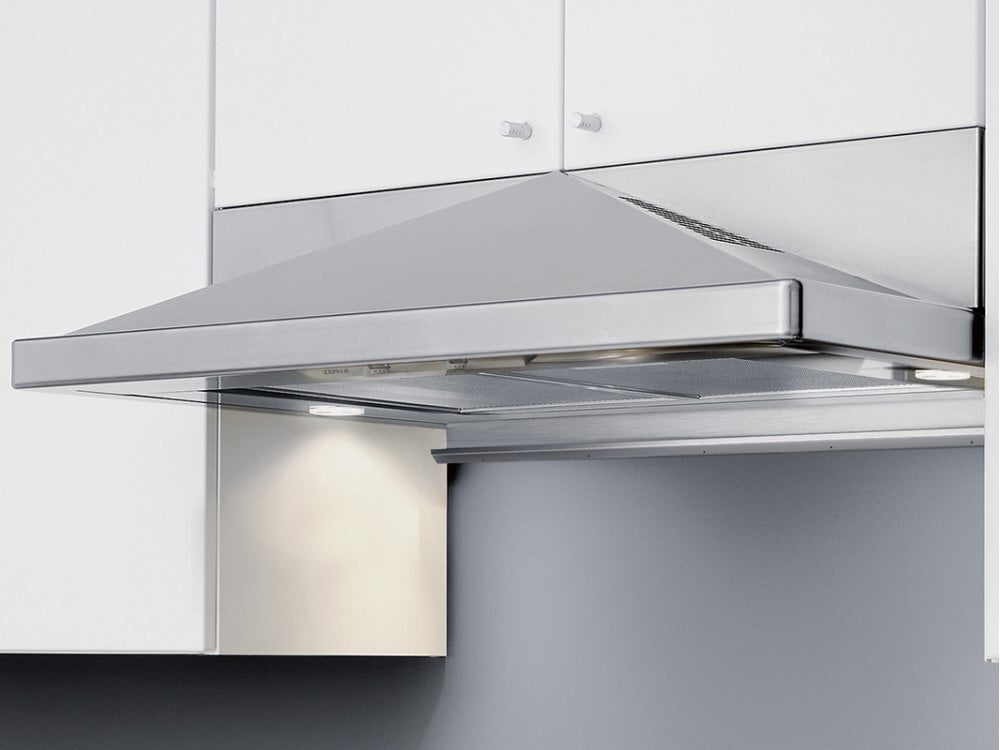

Zephyr ZPYE30AS 30" Pyramid Under-Cabinet
Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style U... Read more...
SKU:ZPYE30AS
UPC:646328080036
Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style Under-Cabinet Hood. This Expressive Yet Utilitarian Design Also Features An Adjustable Back-Panel Utensil Bar That Accommodates A Variety Of Cabinet Depths To Put Cooking Utensils Within Easy Reach. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
- 400 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Adjustable Utensil Bar
- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Vertical or Horizontal Ducting
| UPC | 646328080036 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 400 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 21 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
| WEIGHT, LBS | 27.9 |
| SHIPPING HEIGHT, INCHES | 26.14 |
| SHIPPING WIDTH, INCHES | 34.13 |
| SHIPPING LENGTH, INCHES | 12.6 |
| SHIPPING WEIGHT, LBS | 35.7 |
Description
Classic, Architectural Lines Meet At An Apex To Energize The Familiar Look Of The Chimney Style Under-Cabinet Hood. This Expressive Yet Utilitarian Design Also Features An Adjustable Back-Panel Utensil Bar That Accommodates A Variety Of Cabinet Depths To Put Cooking Utensils Within Easy Reach. New Control Configuration And 12" Depth Ensure Simple Operation And A True Fit With Popular Cabinet Styles.
Features
- 400 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Adjustable Utensil Bar
- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Vertical or Horizontal Ducting
Specifications
| UPC | 646328080036 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 400 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 21 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
| WEIGHT, LBS | 27.9 |
| SHIPPING HEIGHT, INCHES | 26.14 |
| SHIPPING WIDTH, INCHES | 34.13 |
| SHIPPING LENGTH, INCHES | 12.6 |
| SHIPPING WEIGHT, LBS | 35.7 |
