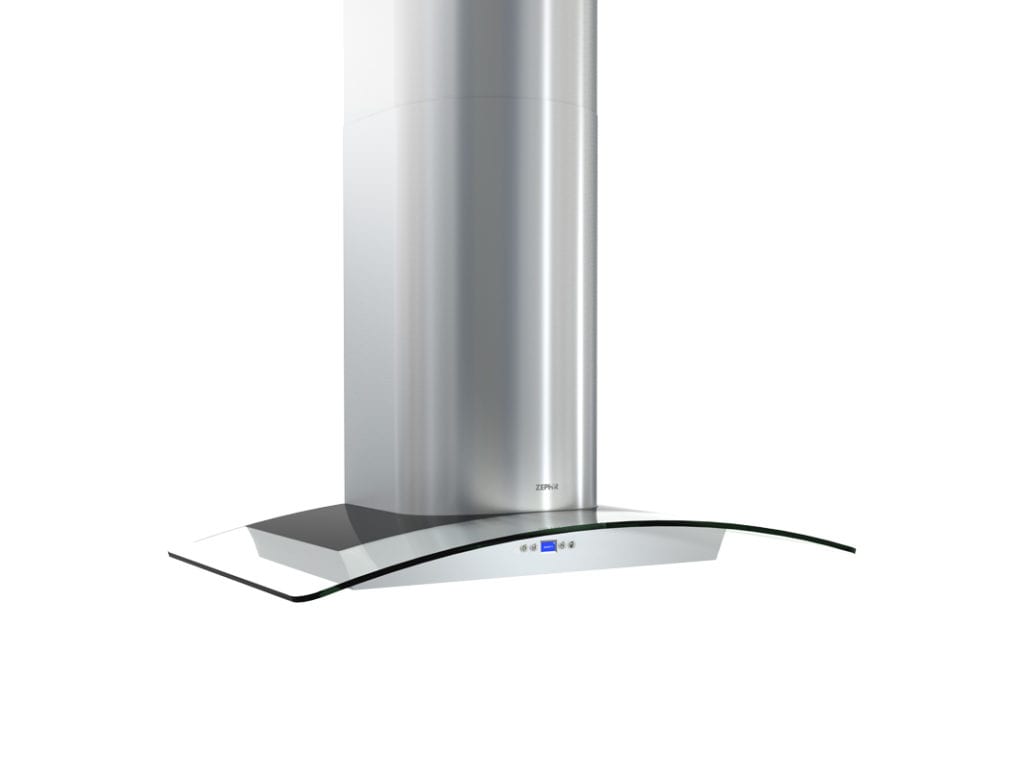

Zephyr ZMIM90BG 36" Milano Wall
One Of The Original Curved-Canopy Range Hoods, Milano Has Become An Icon By Virtue Of Its Timeles... Read more...
SKU:ZMIM90BG
UPC:646328001901
One Of The Original Curved-Canopy Range Hoods, Milano Has Become An Icon By Virtue Of Its Timeless Design. Including Zephyr'S Dcbl Suppression System®, Milano Takes Range Hood Design And Performance To Higher Grounds. Outfitted With Two Bloom™ Hd Led Light Bulbs And Electronic Lcd Controls, Milano Is As Relevant Today As It Was The Day We Introduced It In 2001. Canopies Available In Clear Glass And Stainless Steel.
- 290, 390, 590, 715 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 5.8
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- Airflow Control Technology(TM) (ACT(TM))
- Aluminum Mesh Filters
- CleanAir Function
- DCBL Suppression System(R)
- Electronic LCD Controls
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Optional Wireless Remote Control
- Ultra-Quiet Performance
| UPC | 646328001901 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 715 |
| BLOWER CFM w/ACT | 590, 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.8 |
| CONTROLS TYPE | Electronic LCD |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 4 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.1875 |
| DEPTH, INCHES | 20.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 26.5 - 50 |
| WEIGHT, LBS | 55.6 |
| SHIPPING HEIGHT, INCHES | 27.09 |
| SHIPPING WIDTH, INCHES | 38.9 |
| SHIPPING LENGTH, INCHES | 24.57 |
| SHIPPING WEIGHT, LBS | 75 |
Description
One Of The Original Curved-Canopy Range Hoods, Milano Has Become An Icon By Virtue Of Its Timeless Design. Including Zephyr'S Dcbl Suppression System®, Milano Takes Range Hood Design And Performance To Higher Grounds. Outfitted With Two Bloom™ Hd Led Light Bulbs And Electronic Lcd Controls, Milano Is As Relevant Today As It Was The Day We Introduced It In 2001. Canopies Available In Clear Glass And Stainless Steel.
Features
- 290, 390, 590, 715 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 5.8
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- Airflow Control Technology(TM) (ACT(TM))
- Aluminum Mesh Filters
- CleanAir Function
- DCBL Suppression System(R)
- Electronic LCD Controls
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Optional Wireless Remote Control
- Ultra-Quiet Performance
Specifications
| UPC | 646328001901 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 715 |
| BLOWER CFM w/ACT | 590, 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.8 |
| CONTROLS TYPE | Electronic LCD |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 4 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.1875 |
| DEPTH, INCHES | 20.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 26.5 - 50 |
| WEIGHT, LBS | 55.6 |
| SHIPPING HEIGHT, INCHES | 27.09 |
| SHIPPING WIDTH, INCHES | 38.9 |
| SHIPPING LENGTH, INCHES | 24.57 |
| SHIPPING WEIGHT, LBS | 75 |
