Zephyr ZGEE36AS 36" Genova Under-Cabinet

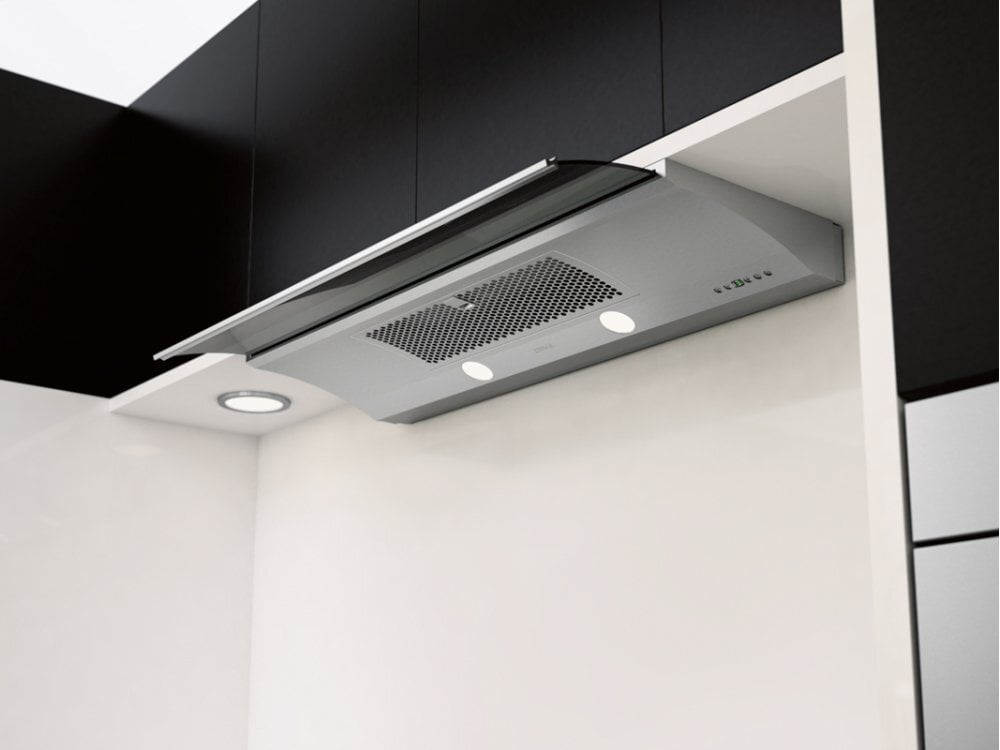

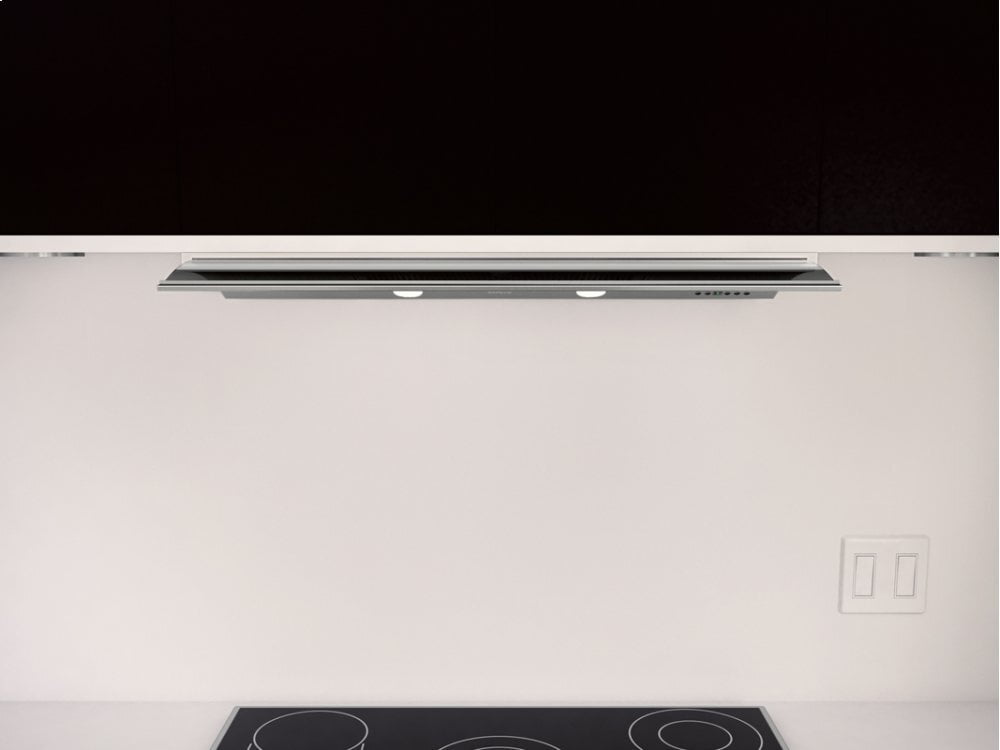

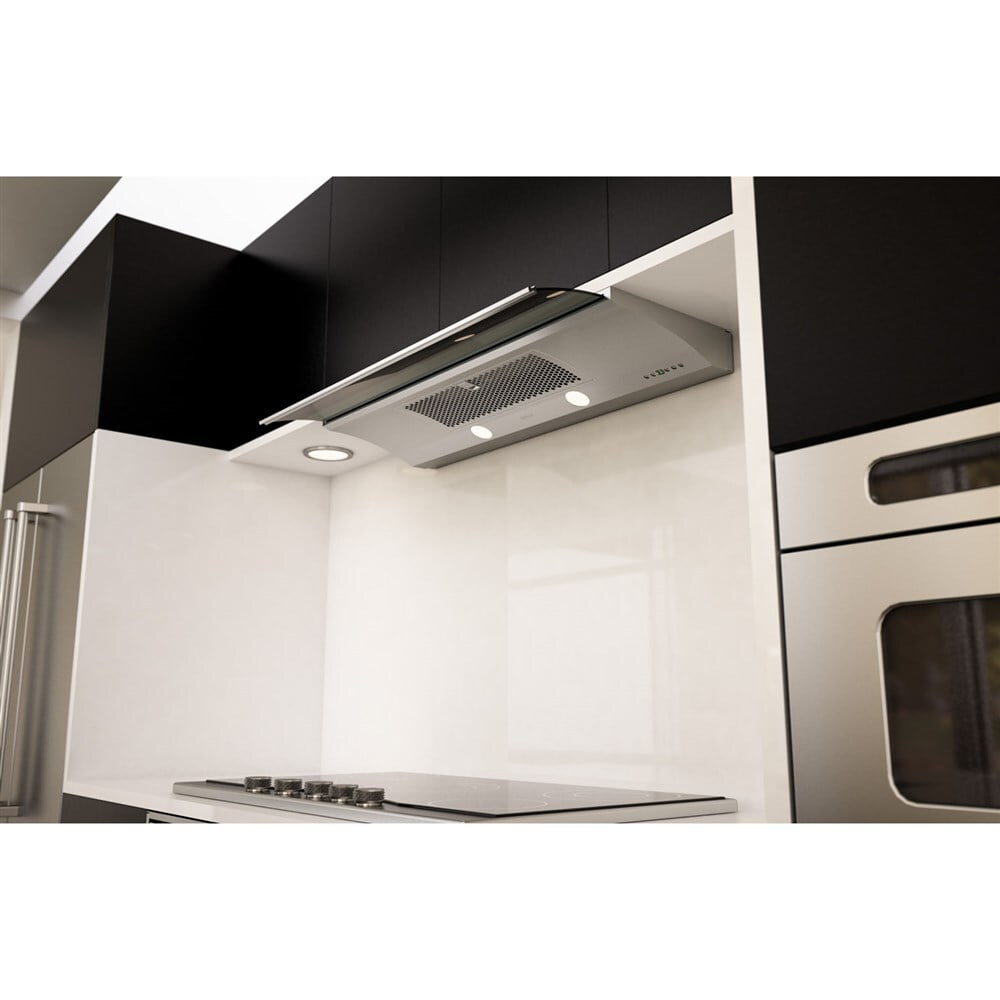

Tucked Neatly Beneath Your Bridge Cabinet, Genova Quietly Works Out Of Sight. With A Retractable Smoke-Gray Glass Visor That Controls The Hood S 500-Cfm Blower And Lights, The Genova'S Crescent-Like Body Delivers Stunning Design And Quality Performance. Available With An Optional Wireless Remote.
- 500 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 5
- Halogen Lighting
- Decorative Mesh Filters
- Electronic Touch Controls
- Optional Recirculating Kit
- Optional Make-Up Air Kit
- Optional Wireless Remote Control
| UPC | 646328000850 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 500 |
| INTERNAL BLOWER 1 SONES | 5.3 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | decorative mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 3.5 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.875 |
| DEPTH, INCHES | 11.25 - 17.25 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 3 |
| WEIGHT, LBS | 35.1 |
| SHIPPING HEIGHT, INCHES | 17.28 |
| SHIPPING WIDTH, INCHES | 40.24 |
| SHIPPING LENGTH, INCHES | 19.45 |
| SHIPPING WEIGHT, LBS | 45.3 |
