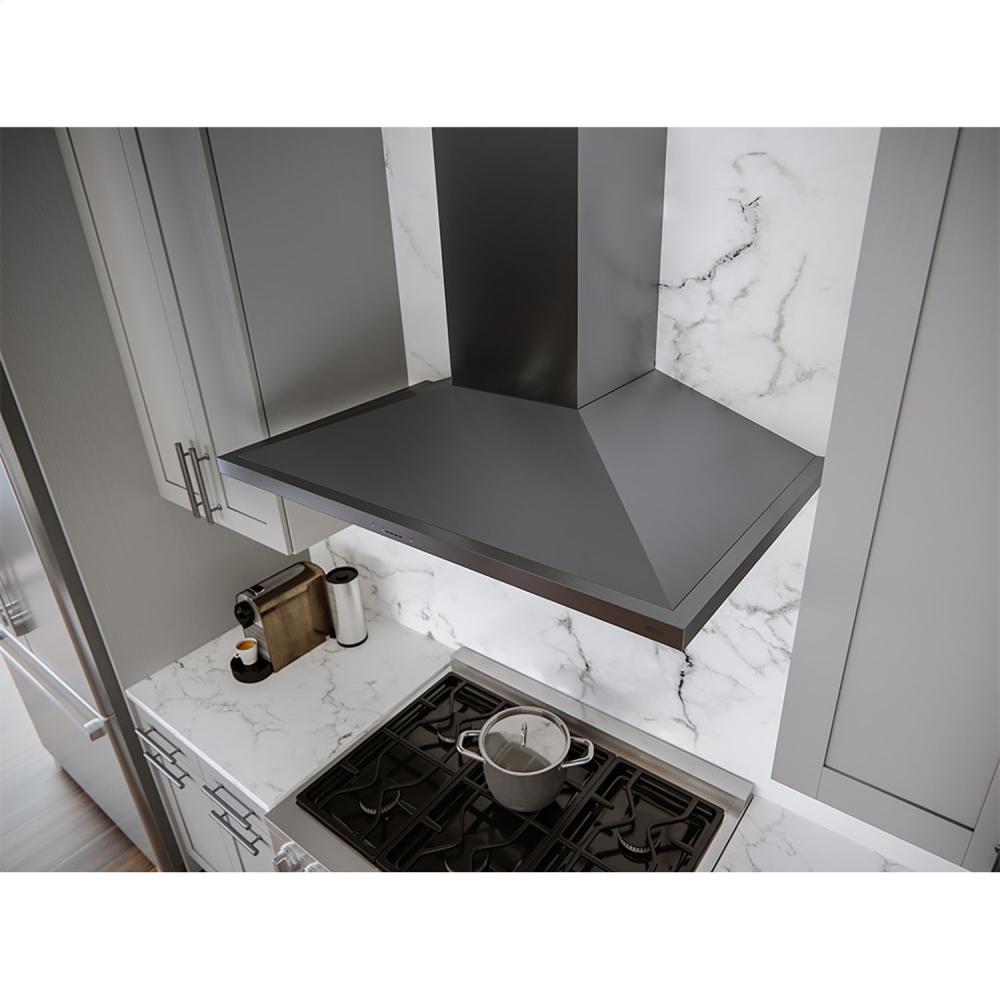

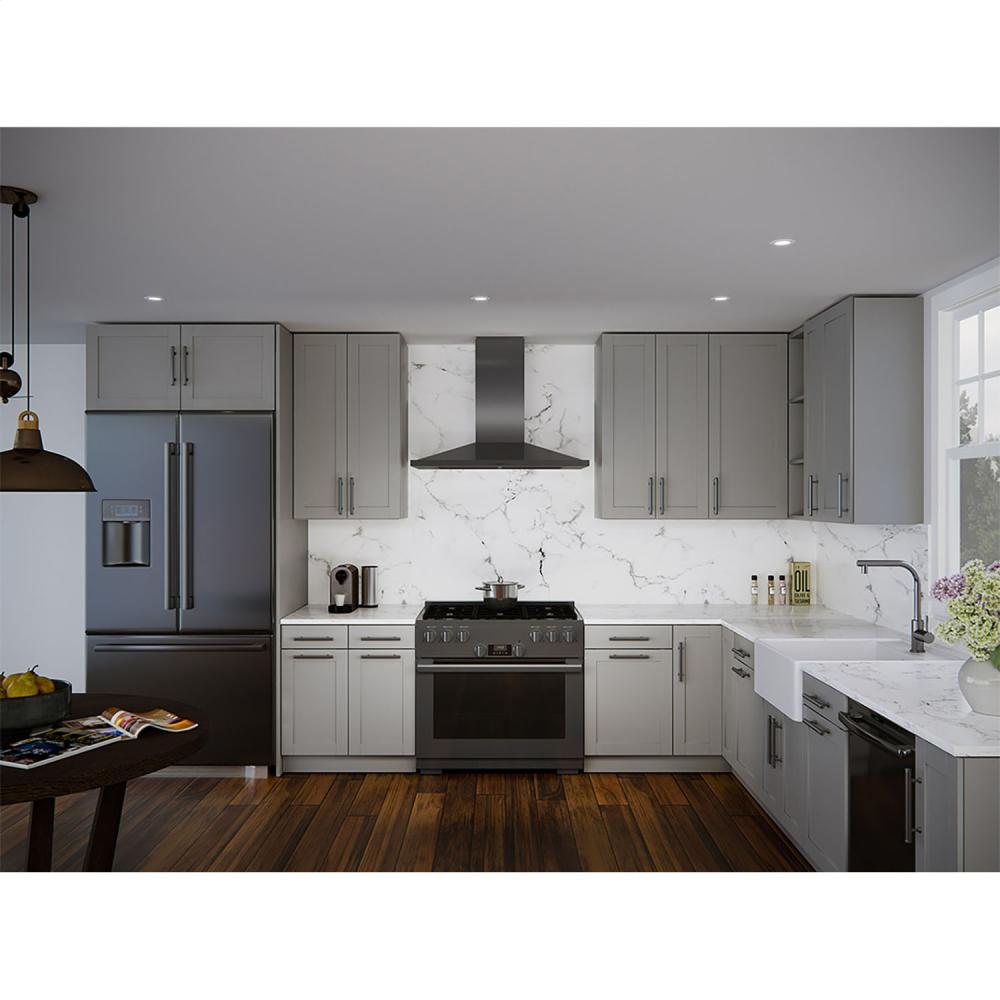

Zephyr ZANM90CBS 36-In. Anzio Chimney-Style Hood In Black Stainless
Anzio, A Low-Profile, Chimney-Style Range Hood That Will Add Style And Value To Any Kitchen. Avai... Read more...
SKU:ZANM90CBS
UPC:646328005312
Anzio, A Low-Profile, Chimney-Style Range Hood That Will Add Style And Value To Any Kitchen. Available In Stainless Steel And Titanium-Coated, Black-Stainless-Steel Finishes For Improved Durability And Easy Cleaning. Complete With A 600 Cfm Blower, Icon Touch® Controls, Britestrip™ Led Lighting And Our Exclusive Airflow Control Technology™ (Act™). Now Available In A 24" Width.
- 290, 390, 600 CFM
- Recirculating
- Mesh Filter
- Black Stainless Steel
- Vertical Ducting
- Max Sones 6
- Dual-Level Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Aluminum Mesh Filters
- BriteStrip(TM) LED Lighting
- ICON Touch(R) Controls
- Low-Profile Body
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Essentials series Anzio wall range hood
- 36-in. chimney-style range hood
- Five powerful speed levels
- 200-600 CFM standard internal blower
- Internal blower with ACT (Airflow Control Technology) CFM: 390, 290
- Internal blower sones: 1-6
- Two aluminum mesh filters, now larger for improved capture
- ICON Touch controls
- BriteStrip(TM) LED Light x1
- Auto delay-off
- Recirculating option
- Mounting height: 26" - 34"
- Internal blower - vertical: 6" round
- Black Stainless color is titanium coated for extra durability and does not oxidize
- Anti-smudge coating for easy cleaning
- PVD process provides a uniform and durable coating that is eco-friendly; no harsh chemicals are used
| UPC | 646328005312 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 600 |
| BLOWER CFM w/ACT | 390, 290 |
| INTERNAL BLOWER 1 SONES | 6 |
| CONTROLS TYPE | ICON Touch® |
| BLOWER SPEEDS | 5 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 9 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 5 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.4375 |
| DEPTH, INCHES | 22.0625 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 27 - 48.5 |
| WEIGHT, LBS | 38.1 |
| SHIPPING HEIGHT, INCHES | 27.36 |
| SHIPPING WIDTH, INCHES | 39.49 |
| SHIPPING LENGTH, INCHES | 23.62 |
| SHIPPING WEIGHT, LBS | 55.8 |
Description
Anzio, A Low-Profile, Chimney-Style Range Hood That Will Add Style And Value To Any Kitchen. Available In Stainless Steel And Titanium-Coated, Black-Stainless-Steel Finishes For Improved Durability And Easy Cleaning. Complete With A 600 Cfm Blower, Icon Touch® Controls, Britestrip™ Led Lighting And Our Exclusive Airflow Control Technology™ (Act™). Now Available In A 24" Width.
Features
- 290, 390, 600 CFM
- Recirculating
- Mesh Filter
- Black Stainless Steel
- Vertical Ducting
- Max Sones 6
- Dual-Level Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Aluminum Mesh Filters
- BriteStrip(TM) LED Lighting
- ICON Touch(R) Controls
- Low-Profile Body
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- Essentials series Anzio wall range hood
- 36-in. chimney-style range hood
- Five powerful speed levels
- 200-600 CFM standard internal blower
- Internal blower with ACT (Airflow Control Technology) CFM: 390, 290
- Internal blower sones: 1-6
- Two aluminum mesh filters, now larger for improved capture
- ICON Touch controls
- BriteStrip(TM) LED Light x1
- Auto delay-off
- Recirculating option
- Mounting height: 26" - 34"
- Internal blower - vertical: 6" round
- Black Stainless color is titanium coated for extra durability and does not oxidize
- Anti-smudge coating for easy cleaning
- PVD process provides a uniform and durable coating that is eco-friendly; no harsh chemicals are used
Specifications
| UPC | 646328005312 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 600 |
| BLOWER CFM w/ACT | 390, 290 |
| INTERNAL BLOWER 1 SONES | 6 |
| CONTROLS TYPE | ICON Touch® |
| BLOWER SPEEDS | 5 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 9 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 5 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.4375 |
| DEPTH, INCHES | 22.0625 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 27 - 48.5 |
| WEIGHT, LBS | 38.1 |
| SHIPPING HEIGHT, INCHES | 27.36 |
| SHIPPING WIDTH, INCHES | 39.49 |
| SHIPPING LENGTH, INCHES | 23.62 |
| SHIPPING WEIGHT, LBS | 55.8 |
