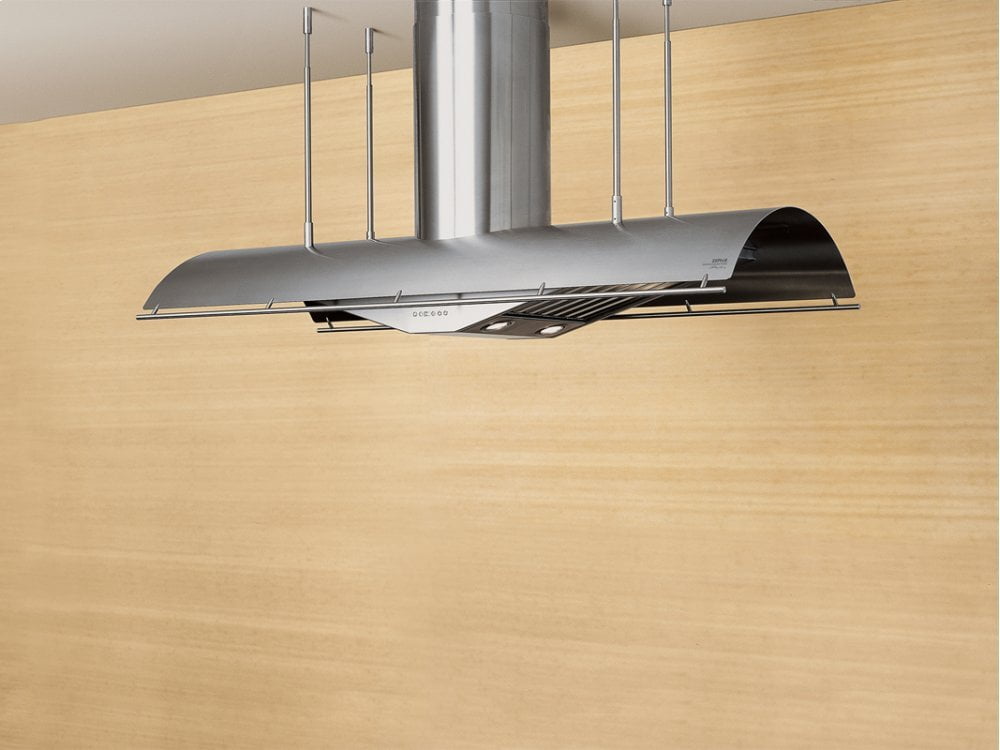

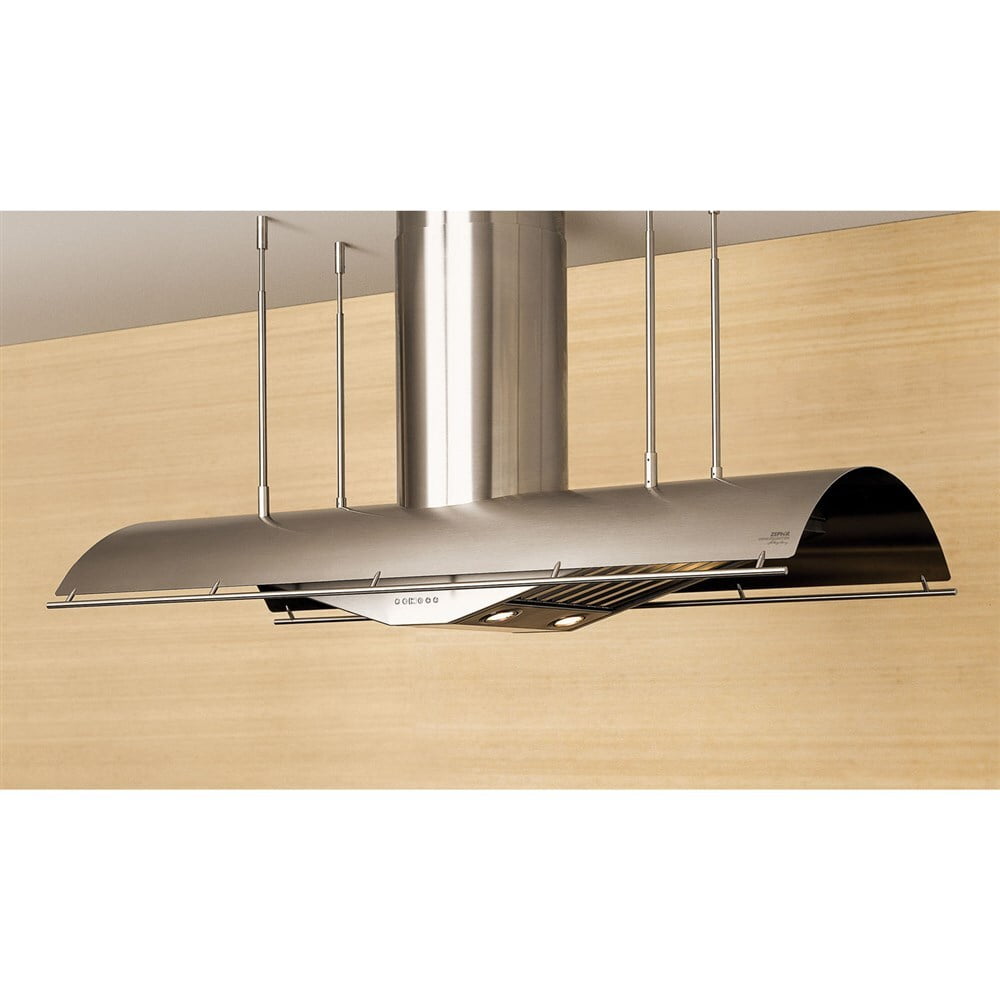

Zephyr CTPE54BSX 54" Trapeze Island
Our First Island Range Hood, The Light And Airy Trapeze Is A Streamlined Reprieve From Its Bulky,... Read more...
SKU:CTPE54BSX
UPC:646328003530
Our First Island Range Hood, The Light And Airy Trapeze Is A Streamlined Reprieve From Its Bulky, Conventional Counterparts. Using A Sleek Suspension Structure, The Trapeze Seems To Float In Midair. Now Featuring The Most Advanced Bloom™ Hd Led Lighting And A Graceful, Slow-Curve Canopy, The Trapeze Is More Than A Focal Point-It'S A Statement.
- 290, 600, 1000 CFM
- Not Recirculating
- Pro Baffle Filter
- Stainless Steel
- Vertical Ducting
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- CleanAir Function
- Directional Lighting
- Electronic Touch Controls
- Multiple Blower Options
- Optional Duct Cover Extension Kit
- Optional Wireless Remote Control
- Professional Baffle Filters
| UPC | 646328003530 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 4 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 54 |
| NET WIDTH, INCHES | 54 |
| DEPTH, INCHES | 26.625 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 34 - 52 |
| WEIGHT, LBS | 88 |
| SHIPPING HEIGHT, INCHES | 29.72 |
| SHIPPING WIDTH, INCHES | 57.87 |
| SHIPPING LENGTH, INCHES | 27.75 |
| SHIPPING WEIGHT, LBS | 121 |
Description
Our First Island Range Hood, The Light And Airy Trapeze Is A Streamlined Reprieve From Its Bulky, Conventional Counterparts. Using A Sleek Suspension Structure, The Trapeze Seems To Float In Midair. Now Featuring The Most Advanced Bloom™ Hd Led Lighting And A Graceful, Slow-Curve Canopy, The Trapeze Is More Than A Focal Point-It'S A Statement.
Features
- 290, 600, 1000 CFM
- Not Recirculating
- Pro Baffle Filter
- Stainless Steel
- Vertical Ducting
- Dual-Level Lighting
- Bloom(TM) HD LED Light Bulbs
- CleanAir Function
- Directional Lighting
- Electronic Touch Controls
- Multiple Blower Options
- Optional Duct Cover Extension Kit
- Optional Wireless Remote Control
- Professional Baffle Filters
Specifications
| UPC | 646328003530 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | Bloom™ HD LED |
| LIGHTS QUANTITY | 4 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 54 |
| NET WIDTH, INCHES | 54 |
| DEPTH, INCHES | 26.625 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 34 - 52 |
| WEIGHT, LBS | 88 |
| SHIPPING HEIGHT, INCHES | 29.72 |
| SHIPPING WIDTH, INCHES | 57.87 |
| SHIPPING LENGTH, INCHES | 27.75 |
| SHIPPING WEIGHT, LBS | 121 |
