Home > Zephyr CTPE48BSX 48" Trapeze Island
  • Zephyr CTPE48BSX 48
  • Zephyr CTPE48BSX 48
  • Zephyr CTPE48BSX 48
  • Zephyr CTPE48BSX 48
  • Zephyr CTPE48BSX 48" Trapeze Island

    Our First Island Range Hood, The Light And Airy Trapeze Is A Streamlined Reprieve From Its Bulky,... Read more...

    Click to Call

    To order or learn more please call us at: 800-288-1647

    When Will I Get My Order?

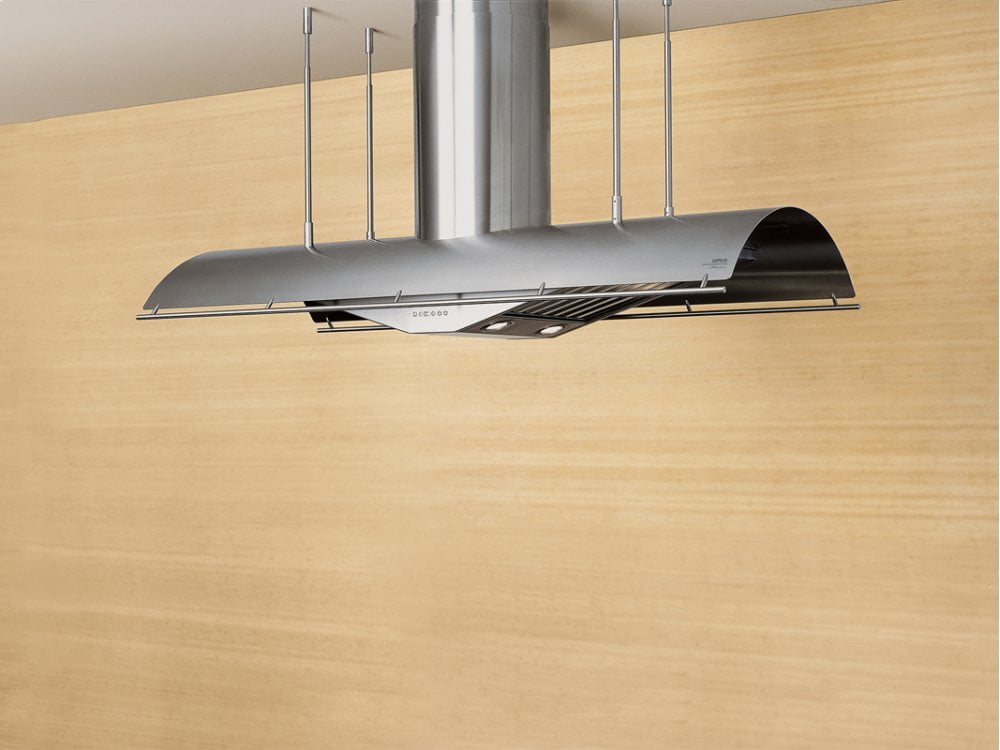

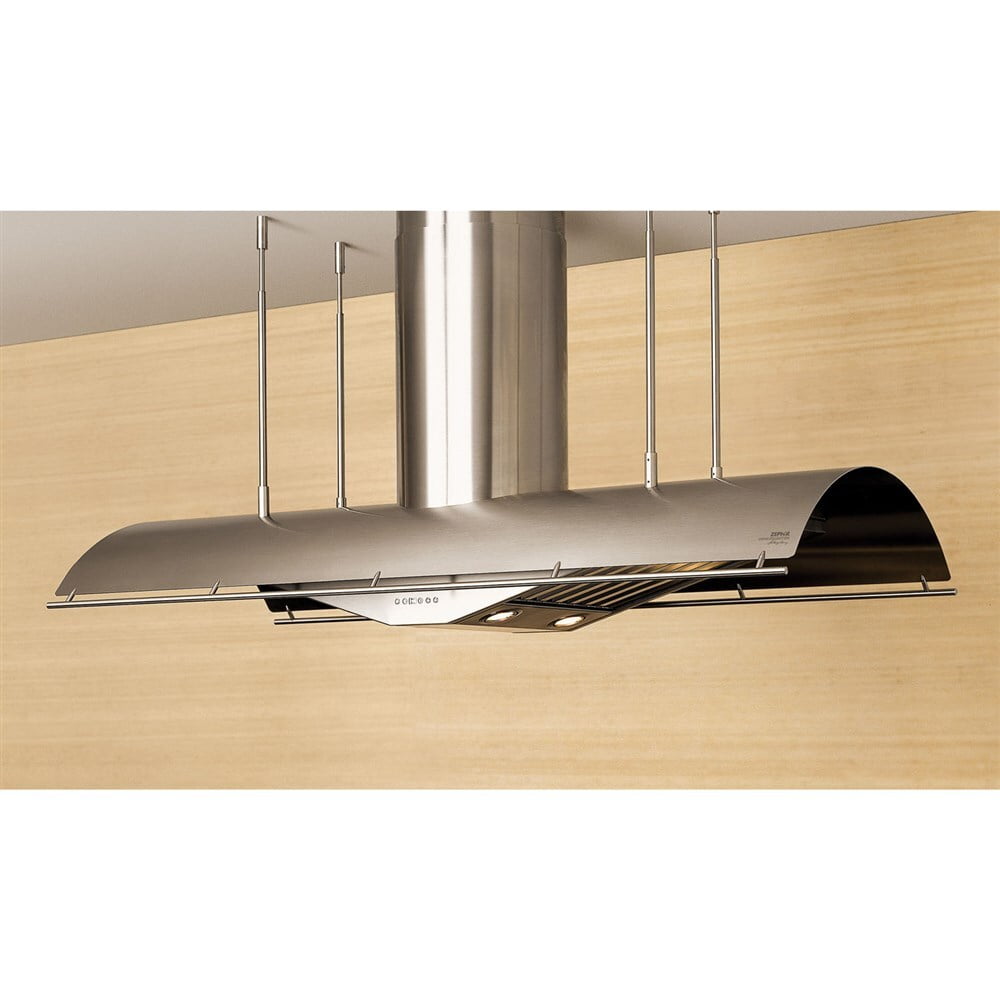

    Our First Island Range Hood, The Light And Airy Trapeze Is A Streamlined Reprieve From Its Bulky, Conventional Counterparts. Using A Sleek Suspension Structure, The Trapeze Seems To Float In Midair. Now Featuring The Most Advanced Bloom™ Hd Led Lighting And A Graceful, Slow-Curve Canopy, The Trapeze Is More Than A Focal Point-It'S A Statement.
    • 290, 600, 1000 CFM
    • Not Recirculating
    • Pro Baffle Filter
    • Stainless Steel
    • Vertical Ducting
    • Dual-Level Lighting
    • Bloom(TM) HD LED Light Bulbs
    • CleanAir Function
    • Directional Lighting
    • Electronic Touch Controls
    • Multiple Blower Options
    • Optional Duct Cover Extension Kit
    • Optional Wireless Remote Control
    • Professional Baffle Filters
    UPC 646328003523
    BLOWER INCLUDED YES/NO no
    INTERNAL BLOWER 1 CFM 290
    INTERNAL BLOWER 2 CFM 600
    IN-LINE BLOWER CFM 1000
    EXTERNAL BLOWER CFM 1000
    INTERNAL BLOWER 1 SONES 3
    INTERNAL BLOWER 2 SONES 6
    CONTROLS TYPE Electronic
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF yes
    CLEANAIR FUNCTION no
    LIGHTS TYPE (INCLUDED) Bloom™ HD LED
    LIGHTS QUANTITY 4
    WATTS PER BULB 6
    LIGHTS LEVELS 2
    FILTER TYPE pro baffle
    DUCT DISCHARGE vertical
    DUCT SIZE, VERTICAL, INCHES 8
    DUCT SIZE, HORIZONTAL, INCHES NA
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE depends on blower
    NOMINAL WIDTH, INCHES 48
    NET WIDTH, INCHES 48
    DEPTH, INCHES 26.625
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 34 - 52
    WEIGHT, LBS 84
    SHIPPING HEIGHT, INCHES 29.72
    SHIPPING WIDTH, INCHES 51.97
    SHIPPING LENGTH, INCHES 27.75
    SHIPPING WEIGHT, LBS 116

    Description

    Our First Island Range Hood, The Light And Airy Trapeze Is A Streamlined Reprieve From Its Bulky, Conventional Counterparts. Using A Sleek Suspension Structure, The Trapeze Seems To Float In Midair. Now Featuring The Most Advanced Bloom™ Hd Led Lighting And A Graceful, Slow-Curve Canopy, The Trapeze Is More Than A Focal Point-It'S A Statement.

    Features

    • 290, 600, 1000 CFM
    • Not Recirculating
    • Pro Baffle Filter
    • Stainless Steel
    • Vertical Ducting
    • Dual-Level Lighting
    • Bloom(TM) HD LED Light Bulbs
    • CleanAir Function
    • Directional Lighting
    • Electronic Touch Controls
    • Multiple Blower Options
    • Optional Duct Cover Extension Kit
    • Optional Wireless Remote Control
    • Professional Baffle Filters

    Specifications

    UPC 646328003523
    BLOWER INCLUDED YES/NO no
    INTERNAL BLOWER 1 CFM 290
    INTERNAL BLOWER 2 CFM 600
    IN-LINE BLOWER CFM 1000
    EXTERNAL BLOWER CFM 1000
    INTERNAL BLOWER 1 SONES 3
    INTERNAL BLOWER 2 SONES 6
    CONTROLS TYPE Electronic
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF yes
    CLEANAIR FUNCTION no
    LIGHTS TYPE (INCLUDED) Bloom™ HD LED
    LIGHTS QUANTITY 4
    WATTS PER BULB 6
    LIGHTS LEVELS 2
    FILTER TYPE pro baffle
    DUCT DISCHARGE vertical
    DUCT SIZE, VERTICAL, INCHES 8
    DUCT SIZE, HORIZONTAL, INCHES NA
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE depends on blower
    NOMINAL WIDTH, INCHES 48
    NET WIDTH, INCHES 48
    DEPTH, INCHES 26.625
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 34 - 52
    WEIGHT, LBS 84
    SHIPPING HEIGHT, INCHES 29.72
    SHIPPING WIDTH, INCHES 51.97
    SHIPPING LENGTH, INCHES 27.75
    SHIPPING WEIGHT, LBS 116
