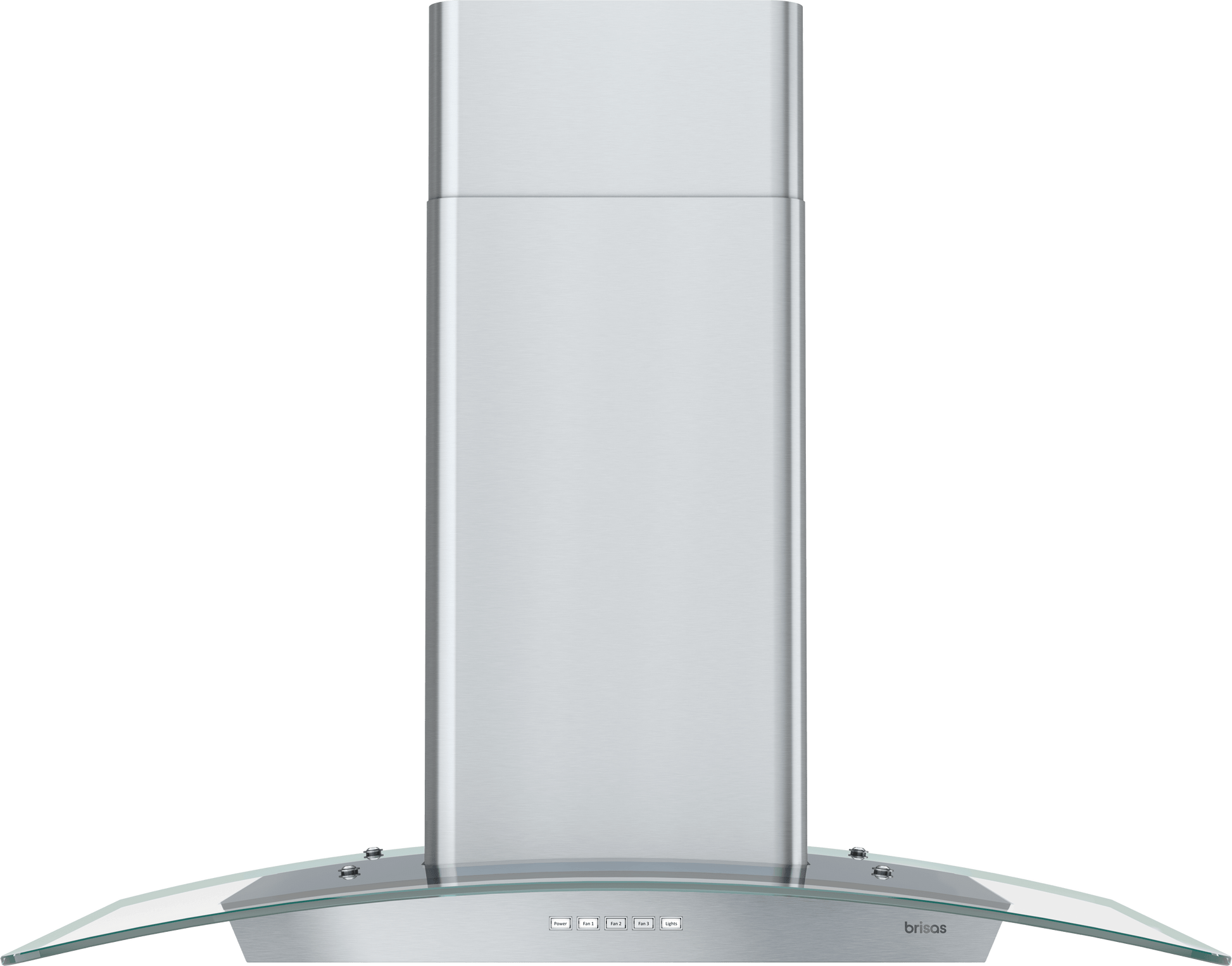

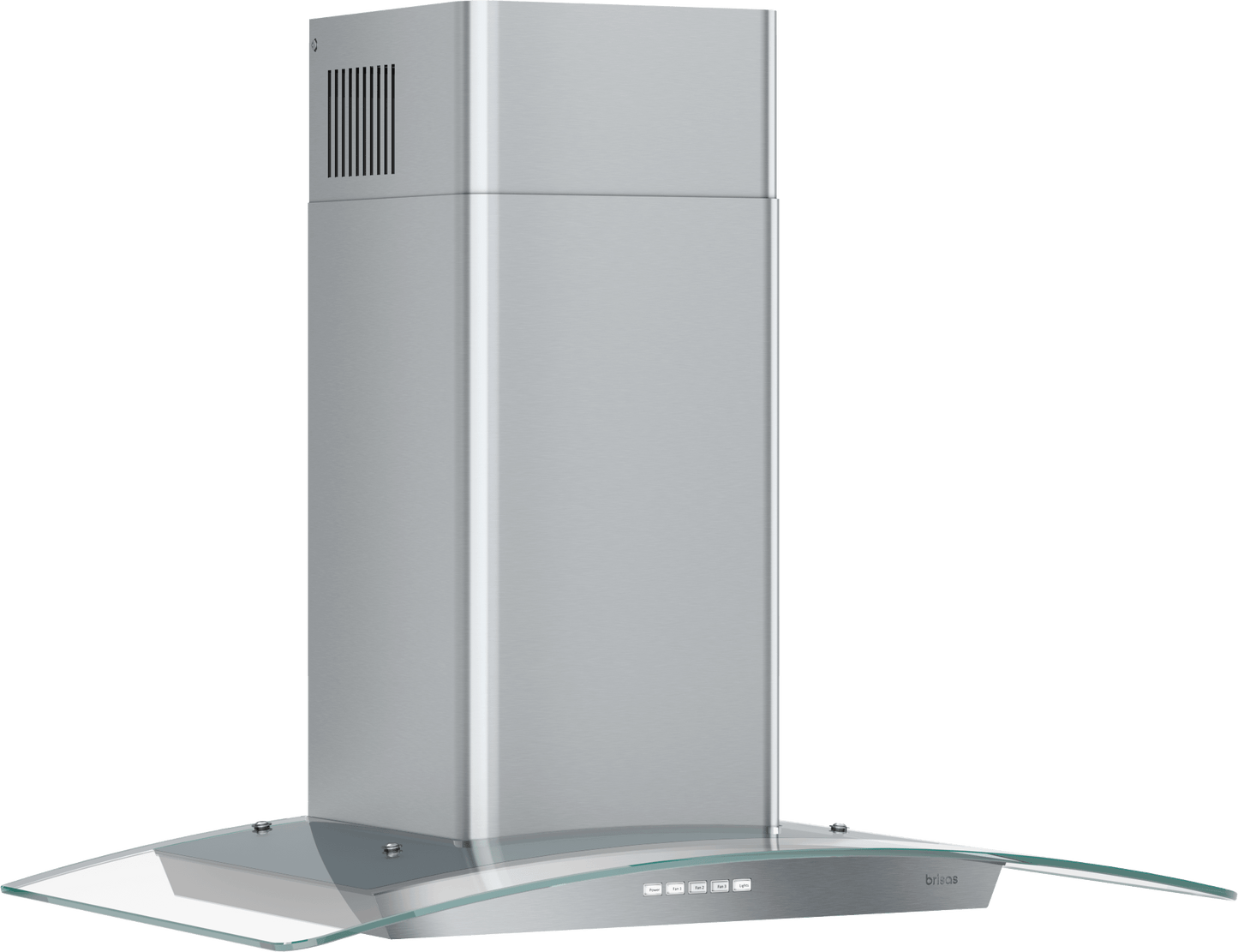

Zephyr BMIE30DG Brisas Curved Glass Wall, 30" G, Act, Led
Zephyr BMIE30DG Brisas Curved Glass Wall, 30" G, Act, Led
SKU: BMIE30DG
UPC: 646328012556
Colors:
Stainless Steelx
Installation and Removal
x
List Price: $749.00
Our Price: $649.00
You save:
$100.00 (13%)
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$239.005 year plan
$299.00
Available to order
If a product is marked as "Available to order," it’s either on the way to our warehouse or ready to ship from a vendor. Once in stock, we aim to process and ship orders within 24–48 business hours and will keep you updated along the way.
Couldn't load pickup availability
x
Installation and Removal
x
When Will I Get My Order?
x
Zephyr BMIE30DG Brisas Curved Glass Wall, 30" G, Act, Led
Brisas Curved Glass Wall, 30" G, Act, Led

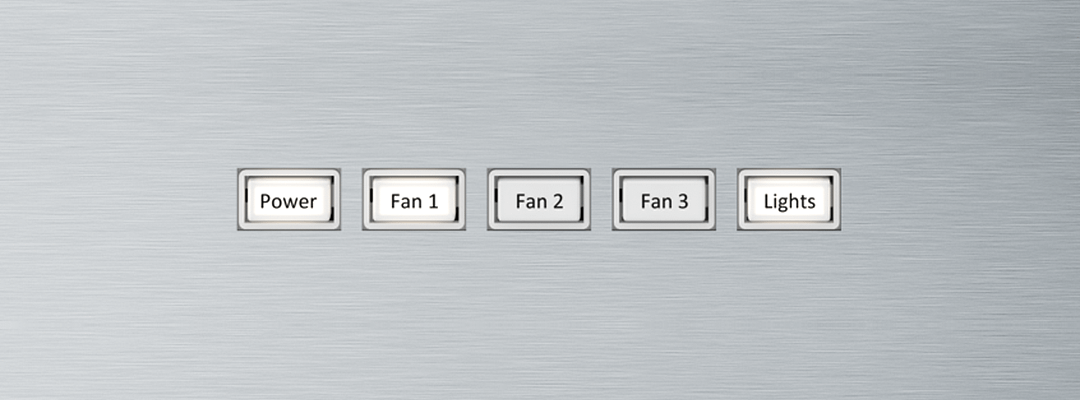

- Electronic Touch Controls
- Airflow Control Technology™ (ACT™)
- LumiLight LED Lighting
- Dishwasher Safe Aluminum Mesh Filters
- Dual-Level Lighting
- Optional Ductless Recirculating Kit
- Optional Extension Duct Cover Kit
| Brand | Brisas by Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Convertible |
| UPC | 646328012556 |
| GTIN | 00646328012556 |
| Country of Origin | Taiwan |
| Model Group | BMI-D |
| Model Name | Brisas BMI |
| Collection | Brisas |
| Blower Included | Yes |
| Blower CFM w/ACT | 390, 290 |
| Internal Blower 1 CFM | 600 |
| Internal Blower 1 Max Sones | 6 |
| Minimum CFM | 290 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel + Glass |
| Controls Type | Electronic |
| Blower Speeds | 3 |
| Automatic Delay-Off | Yes |
| Clean Air Function | No |
| Lighting Type | LED |
| Lights Quantity | 1 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Mesh |
| Compatible Mesh or Baffle Filter Part Number | 50200071 |
| Duct Discharge | Vertical |
| Duct Size; Vertical; IN | 6 |
| Mounting Height Above Cooktop; IN | 24 - 34 |
| Voltage | 120 |
| Maximum Amperage | 2.6 |
| ADA Compliant | No |
| Warranty Parts / Labor | 1 / 1 |
| Compatible Appliances | BRC-0106, B1C-00MI |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | No |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 320 |
| Certification | UL |
| Nominal Width; IN | 30 |
| Net Width; IN | 29.9375 |
| Net Depth; IN | 19.75 |
| Net Height; IN | 23 - 42 |
| Weight; LBS | 47 |
| Shipping Length; IN | 40 |
| Shipping Width; IN | 19 |
| Shipping Height; IN | 25 |
| Shipping Weight; LBS | 47 |
| Shipping Method | PARCEL |
| Freight Class | 150 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
