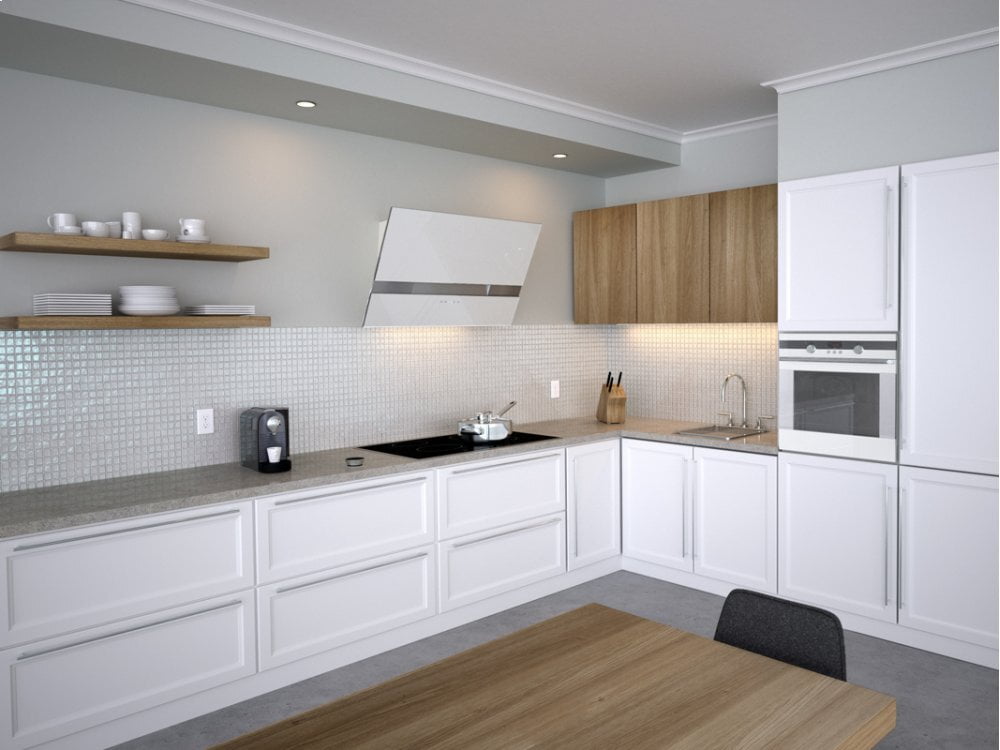

Zephyr AWAM90AWX 36" Wave Wall
The Wave Looks Great With Any Number Of Decor Styles, From Transitional To Modern, And The Elegan... Read more...
SKU:AWAM90AWX
UPC:646328004346
The Wave Looks Great With Any Number Of Decor Styles, From Transitional To Modern, And The Elegant Tilt Lends A Slim Profile To This Kitchen Workhorse. Ingenious Dual Capture Zones Ensure A Smoke And Debris-Free Kitchen. Offering A Glowing Tri-Level Led Light Strip, And A Choice Of Black Or White Glass And An Optional Duct Cover, The Wave Is A True Kitchen Classic.
- 290, 600, 1000 CFM
- Recirculating
- Mesh Filter
- White
- Vertical and Horizontal Ducting
- Max Sones 6
- Tri-level Lighting
- Aluminum Mesh Filters
- Capacitive Touch Controls
- CleanAir Function
- Dual Capture Zones
- Includes Wireless Remote Control
- LED Light Strip
- Multiple Blower Options
- Multiple Color Options
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
| UPC | 646328004346 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Capacitive touch |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 8.5 |
| LIGHTS LEVELS | 3 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 6, 8 |
| DUCT SIZE, HORIZONTAL, INCHES | 6, 8 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 22 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 25 |
| NET WIDTH, INCHES | 35.375 |
| DEPTH, INCHES | 16.25 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 18.875 |
| WEIGHT, LBS | 58 |
| SHIPPING HEIGHT, INCHES | 22.04 |
| SHIPPING WIDTH, INCHES | 37.8 |
| SHIPPING LENGTH, INCHES | 26.37 |
| SHIPPING WEIGHT, LBS | 64.7 |
Description
The Wave Looks Great With Any Number Of Decor Styles, From Transitional To Modern, And The Elegant Tilt Lends A Slim Profile To This Kitchen Workhorse. Ingenious Dual Capture Zones Ensure A Smoke And Debris-Free Kitchen. Offering A Glowing Tri-Level Led Light Strip, And A Choice Of Black Or White Glass And An Optional Duct Cover, The Wave Is A True Kitchen Classic.
Features
- 290, 600, 1000 CFM
- Recirculating
- Mesh Filter
- White
- Vertical and Horizontal Ducting
- Max Sones 6
- Tri-level Lighting
- Aluminum Mesh Filters
- Capacitive Touch Controls
- CleanAir Function
- Dual Capture Zones
- Includes Wireless Remote Control
- LED Light Strip
- Multiple Blower Options
- Multiple Color Options
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
Specifications
| UPC | 646328004346 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Capacitive touch |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 8.5 |
| LIGHTS LEVELS | 3 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 6, 8 |
| DUCT SIZE, HORIZONTAL, INCHES | 6, 8 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 22 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 25 |
| NET WIDTH, INCHES | 35.375 |
| DEPTH, INCHES | 16.25 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 18.875 |
| WEIGHT, LBS | 58 |
| SHIPPING HEIGHT, INCHES | 22.04 |
| SHIPPING WIDTH, INCHES | 37.8 |
| SHIPPING LENGTH, INCHES | 26.37 |
| SHIPPING WEIGHT, LBS | 64.7 |
