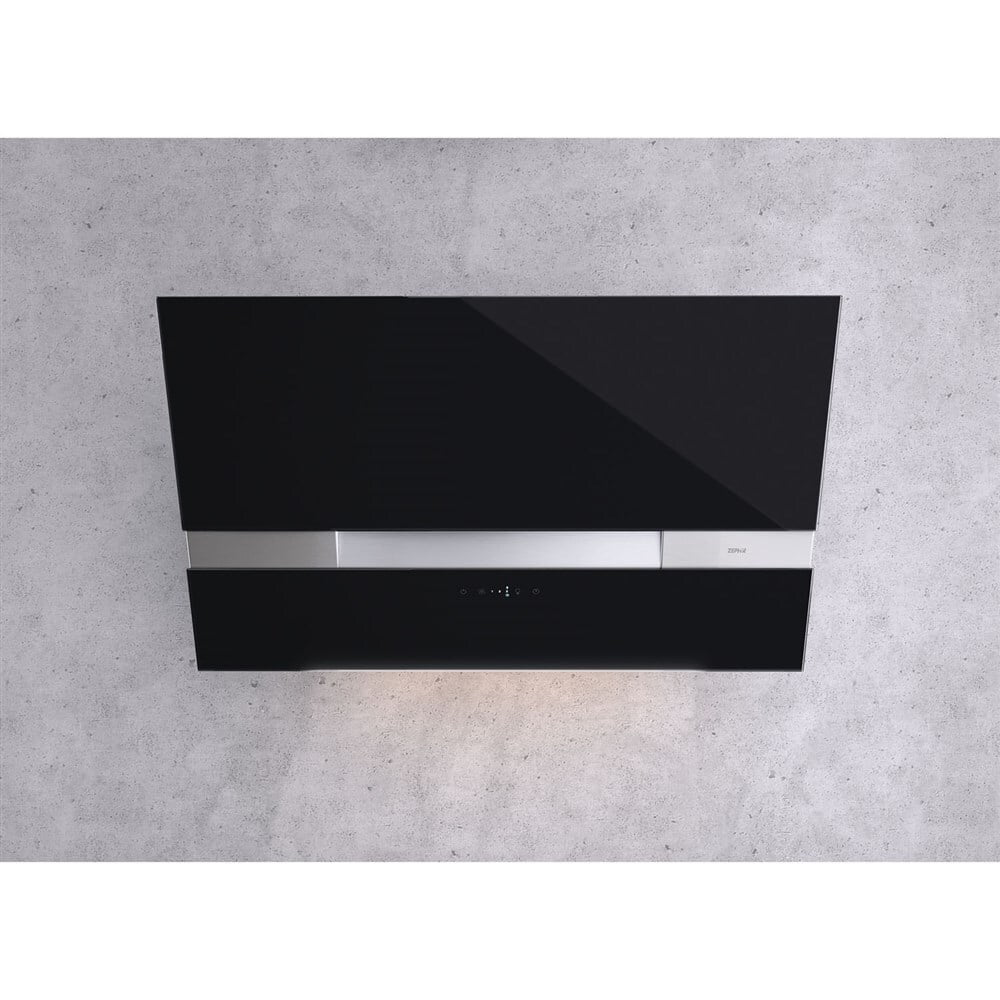

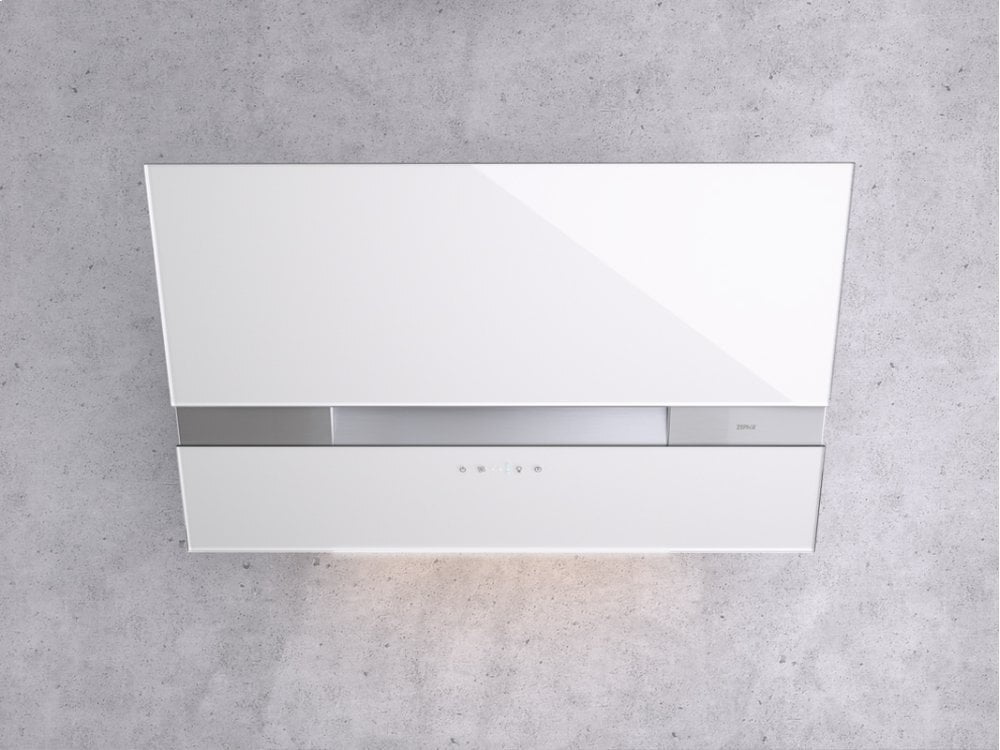

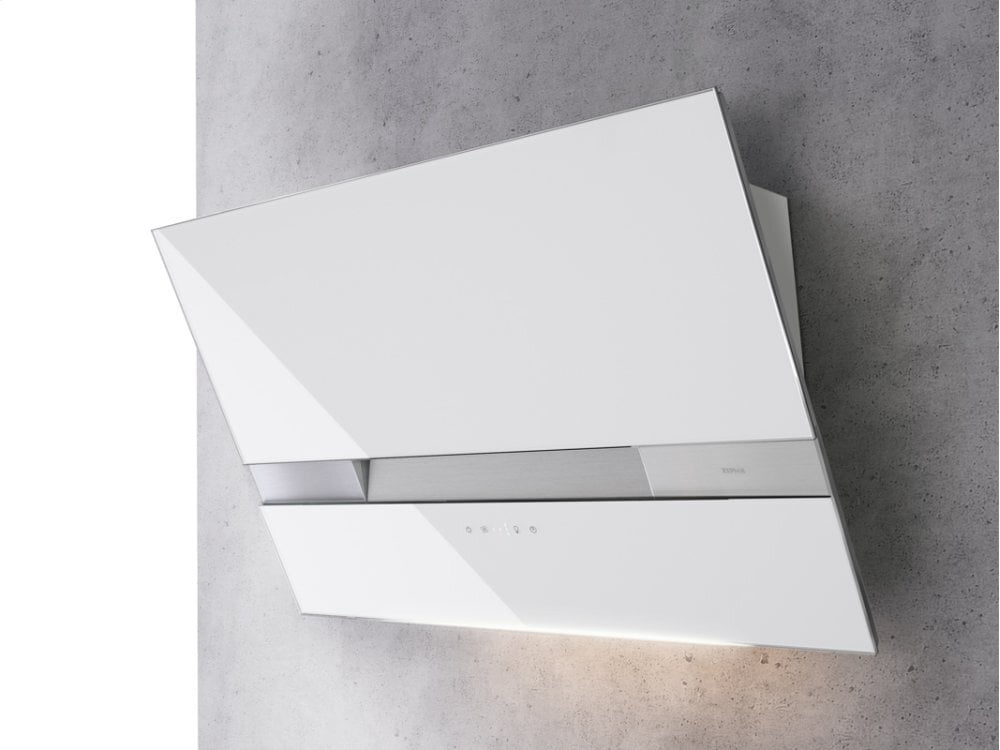

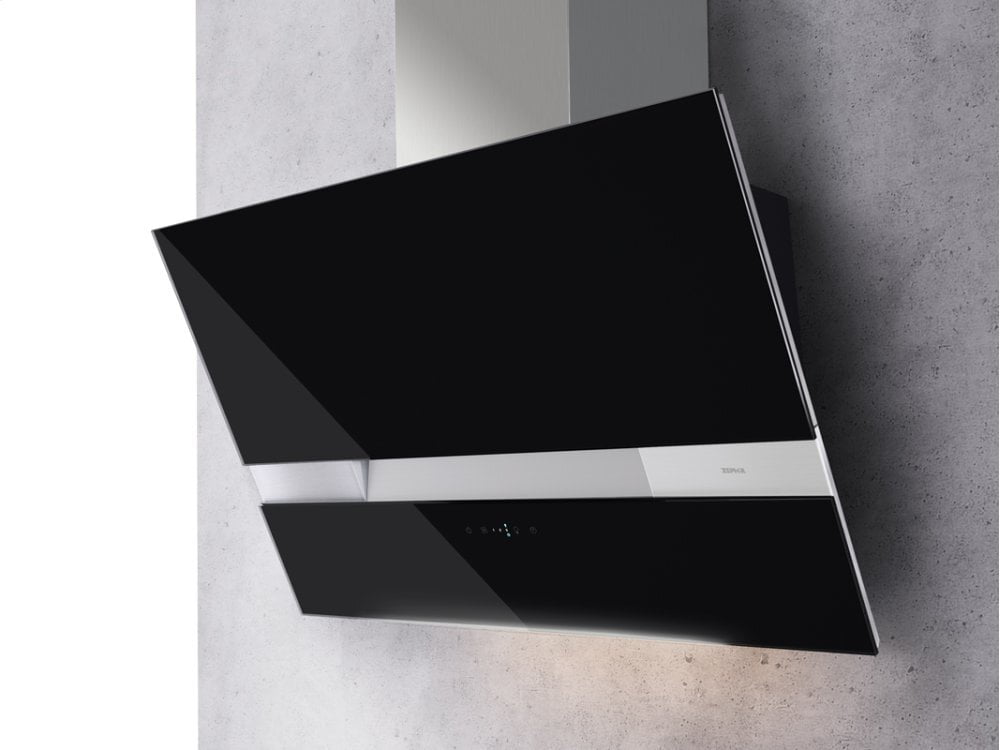

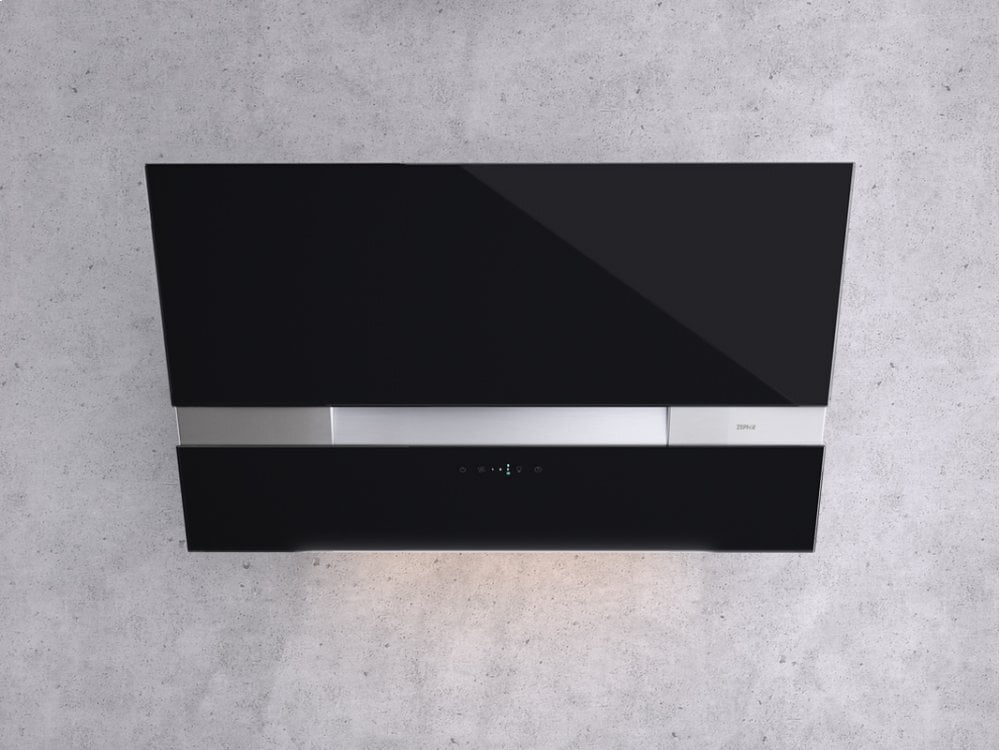

Zephyr AWAM90ABX 36" Wave Wall

Zephyr AWAM90ABX 36" Wave Wall

The Wave Looks Great With Any Number Of Decor Styles, From Transitional To Modern, And The Elegan... Read more...

When Will I Get My Order?

x

Shipping calculated at checkout.
Click to Call

To order or learn more please call us at: 866-739-3982

View full details

When Will I Get My Order?

x

Zephyr AWAM90ABX 36

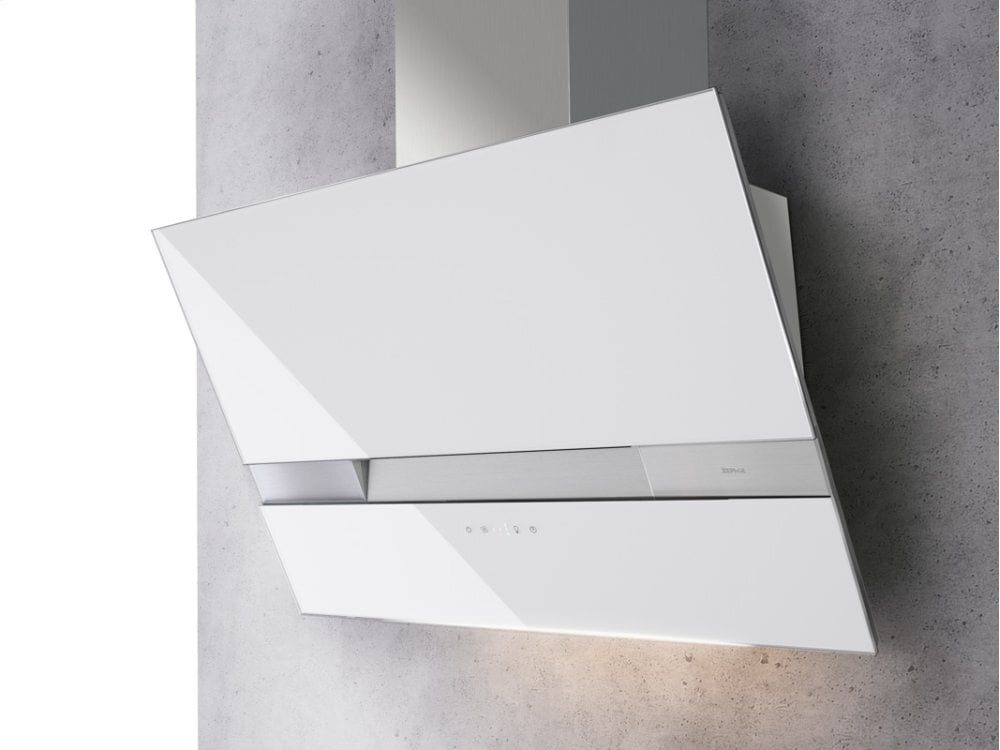

Zephyr AWAM90ABX 36" Wave Wall

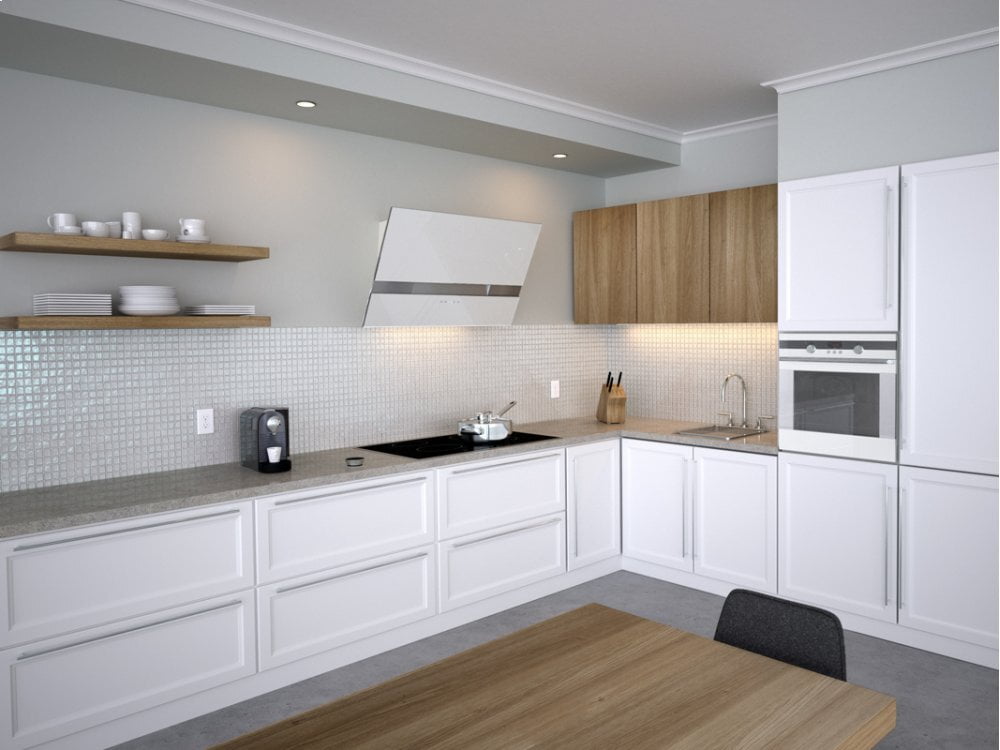

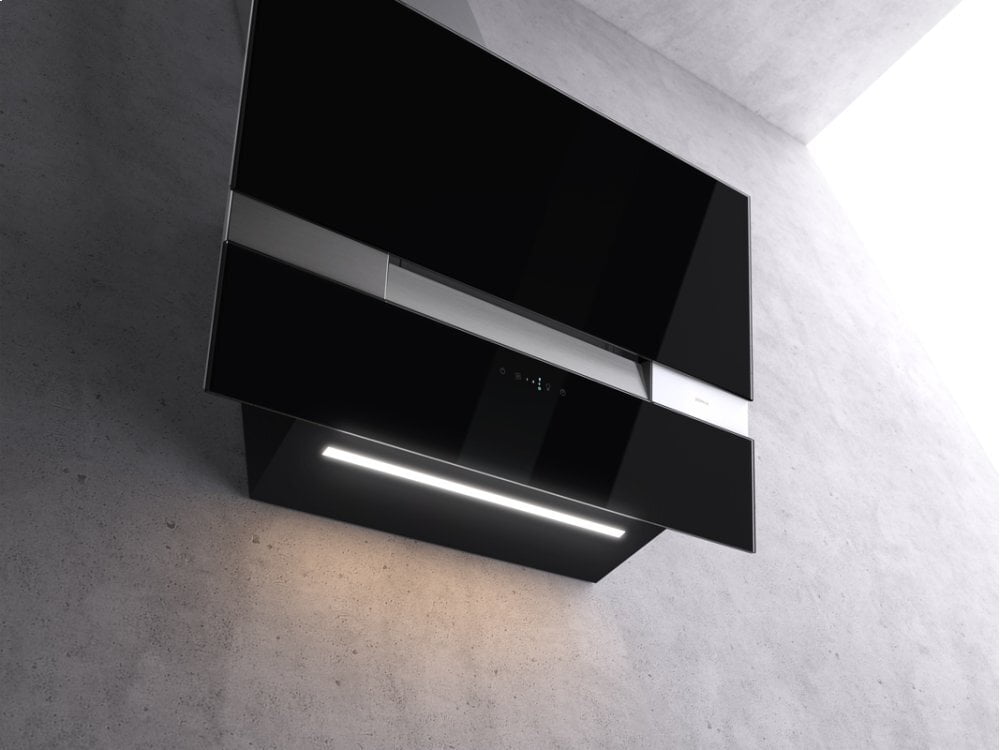

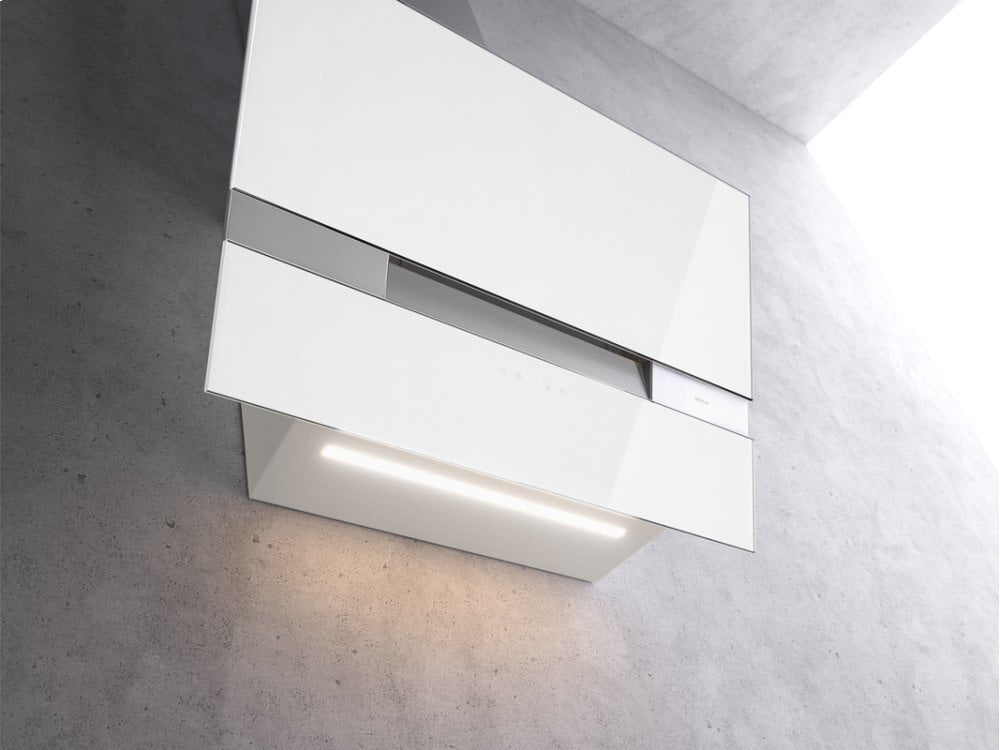

The Wave Looks Great With Any Number Of Decor Styles, From Transitional To Modern, And The Elegant Tilt Lends A Slim Profile To This Kitchen Workhorse. Ingenious Dual Capture Zones Ensure A Smoke And Debris-Free Kitchen. Offering A Glowing Tri-Level Led Light Strip, And A Choice Of Black Or White Glass And An Optional Duct Cover, The Wave Is A True Kitchen Classic.

  • 290, 600, 1000 CFM
  • Recirculating
  • Mesh Filter
  • Black
  • Vertical and Horizontal Ducting
  • Max Sones 6
  • Tri-level Lighting
  • Aluminum Mesh Filters
  • Capacitive Touch Controls
  • CleanAir Function
  • Dual Capture Zones
  • Includes Wireless Remote Control
  • LED Light Strip
  • Multiple Blower Options
  • Multiple Color Options
  • Optional Recirculating Kit
  • Optional Duct Cover Extension Kit
  • Optional Make-Up Air Kit

UPC 646328004339
BLOWER INCLUDED YES/NO no
INTERNAL BLOWER 1 CFM 290
INTERNAL BLOWER 2 CFM 600
IN-LINE BLOWER CFM 1000
EXTERNAL BLOWER CFM 1000
INTERNAL BLOWER 1 SONES 3
INTERNAL BLOWER 2 SONES 6
CONTROLS TYPE Capacitive touch
BLOWER SPEEDS 3
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) LED strip
LIGHTS QUANTITY 1
WATTS PER BULB 8.5
LIGHTS LEVELS 3
FILTER TYPE mesh
DUCT DISCHARGE vertical or horizontal
DUCT SIZE, VERTICAL, INCHES 6, 8
DUCT SIZE, HORIZONTAL, INCHES 6, 8
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 22 - 32
INPUT VOLTAGE 120
MAXIMUM AMPERAGE depends on blower
NOMINAL WIDTH, INCHES 36
NET WIDTH, INCHES 35.375
DEPTH, INCHES 16.25
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 18.875
WEIGHT, LBS 58
SHIPPING HEIGHT, INCHES 22.04
SHIPPING WIDTH, INCHES 37.8
SHIPPING LENGTH, INCHES 26.37
SHIPPING WEIGHT, LBS 64.7
