Zephyr ALLM90BBX 36
Zephyr ALLM90BBX 36" Layers Island Hood, 3 Speed Levels, Body Only Led

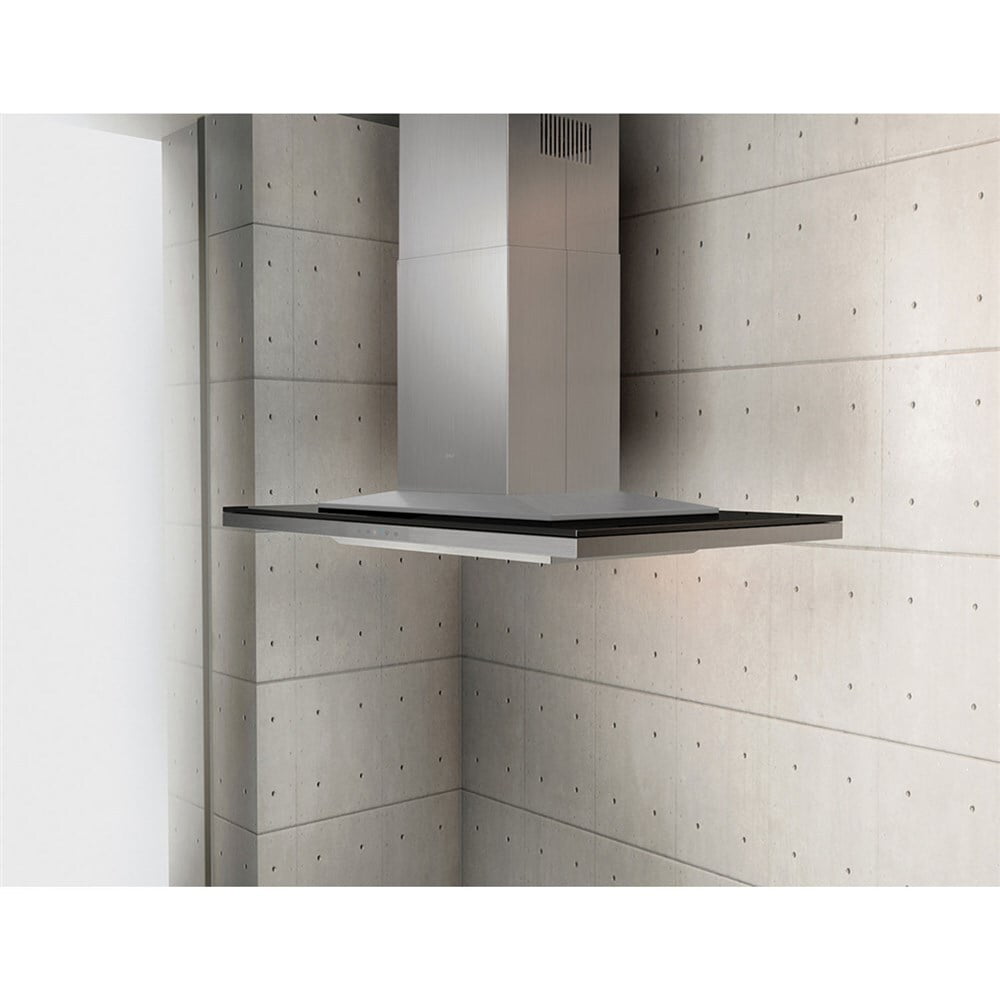

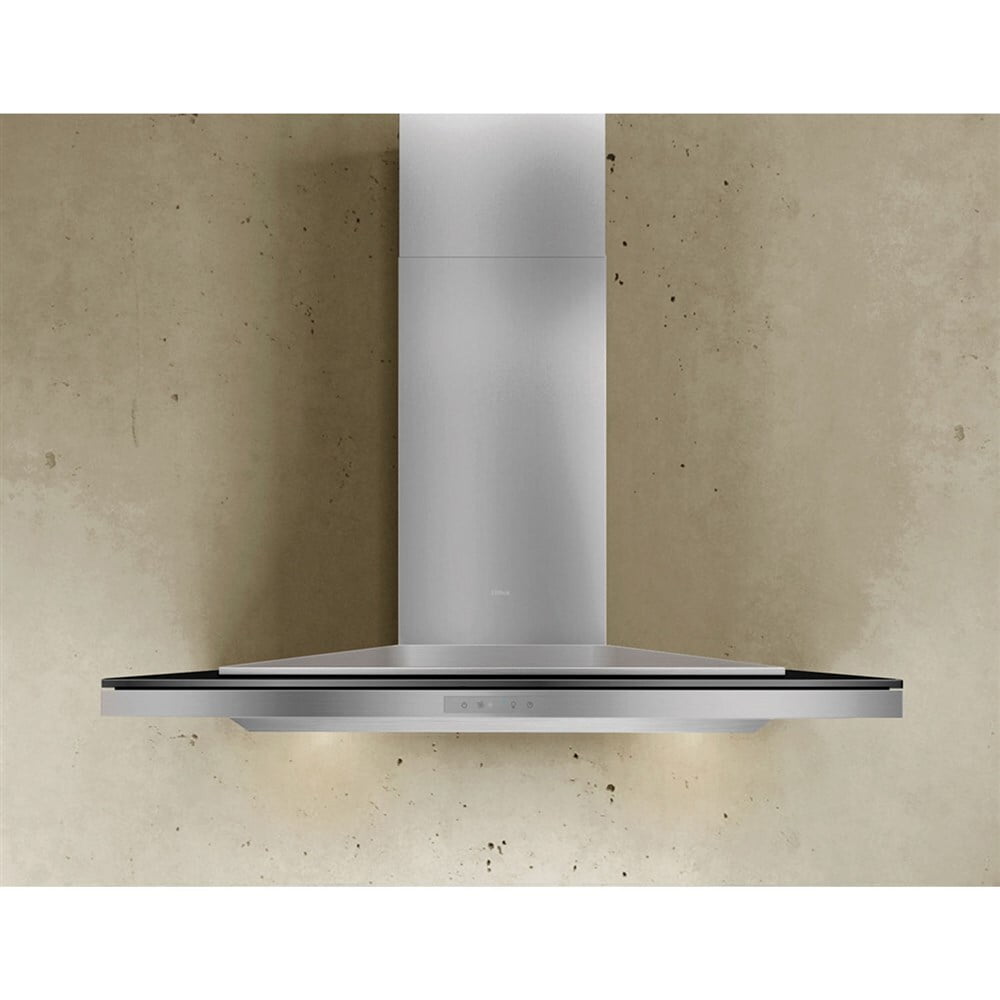

The Zephyr All-M90Bbx Arc Collection Layers 35.38-In. Island Range Hood In Black Glass With Stainless Steel Is A Bold Take On The Classic Island Range Hood. It Is A Streamlined Fusion Of Glass And Stainless Steel That Lends To New Meaning To "Leading Edge". You Can Choose From White Or Black Glass To Suit Your Kitchen Design.
  • Arc Collections Layers island range hood with black glass/stainless steel canopy
  • BODY ONLY - does not come with blower (sold separately)
  • 35.38-in. design perfectly matches 36-in. ranges
  • Capacitive touch controls
  • Three speed levels
  • Two LED strips (6W)
  • Auto delay-off
  • Tri-level lighting
  • CleanAir function
  • Recirculating option
  • Wireless RF remote control
  • Mounting height: Min. 24 in. - Max. 36 in.
  • Color: Black Glass with Stainless Steel
  • Max. sones: 3.2 - 6
  • Two decorative mesh filters
UPC 646328004308
BLOWER INCLUDED YES/NO no
INTERNAL BLOWER 1 CFM 290
INTERNAL BLOWER 2 CFM 600
IN-LINE BLOWER CFM 1000
EXTERNAL BLOWER CFM 1000
INTERNAL BLOWER 1 SONES 3
INTERNAL BLOWER 2 SONES 6
CONTROLS TYPE Capacitive touch
BLOWER SPEEDS 3
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) LED strip
LIGHTS QUANTITY 2
WATTS PER BULB 6
LIGHTS LEVELS 3
FILTER TYPE decorative mesh
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 6, 8
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE depends on blower
NOMINAL WIDTH, INCHES 36
NET WIDTH, INCHES 35.375
DEPTH, INCHES 26
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 30 - 50
WEIGHT, LBS 117
SHIPPING HEIGHT, INCHES 31.5
SHIPPING WIDTH, INCHES 40.55
SHIPPING LENGTH, INCHES 20.87
SHIPPING WEIGHT, LBS 123.5
