Zephyr ALAE42BWX 42" Layers Wall

Zephyr ALAE42BWX 42" Layers Wall

A Streamlined Fusion Of Black Or White Glass And Stainless Steel With A Light, Floating Effect Ar... Read more...

When Will I Get My Order?

x

Shipping calculated at checkout.
Click to Call

To order or learn more please call us at: 866-739-3982

View full details

When Will I Get My Order?

x

Zephyr ALAE42BWX 42

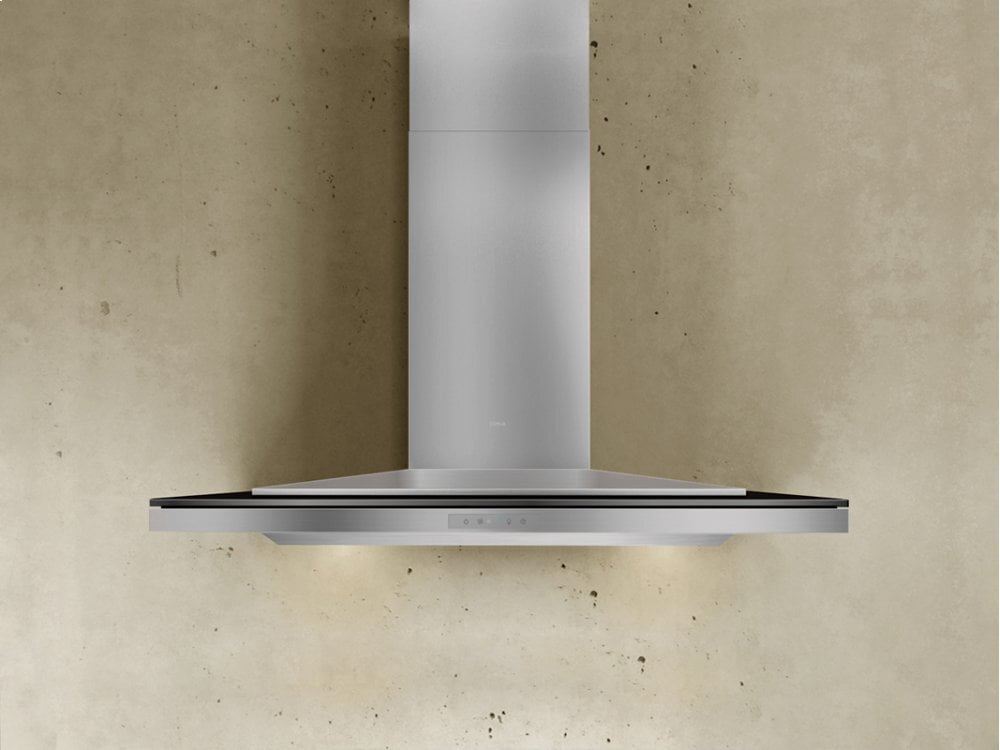

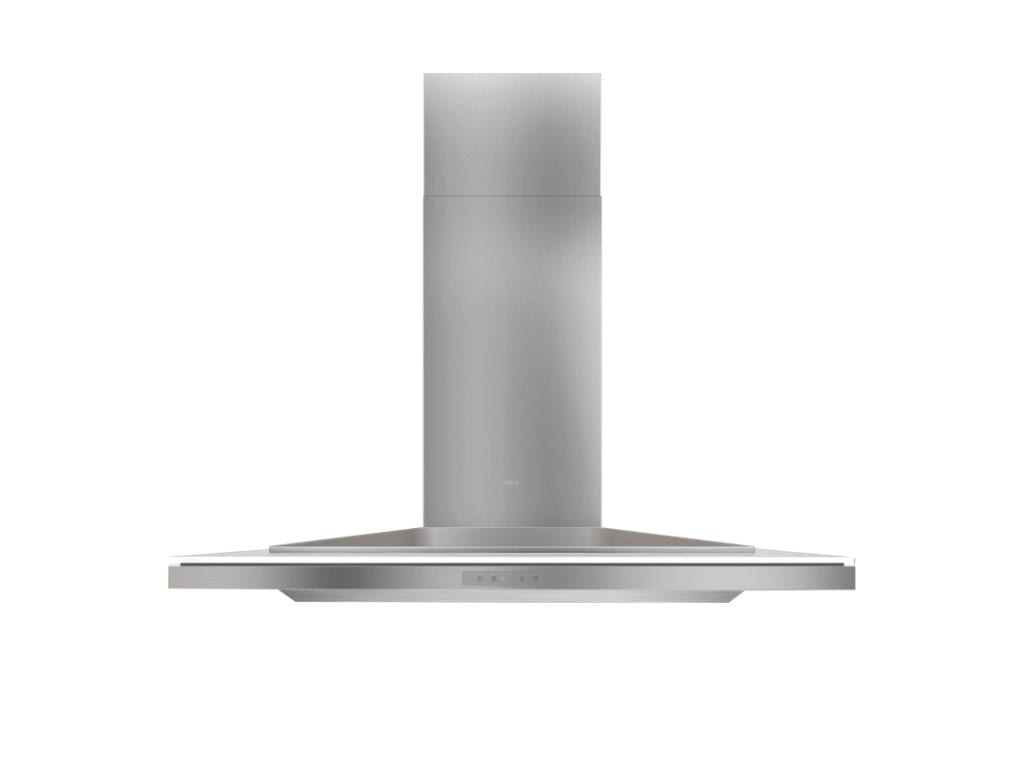

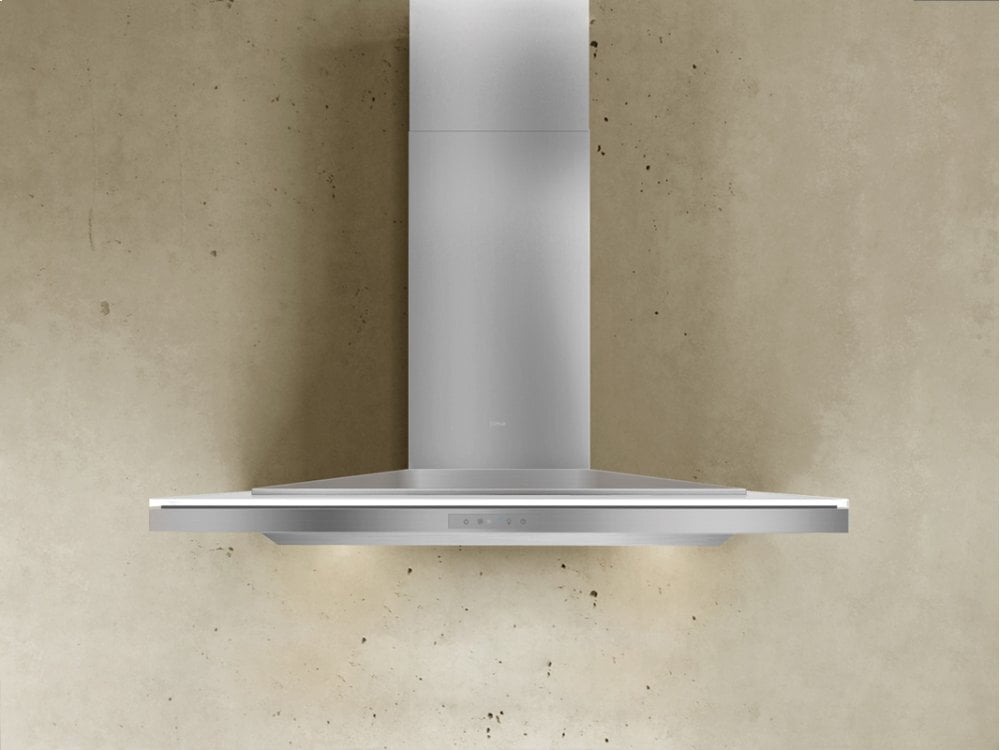

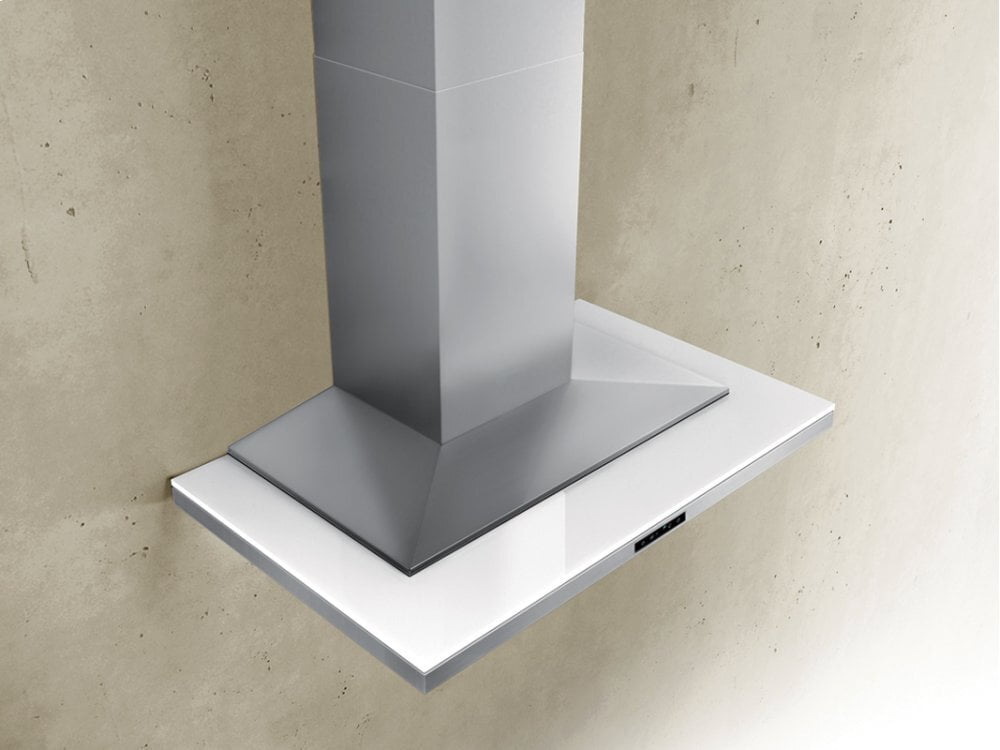

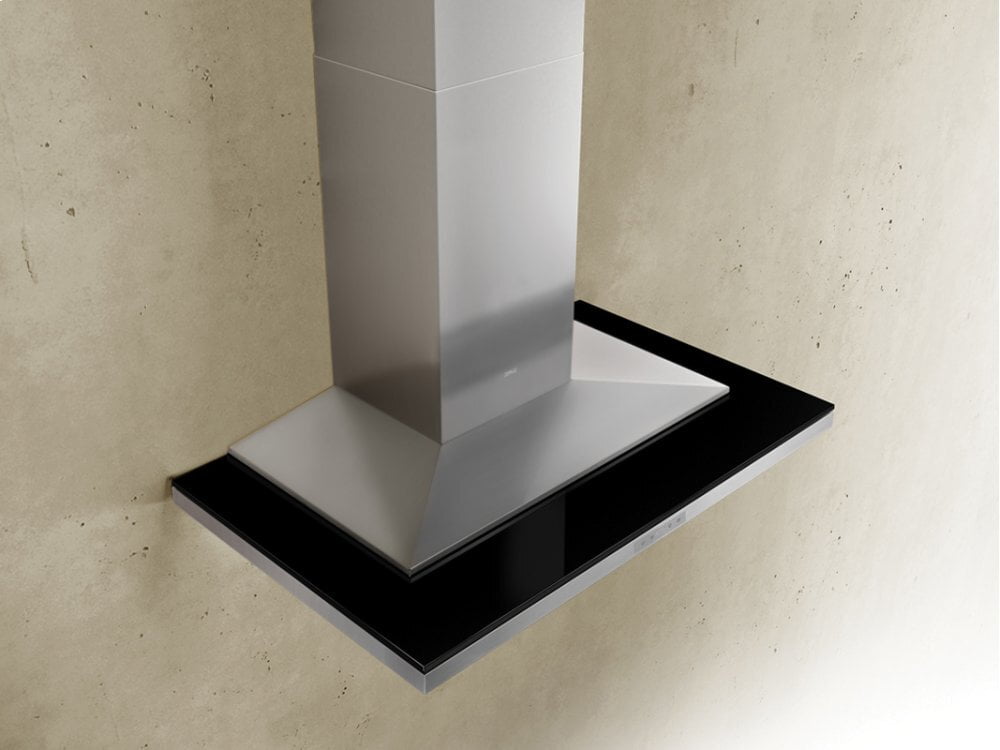

Zephyr ALAE42BWX 42" Layers Wall
A Streamlined Fusion Of Black Or White Glass And Stainless Steel With A Light, Floating Effect Are Sandwiched Together In A Reimagining Of The Classic Range Hood. Now Available With A Tri-Level Led Light Strip.

  • 290, 600, 1000 CFM
  • Recirculating
  • Mesh Filter
  • Stainless Steel
  • Vertical Ducting
  • Max Sones 6
  • Tri-level Lighting
  • Capacitive Touch Controls
  • CleanAir Function
  • Decorative Mesh Filters
  • Includes Wireless Remote Control
  • LED Light Strip
  • Low-Profile Body
  • Multiple Blower Options
  • Multiple Color Options
  • Optional Recirculating Kit
  • Optional Duct Cover Extension Kit
  • Optional Make-Up Air Kit
  • White or Black Glass Color Options

UPC 646328004254
BLOWER INCLUDED YES/NO no
INTERNAL BLOWER 1 CFM 290
INTERNAL BLOWER 2 CFM 600
IN-LINE BLOWER CFM 1000
EXTERNAL BLOWER CFM 1000
INTERNAL BLOWER 1 SONES 3
INTERNAL BLOWER 2 SONES 6
CONTROLS TYPE Capacitive touch
BLOWER SPEEDS 3
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) LED strip
LIGHTS QUANTITY 2
WATTS PER BULB 6
LIGHTS LEVELS 3
FILTER TYPE decorative mesh
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 6, 8
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE depends on blower
NOMINAL WIDTH, INCHES 42
NET WIDTH, INCHES 41.9375
DEPTH, INCHES 22
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 28 - 50
WEIGHT, LBS 116
SHIPPING HEIGHT, INCHES 25.59
SHIPPING WIDTH, INCHES 46.5
SHIPPING LENGTH, INCHES 24.4
SHIPPING WEIGHT, LBS 121.25
