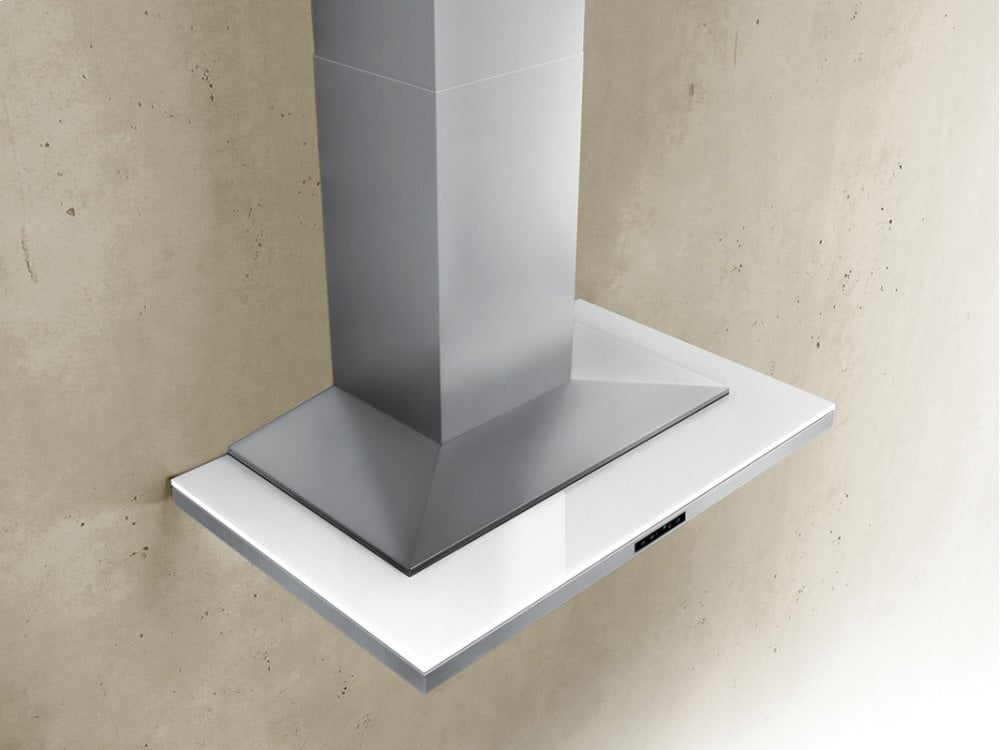

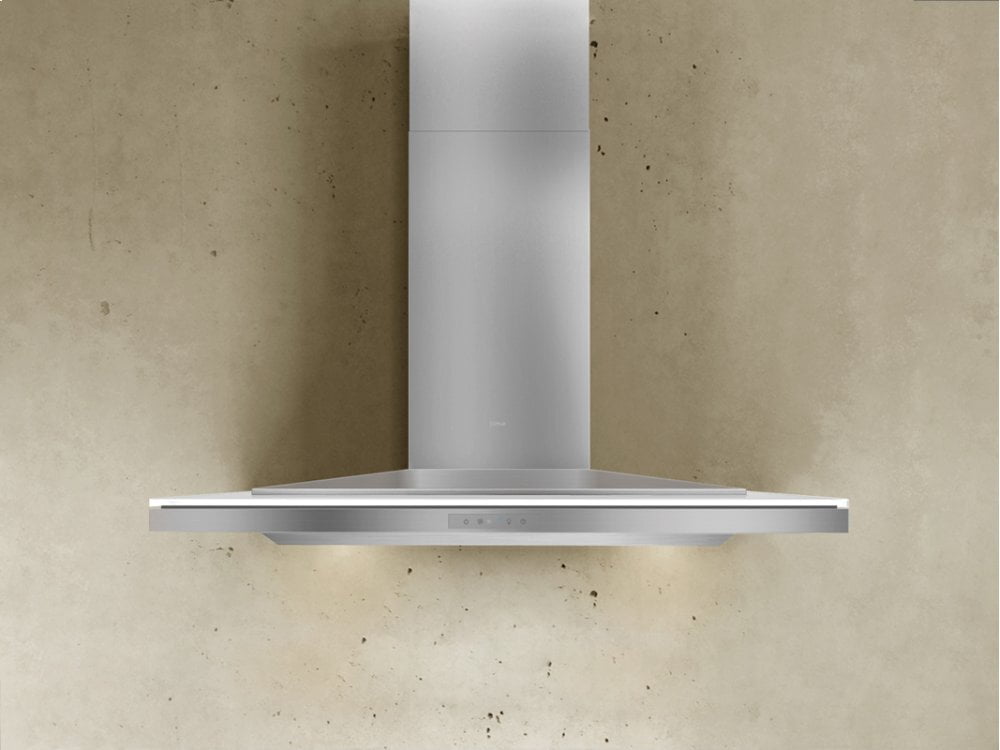

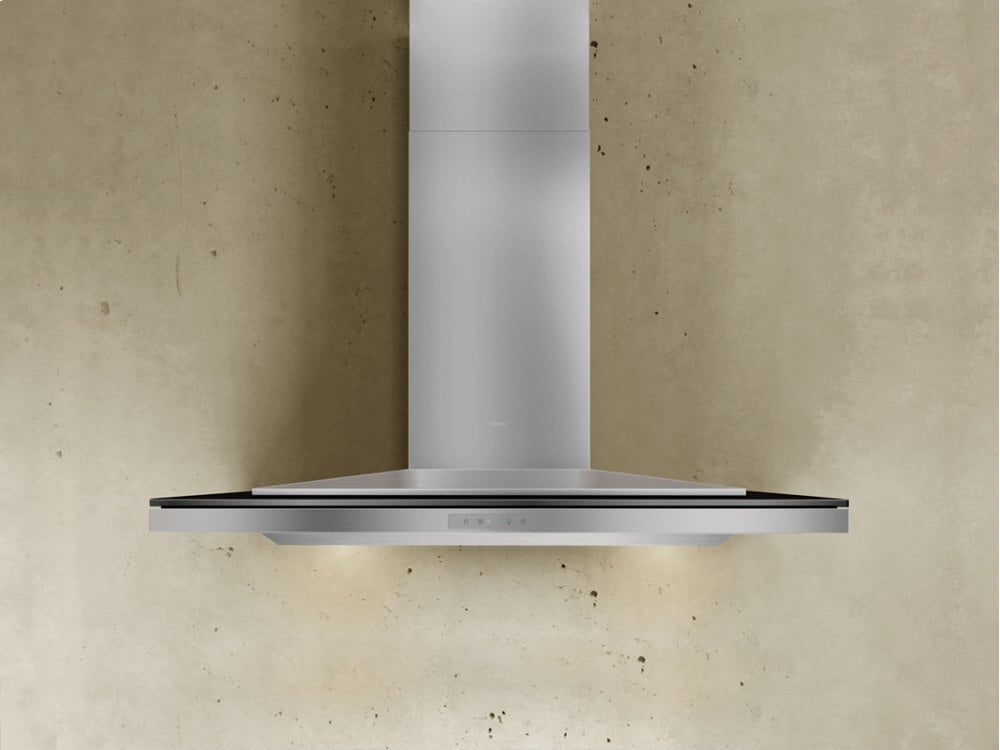

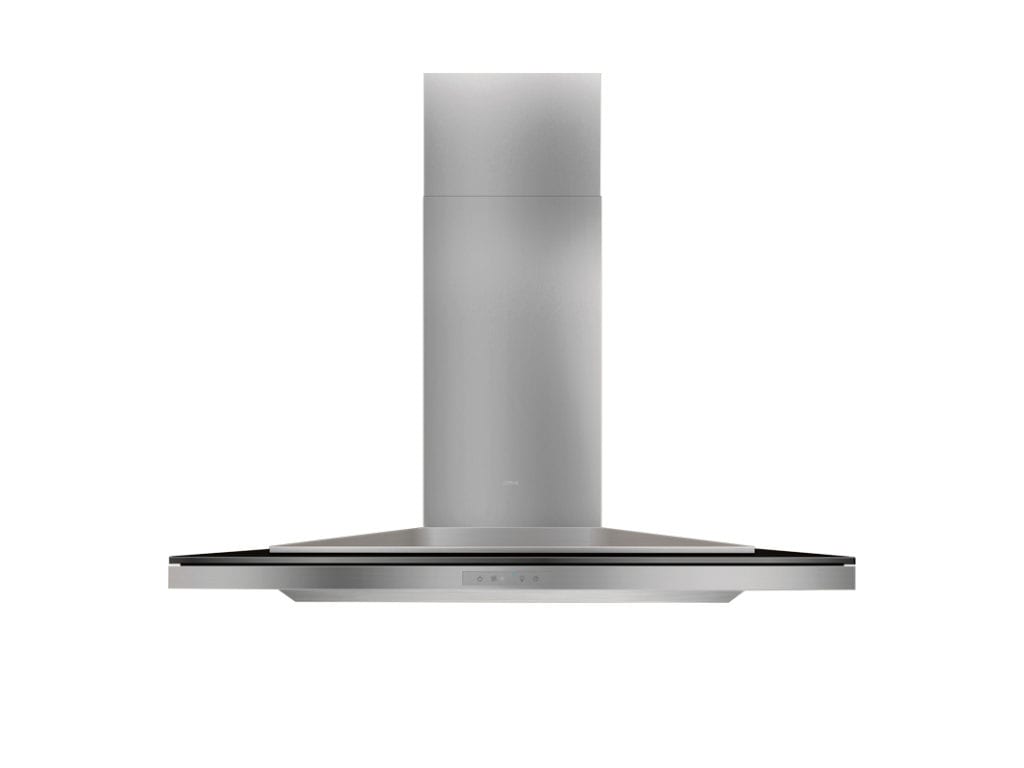

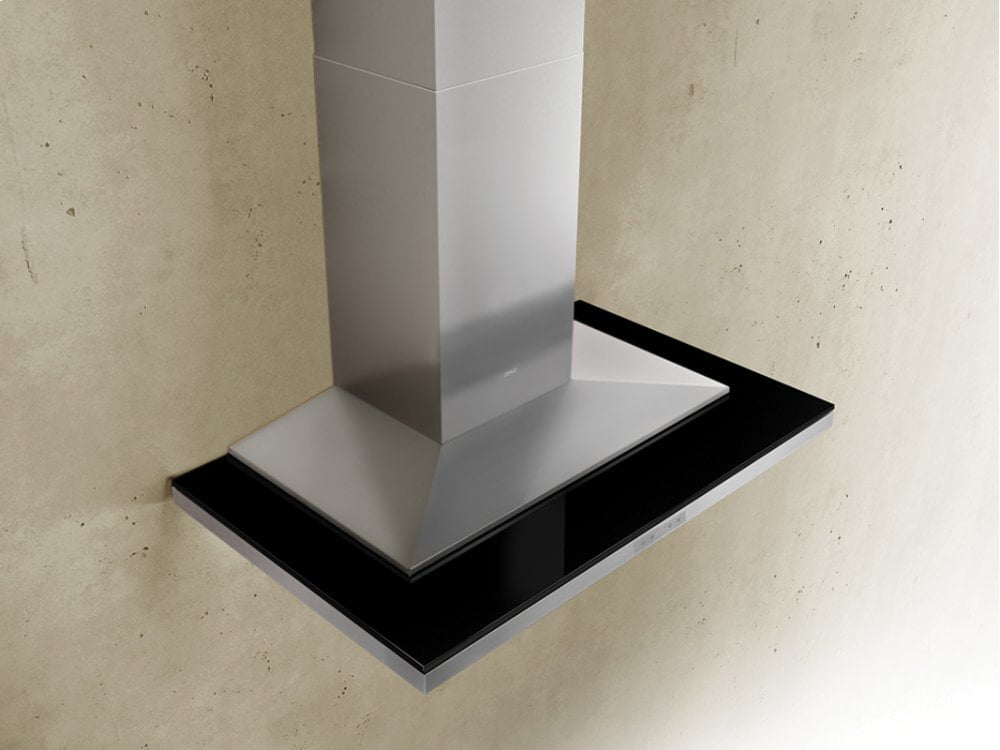

Zephyr ALAE42BBX 42" Layers Wall
A Streamlined Fusion Of Black Or White Glass And Stainless Steel With A Light, Floating Effect Ar... Read more...
SKU:ALAE42BBX
UPC:646328004247
A Streamlined Fusion Of Black Or White Glass And Stainless Steel With A Light, Floating Effect Are Sandwiched Together In A Reimagining Of The Classic Range Hood. Now Available With A Tri-Level Led Light Strip.
- 290, 600, 1000 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 6
- Tri-level Lighting
- Capacitive Touch Controls
- CleanAir Function
- Decorative Mesh Filters
- Includes Wireless Remote Control
- LED Light Strip
- Low-Profile Body
- Multiple Blower Options
- Multiple Color Options
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- White or Black Glass Color Options
| UPC | 646328004247 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Capacitive touch |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 3 |
| FILTER TYPE | decorative mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6, 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 42 |
| NET WIDTH, INCHES | 41.9375 |
| DEPTH, INCHES | 22 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 28 - 50 |
| WEIGHT, LBS | 116 |
| SHIPPING HEIGHT, INCHES | 25.59 |
| SHIPPING WIDTH, INCHES | 46.5 |
| SHIPPING LENGTH, INCHES | 24.4 |
| SHIPPING WEIGHT, LBS | 121.25 |
Description
A Streamlined Fusion Of Black Or White Glass And Stainless Steel With A Light, Floating Effect Are Sandwiched Together In A Reimagining Of The Classic Range Hood. Now Available With A Tri-Level Led Light Strip.
Features
- 290, 600, 1000 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 6
- Tri-level Lighting
- Capacitive Touch Controls
- CleanAir Function
- Decorative Mesh Filters
- Includes Wireless Remote Control
- LED Light Strip
- Low-Profile Body
- Multiple Blower Options
- Multiple Color Options
- Optional Recirculating Kit
- Optional Duct Cover Extension Kit
- Optional Make-Up Air Kit
- White or Black Glass Color Options
Specifications
| UPC | 646328004247 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Capacitive touch |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 6 |
| LIGHTS LEVELS | 3 |
| FILTER TYPE | decorative mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6, 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 42 |
| NET WIDTH, INCHES | 41.9375 |
| DEPTH, INCHES | 22 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 28 - 50 |
| WEIGHT, LBS | 116 |
| SHIPPING HEIGHT, INCHES | 25.59 |
| SHIPPING WIDTH, INCHES | 46.5 |
| SHIPPING LENGTH, INCHES | 24.4 |
| SHIPPING WEIGHT, LBS | 121.25 |
