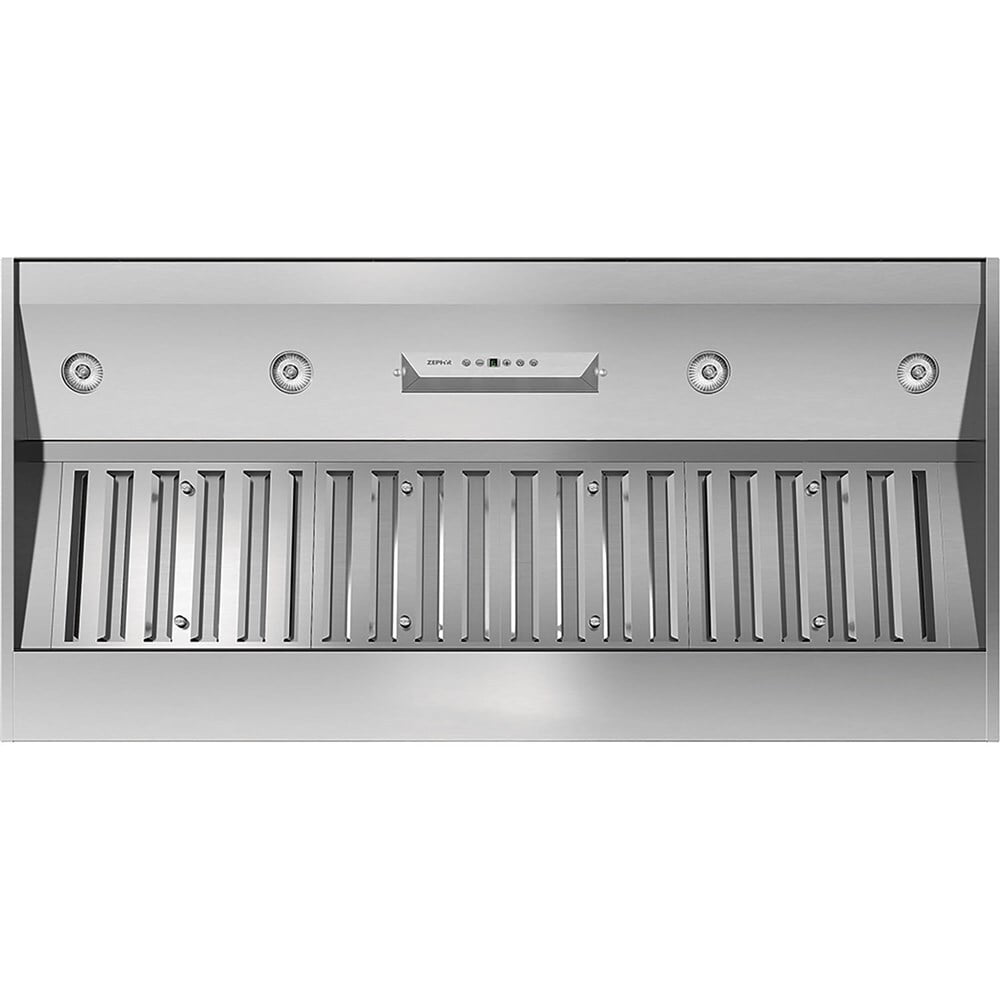

Zephyr AK9352AS Monsoonii One Piece Liner 52-3/8 Ss
Zephyr AK9352AS Monsoonii One Piece Liner 52-3/8 Ss

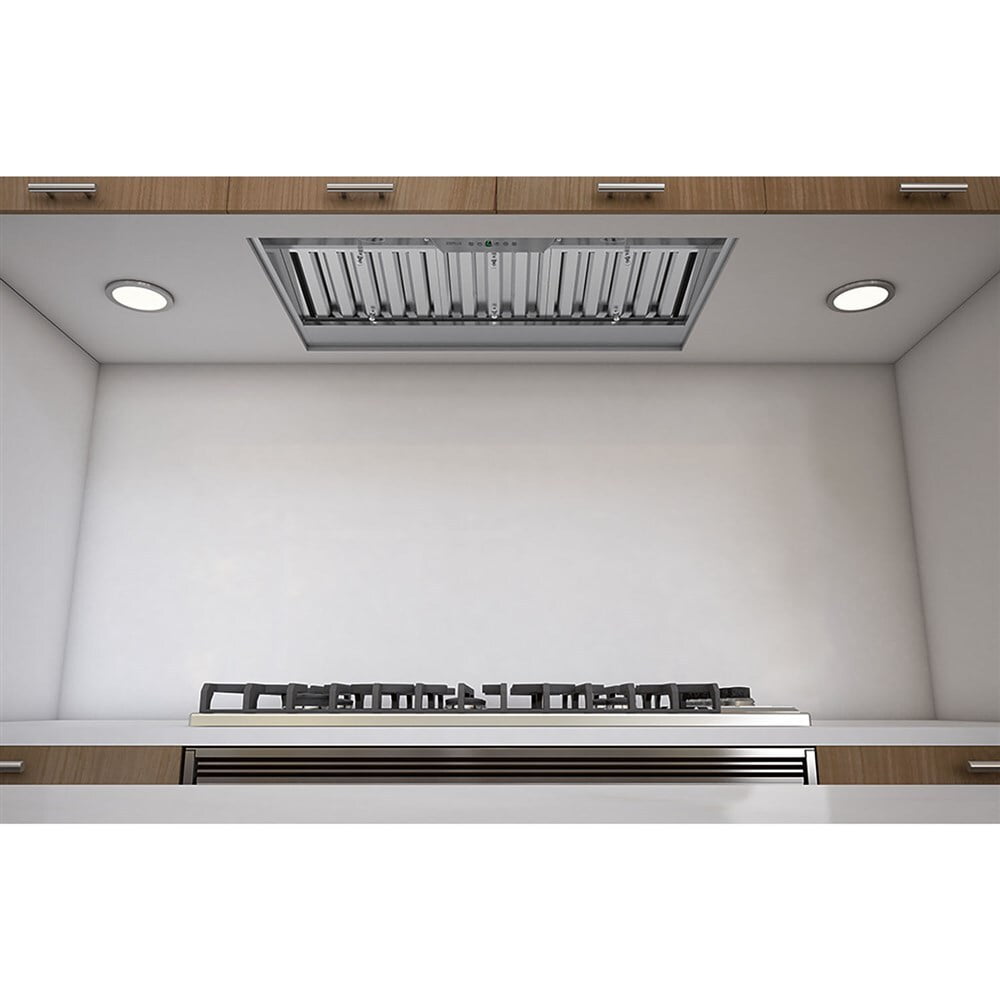

When You Simply Need Raw Power, Zephyr'S Essentials Power Series Ak9352As Monsoon Ii One-Piece Liner Delivers And Then Some. Starting With Recognized Conventional Installation Dimensions, The Monsoon Ii Fits Into Any Custom Cabinetry Or Enclosure.
  • Essential Power series Monsoon II one-piece liner
  • 46-3/8" width is perfect for 48 in. cooktops
  • Mounting height: 26" - 36"
  • Six powerful speed levels
  • 400-1200 CFM internal blowers
  • Internal blower sones: 3.5-9
  • Stainless steel pro-baffle filters
  • Electronic touch integrated controls
  • Dual-level lighting
  • CleanAir function
  • Removable grease tray
  • Four 35W halogen bulbs
  • Includes wireless RF remote control
  • Internal blower - vertical: 10" round
  • Matches the most commonly specified installation footprints
  • Color: Stainless Steel
UPC 646328003639
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 1200
INTERNAL BLOWER 1 SONES 9
CONTROLS TYPE Electronic
BLOWER SPEEDS 6
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 4
WATTS PER BULB 35
LIGHTS LEVELS 2
FILTER TYPE pro baffle
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 10
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 7
NOMINAL WIDTH, INCHES 54
NET WIDTH, INCHES 52.375
DEPTH, INCHES 22.5
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 12
WEIGHT, LBS 69.1
SHIPPING HEIGHT, INCHES 28.82
SHIPPING WIDTH, INCHES 55.87
SHIPPING LENGTH, INCHES 17.09
SHIPPING WEIGHT, LBS 84.4
