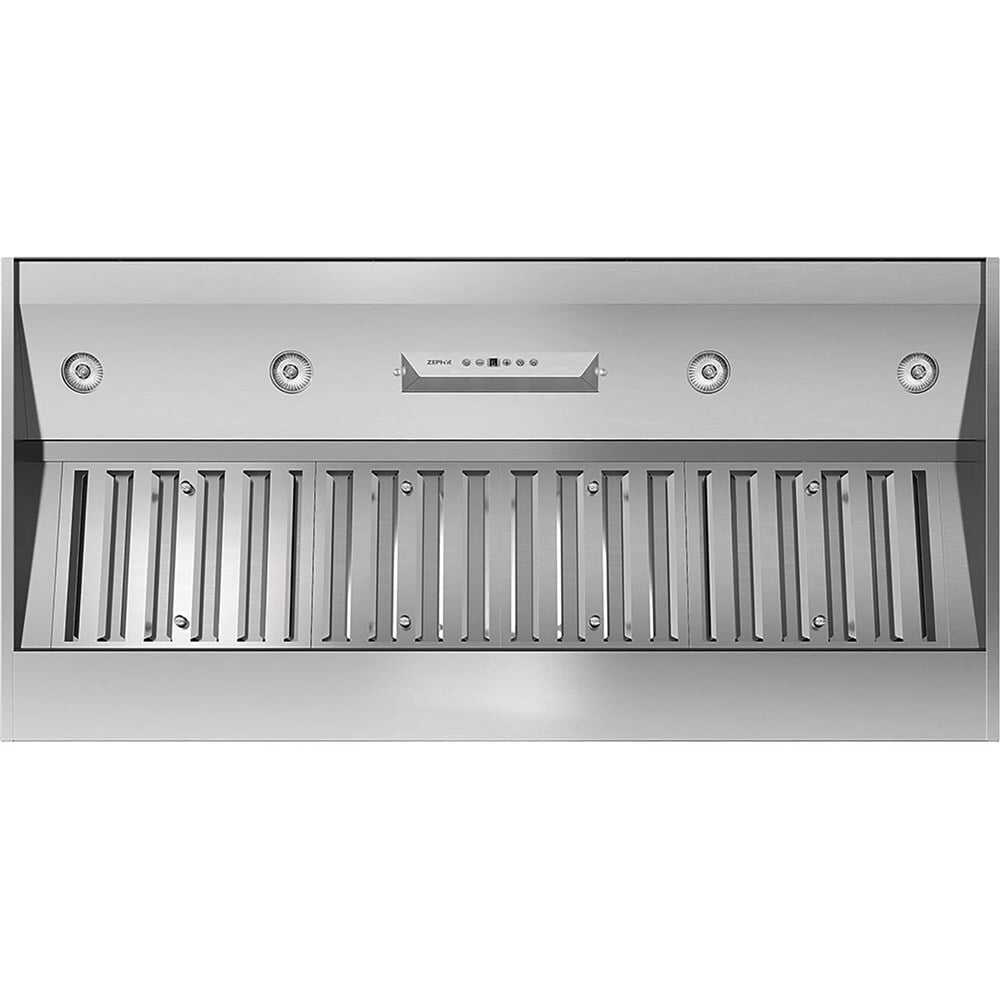

Zephyr AK9334AS 36" Monsoon Ii One-Piece Liner With 1200 Cfm Blower, 6 Speed Levels, Act
When You Simply Need Raw Power, Zephyr'S Essentials Power Series Ak9334As Monsoon Ii One-Piece Li... Read more...
SKU:AK9334AS
UPC:646328002816
When You Simply Need Raw Power, Zephyr'S Essentials Power Series Ak9334As Monsoon Ii One-Piece Liner Delivers And Then Some. Starting With Recognized Conventional Installation Dimensions, The Monsoon Ii Fits Into Any Custom Cabinetry Or Enclosure.
- Essential Power series Monsoon II one-piece liner
- 34-3/8" width is perfect for 36 in. cooktops
- Mounting height: 26" - 36"
- Six powerful speed levels
- 400-1200 CFM internal blowers
- Internal blower sones: 3.5-9
- Stainless steel pro-baffle filters
- Electronic touch integrated controls
- Dual-level lighting
- CleanAir function
- Removable grease tray
- Two 35W halogen bulbs
- Includes ADA-compliant wireless RF remote control
- Internal blower - vertical: 10" round
- Matches the most commonly specified installation footprints
- Color: Stainless Steel
| UPC | 646328002816 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 1200 |
| INTERNAL BLOWER 1 SONES | 9 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 10 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 7 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 34.375 |
| DEPTH, INCHES | 22.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12 |
| WEIGHT, LBS | 55.8 |
| SHIPPING HEIGHT, INCHES | 28.82 |
| SHIPPING WIDTH, INCHES | 37.95 |
| SHIPPING LENGTH, INCHES | 17.09 |
| SHIPPING WEIGHT, LBS | 68.5 |
Description
When You Simply Need Raw Power, Zephyr'S Essentials Power Series Ak9334As Monsoon Ii One-Piece Liner Delivers And Then Some. Starting With Recognized Conventional Installation Dimensions, The Monsoon Ii Fits Into Any Custom Cabinetry Or Enclosure.
Features
- Essential Power series Monsoon II one-piece liner
- 34-3/8" width is perfect for 36 in. cooktops
- Mounting height: 26" - 36"
- Six powerful speed levels
- 400-1200 CFM internal blowers
- Internal blower sones: 3.5-9
- Stainless steel pro-baffle filters
- Electronic touch integrated controls
- Dual-level lighting
- CleanAir function
- Removable grease tray
- Two 35W halogen bulbs
- Includes ADA-compliant wireless RF remote control
- Internal blower - vertical: 10" round
- Matches the most commonly specified installation footprints
- Color: Stainless Steel
Specifications
| UPC | 646328002816 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 1200 |
| INTERNAL BLOWER 1 SONES | 9 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 6 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 10 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 7 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 34.375 |
| DEPTH, INCHES | 22.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12 |
| WEIGHT, LBS | 55.8 |
| SHIPPING HEIGHT, INCHES | 28.82 |
| SHIPPING WIDTH, INCHES | 37.95 |
| SHIPPING LENGTH, INCHES | 17.09 |
| SHIPPING WEIGHT, LBS | 68.5 |
