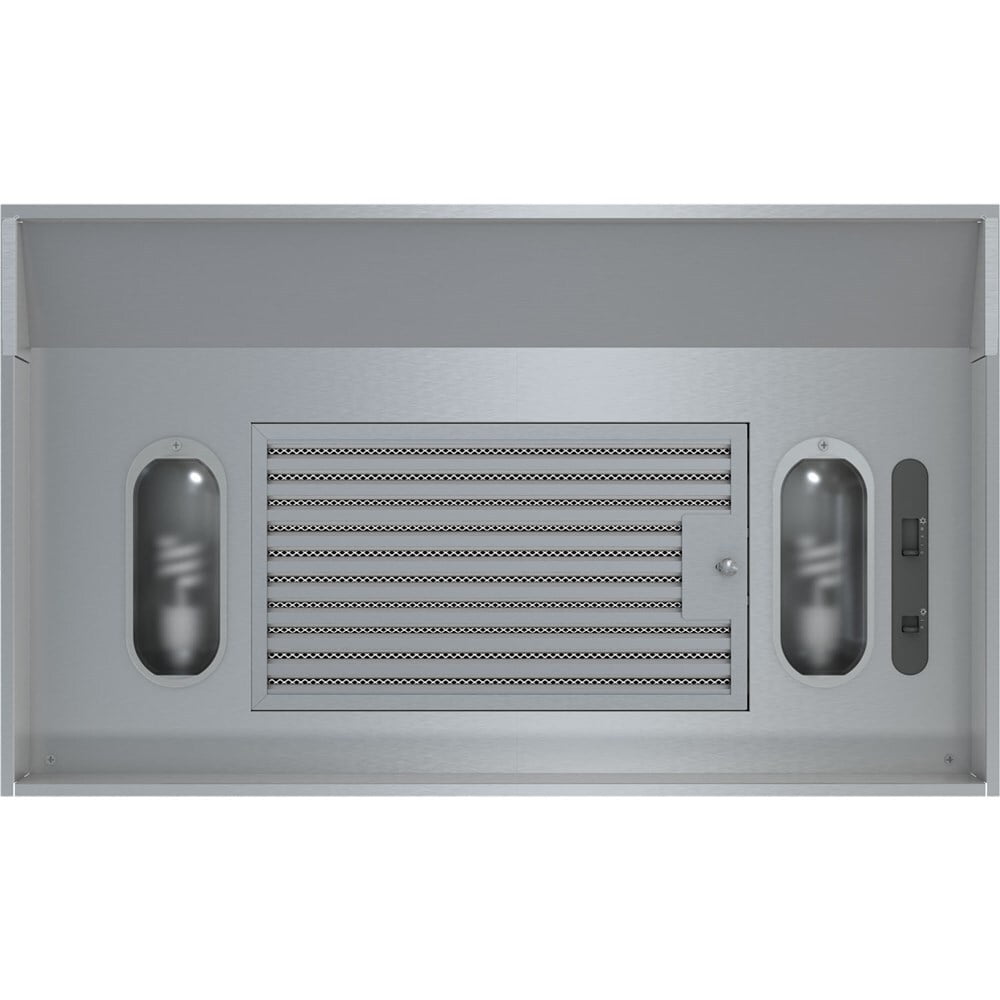

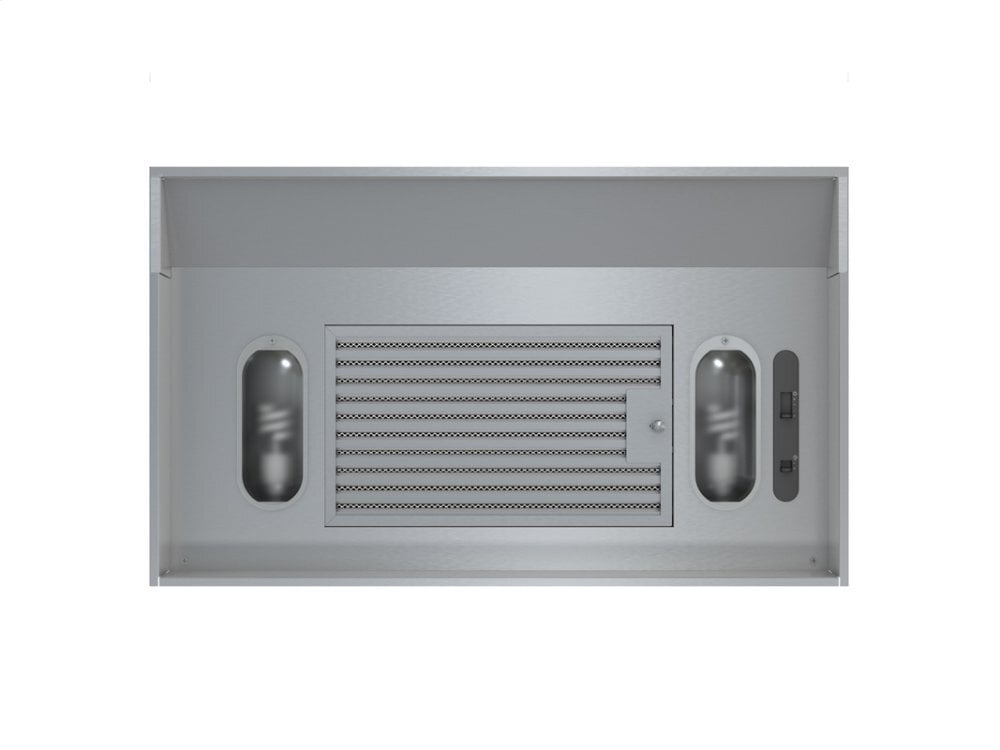

Zephyr AK9034ASES 36" Vortex Insert Energy Star

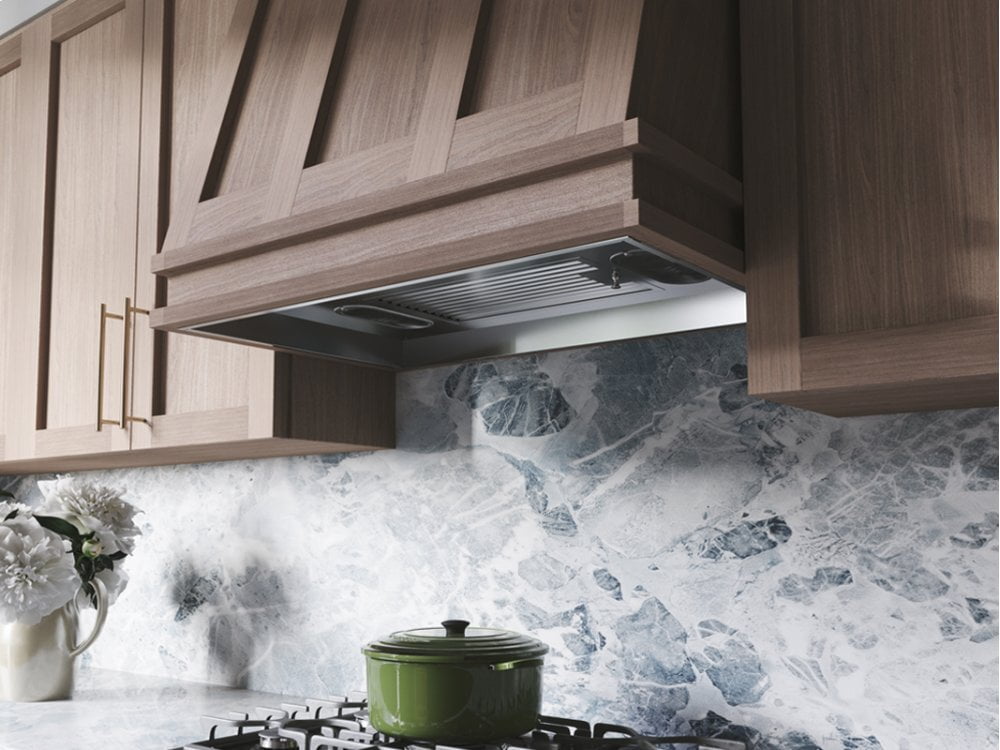

The Vortex Es, Certified Energy Star® One-Piece Liner Leads The Way With The Industry'S Only Adjustable-Depth Installation. Vortex Es Is Designed To Extend Up To 3 Inches Towards The Front Of The Custom Hood Canopy So You Can Install It In Spaces Up To 20-1/2" Deep.
- 290 CFM
- Not Recirculating
- Hybrid Baffle Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 3.5
- ENERGY STAR(R) Certified
- Fluorescent Lighting
- Hybrid Baffle Filters
- Mechanical Slide Controls
| UPC | 646328003585 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 1 SONES | 3.5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | fluorescent |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 13 |
| LIGHTS LEVELS | 1 |
| FILTER TYPE | hybrid baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 1.2 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 34.375 |
| DEPTH, INCHES | 17.5 - 20.5 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 12.3125 |
| WEIGHT, LBS | 24.5 |
| SHIPPING HEIGHT, INCHES | 19.09 |
| SHIPPING WIDTH, INCHES | 39.37 |
| SHIPPING LENGTH, INCHES | 22.64 |
| SHIPPING WEIGHT, LBS | 36.8 |
Vortex ENERGY STAR, One-Piece Liner, 34-3/8", SS, 290 CFM
