Zephyr AK9028AS290 30" Vortex Insert

Zephyr AK9028AS290 30" Vortex Insert

Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.

View full details

When Will I Get My Order?

x

Zephyr AK9028AS290 30

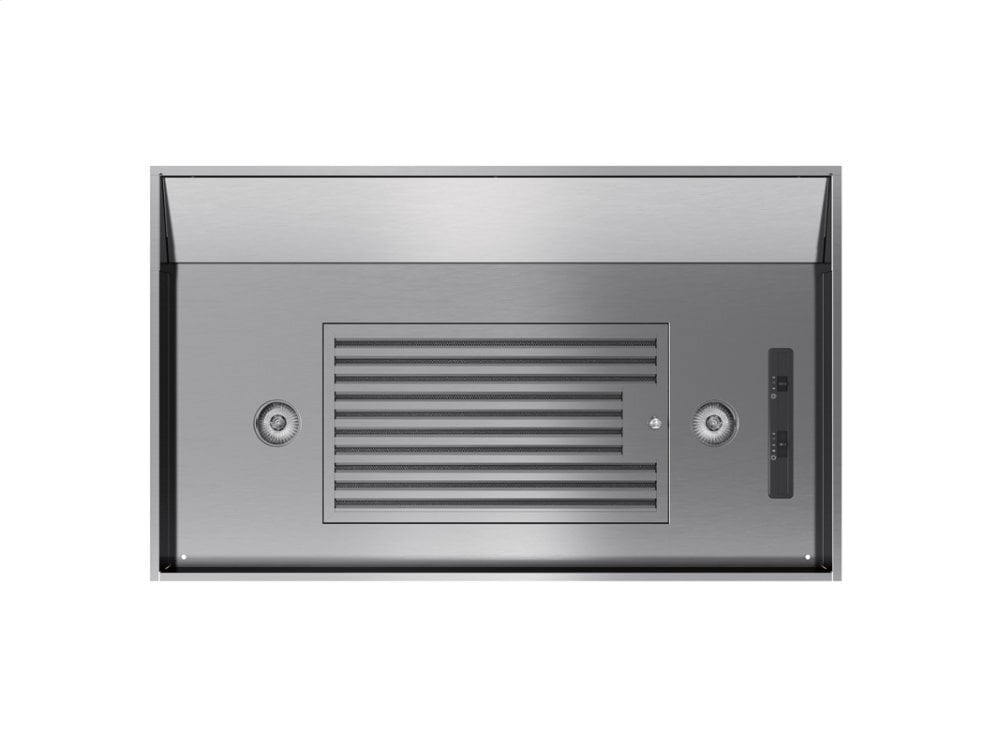

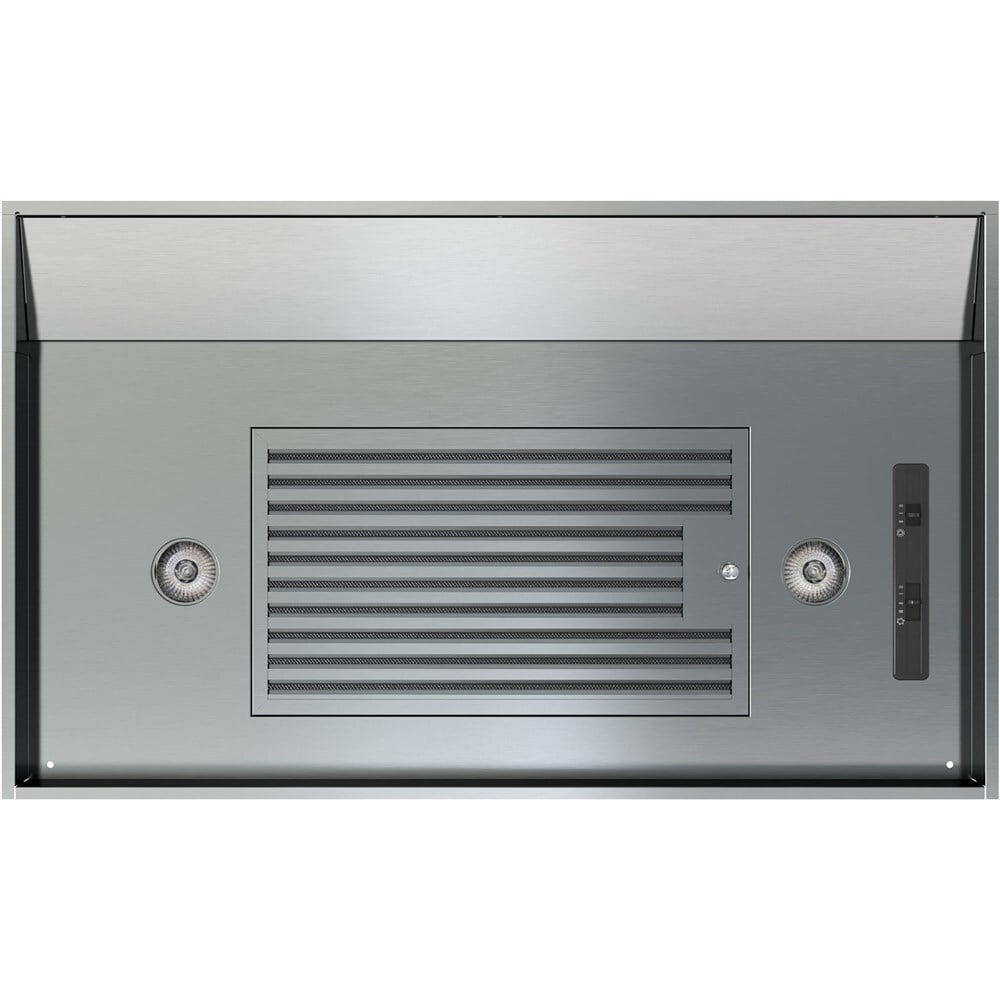

Zephyr AK9028AS290 30" Vortex Insert

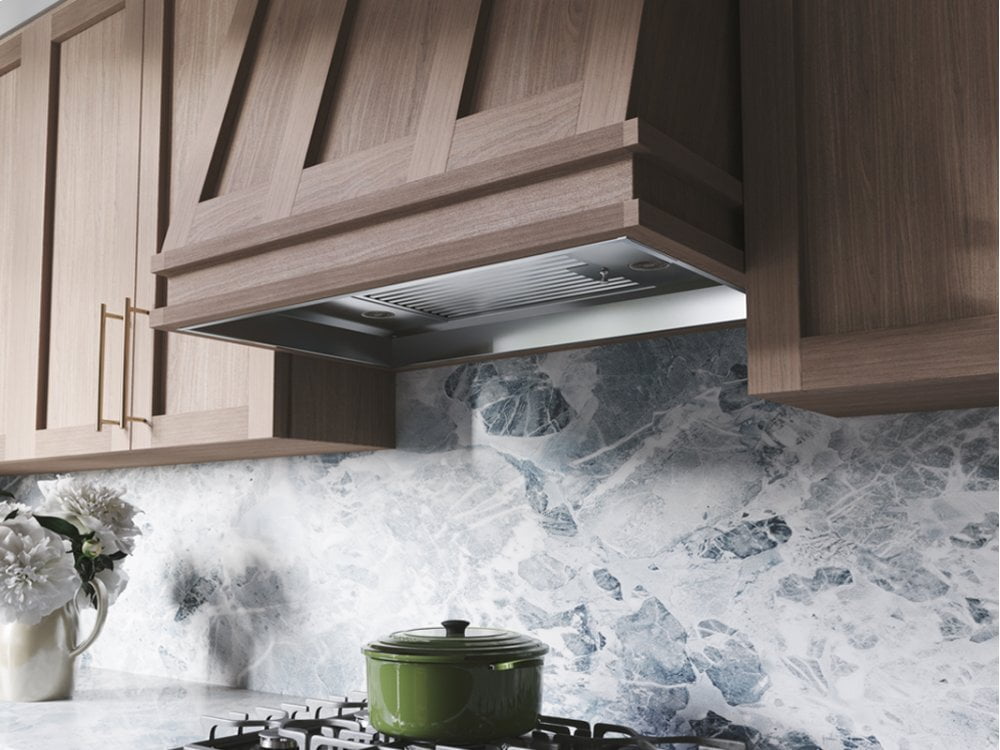

The Vortex One-Piece Liner Leads The Way With The Industry S Only Adjustable-Depth Installation. Vortex Is Designed To Extend Up To 3-Inches Towards The Front Of The Custom Hood Canopy So You Can Install It In Spaces Up To 20-1/2" Deep. Add To This Its Category-Leading 390 Cfm, Optional Recirculation Kit And Its 36-Inch Mounting Height Maximum; Vortex Stands Tall Among The Rest.
  • 290 CFM
  • Recirculating
  • Hybrid Baffle Filter
  • Stainless Steel
  • Vertical Ducting
  • Max Sones 3.2
  • Dual-Level Lighting
  • Halogen Lighting
  • Hybrid Baffle Filters
  • Mechanical Slide Controls
  • Optional Recirculating Kit
UPC 646328002700
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 290
INTERNAL BLOWER 1 SONES 3.2
CONTROLS TYPE Mechanical slide
BLOWER SPEEDS 3
AUTOMATIC DELAY-OFF no
CLEANAIR FUNCTION no
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 2
WATTS PER BULB 35
LIGHTS LEVELS 2
FILTER TYPE hybrid baffle
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 6
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 1.5
NOMINAL WIDTH, INCHES 30
NET WIDTH, INCHES 28.375
DEPTH, INCHES 17.5 - 20.5
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 12.3125
WEIGHT, LBS 22.8
SHIPPING HEIGHT, INCHES 19.06
SHIPPING WIDTH, INCHES 35.91
SHIPPING LENGTH, INCHES 22.64
SHIPPING WEIGHT, LBS 35.2

Vortex, One-Piece Liner, 28-3/8", SS, 290 CFM
