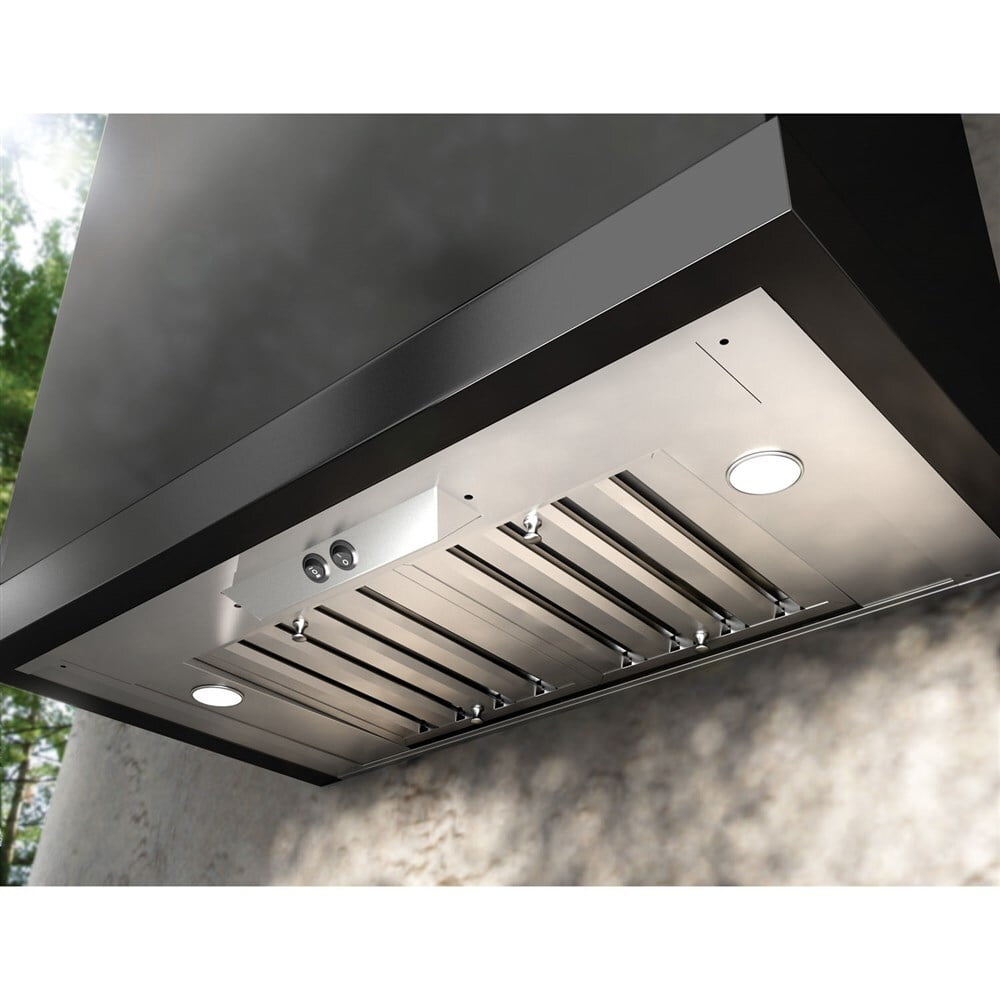

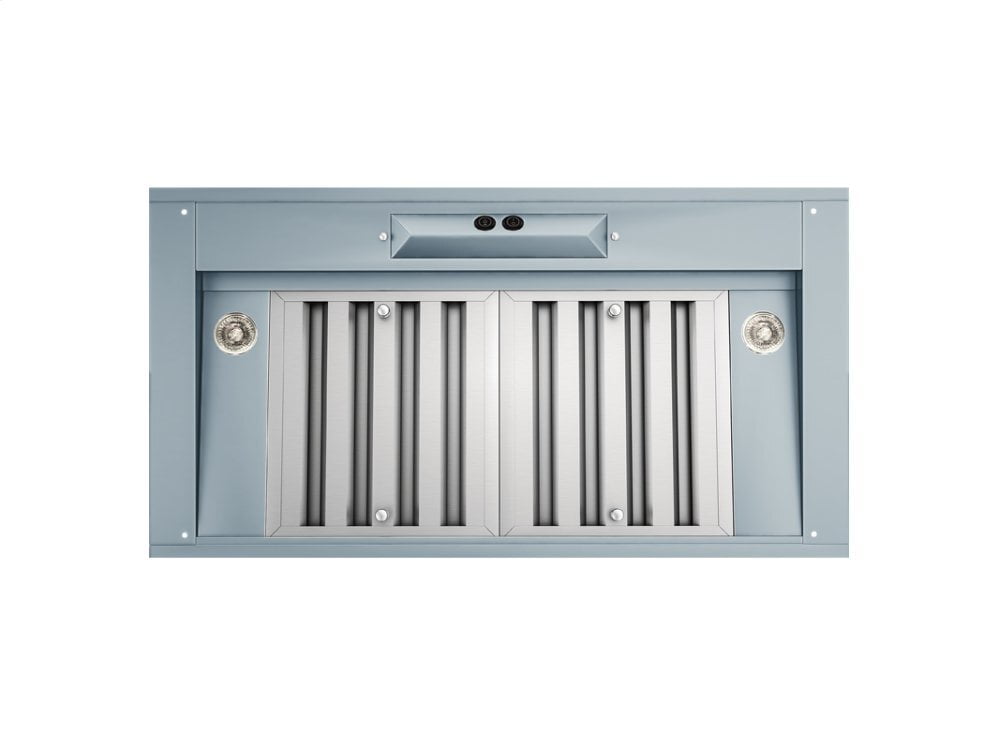

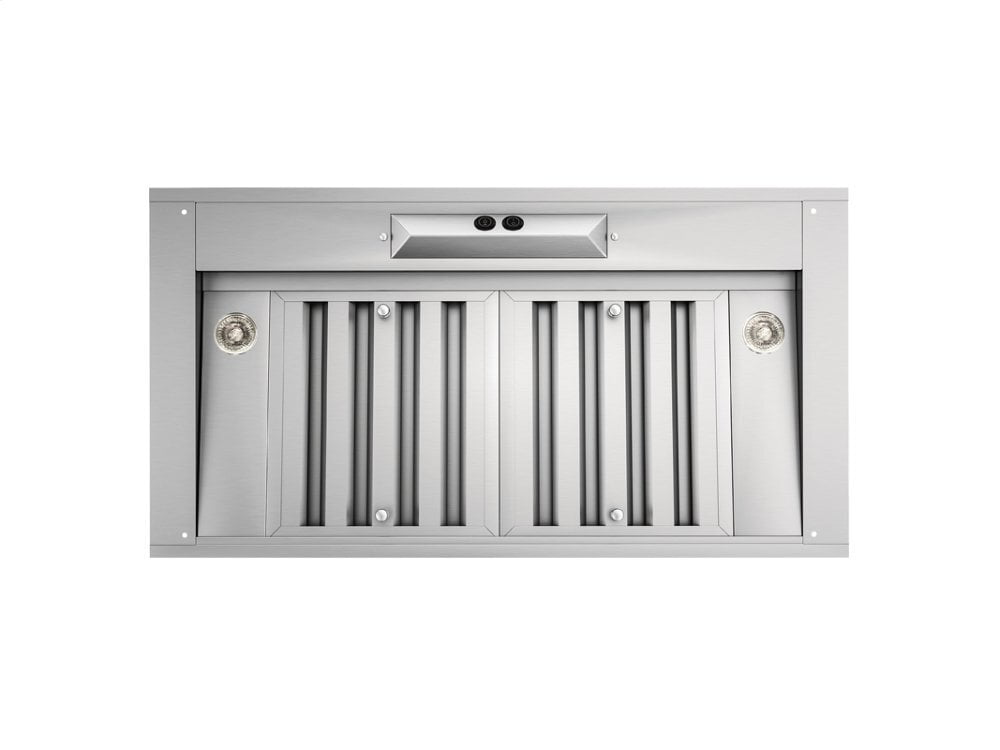

Zephyr AK8800AS 29" Willow Insert Outdoor

Zephyr AK8800AS 29" Willow Insert Outdoor

Willow'S High Performance Professional Stainless Steel Baffle Filters Enhance Airflow, While Bein... Read more...

When Will I Get My Order?

x

Shipping calculated at checkout.
Click to Call

To order or learn more please call us at: 866-739-3982

View full details

When Will I Get My Order?

x

Zephyr AK8800AS 29
Zephyr AK8800AS 29" Willow Insert Outdoor
Willow'S High Performance Professional Stainless Steel Baffle Filters Enhance Airflow, While Being Corrosion Resistant And Dishwasher Safe. 2-Speed, Rocker Controls Withstand Extreme Heat And Moisture. Optional, Adjustable-Depth 304-Grade Liners Are Available In 36", 42", 48", 54" And 60" Widths. Select Either 304-Grade Stainless Steel Or Galvanized Steel With Gray Powder-Coat Protection.

  • 1000 CFM
  • Not Recirculating
  • Pro Baffle Filter
  • Stainless Steel
  • Vertical Ducting
  • Max Sones 8
  • 304-grade Stainless Steel
  • Multiple Color Options
  • Professional Baffle Filters
  • Rocker Switch Controls

UPC 646328880032
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 1000
INTERNAL BLOWER 1 SONES 8
CONTROLS TYPE Rocker
BLOWER SPEEDS 2
AUTOMATIC DELAY-OFF no
CLEANAIR FUNCTION no
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 2
WATTS PER BULB 35
LIGHTS LEVELS 1
FILTER TYPE pro baffle
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 8
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 30 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 5.95
NOMINAL WIDTH, INCHES 30
NET WIDTH, INCHES 29.8125
DEPTH, INCHES 15.8125
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 11.4375
WEIGHT, LBS 39
SHIPPING HEIGHT, INCHES 21.26
SHIPPING WIDTH, INCHES 16.54
SHIPPING LENGTH, INCHES 34.25
SHIPPING WEIGHT, LBS 46.3
