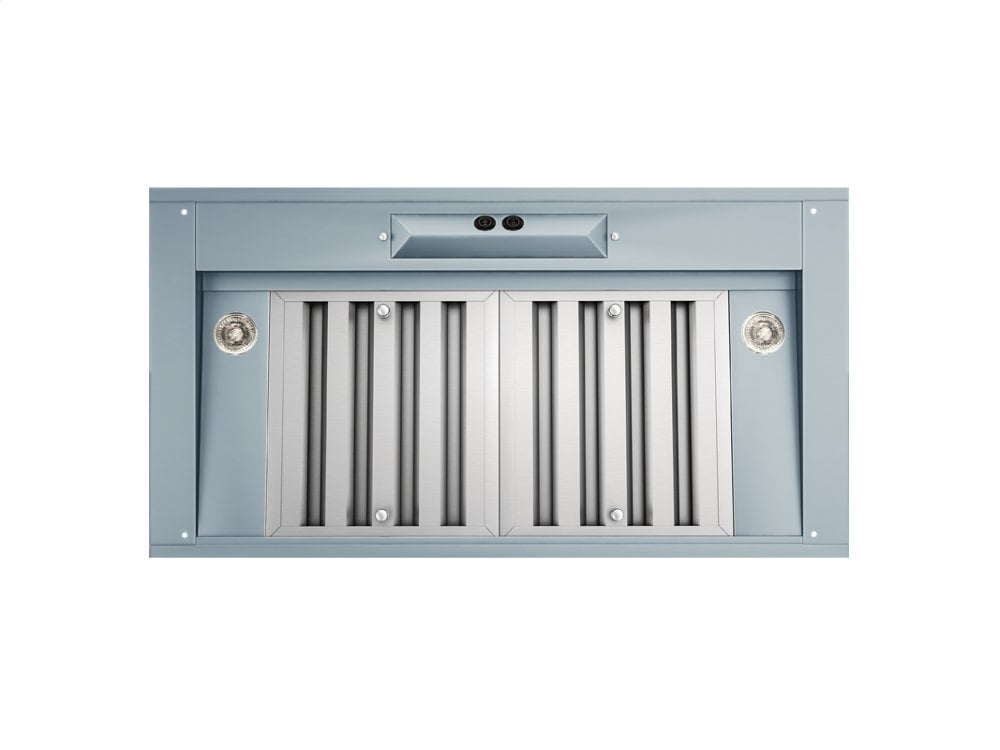

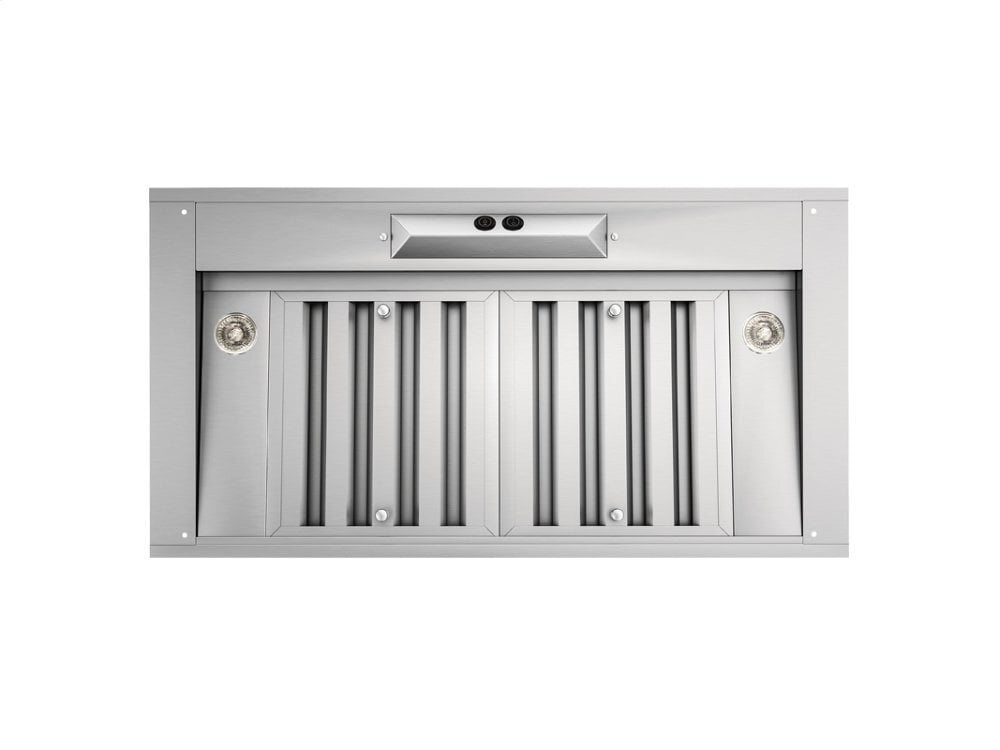

Zephyr AK8800AG 29" Willow Insert Outdoor
Willow'S High Performance Professional Stainless Steel Baffle Filters Enhance Airflow, While Bein... Read more...
SKU:AK8800AG
UPC:646328000560
Willow'S High Performance Professional Stainless Steel Baffle Filters Enhance Airflow, While Being Corrosion Resistant And Dishwasher Safe. 2-Speed, Rocker Controls Withstand Extreme Heat And Moisture. Optional, Adjustable-Depth 304-Grade Liners Are Available In 36", 42", 48", 54" And 60" Widths. Select Either 304-Grade Stainless Steel Or Galvanized Steel With Gray Powder-Coat Protection.
- 1000 CFM
- Not Recirculating
- Pro Baffle Filter
- Gray Powder Coated
- Vertical Ducting
- Max Sones 8
- 304-grade Stainless Steel
- Multiple Color Options
- Professional Baffle Filters
- Rocker Switch Controls
| UPC | 646328000560 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 8 |
| CONTROLS TYPE | Rocker |
| BLOWER SPEEDS | 2 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 1 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 30 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 5.95 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.8125 |
| DEPTH, INCHES | 15.8125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 11.4375 |
| WEIGHT, LBS | 39.4 |
| SHIPPING HEIGHT, INCHES | 21.26 |
| SHIPPING WIDTH, INCHES | 16.54 |
| SHIPPING LENGTH, INCHES | 34.25 |
| SHIPPING WEIGHT, LBS | 46.3 |
Description
Willow'S High Performance Professional Stainless Steel Baffle Filters Enhance Airflow, While Being Corrosion Resistant And Dishwasher Safe. 2-Speed, Rocker Controls Withstand Extreme Heat And Moisture. Optional, Adjustable-Depth 304-Grade Liners Are Available In 36", 42", 48", 54" And 60" Widths. Select Either 304-Grade Stainless Steel Or Galvanized Steel With Gray Powder-Coat Protection.
Features
- 1000 CFM
- Not Recirculating
- Pro Baffle Filter
- Gray Powder Coated
- Vertical Ducting
- Max Sones 8
- 304-grade Stainless Steel
- Multiple Color Options
- Professional Baffle Filters
- Rocker Switch Controls
Specifications
| UPC | 646328000560 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 8 |
| CONTROLS TYPE | Rocker |
| BLOWER SPEEDS | 2 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 1 |
| FILTER TYPE | pro baffle |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 8 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 30 - 36 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 5.95 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.8125 |
| DEPTH, INCHES | 15.8125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 11.4375 |
| WEIGHT, LBS | 39.4 |
| SHIPPING HEIGHT, INCHES | 21.26 |
| SHIPPING WIDTH, INCHES | 16.54 |
| SHIPPING LENGTH, INCHES | 34.25 |
| SHIPPING WEIGHT, LBS | 46.3 |
