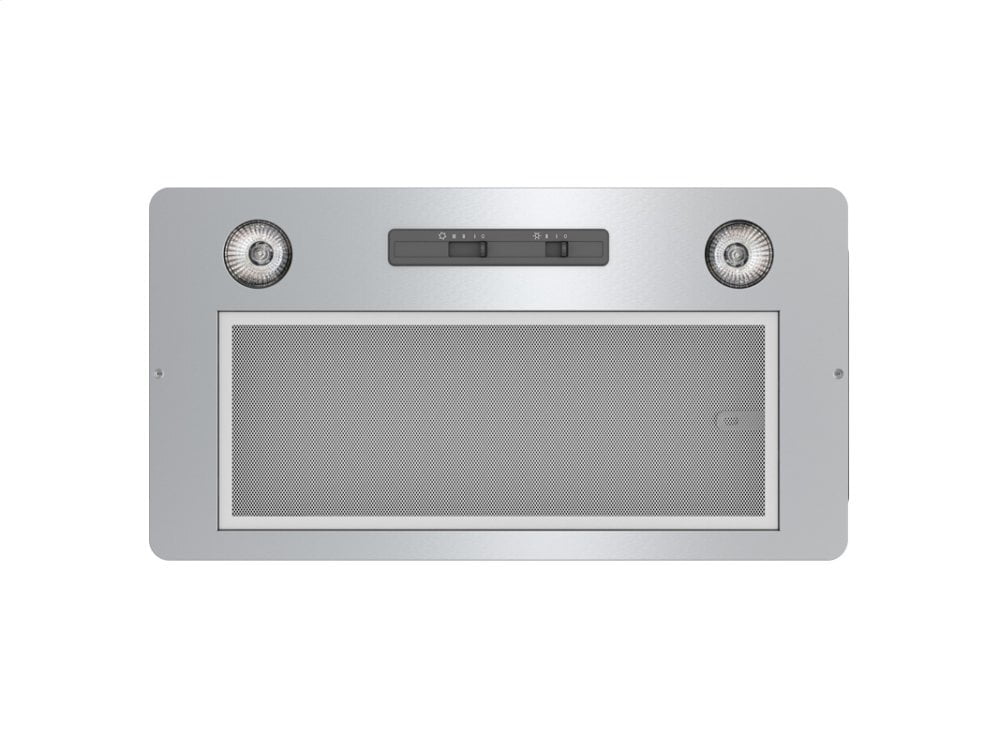

Zephyr AK8400AS 20" Tornado Mini Insert

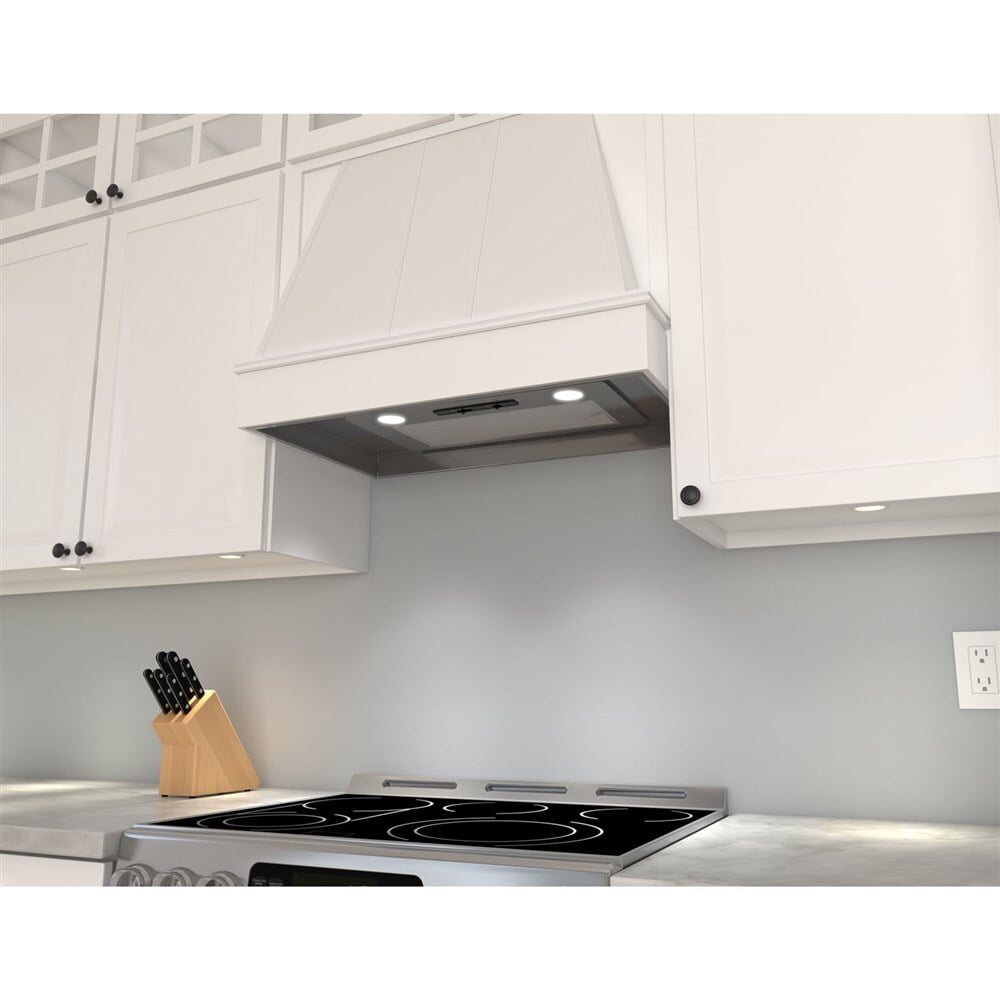

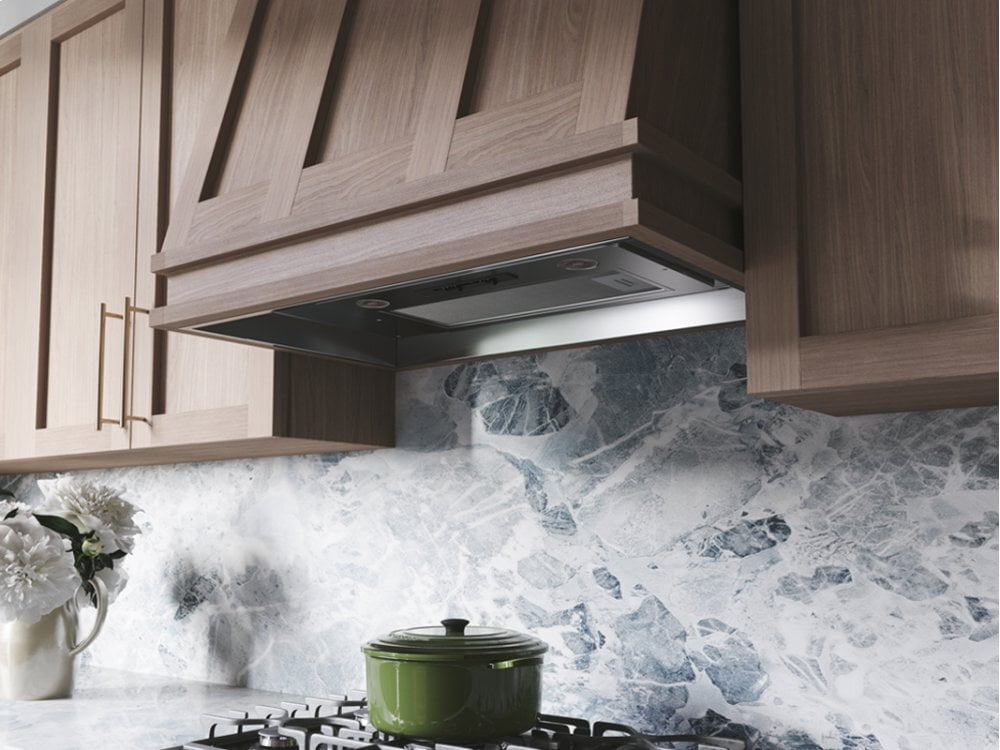

The Tornado Mini Power Pack Was Designed With Cost Efficiency And Versatility In Mind. Tornado Mini'S Small Footprint Fits Under A Standard 12" Depth Cabinet Or Choose One Of Our Optional Adjustable-Depth Stainless Steel Liners To Accommodate Custom Hood Enclosures From 17-1/2" To 20-1/2" Deep. Features Include Dual Level Halogen Lights, An Ultra-Quiet Blower And A Recirculating Option For Ductless Installations.
- 290 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Max Sones 3.2
- Dual-Level Lighting
- Halogen Lighting
- Aluminum Mesh Filters
- Mechanical Slide Controls
- Optional Recirculating Kit
- Value Driven
| UPC | 646328003462 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 1 SONES | 3.2 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 1.2 |
| NOMINAL WIDTH, INCHES | 20 |
| NET WIDTH, INCHES | 20.5625 |
| DEPTH, INCHES | 11 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 9.6875 |
| WEIGHT, LBS | 13.6 |
| SHIPPING HEIGHT, INCHES | 15.04 |
| SHIPPING WIDTH, INCHES | 24.8 |
| SHIPPING LENGTH, INCHES | 13.27 |
| SHIPPING WEIGHT, LBS | 17.4 |
