Zephyr AK8300ASX 38" Tornado Iii Insert

Zephyr AK8300ASX 38" Tornado Iii Insert

When Will I Get My Order?

x
View full details

When Will I Get My Order?

x

Zephyr AK8300ASX 38

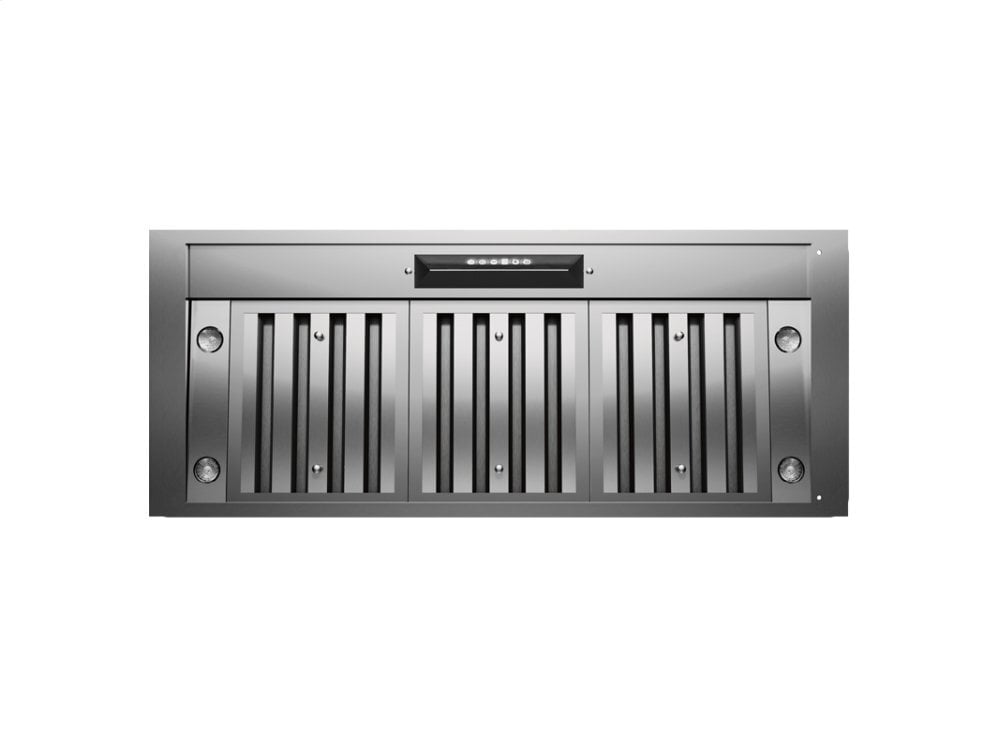

Zephyr AK8300ASX 38" Tornado Iii Insert
Tornado Iii Takes The Typical Power Pack Up A Notch, With Multiple Blower Options To Meet The Most Demanding Chef'S Requirements. 3-Speed Electronic Controls Put You In Command Of Either A 290, 600 Or 1,000-Cfm Blower. Dual-Level Halogen Lights Illuminate The Surface Below; While The Stylish Wireless Remote Puts You In Command From Up To 15 Feet Away. Optional Stainless Steel Liners Are Available In 48", 54" And 60" Sizes.
  • 290, 600, 1000 CFM
  • Not Recirculating
  • Pro Baffle Filter
  • Stainless Steel
  • Vertical Ducting
  • Dual-Level Lighting
  • Halogen Lighting
  • CleanAir Function
  • Electronic Touch Controls
  • Includes Wireless Remote Control
  • Multiple Blower Options
  • Optional Make-Up Air Kit
  • Professional Baffle Filters
UPC 646328830037
BLOWER INCLUDED YES/NO no
INTERNAL BLOWER 1 CFM 290
INTERNAL BLOWER 2 CFM 600
INTERNAL BLOWER 3 CFM 1000
IN-LINE BLOWER CFM 1000
EXTERNAL BLOWER CFM 1000
INTERNAL BLOWER 1 SONES 3
INTERNAL BLOWER 2 SONES 6
INTERNAL BLOWER 3 SONES 8
CONTROLS TYPE Electronic
BLOWER SPEEDS 3
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 4
WATTS PER BULB 35
LIGHTS LEVELS 2
FILTER TYPE pro baffle
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 8
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE depends on blower
NOMINAL WIDTH, INCHES 38
NET WIDTH, INCHES 38.4375
DEPTH, INCHES 15.8125
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 11.4375
WEIGHT, LBS 25.4
SHIPPING HEIGHT, INCHES 16.54
SHIPPING WIDTH, INCHES 43.15
SHIPPING LENGTH, INCHES 21.38
SHIPPING WEIGHT, LBS 33.8
