Home > Zephyr AK8200AS 29" Tornado Ii Insert
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29
  • Zephyr AK8200AS 29

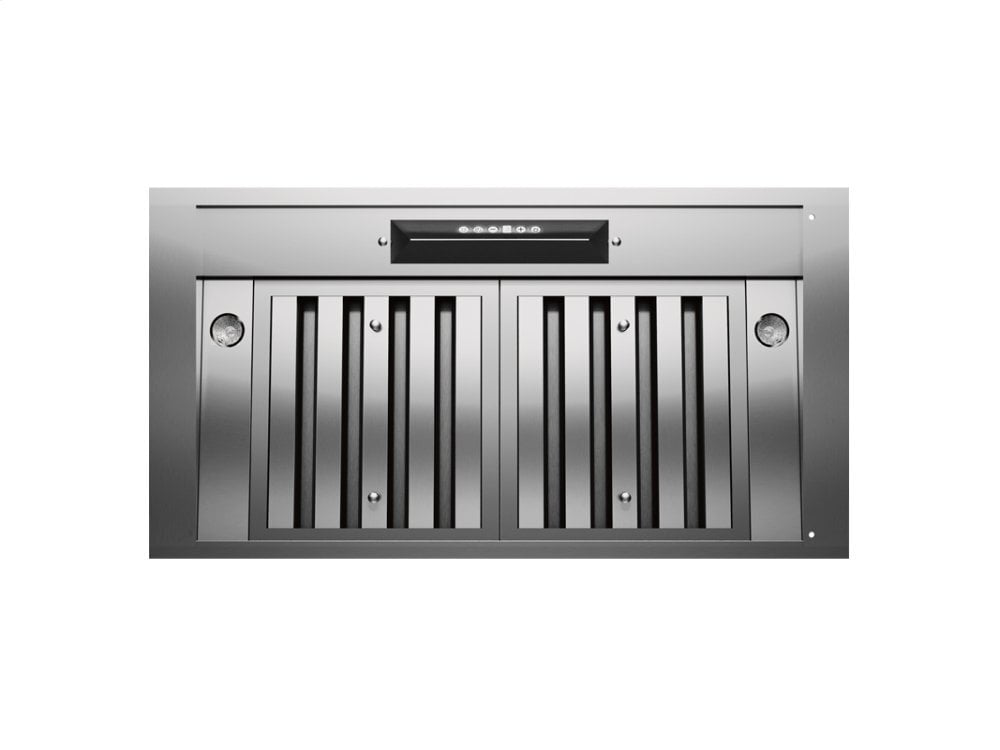

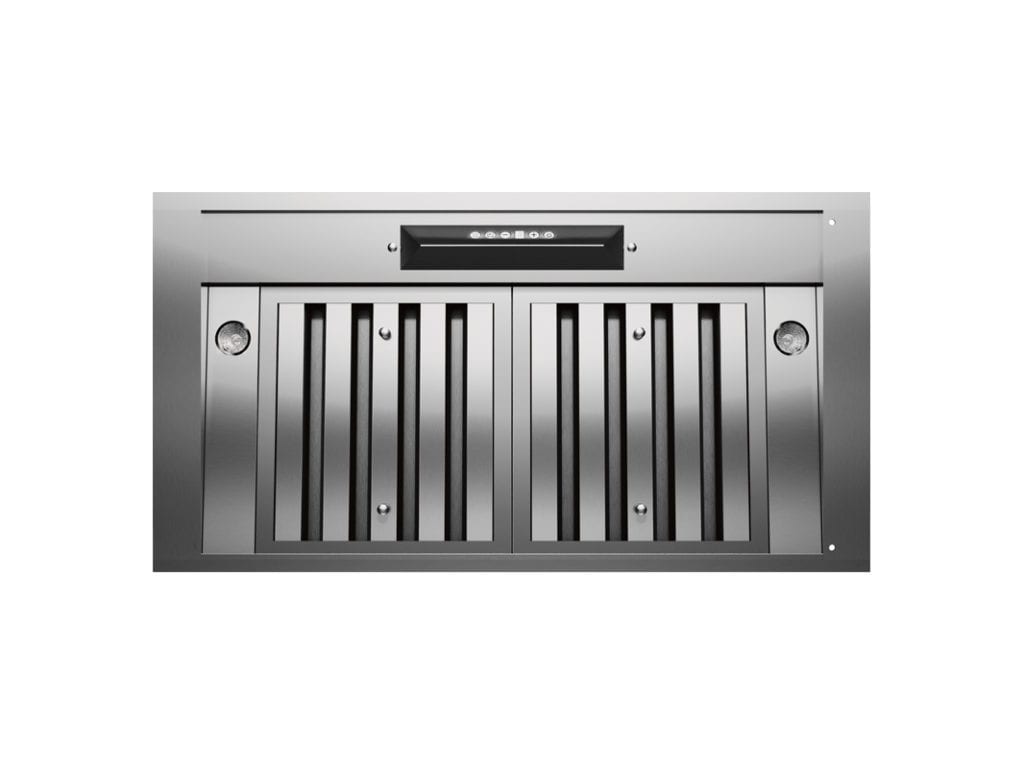

  • Zephyr AK8200AS 29" Tornado Ii Insert

    If You'D Like Professional-Grade Punch With All The Amenities, Tornado Ii Will Be Your Best-Kept ... Read more...

    Click to Call

    To order or learn more please call us at: 800-288-1647

    When Will I Get My Order?
    If You'D Like Professional-Grade Punch With All The Amenities, Tornado Ii Will Be Your Best-Kept Secret, With Powerful Blower Combinations And An Optional Adjustable-Depth Liner For More Flexible Installations. A Stylish And Discreet Wireless Remote Puts You In Control. Dual-Level Halogen Lights Illuminate The Surface Below. Choose The Ventilation Level That'S Right For You Along With An Optional, Easy-To-Install Stainless Steel Liner To Complement Your Kitchen'S Style.
    • 1000 CFM
    • Not Recirculating
    • Pro Baffle Filter
    • Stainless Steel
    • Vertical Ducting
    • Max Sones 8
    • Dual-Level Lighting
    • Halogen Lighting
    • CleanAir Function
    • Electronic Touch Controls
    • Includes Wireless Remote Control
    • Optional Make-Up Air Kit
    • Professional Baffle Filters
    UPC 646328820069
    BLOWER INCLUDED YES/NO yes
    INTERNAL BLOWER 1 CFM 1000
    INTERNAL BLOWER 1 SONES 8
    CONTROLS TYPE Electronic
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF yes
    CLEANAIR FUNCTION yes
    LIGHTS TYPE (INCLUDED) halogen
    LIGHTS QUANTITY 2
    WATTS PER BULB 35
    LIGHTS LEVELS 2
    FILTER TYPE pro baffle
    DUCT DISCHARGE vertical
    DUCT SIZE, VERTICAL, INCHES 8
    DUCT SIZE, HORIZONTAL, INCHES NA
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE 6
    NOMINAL WIDTH, INCHES 30
    NET WIDTH, INCHES 29.8125
    DEPTH, INCHES 15.8125
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 11.4375
    WEIGHT, LBS 39.7
    SHIPPING HEIGHT, INCHES 16.69
    SHIPPING WIDTH, INCHES 34.02
    SHIPPING LENGTH, INCHES 21.38
    SHIPPING WEIGHT, LBS 43

    Description

    If You'D Like Professional-Grade Punch With All The Amenities, Tornado Ii Will Be Your Best-Kept Secret, With Powerful Blower Combinations And An Optional Adjustable-Depth Liner For More Flexible Installations. A Stylish And Discreet Wireless Remote Puts You In Control. Dual-Level Halogen Lights Illuminate The Surface Below. Choose The Ventilation Level That'S Right For You Along With An Optional, Easy-To-Install Stainless Steel Liner To Complement Your Kitchen'S Style.

    Features

    • 1000 CFM
    • Not Recirculating
    • Pro Baffle Filter
    • Stainless Steel
    • Vertical Ducting
    • Max Sones 8
    • Dual-Level Lighting
    • Halogen Lighting
    • CleanAir Function
    • Electronic Touch Controls
    • Includes Wireless Remote Control
    • Optional Make-Up Air Kit
    • Professional Baffle Filters

    Specifications

    UPC 646328820069
    BLOWER INCLUDED YES/NO yes
    INTERNAL BLOWER 1 CFM 1000
    INTERNAL BLOWER 1 SONES 8
    CONTROLS TYPE Electronic
    BLOWER SPEEDS 3
    AUTOMATIC DELAY-OFF yes
    CLEANAIR FUNCTION yes
    LIGHTS TYPE (INCLUDED) halogen
    LIGHTS QUANTITY 2
    WATTS PER BULB 35
    LIGHTS LEVELS 2
    FILTER TYPE pro baffle
    DUCT DISCHARGE vertical
    DUCT SIZE, VERTICAL, INCHES 8
    DUCT SIZE, HORIZONTAL, INCHES NA
    MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
    INPUT VOLTAGE 120
    MAXIMUM AMPERAGE 6
    NOMINAL WIDTH, INCHES 30
    NET WIDTH, INCHES 29.8125
    DEPTH, INCHES 15.8125
    HEIGHT, INCHES (for chimney hoods, heights include duct covers) 11.4375
    WEIGHT, LBS 39.7
    SHIPPING HEIGHT, INCHES 16.69
    SHIPPING WIDTH, INCHES 34.02
    SHIPPING LENGTH, INCHES 21.38
    SHIPPING WEIGHT, LBS 43
