Zephyr AK8000ASES 28" Twister Insert Energy Star

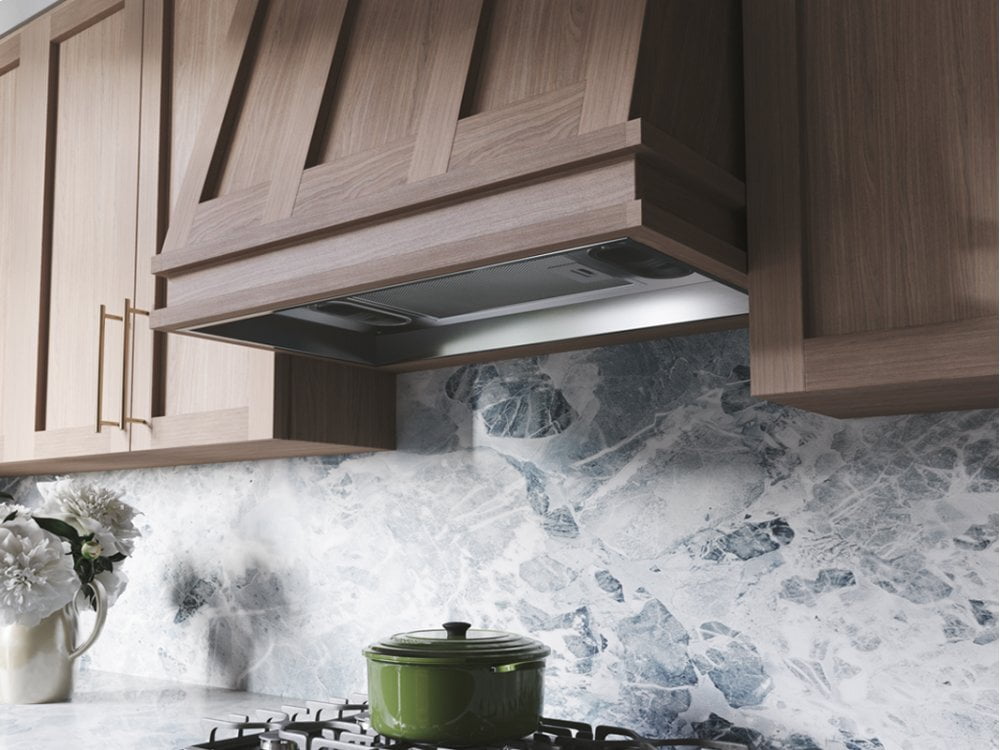

The Twister Es, Certified Energy Star® Power Pack Was Designed With Cost Efficiency In Mind For A Solution That Blends In Anywhere. Twister Es Hides The Ventilation You Need Beneath Your Custom, Built-In Canopy. An Optional Stainless Steel Liner Extends The Hood And Protects Your Cabinetry. 290 Cfm, 3-Speeds, Energy Star® Approved. Includes Energy-Efficient, Warm White Fluorescent Lighting.
- 290 CFM
- Not Recirculating
- Mesh Filter
- Stainless Steel
- Vertical Ducting
- Halogen Lighting
- Aluminum Mesh Filters
- ENERGY STAR(R) Certified
- Fluorescent Lighting
- Mechanical Slide Controls
| UPC | 646328003561 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 1 SONES | 3.8 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | fluorescent |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 13 |
| LIGHTS LEVELS | 1 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical |
| DUCT SIZE, VERTICAL, INCHES | 6 |
| DUCT SIZE, HORIZONTAL, INCHES | NA |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 26 - 34 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 1.2 |
| NOMINAL WIDTH, INCHES | 27 |
| NET WIDTH, INCHES | 27.5625 |
| DEPTH, INCHES | 11.1875 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 10.5 |
| WEIGHT, LBS | 17.9 |
| SHIPPING HEIGHT, INCHES | 15.55 |
| SHIPPING WIDTH, INCHES | 30.47 |
| SHIPPING LENGTH, INCHES | 14.45 |
| SHIPPING WEIGHT, LBS | 23.1 |
