Zephyr AK7548BS 48" Tempest Ii Wall Hood With 650 Cfm Blower, 6 Speed Levels, Act

Zephyr AK7548BS 48" Tempest Ii Wall Hood With 650 Cfm Blower, 6 Speed Levels, Act

When Will I Get My Order?

x

View full details

When Will I Get My Order?

x

Zephyr AK7548BS 48
Zephyr AK7548BS 48" Tempest Ii Wall Hood With 650 Cfm Blower, 6 Speed Levels, Act
The Zephyr Ak7548Bs 48-In. Essentials Series Tempest Ii Pro-Style Range Hood Is Designed With Professional-Grade Performance And Seamless Contours In Mind. The Wall-Mount Hood Gives You Serious Cooking Power With Up To 650 Cfm Blower-Power. Equipped With Dishwasher-Safe, High-Airflow Baffle Filters, An Optional Wireless Remote Control, 6 Varied Speeds, And Dual-Level Halogen Lighting, It'S Everything A Demanding Cook Could Ask For.

  • 48-In. Essential Series Tempest II under-cabinet pro-style range hood
  • ACT Airflow Control Technology (allows you to limit max. CFM to meet local code requirements)
  • Six powerful speed levels
  • 200-650 CFM single internal blower
  • Internal blower sones: 1-6
  • 48-In. wide design
  • Four SS Pro-Baffle filters

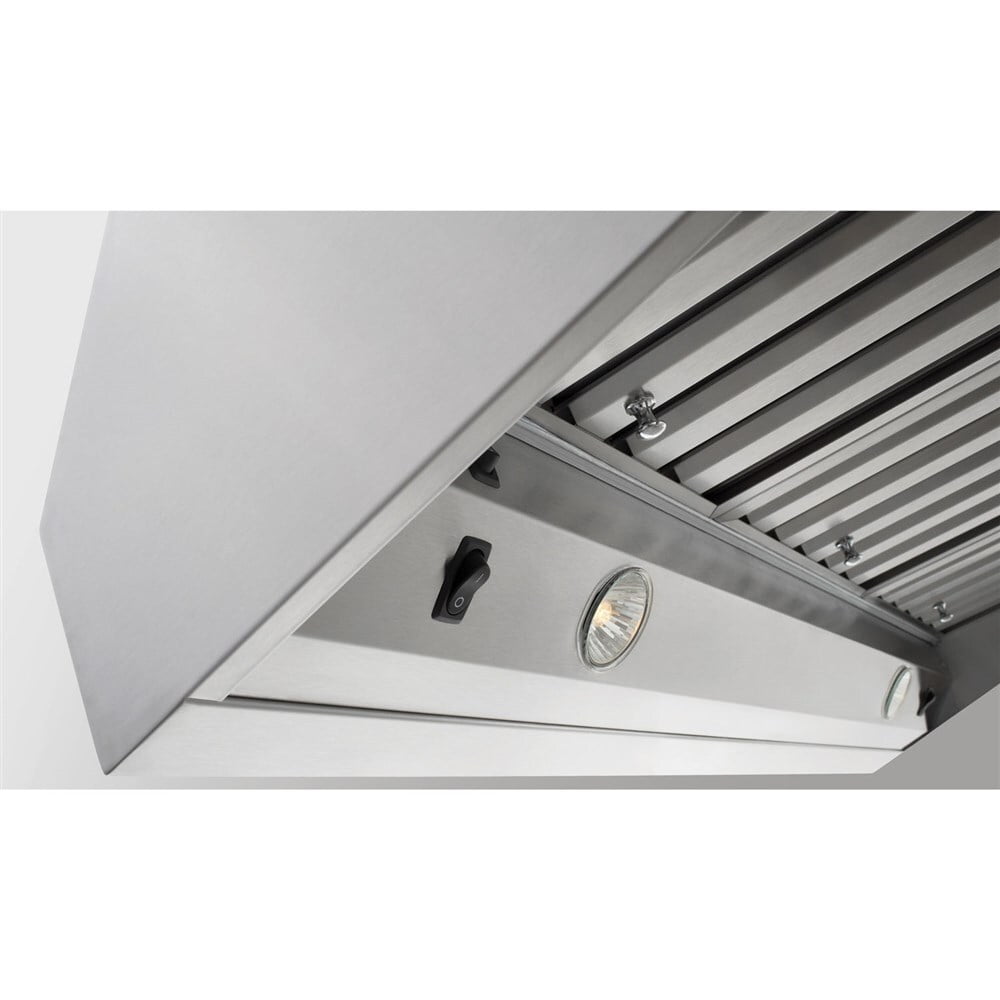

  • Electronic touch integrated controls

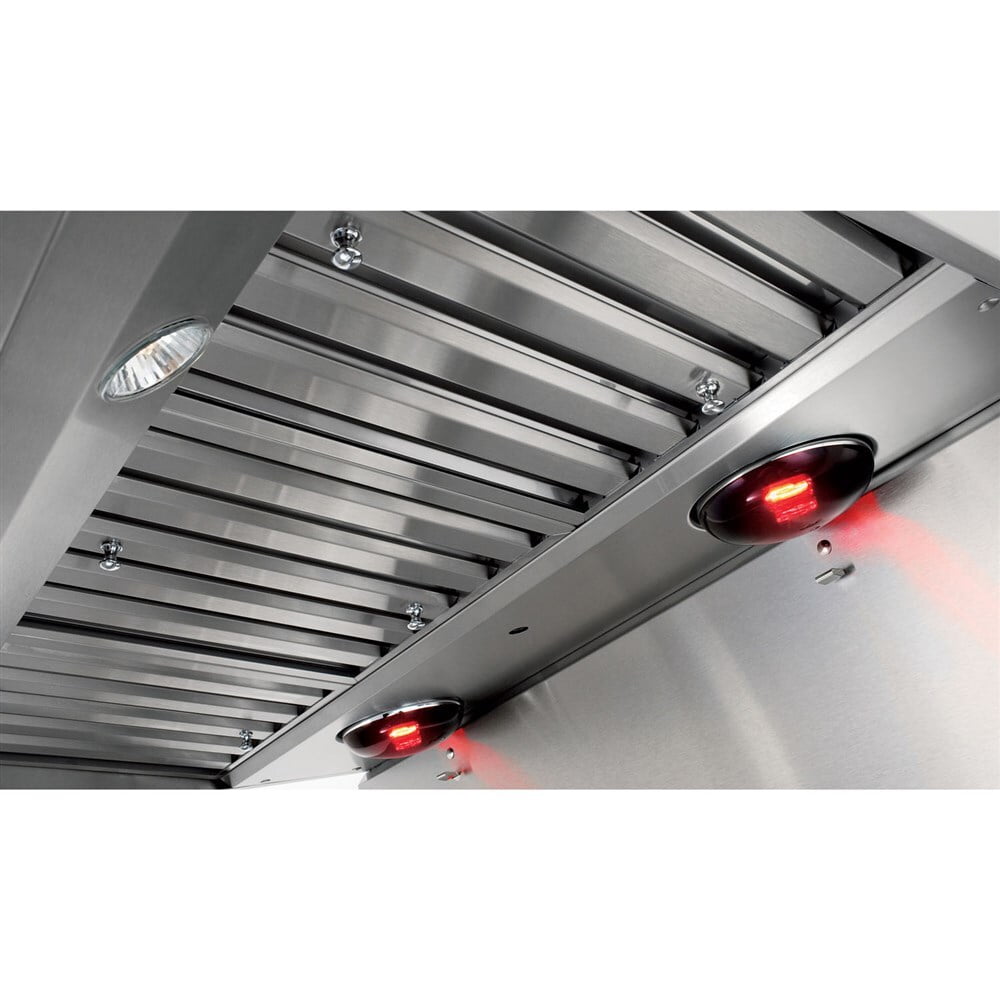

  • Dual-level lighting
  • Four 35W halogen bulbs
  • Internal blower - vertical: 8" round
  • Internal blower - horizontal: 8" round or 3-1/4" x 10"
  • Optional wireless remote control (not included)
  • Color: Stainless Steel
  • Clean Air Mode
  • Mounting height: 26" - 36"

UPC 646328003134
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 650
INTERNAL BLOWER 2 CFM 1200
BLOWER CFM w/ACT 390, 290
INTERNAL BLOWER 1 SONES 6
INTERNAL BLOWER 2 SONES 9
CONTROLS TYPE Electronic
BLOWER SPEEDS 6
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 4
WATTS PER BULB 35
LIGHTS LEVELS 2
FILTER TYPE pro baffle
DUCT DISCHARGE vertical or horizontal
DUCT SIZE, VERTICAL, INCHES 8, 10
DUCT SIZE, HORIZONTAL, INCHES 8, 10, 3.25 x 10
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 5
NOMINAL WIDTH, INCHES 48
NET WIDTH, INCHES 47.875
DEPTH, INCHES 24
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 18
WEIGHT, LBS 72.4
SHIPPING HEIGHT, INCHES 28.31
SHIPPING WIDTH, INCHES 50.98
SHIPPING LENGTH, INCHES 23.15
SHIPPING WEIGHT, LBS 92.2

Tempest II, 18in Pro, 48", SS, 650 CFM, ACT
