Zephyr AK7500BS 30" Tempest Ii Wall Hood With 650 Cfm Blower, 6 Speed Levels, Act

Zephyr AK7500BS 30" Tempest Ii Wall Hood With 650 Cfm Blower, 6 Speed Levels, Act

The Zephyr Ak7500Bs 30-In. Essential Series Tempest Ii Pro-Style Range Hood Is Designed With Prof... Read more...

When Will I Get My Order?

x

Shipping calculated at checkout.
Click to Call

To order or learn more please call us at: 866-739-3982

View full details

When Will I Get My Order?

x

Zephyr AK7500BS 30
Zephyr AK7500BS 30" Tempest Ii Wall Hood With 650 Cfm Blower, 6 Speed Levels, Act

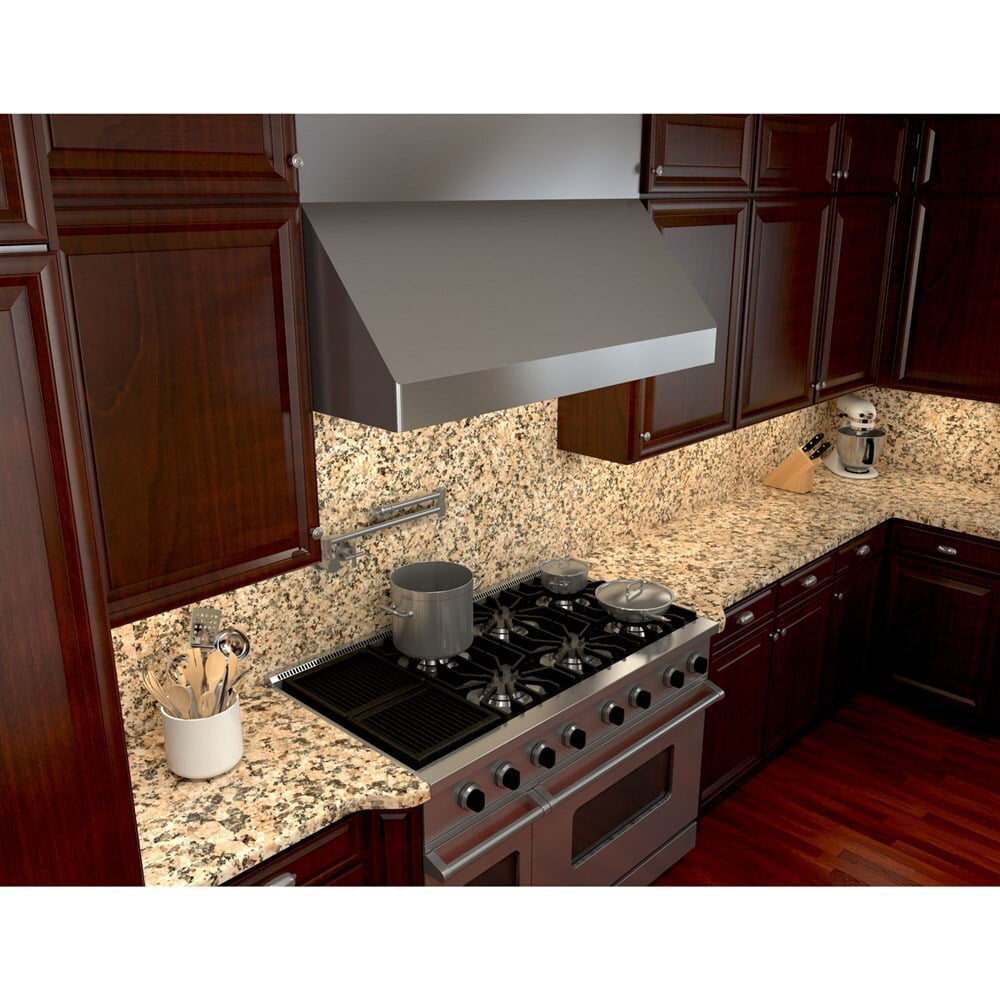

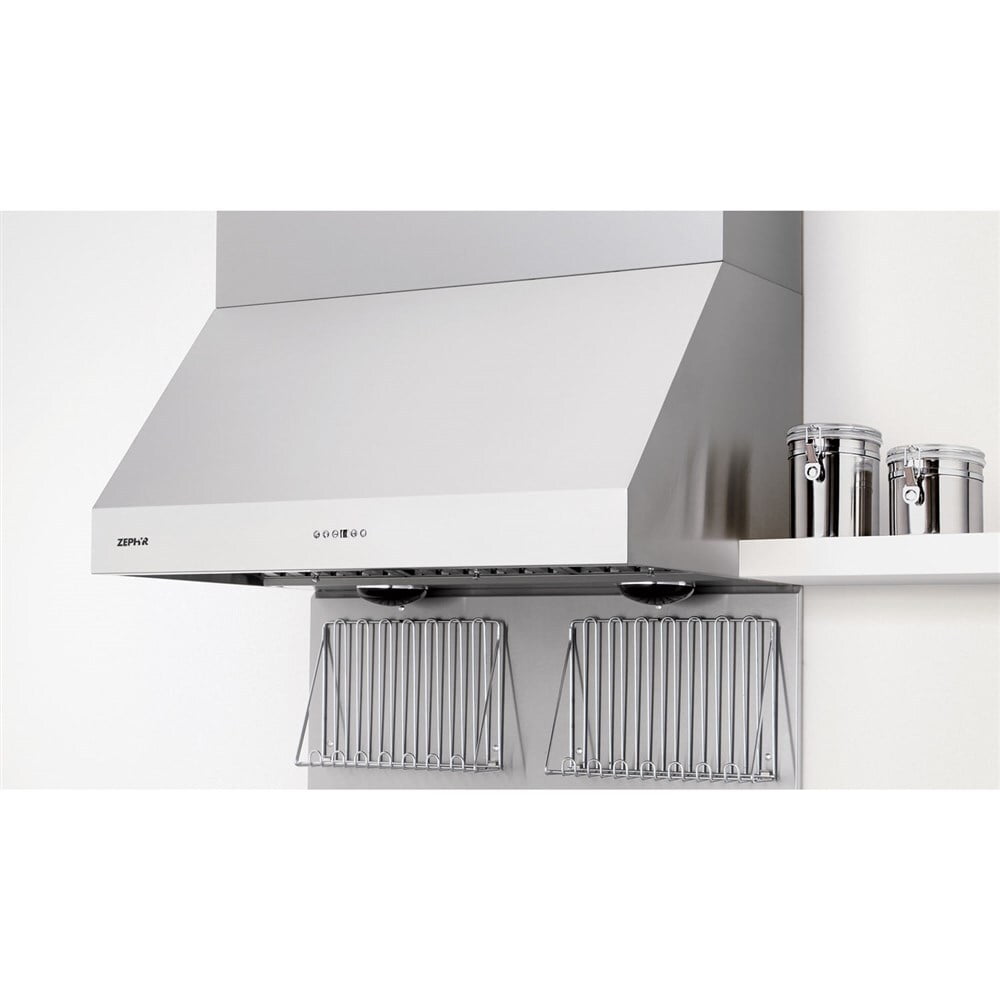

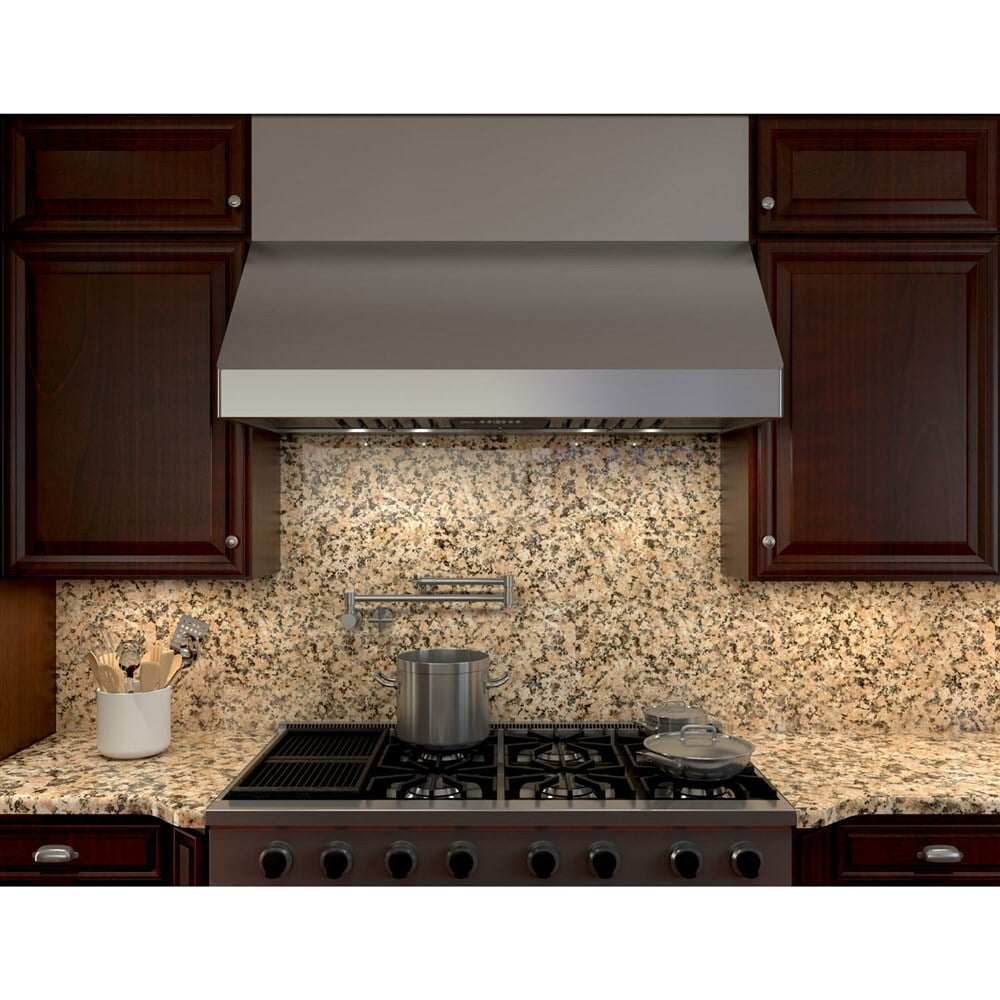

The Zephyr Ak7500Bs 30-In. Essential Series Tempest Ii Pro-Style Range Hood Is Designed With Professional-Grade Performance And Seamless Contours In Mind. The Wall-Mount Essentials Series Tempest Ii Gives You Serious Cooking Power With Up To 650 Cfm Blower-Power.

  • 30-In. Essential Series Tempest II under-cabinet pro-style range hood
  • ACT Airflow Control Technology (allows you to limit max. CFM to meet local code requirements)
  • Six powerful speed levels
  • 200-650 CFM single internal blower
  • Internal blower sones: 1-6
  • 30-In. wide design

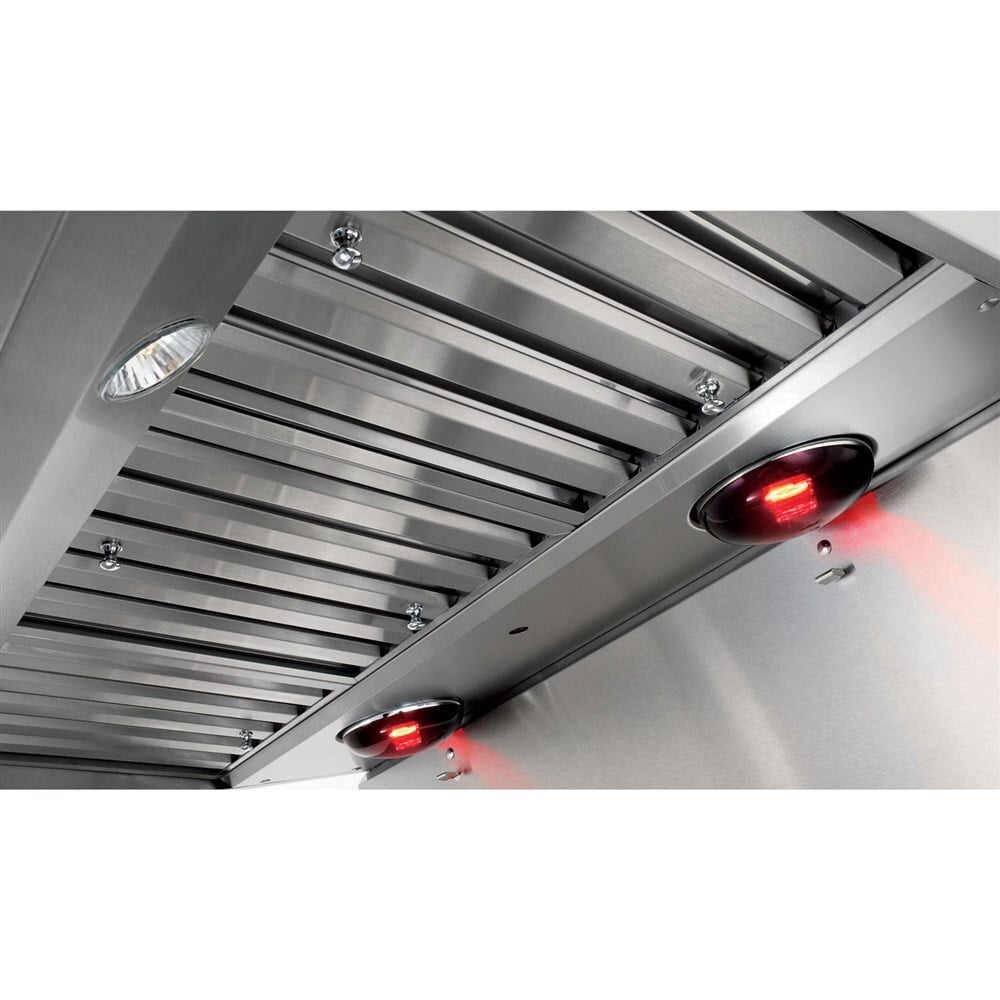

  • Two SS Pro-Baffle filters
  • Electronic touch integrated controls

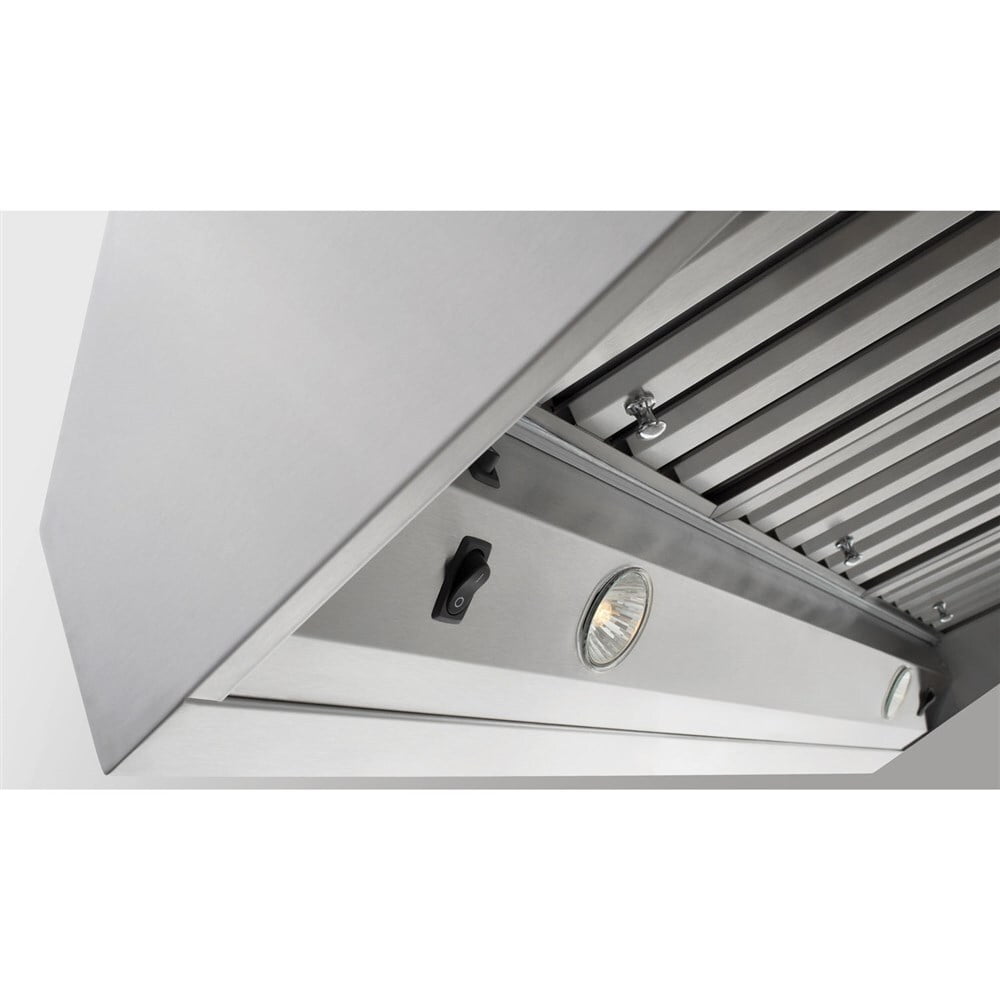

  • Dual-level lighting
  • Two 35W halogen bulbs
  • Internal blower - vertical: 8" round
  • Internal blower - horizontal: 8" round or 3-1/4" x 10"
  • Optional wireless remote control (not included)
  • Color: Stainless Steel
  • Clean Air Mode
  • Recirculating option
  • Mounting height: 26" - 36"

UPC 646328003110
BLOWER INCLUDED YES/NO yes
INTERNAL BLOWER 1 CFM 650
INTERNAL BLOWER 2 CFM 1200
BLOWER CFM w/ACT 390, 290
INTERNAL BLOWER 1 SONES 6
INTERNAL BLOWER 2 SONES 9
CONTROLS TYPE Electronic
BLOWER SPEEDS 6
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) halogen
LIGHTS QUANTITY 2
WATTS PER BULB 35
LIGHTS LEVELS 2
FILTER TYPE pro baffle
DUCT DISCHARGE vertical or horizontal
DUCT SIZE, VERTICAL, INCHES 8, 10
DUCT SIZE, HORIZONTAL, INCHES 8, 10, 3.25 x 10
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 26 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE 5
NOMINAL WIDTH, INCHES 30
NET WIDTH, INCHES 29.875
DEPTH, INCHES 24
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 18
WEIGHT, LBS 53.9
SHIPPING HEIGHT, INCHES 28.31
SHIPPING WIDTH, INCHES 33.46
SHIPPING LENGTH, INCHES 23.15
SHIPPING WEIGHT, LBS 70.3

Tempest II, 18in Pro, 30", SS, 650 CFM, ACT
