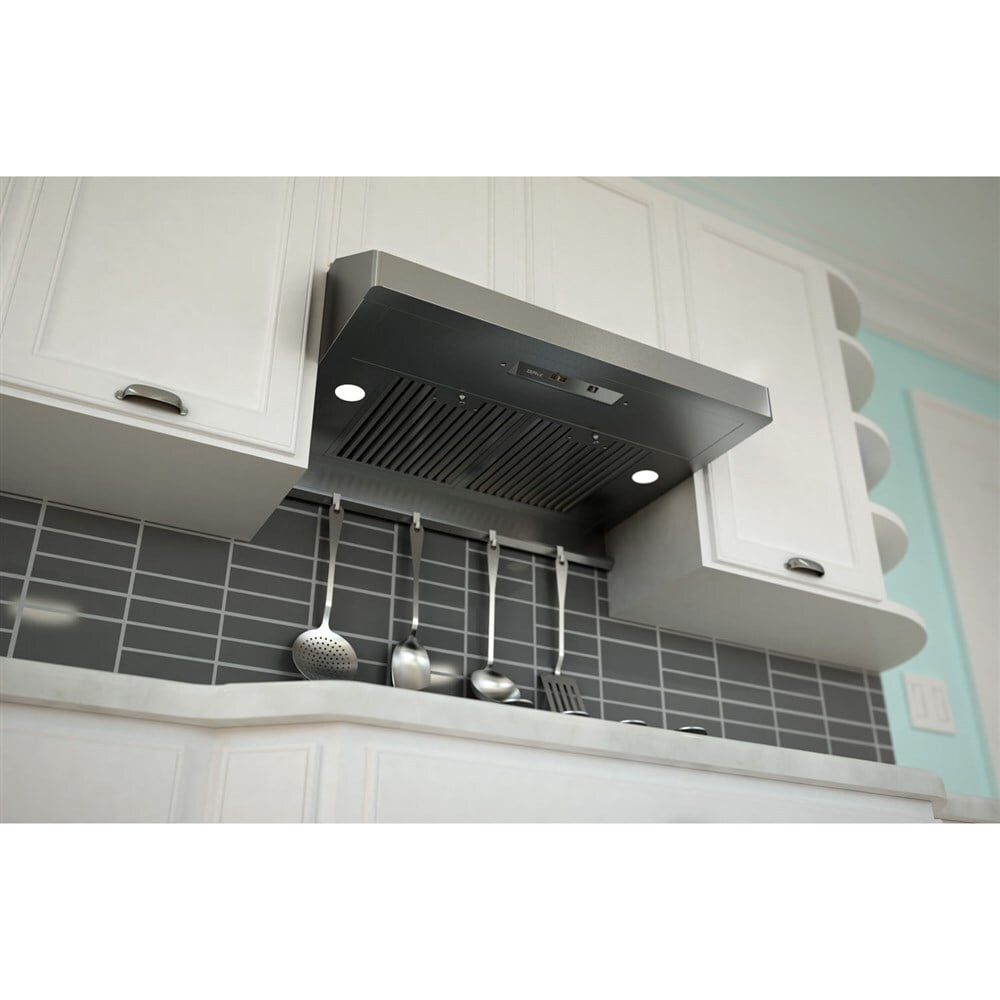

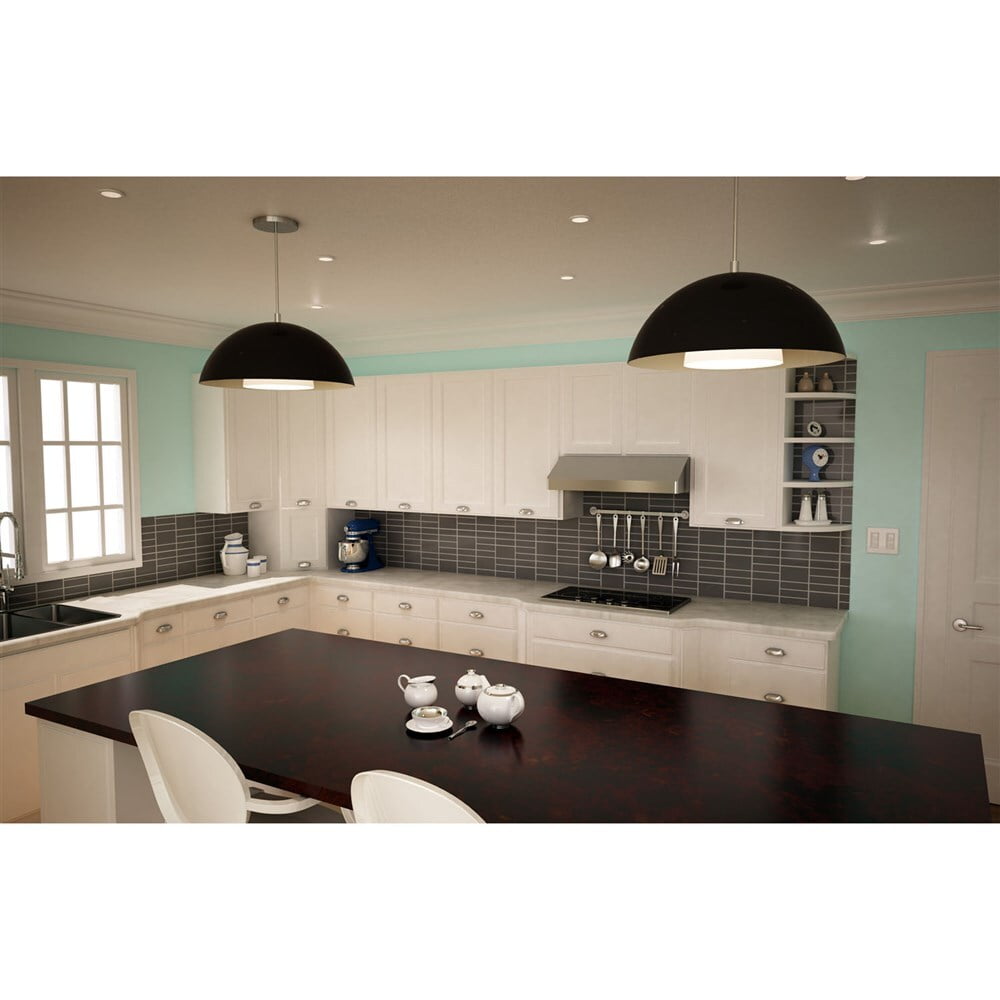

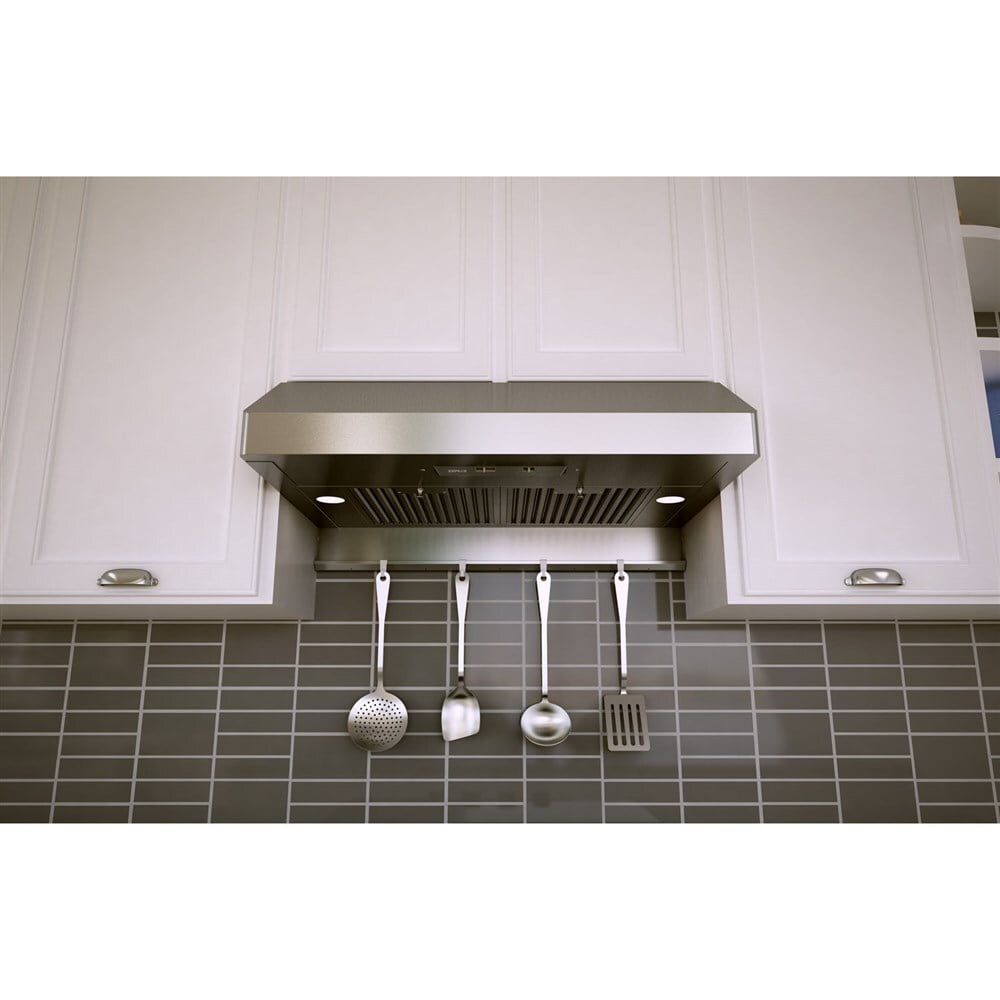

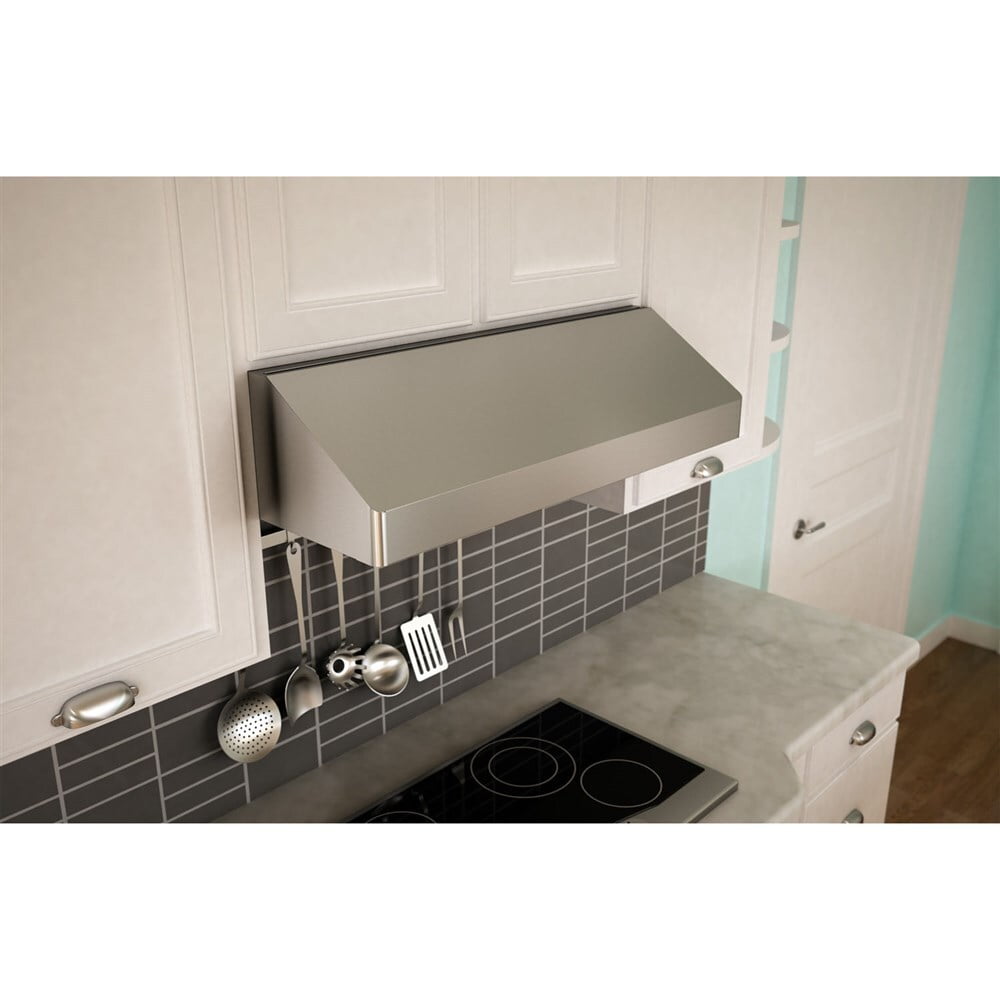

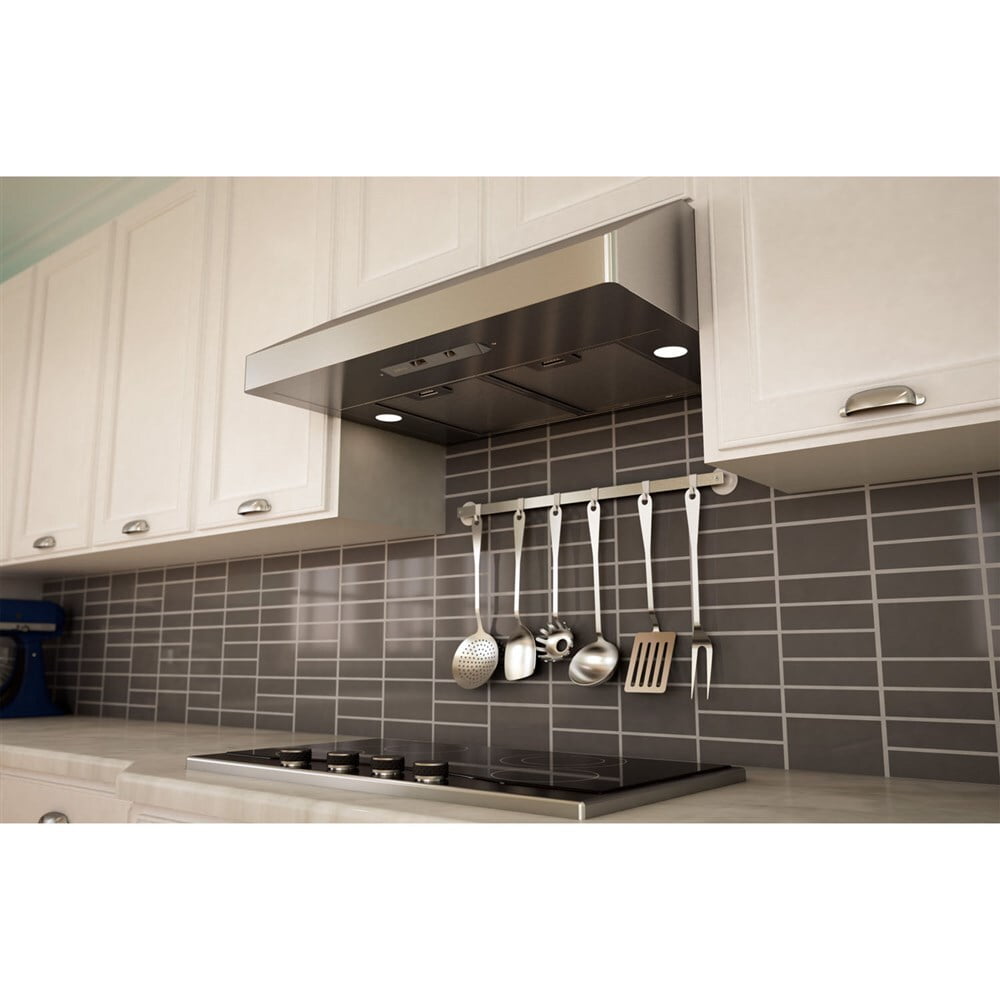

Zephyr AK7100ASBF 30" Gust Undercabinet Hood W/400 Cfm Blower,3 Speed Levels,Baffle Filter
The Zephyr Ak7100As-Bf 30-In. Essentials Europa Series Gust Is A Discreet, European-Style Pro-Loo... Read more...
SKU:AK7100ASBF
UPC:646328000027
The Zephyr Ak7100As-Bf 30-In. Essentials Europa Series Gust Is A Discreet, European-Style Pro-Looking Range Hood That Adds Style To Under-Cabinet Installations. With Its Mechanical Controls Neatly Tucked Away Below The Canopy, Gust Embodies The Subtlety Its Owners Require. Its Perfectly Curved Corners And The Subtle Top-Mounted Return-Air Louver Are Evidence That Gust Spares Nothing When It Comes To Quality Construction.
- 30-In. Essential Europa Series Gust under-cabinet pro-style range hood with baffle filter
- Three powerful speed levels
- 210-400 CFM internal blower
- Internal blower sones: 2-5
- 30-In. wide design
- Baffle-style filters
- Mechanical slide integrated controls
- Dual-level lighting
- Two 50W halogen bulbs
- Internal blower - vertical: 7" round or 3-1/4" x 10"
- Internal blower - horizontal: 3-1/4" x 10"
- Color: Stainless Steel
- Recirculating option
- Mounting Height: 24" - 32"
- Utensil bar included with unit
| UPC | 646328000027 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 400 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | baffle |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 1.7 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 21 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
| WEIGHT, LBS | 32.6 |
| SHIPPING HEIGHT, INCHES | 25.35 |
| SHIPPING WIDTH, INCHES | 32.83 |
| SHIPPING LENGTH, INCHES | 10.63 |
| SHIPPING WEIGHT, LBS | 38.9 |
Gust, UC, 30", SS, Baffle Filter, 400 CFM
Description
The Zephyr Ak7100As-Bf 30-In. Essentials Europa Series Gust Is A Discreet, European-Style Pro-Looking Range Hood That Adds Style To Under-Cabinet Installations. With Its Mechanical Controls Neatly Tucked Away Below The Canopy, Gust Embodies The Subtlety Its Owners Require. Its Perfectly Curved Corners And The Subtle Top-Mounted Return-Air Louver Are Evidence That Gust Spares Nothing When It Comes To Quality Construction.
Features
- 30-In. Essential Europa Series Gust under-cabinet pro-style range hood with baffle filter
- Three powerful speed levels
- 210-400 CFM internal blower
- Internal blower sones: 2-5
- 30-In. wide design
- Baffle-style filters
- Mechanical slide integrated controls
- Dual-level lighting
- Two 50W halogen bulbs
- Internal blower - vertical: 7" round or 3-1/4" x 10"
- Internal blower - horizontal: 3-1/4" x 10"
- Color: Stainless Steel
- Recirculating option
- Mounting Height: 24" - 32"
- Utensil bar included with unit
Specifications
| UPC | 646328000027 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 400 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 50 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | baffle |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 1.7 |
| NOMINAL WIDTH, INCHES | 30 |
| NET WIDTH, INCHES | 29.9375 |
| DEPTH, INCHES | 21 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.375 |
| WEIGHT, LBS | 32.6 |
| SHIPPING HEIGHT, INCHES | 25.35 |
| SHIPPING WIDTH, INCHES | 32.83 |
| SHIPPING LENGTH, INCHES | 10.63 |
| SHIPPING WEIGHT, LBS | 38.9 |
Videos
Gust, UC, 30", SS, Baffle Filter, 400 CFM
