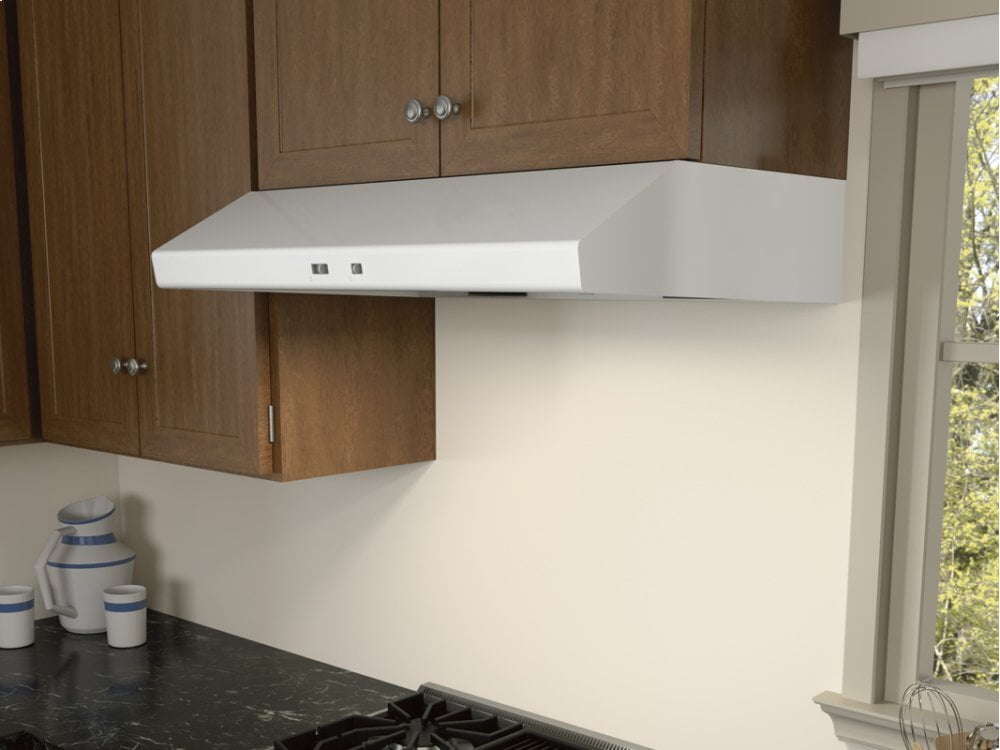

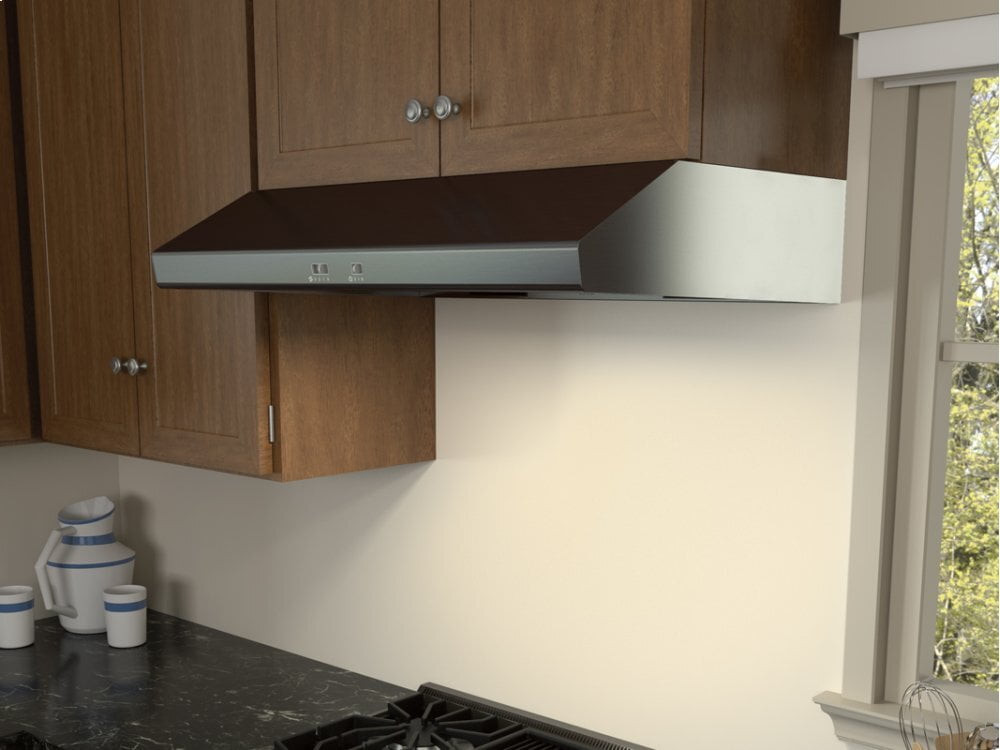

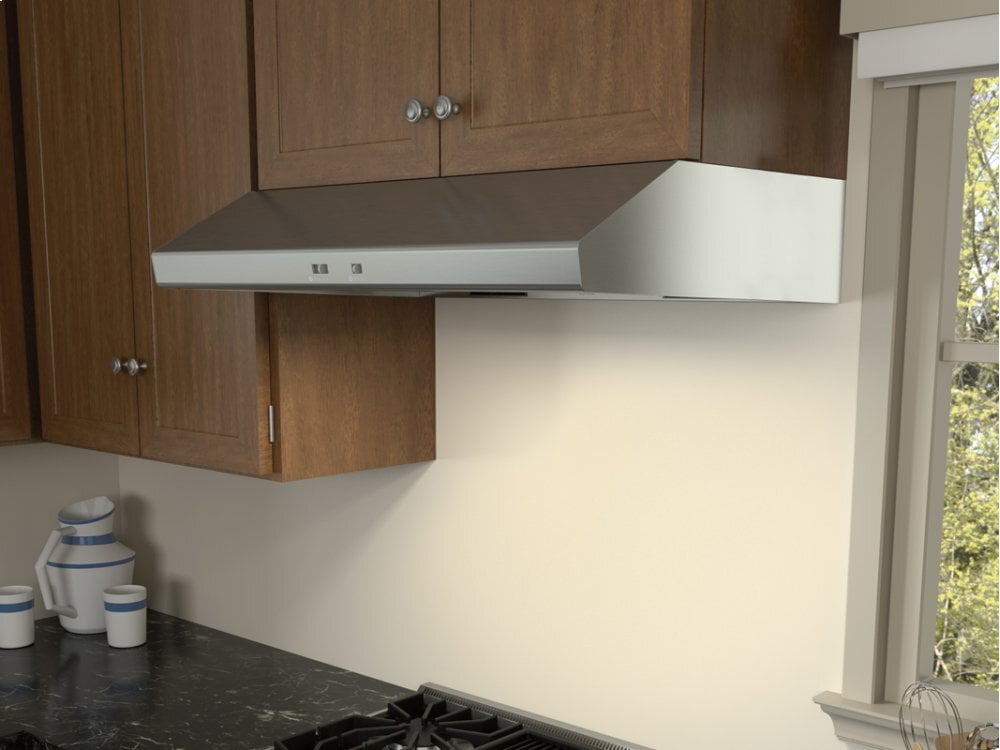

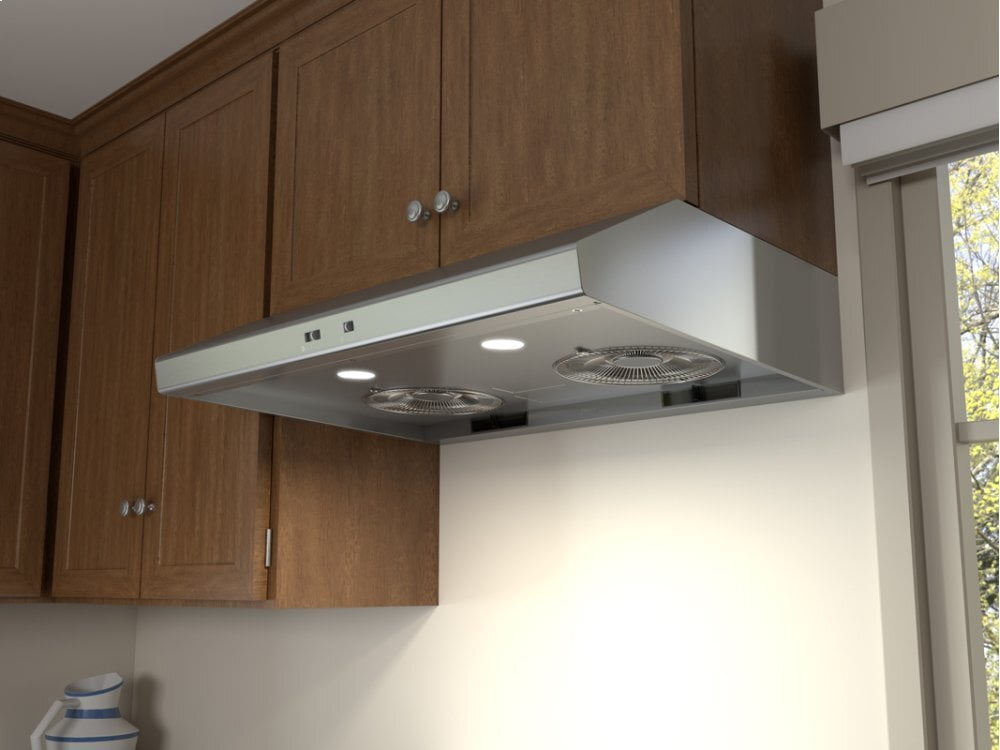

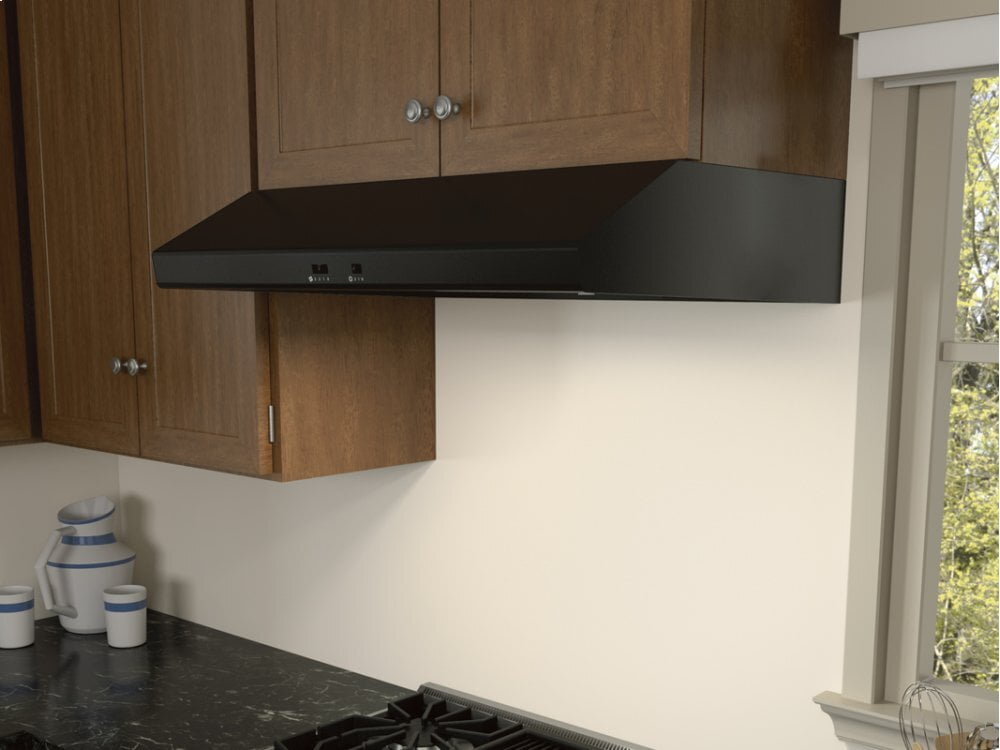

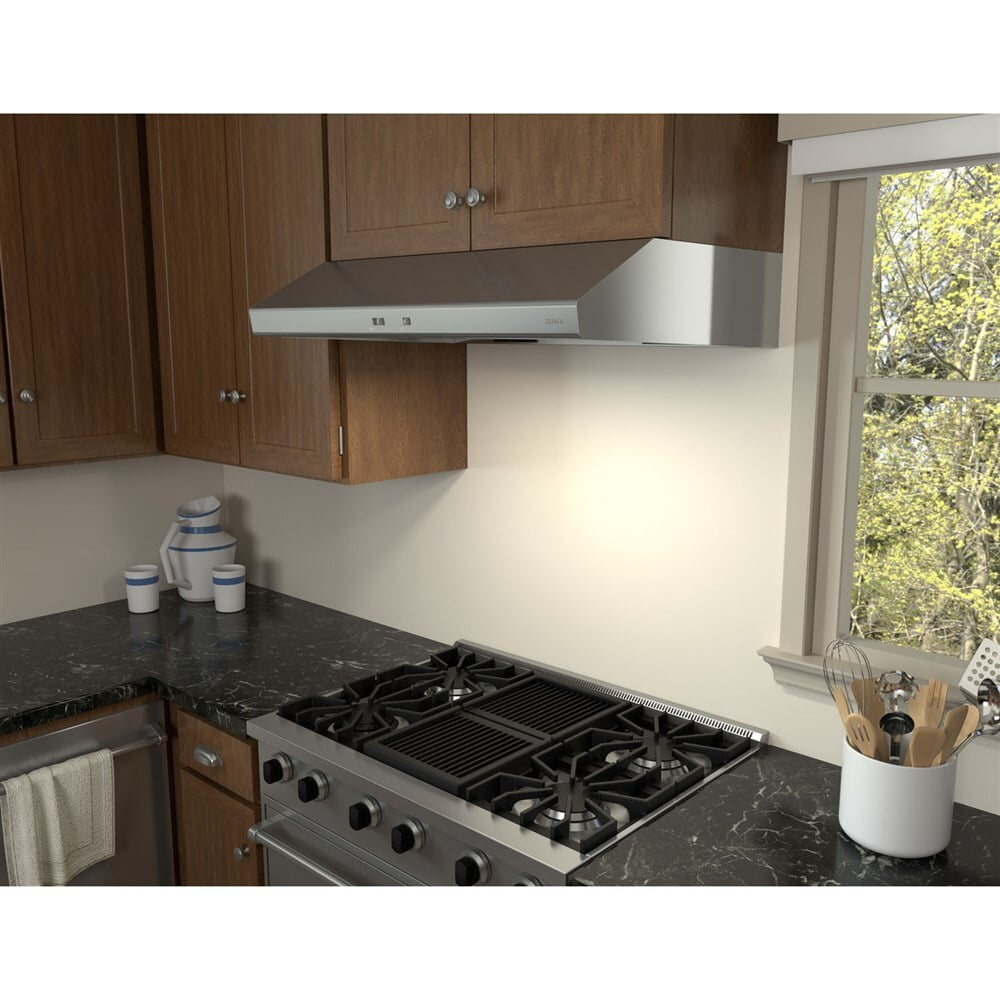

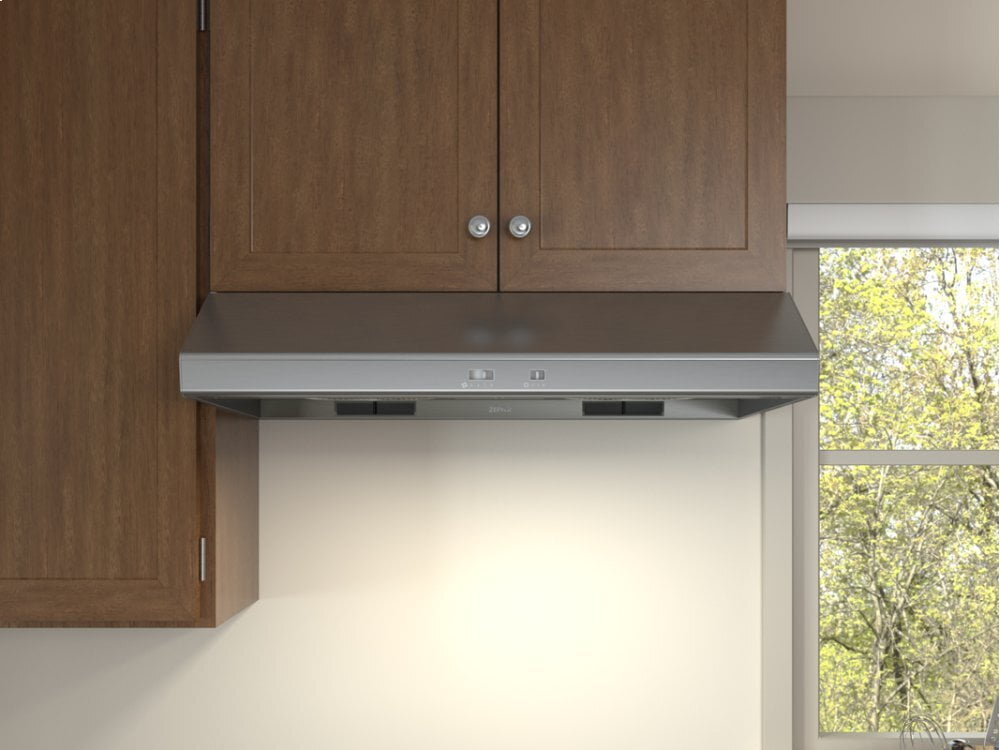

Zephyr AK6542BS 42" Cyclone Under-Cabinet
Modern, Clean Lines Provide A Perfect Complement To Any Interior, While Centrifugal Blowers Lique... Read more...
SKU:AK6542BS
UPC:646328004629
Installation and Removal
Where will services be needed?
When Will I Get My Order?
Modern, Clean Lines Provide A Perfect Complement To Any Interior, While Centrifugal Blowers Liquefy Cooking Residue Without Complex Filters To Make Clean Up A Snap. Available In Black, White, Stainless Steel And Black Stainless Finishes.
- 600 CFM
- Not Recirculating
- Filter-less Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Filter-less Self-Cleaning System
- Low-Profile Body
- Mechanical Slide Controls
- Multiple Color Options
- Optional Make-Up Air Kit
- Value Driven
- Vertical or Horizontal Ducting
| UPC | 646328004629 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 600 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | filter-less |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 6, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2.4 |
| NOMINAL WIDTH, INCHES | 42 |
| NET WIDTH, INCHES | 41.75 |
| DEPTH, INCHES | 22.25 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 6.375 |
| WEIGHT, LBS | 33.3 |
| SHIPPING HEIGHT, INCHES | 26.69 |
| SHIPPING WIDTH, INCHES | 44.21 |
| SHIPPING LENGTH, INCHES | 9.65 |
| SHIPPING WEIGHT, LBS | 41.4 |
Description
Modern, Clean Lines Provide A Perfect Complement To Any Interior, While Centrifugal Blowers Liquefy Cooking Residue Without Complex Filters To Make Clean Up A Snap. Available In Black, White, Stainless Steel And Black Stainless Finishes.
Features
- 600 CFM
- Not Recirculating
- Filter-less Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 5
- Dual-Level Lighting
- Halogen Lighting
- Filter-less Self-Cleaning System
- Low-Profile Body
- Mechanical Slide Controls
- Multiple Color Options
- Optional Make-Up Air Kit
- Value Driven
- Vertical or Horizontal Ducting
Specifications
| UPC | 646328004629 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 600 |
| INTERNAL BLOWER 1 SONES | 5 |
| CONTROLS TYPE | Mechanical slide |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | no |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | filter-less |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 6, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2.4 |
| NOMINAL WIDTH, INCHES | 42 |
| NET WIDTH, INCHES | 41.75 |
| DEPTH, INCHES | 22.25 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 6.375 |
| WEIGHT, LBS | 33.3 |
| SHIPPING HEIGHT, INCHES | 26.69 |
| SHIPPING WIDTH, INCHES | 44.21 |
| SHIPPING LENGTH, INCHES | 9.65 |
| SHIPPING WEIGHT, LBS | 41.4 |
