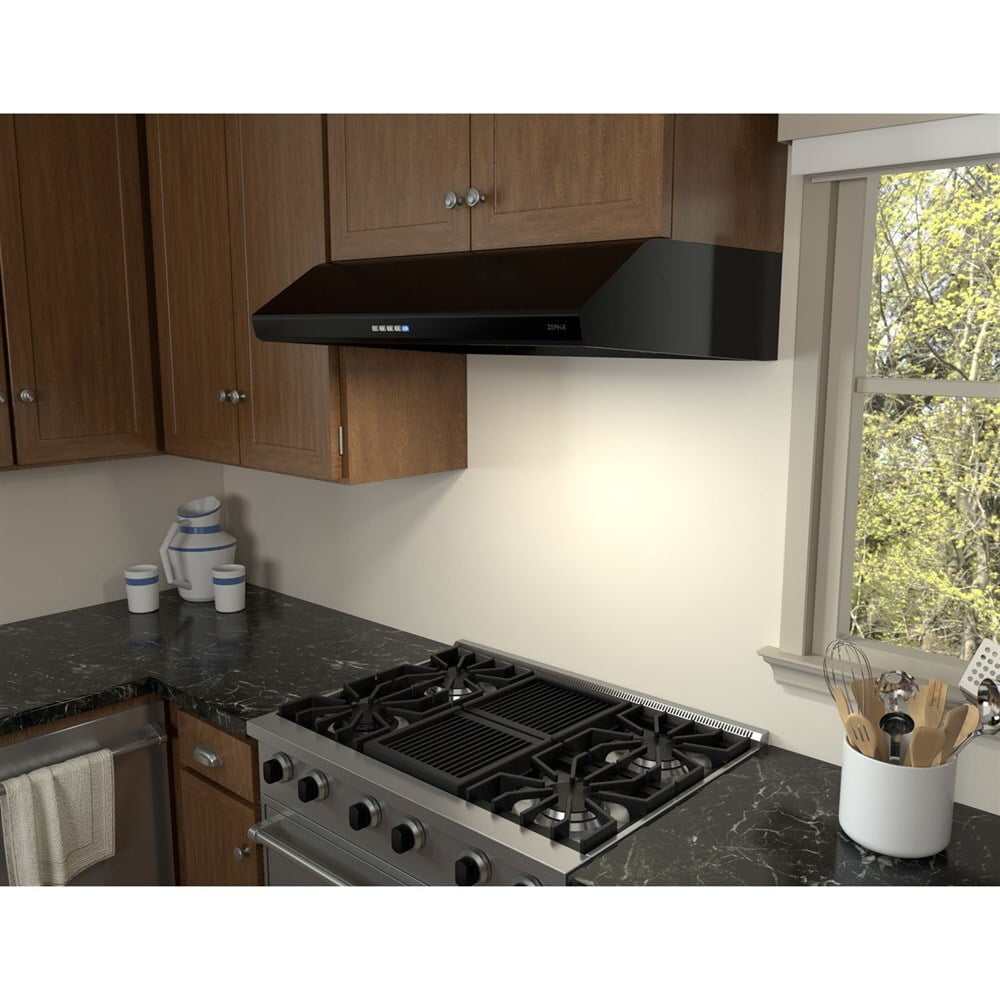

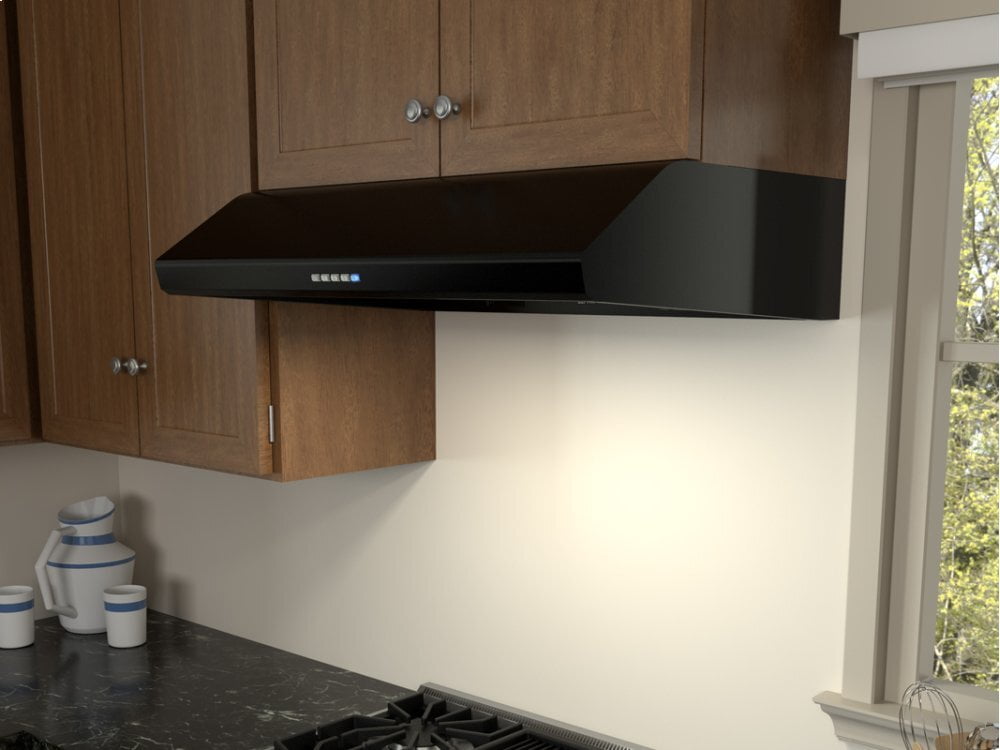

Zephyr AK2536BB 36" Hurricane Under-Cabinet
High Tech Meets High Style With An Updated Look And Feel. Electronic Touch Controls Take Charge O... Read more...
SKU:AK2536BB
UPC:646328004667
Installation and Removal
Where will services be needed?
When Will I Get My Order?
High Tech Meets High Style With An Updated Look And Feel. Electronic Touch Controls Take Charge Of The 3-Speed, 695-Cfm Blower And Dual-Level Halogen Lights-All Designed To Make Your Life Easier. Available In Black, White And Stainless Steel. Now With Act™ Technology.
- 290, 390, 695 CFM
- Not Recirculating
- Filter-less Filter
- Black
- Vertical and Horizontal Ducting
- Max Sones 5.5
- Dual-Level Lighting
- Halogen Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Electronic Touch Controls
- Filter-less Self-Cleaning System
- Longer Warranty than Competitors
- Low-Profile Body
- Multiple Color Options
- Optional Make-Up Air Kit
- Value Driven
- Vertical or Horizontal Ducting
| UPC | 646328004667 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 695 |
| BLOWER CFM w/ACT | 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.5 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | filter-less |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2.4 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.875 |
| DEPTH, INCHES | 22.125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7 |
| WEIGHT, LBS | 32 |
| SHIPPING HEIGHT, INCHES | 27.09 |
| SHIPPING WIDTH, INCHES | 38.58 |
| SHIPPING LENGTH, INCHES | 9.53 |
| SHIPPING WEIGHT, LBS | 39.4 |
Description
High Tech Meets High Style With An Updated Look And Feel. Electronic Touch Controls Take Charge Of The 3-Speed, 695-Cfm Blower And Dual-Level Halogen Lights-All Designed To Make Your Life Easier. Available In Black, White And Stainless Steel. Now With Act™ Technology.
Features
- 290, 390, 695 CFM
- Not Recirculating
- Filter-less Filter
- Black
- Vertical and Horizontal Ducting
- Max Sones 5.5
- Dual-Level Lighting
- Halogen Lighting
- Airflow Control Technology(TM) (ACT(TM))
- Electronic Touch Controls
- Filter-less Self-Cleaning System
- Longer Warranty than Competitors
- Low-Profile Body
- Multiple Color Options
- Optional Make-Up Air Kit
- Value Driven
- Vertical or Horizontal Ducting
Specifications
| UPC | 646328004667 |
| BLOWER INCLUDED YES/NO | yes |
| INTERNAL BLOWER 1 CFM | 695 |
| BLOWER CFM w/ACT | 390, 290 |
| INTERNAL BLOWER 1 SONES | 5.5 |
| CONTROLS TYPE | Electronic |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | no |
| LIGHTS TYPE (INCLUDED) | halogen |
| LIGHTS QUANTITY | 2 |
| WATTS PER BULB | 35 |
| LIGHTS LEVELS | 2 |
| FILTER TYPE | filter-less |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
| DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | 2.4 |
| NOMINAL WIDTH, INCHES | 36 |
| NET WIDTH, INCHES | 35.875 |
| DEPTH, INCHES | 22.125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7 |
| WEIGHT, LBS | 32 |
| SHIPPING HEIGHT, INCHES | 27.09 |
| SHIPPING WIDTH, INCHES | 38.58 |
| SHIPPING LENGTH, INCHES | 9.53 |
| SHIPPING WEIGHT, LBS | 39.4 |
