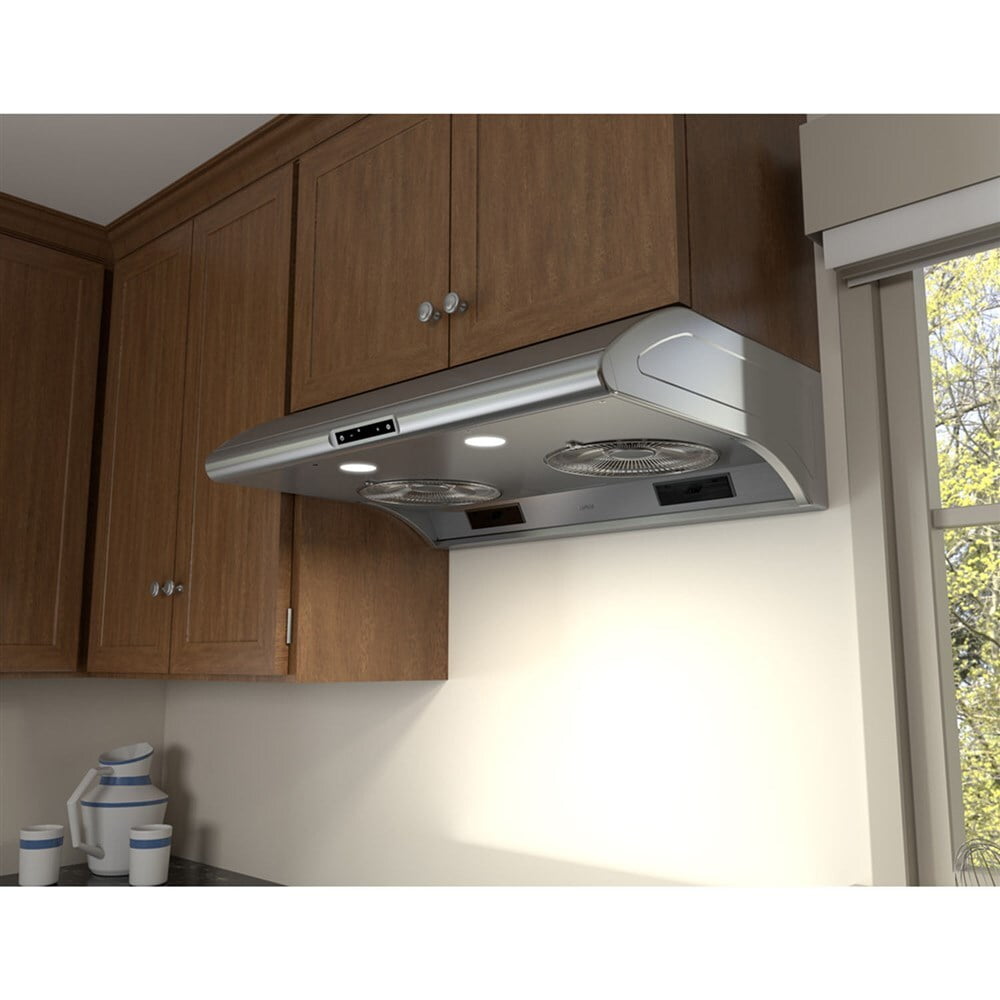

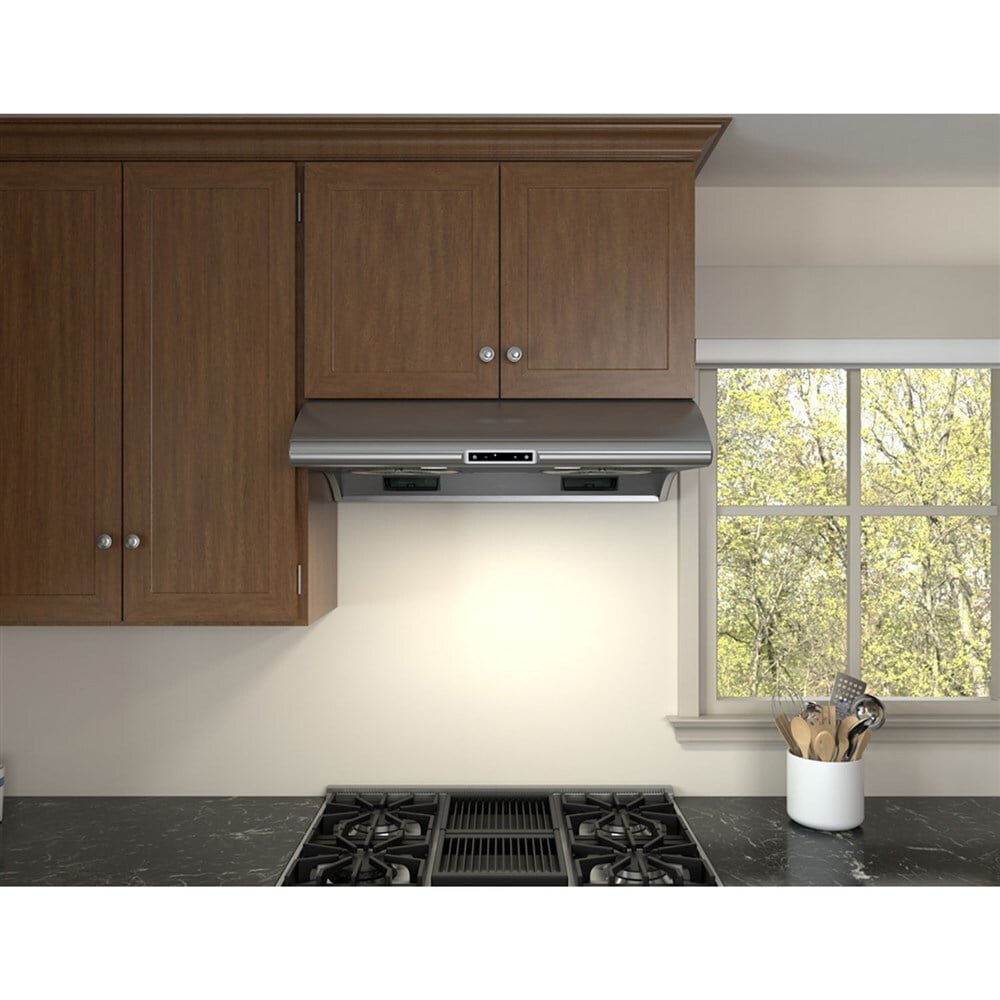

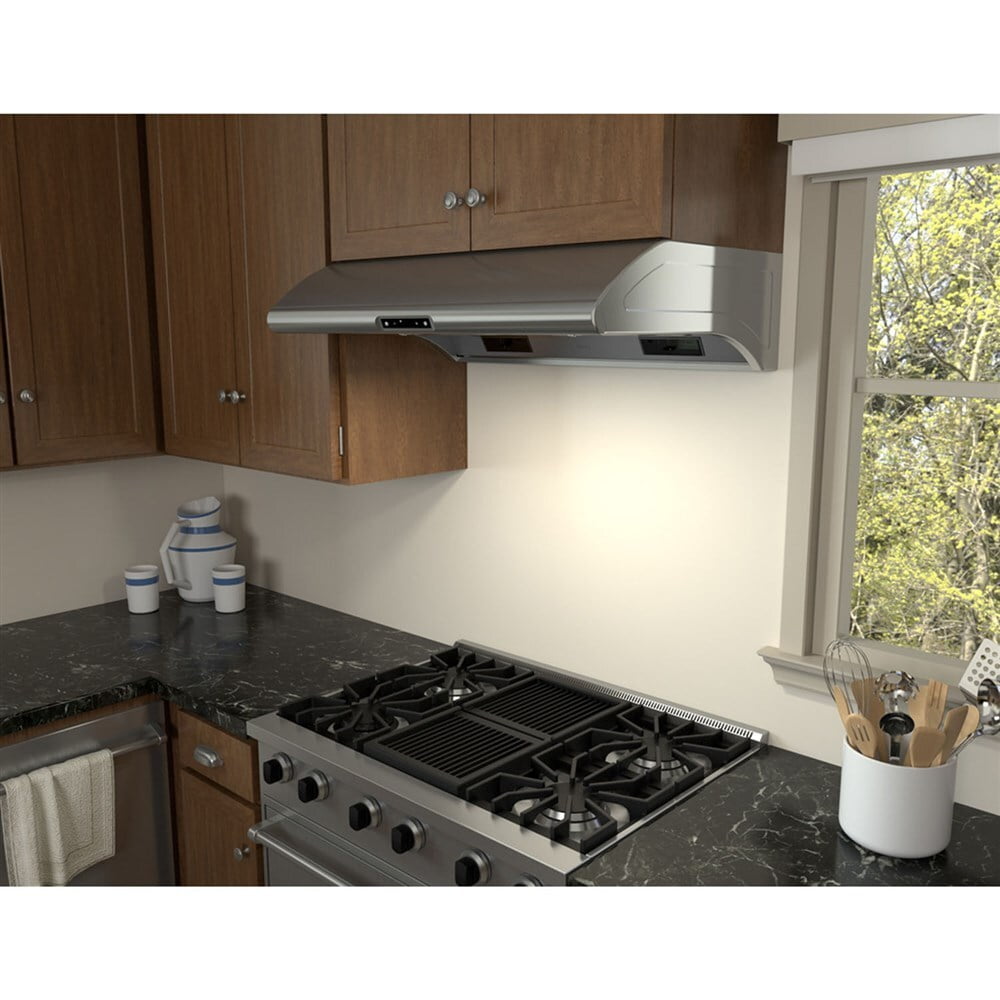

Zephyr AK2148BS 48" Typhoon Undercabinet Hood With 850 Cfm Blower, 6 Speed Levels
The Zephyr Ak2148Bs 48-In. Essentials Series Typhoon Under-Cabinet Range Hood, In Stainless Steel, Is One Of Our Founding Models With An Updated Look. We Crafted A Smooth Curvature Then Upped The Volume With Powerful, Virtually Noise-Free 850-Cfm Blowers. A Convenient Self-Cleaning System Along With Dimmable Halogen Lights Invite You And Your Guests To A Warm Respite From The Everyday. Available In Black, White And Stainless Steel.
- 48-in. Essential series Typhoon under-cabinet range hood
- Six powerful speed levels (when ACT is enabled, the maximum speed will change: ACT 390 CFM = 3 speeds and ACT 290 CFM = 2 speeds)
- 250-850 CFM blowers
- 48-in. wide design (47.39-in.)
- Features ACT (Airflow Contorl Technology), an exclusive feature built into specific Zephyr hoods which can limit the maximum blower CFM to meet local code requirements
- 5-minute auto delay off
- Two removable safety grills
- Quiet Speed Setting (QSS)
- Capacitive touch controls
- Two 35W halogen light bulbs with dual-level lighting
- Self cleaning
- Internal blower - vertical: 7" round or 3-1/4" x 10"
- Internal blower - horizontal: 3-1/4" x 10"
- Mounting height range: 24 In. to 32 in.
- Color: Stainless Steel
UPC | 646328004766 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 850 |
BLOWER CFM w/ACT | 390, 290 |
INTERNAL BLOWER 1 SONES | 5 |
CONTROLS TYPE | Capacitive touch |
BLOWER SPEEDS | 6 |
AUTOMATIC DELAY-OFF | yes |
CLEANAIR FUNCTION | no |
LIGHTS TYPE (INCLUDED) | halogen |
LIGHTS QUANTITY | 2 |
WATTS PER BULB | 35 |
LIGHTS LEVELS | 2 |
FILTER TYPE | filter-less |
DUCT DISCHARGE | vertical or horizontal |
DUCT SIZE, VERTICAL, INCHES | 7, 3.25 x 10 |
DUCT SIZE, HORIZONTAL, INCHES | 3.25 x 10 |
MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 3 |
NOMINAL WIDTH, INCHES | 48 |
NET WIDTH, INCHES | 47.6875 |
DEPTH, INCHES | 20.75 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 7.875 |
WEIGHT, LBS | 40.5 |
SHIPPING HEIGHT, INCHES | 25.67 |
SHIPPING WIDTH, INCHES | 51.38 |
SHIPPING LENGTH, INCHES | 11.22 |
SHIPPING WEIGHT, LBS | 50.5 |
