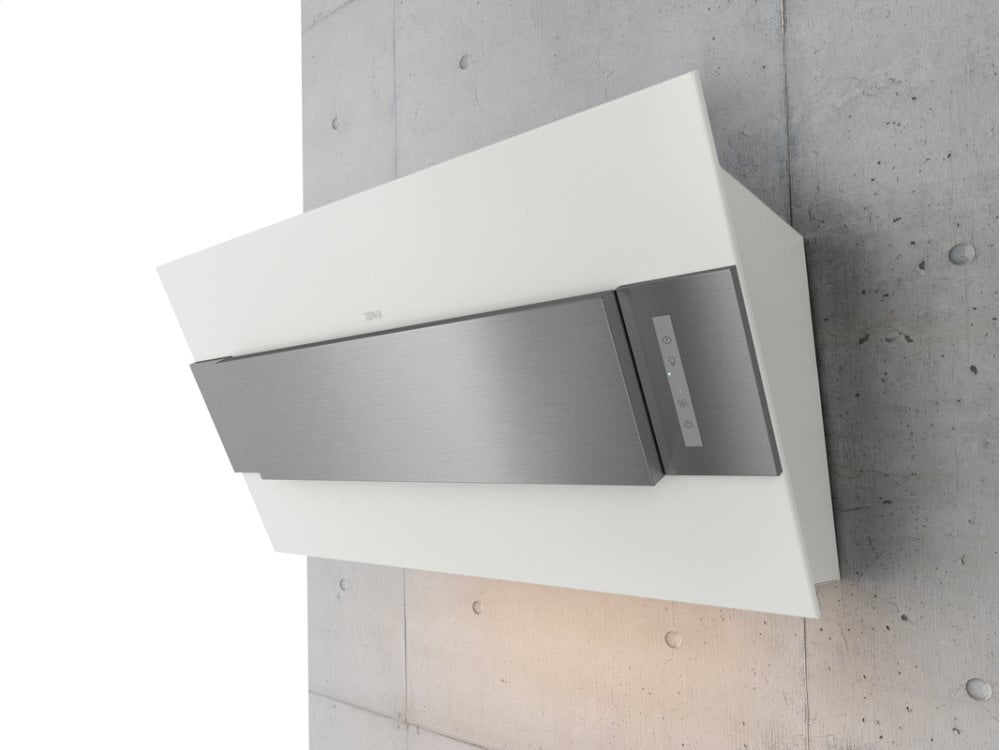

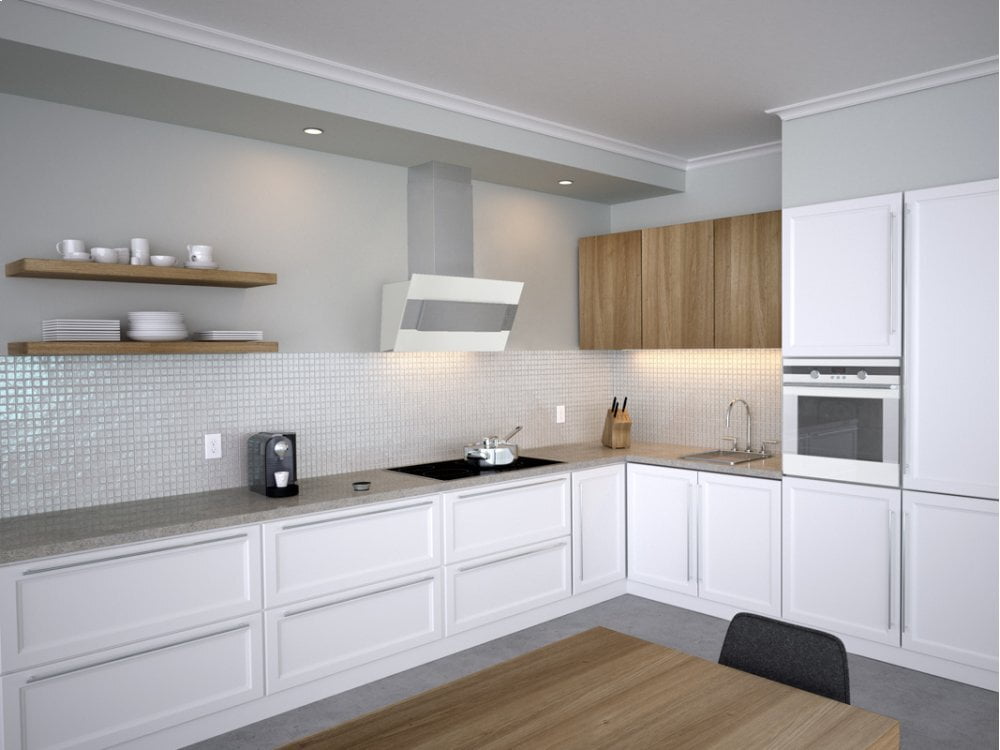

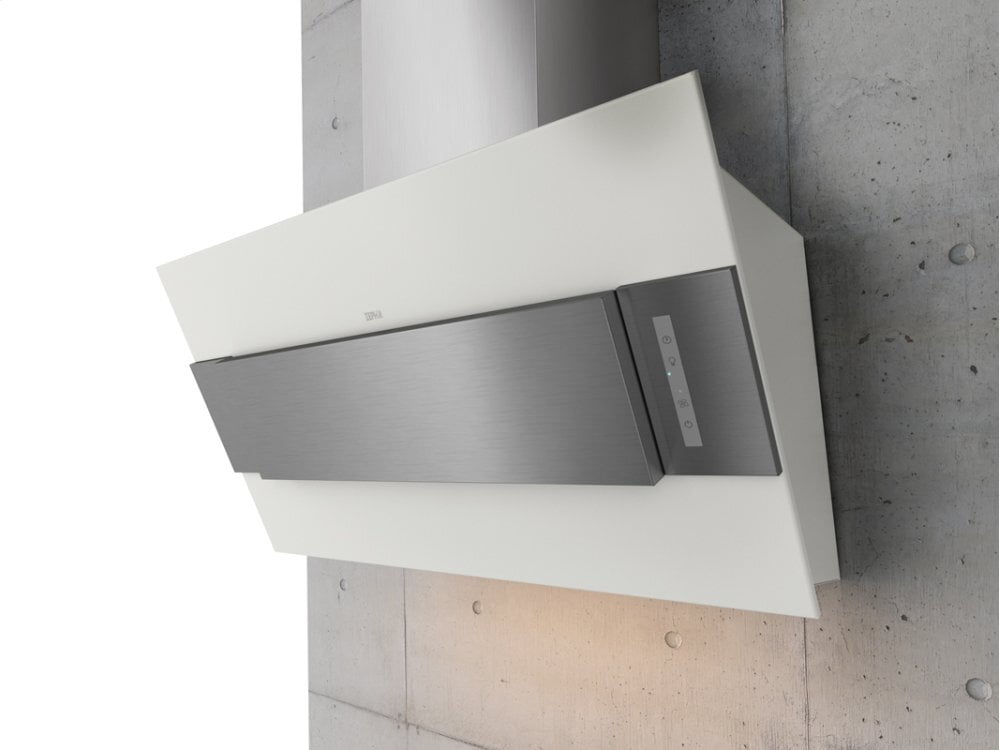

Zephyr AINM80AWX 31-1/2" Incline Wall
Vertical Style Ventilation At Its Finest. The Incline Wall Hood Brings Clean Lines And A Touch Of... Read more...
SKU:AINM80AWX
UPC:646328004230
Vertical Style Ventilation At Its Finest. The Incline Wall Hood Brings Clean Lines And A Touch Of Chic To Your Transitional, Minimal Or Modern Kitchen. Cook Away While The Incline Cleans The Air, And Enjoy The Tri-Level Led Light Strip And The Wireless Remote Control. Perimeter Aspiration Coupled With Dual Filtration Keeps Your Kitchen Smoke And Debris-Free, And Proves The Incline Is More Than Just A Pretty Face.
- 290, 600, 1000 CFM
- Recirculating
- Mesh Filter
- White
- 3-Way Ducting
- Max Sones 6
- Tri-level Lighting
- Capacitive Touch Controls
- CleanAir Function
- Decorative Mesh Filters
- Dual Capture Zones
- Dual Filtration
- Includes Wireless Remote Control
- LED Light Strip
- Multiple Blower Options
- Multiple Color Options
- Optional Recirculating Kit
- Optional Make-Up Air Kit
| UPC | 646328004230 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Capacitive touch |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 8.5 |
| LIGHTS LEVELS | 3 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 6, 8 |
| DUCT SIZE, HORIZONTAL, INCHES | 6, 8 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 22 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 31.5 |
| NET WIDTH, INCHES | 31.5 |
| DEPTH, INCHES | 16.3125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 14.9375 |
| WEIGHT, LBS | 34 |
| SHIPPING HEIGHT, INCHES | 21.65 |
| SHIPPING WIDTH, INCHES | 37 |
| SHIPPING LENGTH, INCHES | 22.83 |
| SHIPPING WEIGHT, LBS | 39.2 |
Description
Vertical Style Ventilation At Its Finest. The Incline Wall Hood Brings Clean Lines And A Touch Of Chic To Your Transitional, Minimal Or Modern Kitchen. Cook Away While The Incline Cleans The Air, And Enjoy The Tri-Level Led Light Strip And The Wireless Remote Control. Perimeter Aspiration Coupled With Dual Filtration Keeps Your Kitchen Smoke And Debris-Free, And Proves The Incline Is More Than Just A Pretty Face.
Features
- 290, 600, 1000 CFM
- Recirculating
- Mesh Filter
- White
- 3-Way Ducting
- Max Sones 6
- Tri-level Lighting
- Capacitive Touch Controls
- CleanAir Function
- Decorative Mesh Filters
- Dual Capture Zones
- Dual Filtration
- Includes Wireless Remote Control
- LED Light Strip
- Multiple Blower Options
- Multiple Color Options
- Optional Recirculating Kit
- Optional Make-Up Air Kit
Specifications
| UPC | 646328004230 |
| BLOWER INCLUDED YES/NO | no |
| INTERNAL BLOWER 1 CFM | 290 |
| INTERNAL BLOWER 2 CFM | 600 |
| IN-LINE BLOWER CFM | 1000 |
| EXTERNAL BLOWER CFM | 1000 |
| INTERNAL BLOWER 1 SONES | 3 |
| INTERNAL BLOWER 2 SONES | 6 |
| CONTROLS TYPE | Capacitive touch |
| BLOWER SPEEDS | 3 |
| AUTOMATIC DELAY-OFF | yes |
| CLEANAIR FUNCTION | yes |
| LIGHTS TYPE (INCLUDED) | LED strip |
| LIGHTS QUANTITY | 1 |
| WATTS PER BULB | 8.5 |
| LIGHTS LEVELS | 3 |
| FILTER TYPE | mesh |
| DUCT DISCHARGE | vertical or horizontal |
| DUCT SIZE, VERTICAL, INCHES | 6, 8 |
| DUCT SIZE, HORIZONTAL, INCHES | 6, 8 |
| MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 22 - 32 |
| INPUT VOLTAGE | 120 |
| MAXIMUM AMPERAGE | depends on blower |
| NOMINAL WIDTH, INCHES | 31.5 |
| NET WIDTH, INCHES | 31.5 |
| DEPTH, INCHES | 16.3125 |
| HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 14.9375 |
| WEIGHT, LBS | 34 |
| SHIPPING HEIGHT, INCHES | 21.65 |
| SHIPPING WIDTH, INCHES | 37 |
| SHIPPING LENGTH, INCHES | 22.83 |
| SHIPPING WEIGHT, LBS | 39.2 |
