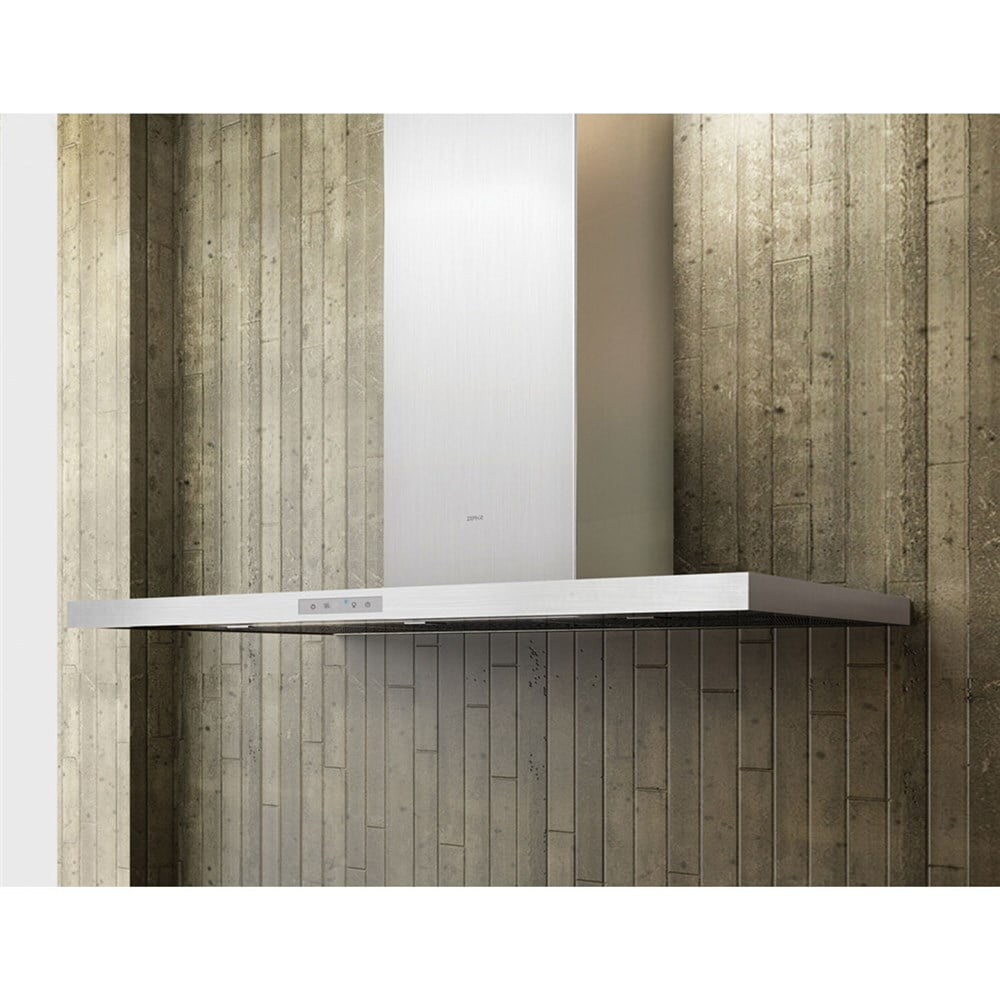

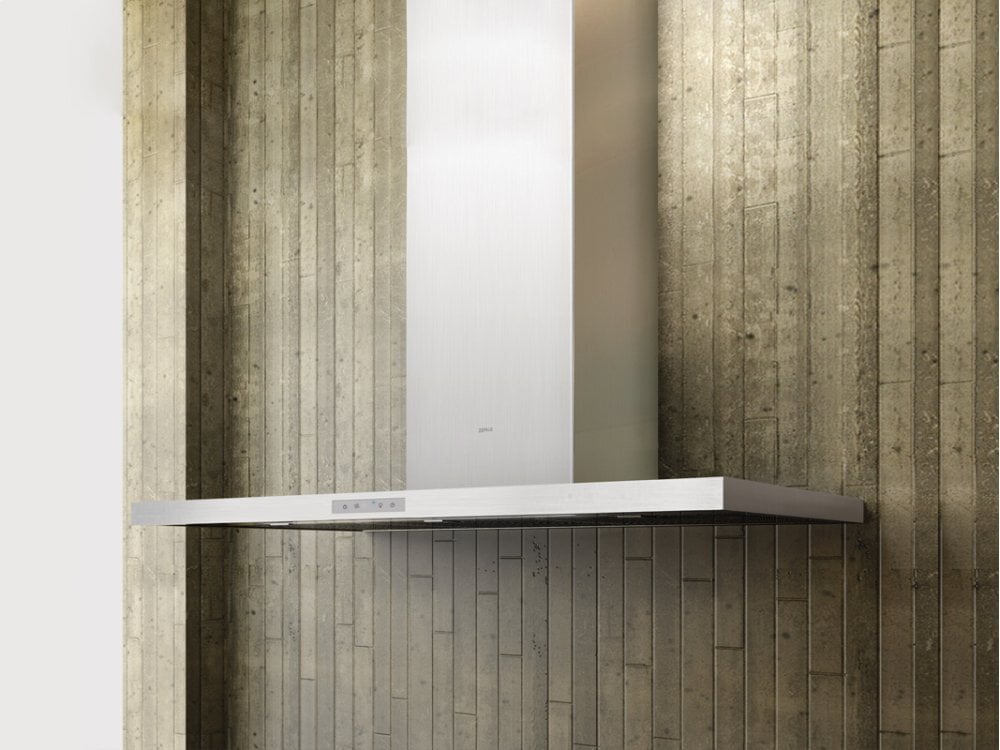

Zephyr ADUM90BSX 36
Zephyr ADUM90BSX 36" Duo Wall
An Ideal Duo Of Materials, Duo Can Be Paired With A Wood Overlay Using Our Template As The Guide. Or, If You Prefer The Simplicity Of A Slim Profile Stainless Steel Canopy, Keep The Duo Wall As-Is; For The Stylish, And Contemporary Kitchen. Now Available With A Tri-Level Led Light Strip.
  • 290, 600, 1000 CFM
  • Recirculating
  • Mesh Filter
  • Stainless Steel
  • Vertical Ducting
  • Max Sones 6
  • Tri-level Lighting
  • Decorative Mesh Filters
  • Includes Wireless Remote Control
  • LED Light Strip
  • Low-Profile Body
  • Multiple Blower Options
  • Optional Recirculating Kit
  • Optional Duct Cover Extension Kit
UPC 646328004216
BLOWER INCLUDED YES/NO no
INTERNAL BLOWER 1 CFM 290
INTERNAL BLOWER 2 CFM 600
IN-LINE BLOWER CFM 1000
EXTERNAL BLOWER CFM 1000
INTERNAL BLOWER 1 SONES 3
INTERNAL BLOWER 2 SONES 6
CONTROLS TYPE Capacitive touch
BLOWER SPEEDS 3
AUTOMATIC DELAY-OFF yes
CLEANAIR FUNCTION yes
LIGHTS TYPE (INCLUDED) LED strip
LIGHTS QUANTITY 1
WATTS PER BULB 8.5
LIGHTS LEVELS 3
FILTER TYPE decorative mesh
DUCT DISCHARGE vertical
DUCT SIZE, VERTICAL, INCHES 6, 8
DUCT SIZE, HORIZONTAL, INCHES NA
MOUNTING HEIGHT ABOVE COOKTOP, INCHES 24 - 36
INPUT VOLTAGE 120
MAXIMUM AMPERAGE depends on blower
NOMINAL WIDTH, INCHES 36
NET WIDTH, INCHES 35.375
DEPTH, INCHES 19.625
HEIGHT, INCHES (for chimney hoods, heights include duct covers) 27 - 49
WEIGHT, LBS 83
SHIPPING HEIGHT, INCHES 25.59
SHIPPING WIDTH, INCHES 39.76
SHIPPING LENGTH, INCHES 24.4
SHIPPING WEIGHT, LBS 88.2
