Xo Appliance XOU24BCGBSL Beverage Center 24" Black Stainless Lh
SECURE DOOR LOCKS
located in the stainless steel toe kick every XO undercounter model comes with a secure door lock to keep uninvited guests out.

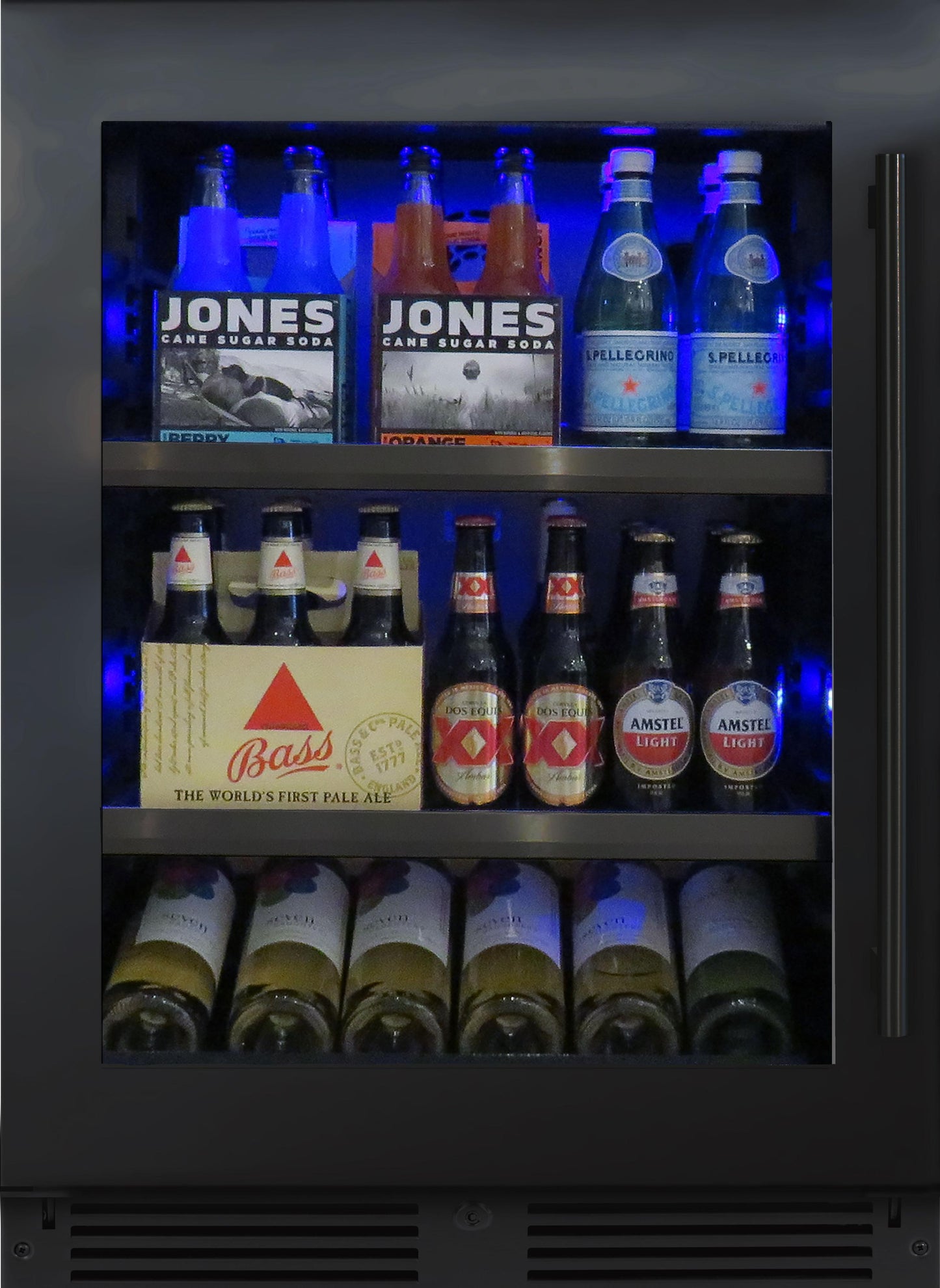

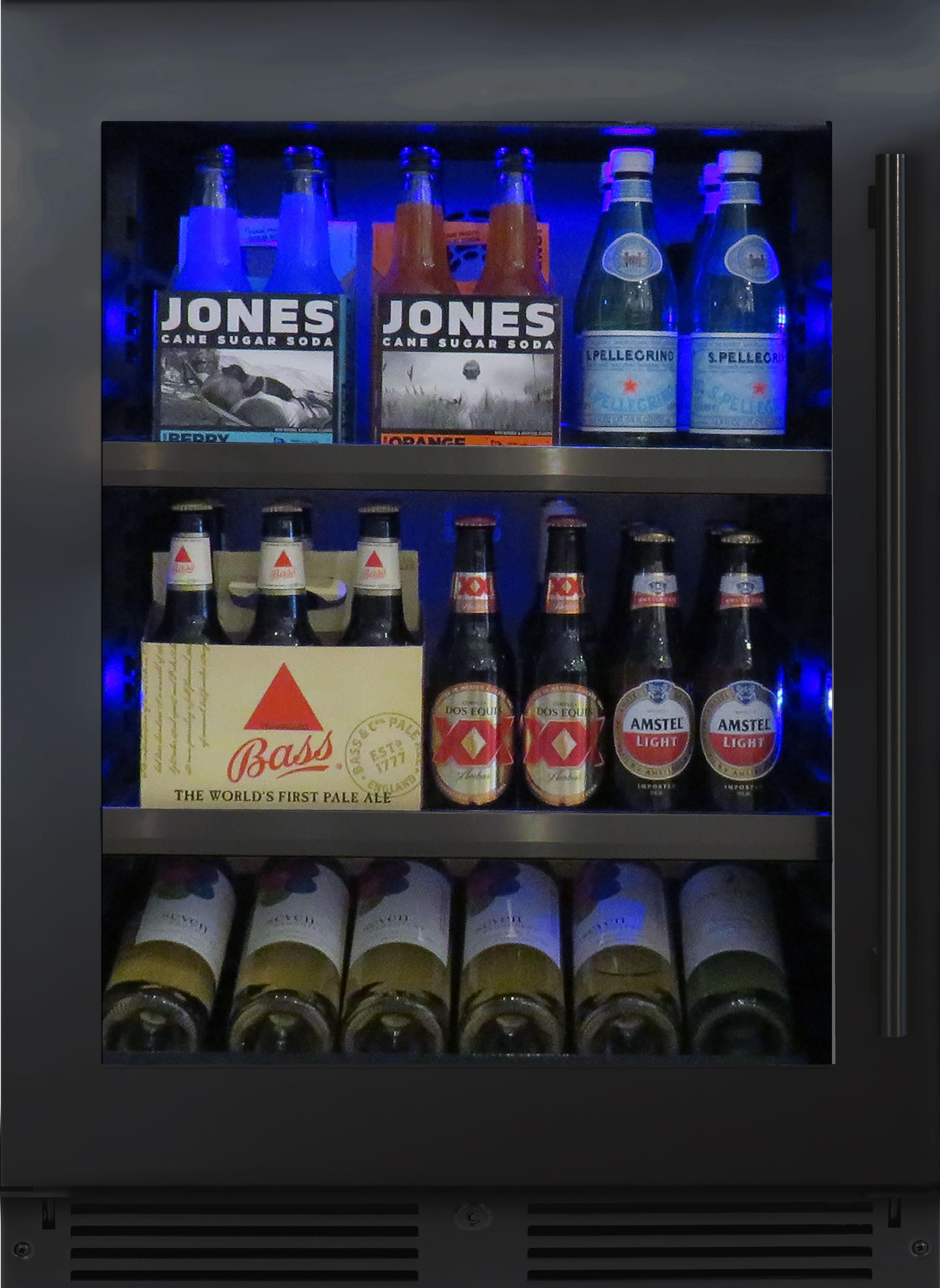

ELEGANT TRI-COLOR LIGHTING
Cool running LEDS are change with the push of a button from theater white to midnight blue or honey amber.
UNIFORM TEMPERATURE
activated carbon filters and whisper quiet fans ensure the positive circulation of air for uniform temperatures.

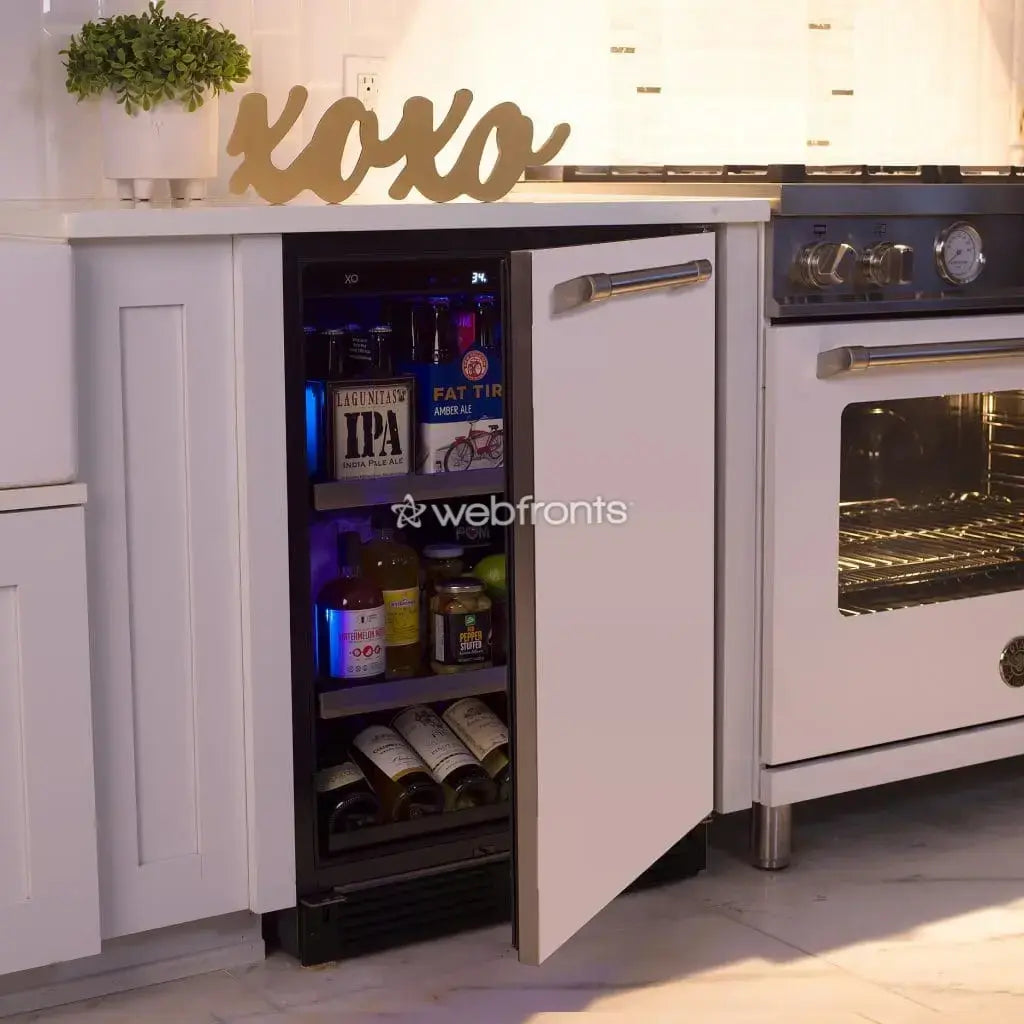

FLUSH INSTALLATION
is easy with features like zero clearance door hinges and flat electrical plugs. XO is designed to fit your life.

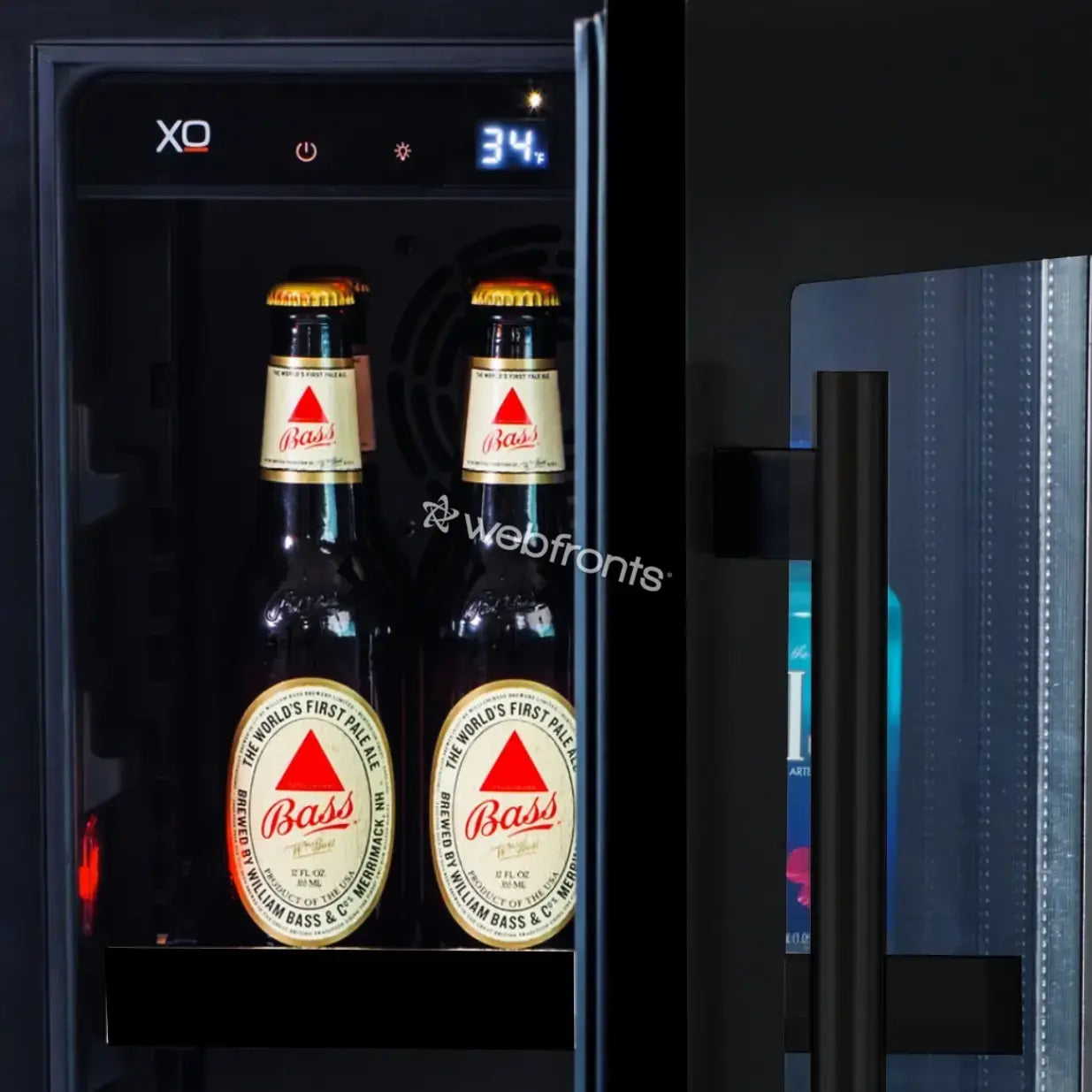

34° AT YOUR FINGERTIPS
with easily adjusted electronic controls you can store your favorite beverages down to a frosty 34 °

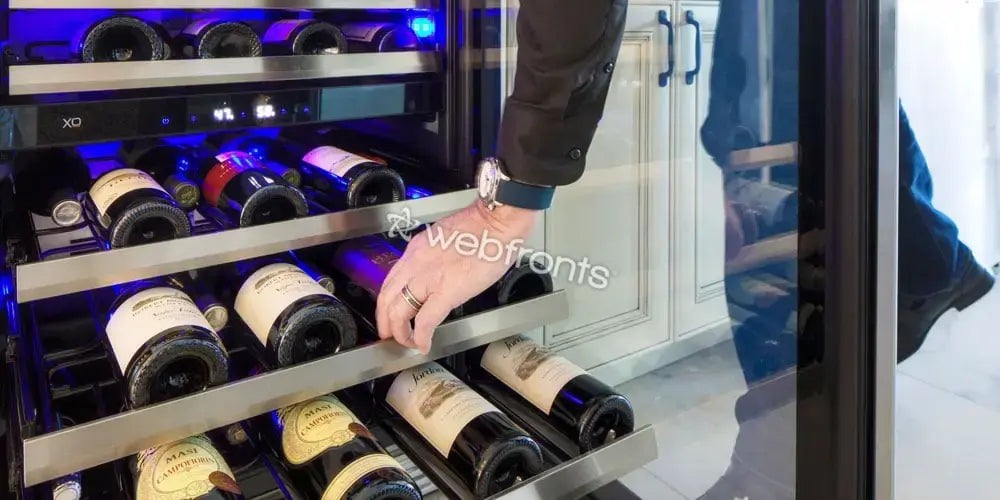

EASY TO STORE EASY TO FIND
Clear glass shelves extend fully while fully loaded allowing you to see everything at a glance.
REMOVABLE WINE DISPLAY RACK
the 15" beverage centers include a 3 bottle display, while the 24" beverage centers include a 6 bottle display which are easily removed for additional storage or for use as a serving piece separately
LOW-E GLASS WITH UV BLOCKER
On all glass door units, double pane, low-e glass coated to block harmful ultraviolet light is standard for energy efficient operation and protection from damaging light.
DESIGNER HANDLE
Stylish designer tubular handle included
Easy to Store - Easy to Find. Your XOU24BCGS 24" beverage center is a quick, convenient way to keep all your favorite beverages close at hand. The clear glass shelves fully extend while loaded to let you see and find everything at a glance. And because they easily adjust to 15 different positions, you can quickly configure the beverage center into your beverage center.
Dimensions & Capacity
Width: 23.875"
Height: 34.125"
Depth: 25"
Refrigerator Size: 5.7 cu. ft.
- Clear glass shelves fully extend to reveal their contents and adjust to 15 different heights
- Secure door locks help keep uninvited guests out
- Cool running interior Tri-Color LEDs dramatically illuminate your bottles while saving energy. Choose Theater White, Midnight Blue, and Honey Amber.

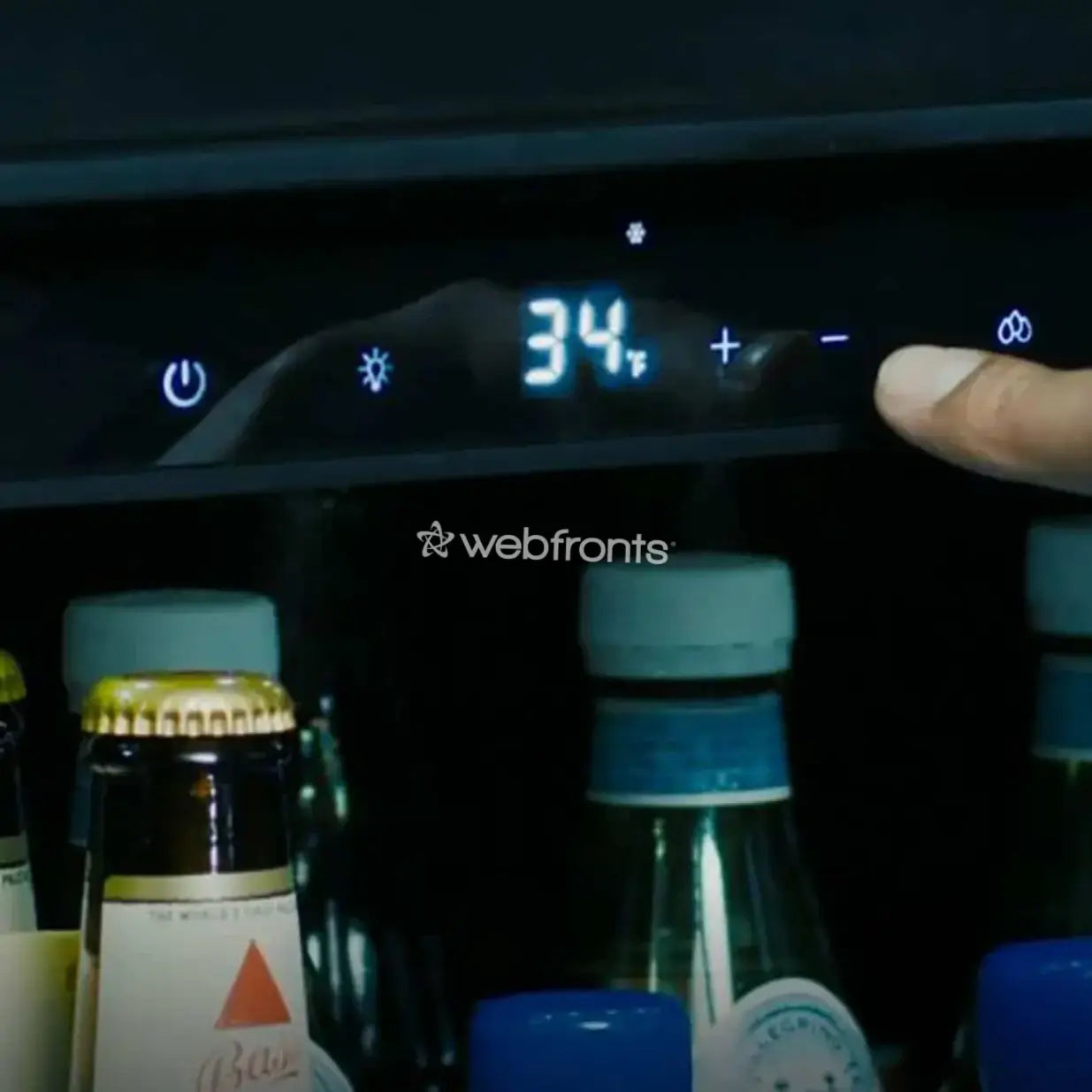

- Intuitive touch controls easily adjust lighting and temperature
- Black Stainless & UV Blocking Low-E Glass Door Includes both Designer and Pro style handles
- Stores up to (145) 12oz cans from 34' to 50' F
- Filtered, conditioned air is circulated to help ensure a stable, uniform temperature
- Zero Clearance hinge and flat plug design ensure flush installation
- Includes both Designer and Pro Style Handles
- Removable 6 bottle wine cradle kit included
Origin | China |
UPC | 814830013945 |
Height | 34 1/8' |
Width | 23 7/8' |
Depth | 23 1/4' |
Cut-Out Depth (in.) | 24' |
Cut-Out Height (in.) | 34 1/4' |
Cut-Out Width (in.) | 24' |
Depth (Excluding Handles) | 23 1/4' |
Depth (Including Handles) | 25' |
Depth (Less Door) | 21 7/8' |
Depth With Door Open 90 Degrees (In) | 46 1/2' |
Height to Top of Door Hinge (in.) | 34 1/8' |
Dimensions D x W x H | 23 1/4' x 23 7/8' x 34 1/8' |
Product Weight | 124 |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 year limited parts and labor warranty for the original owner |
Warranty 3 Explained | 5 year limited compressor parts only warranty for the original owner |
ADA Compatible | No |
Certification | CSA |
Prop 65 | Yes |
Freight Class | 92.5 |
Shipping Weight | 124 |
Carton Height | 37' |
Carton Width | 27' |
Carton Depth | 29' |
Shipping Method | LTL |
Amperage | 1.2 amps |
Electrical | 115V-60Hz-1.2 Amps |
Frequency (Hz) | 60 Hz |
Voltage (volts) | 115V |
Wattage (watts) | 138 watts |
Ambient Temperature | 60 to 90 degrees F |
Appliance Type | Beverage Center |
Can Storage Capacity | 145 (12oz) |
Color of Handle | Black Stainless Steel |
Color/Finish | Black Stainless & Glass |
Control Type | Intuitive Touch Digital Controls |
Cooling Unit Type | Air Cooled Compressor |
Cubic Foot Capacity | 5.7 cu ft |
Defrost Type | Automatic Defrost |
Door Features | UV Blocking Low-E Glass and Black Stainless Steel |
Door Lock | Yes |
Door Swing | Left Hand Hinge |
Filter Type | Activated carbon air filter |
Install Type | Flush Undercounter |
Installation Type | Flush Undercounter |
Interior Finish Type | Molded ABS |
Interior Lighting | Tri-Color LED Interior Illumination |
Leveling Legs | Included |
LIght Colors | Midnight Blue, Theater White, Honey Amber |
Light Type | Tri-Color LED Interior Illumination |
Lighting Features | Three lighting modes |
Max Temperature Zone 1 | 50 degrees F |
Min Temperature Zone 1 | 34 degrees F |
Number of Doors | 1 |
Number of Shelves | 2 |
Number of Temperature Zones | 1 |
Open Door Alarm | Yes |
Operational Features | Energy Saver Mode |
Power Cord Included | 6' with Flat Plug |
Programmed Features | Power, Lighting & Alarms |
Required Plug Type | 5-15P Plug Type |
Returnable | No |
Sabbath Mode | Yes |
Shelf Material Type | Glass |
Side Clearance Door Open 90 Degrees | 1 3/4' |
Storage Features | 15 Position Full Extension, Fully Loaded |
Toe Kick Color | Black Stainless |
Vent Location | Bottom Front |
Wheels/Casters | No |
Wireless Compatibility | No |
Control Lighting | Backlit LCD |
Controls | Electronic Touch |
Location | Indoor |
Refrigerant | R600a |
Sound Level | 37 dBA |
Assembled Depth (in.) | No |
Force Multiples | 1 |
