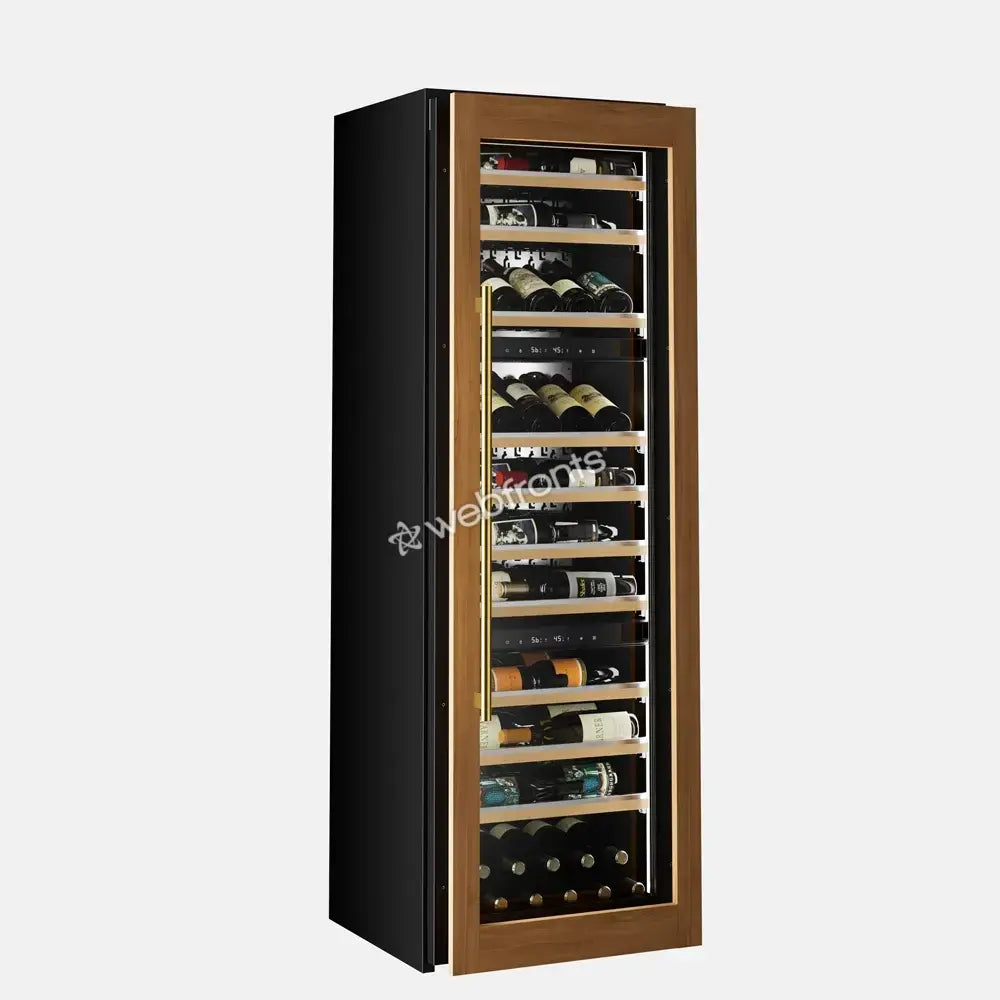

Xo Appliance XOU2470WTZGO Tall Built-In 3 Zone Wine Overlay Glass (Fits 24" X 70In - 84In Opening)
3 ZONES
Triple Zoned so you can get just the right temperature for storing and serving.
ARTICULATING HINGE
ideally designed for seamless integration into your existing cabintry up to 84" tall
DISPLAY SHELVES
Elegant designer piece allows you to showcase your favorite vintages.
LOW-E GLASS WITH UV BLOCKER
On all glass door units, double pane, low-e glass coated to block harmful ultraviolet light is standard for energy efficient operation and protection from damaging light.
ELEGANT TRI-COLOR LIGHTING
Cool running LEDS are change with the push of a button from theater white to midnight blue or honey amber.

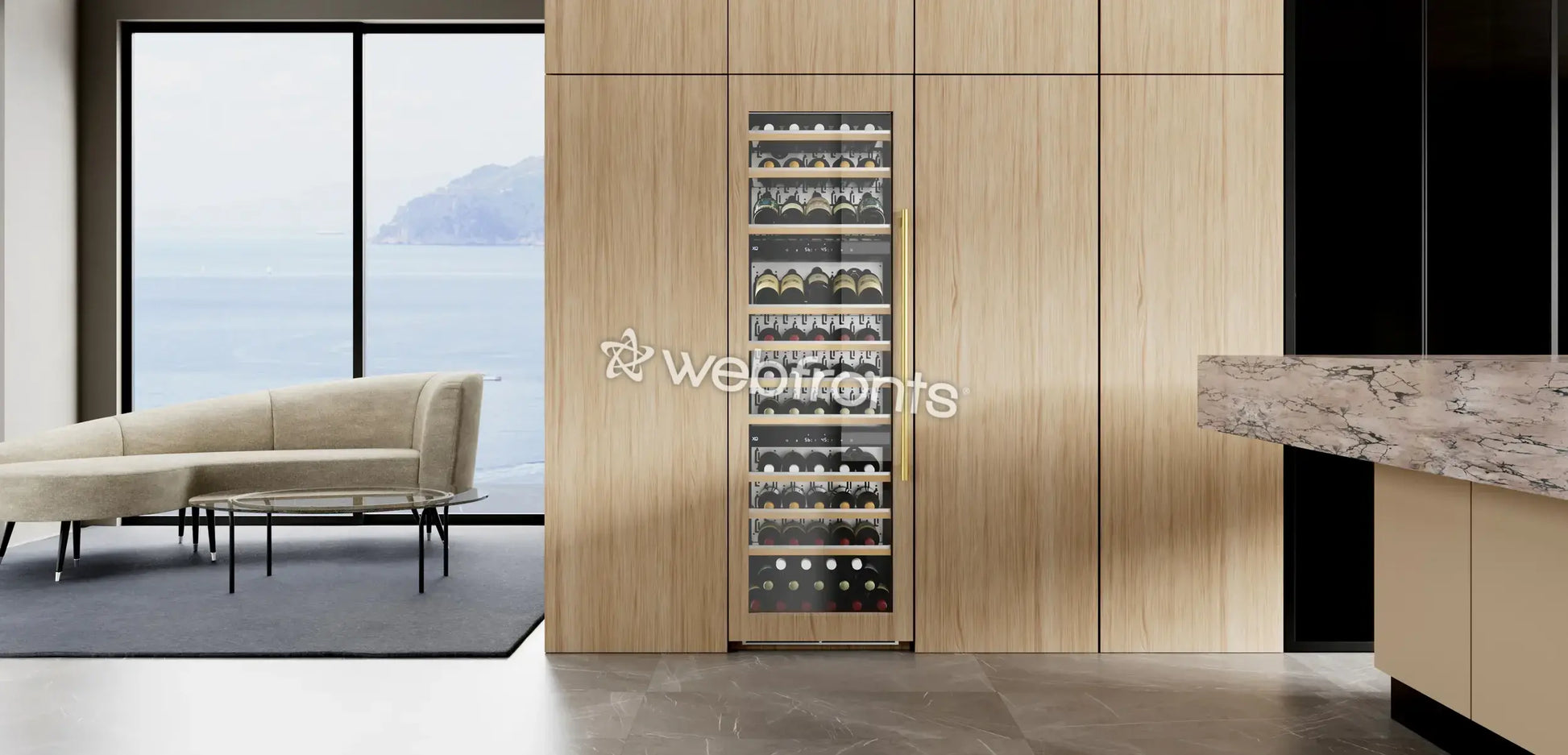

This elegant, efficient triple-zone wine storage and serving column is the perfect choice for showcasing your collection, keeping up to 70 bottles of your favorite vintages close at hand. Ideally designed for seamless integration into your custom cabinetry up to 84" tall.
Dimensions & Capacity
Width: 21.875"
Height: 68.68"
Depth: 21.5"
Refrigerator Size: 7.6 cu. ft.
- Three distinct temperature zones to store and serve your favorite vintages.
- Articulated hinges with a field reversible door to integrate seamlessly with your cabinetry
- Accommodates 24" wide cabinets from 70 inches to 84 inches tall

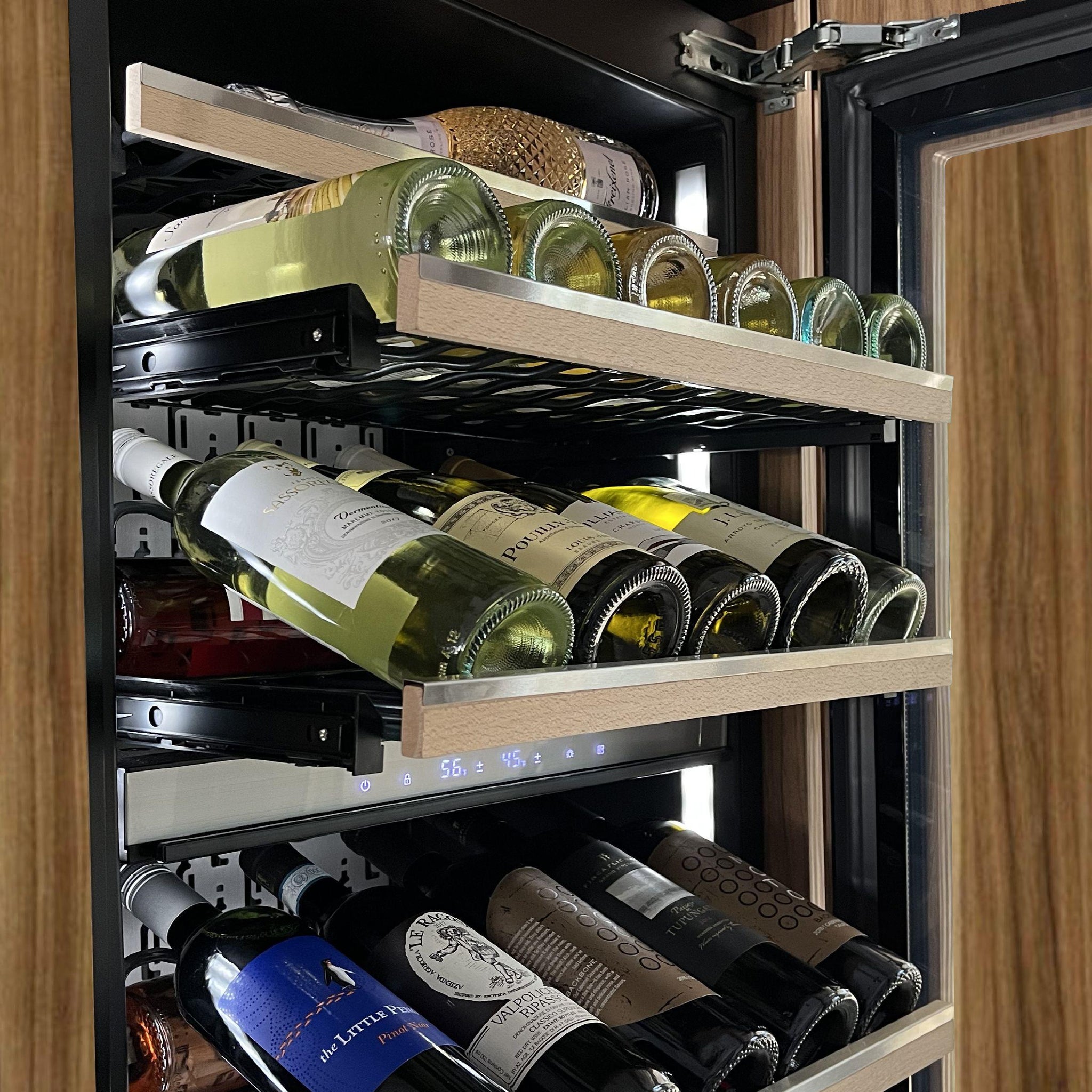

- Telescoping racks extend including two display racks - easy to store and find your favorites
- Cool running interior Tri-Color LEDs dramatically illuminate your bottles while saving energy. Choose Theater White, Midnight Blue, and Honey Amber.
- Bottles can be stored front to back or side to side
- Double thermo pane glass door window with UV blocker protects your wine and saves energy
- Quiet 39 dBa operation
Origin | China |
UPC | 814830014485 |
Height | 68 11/16' |
Width | 21 7/8' |
Depth | 21 1/2' |
Cut-Out Depth (in.) | 22 7/8' |
Cut-Out Height (in.) | 69 3/8' |
Cut-Out Width (in.) | 22 |
Depth (Excluding Handles) | 22 1/4' |
Depth (Less Door) | 19 11/16' |
Depth With Door Open 90 Degrees (In) | 44' |
Height to Top of Door Hinge (in.) | 68 11/16' |
Dimensions D x W x H | 21 1/2' x 21 7/8' x 68 11/16' |
Warranty 1 Explained | 90 Day Love It Or Leave It Warranty |
Warranty 2 Explained | 2 year limited parts and labor warranty for the original owner |
Warranty 3 Explained | 5 year limited compressor parts only warranty for the original owner |
ADA Compatible | No |
Certification | CSA |
Prop 65 | Yes |
Amperage | 2.5 amps |
Electrical | 115V-60Hz-2.5A |
Frequency (Hz) | 60Hz |
Voltage (volts) | 115V |
Wattage (watts) | 288 watts |
Ambient Temperature | 60 to 90 degrees F |
Appliance Type | Wine Cooler (3 Zone) |
Bottle Storage Capacity | 70 (750ml) |
Color of Handle | None |
Color/Finish | Panel Ready & Glass |
Commerical/Residential | Residential |
Control Type | Intuitive Touch Digital Controls |
Cooling Unit Type | Air Cooled Compressor |
Cubic Foot Capacity | 7.6 cu ft |
Defrost Type | Automatic Defrost |
Door Features | Panel Ready - UV Blocking Low-E Glass |
Door Swing | Field Reversible |
Filter Type | Activated carbon air filter |
Install Type | Built-In |
Installation Type | Built-In |
Interior Finish Type | Molded ABS |
Interior Lighting | LED Interior Illumination |
Leveling Legs | Included |
LIght Colors | Midnight Blue, Theater White, Honey Amber |
Light Type | Tri-Color LED Interior Illumination |
Lighting Features | Three lighting modes |
Max Temperature Zone 1 | 64 degrees F |
Max Temperature Zone 2 | 50 degrees F |
Min Temperature Zone 1 | 41 degrees F |
Min Temperature Zone 2 | 41 degrees F |
Number of Doors | 1 |
Number of Temperature Zones | 3 |
Number of Wine Racks | 11 |
Open Door Alarm | Yes |
Operational Features | Energy Saver Mode |
Power Cord Included | 6' with Flat Plug |
Programmed Features | Power, Lighting & Alarms |
Required Plug Type | 5-15P Plug Type |
Returnable | No |
Sabbath Mode | Yes |
Side Clearance Door Open 90 Degrees | 1 3/4' |
Storage Features | Vibration Dampened Racks, Partial Extension, Fully Loaded |
Toe Kick Color | N/A |
Vent Location | Bottom Entry - Top Exhaust |
Wheels/Casters | No |
Wine Rack Material Type | Steel |
Wireless Compatibility | No |
Control Lighting | Backlit LCD |
Controls | Electronic Touch |
Location | Indoor |
Refrigerant | R600a |
Sound Level | 39 |
