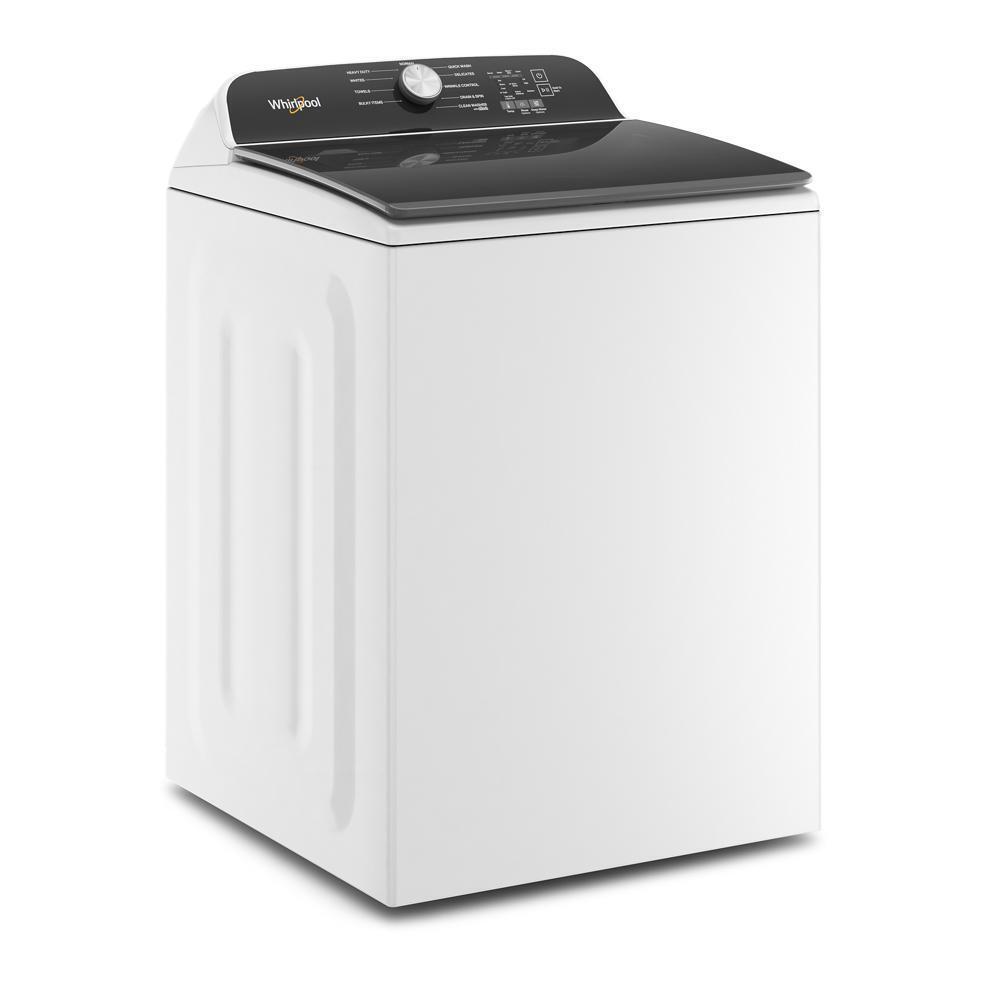

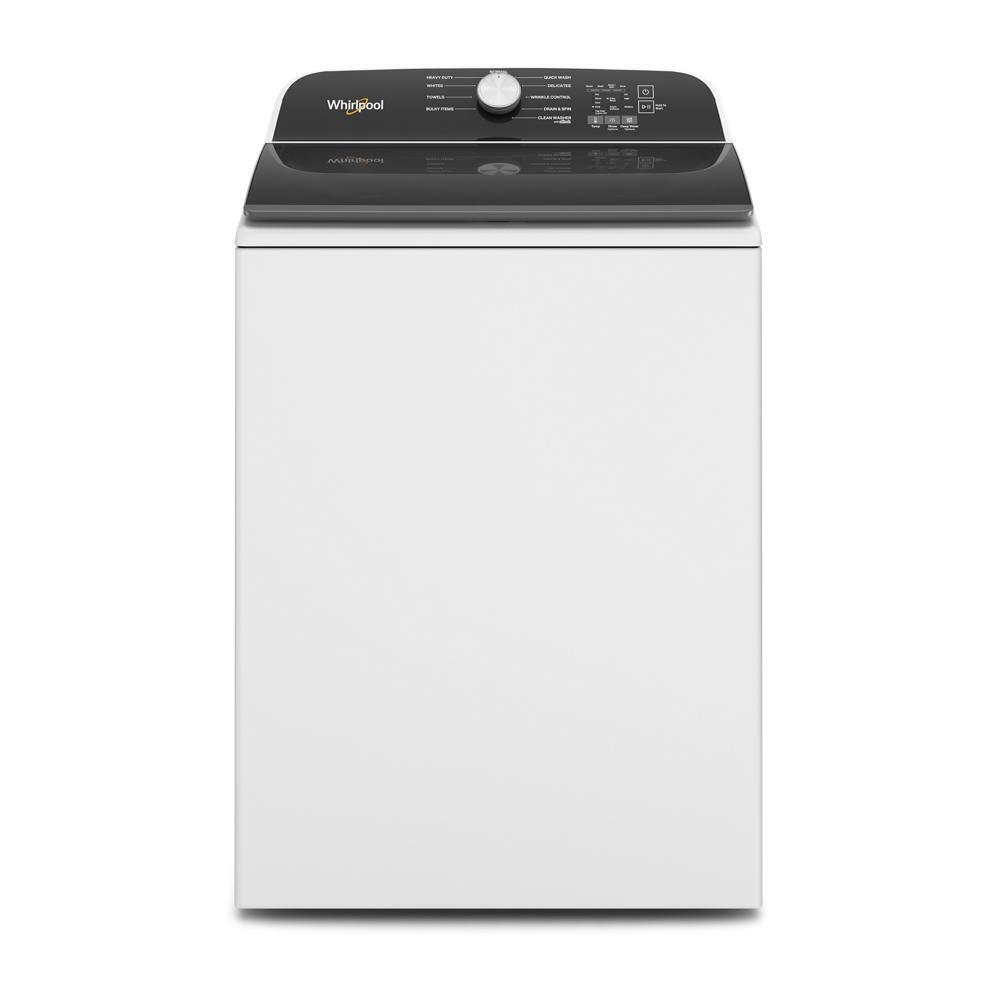

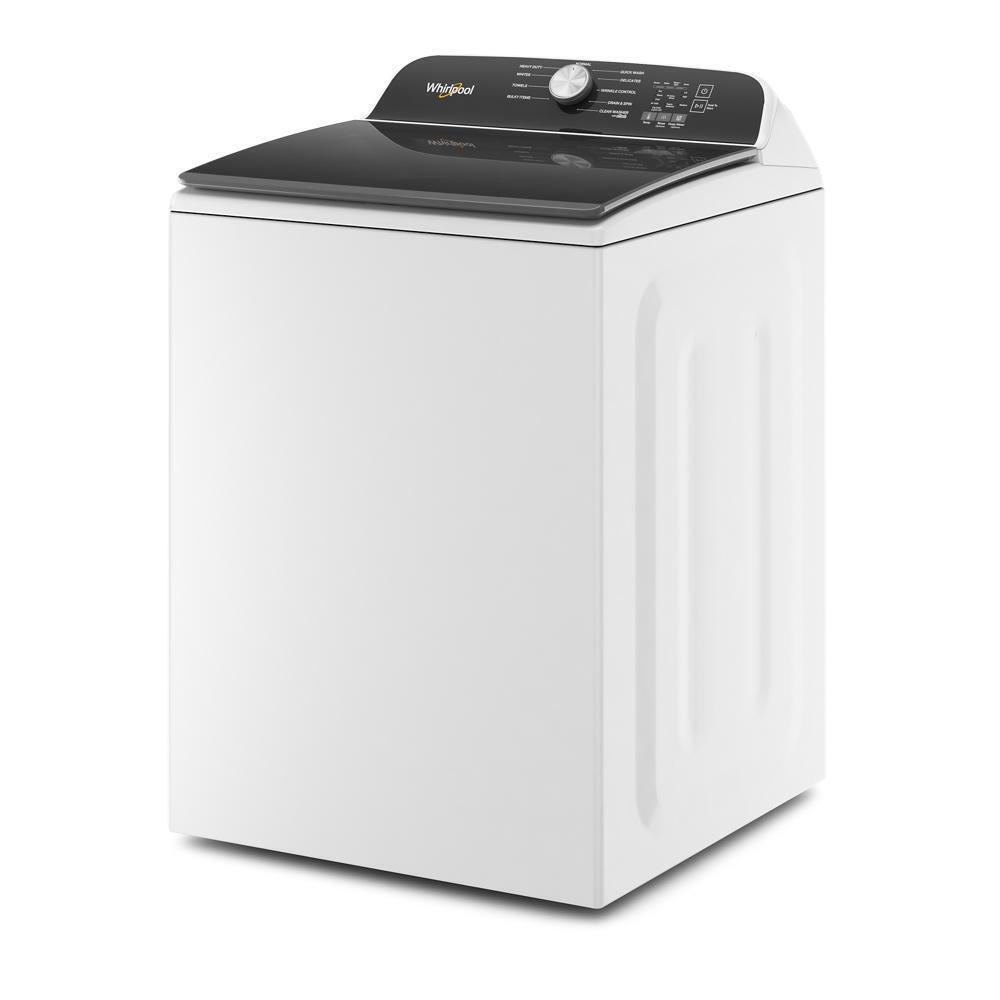

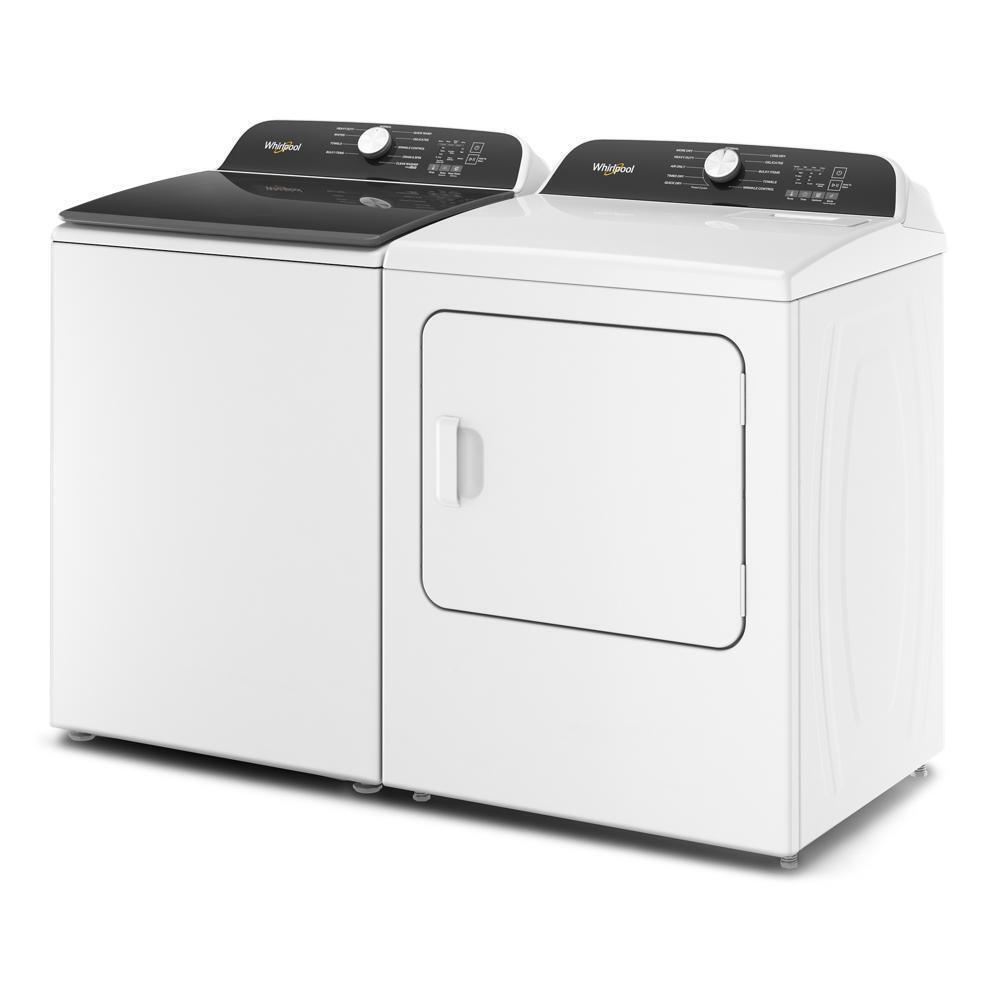

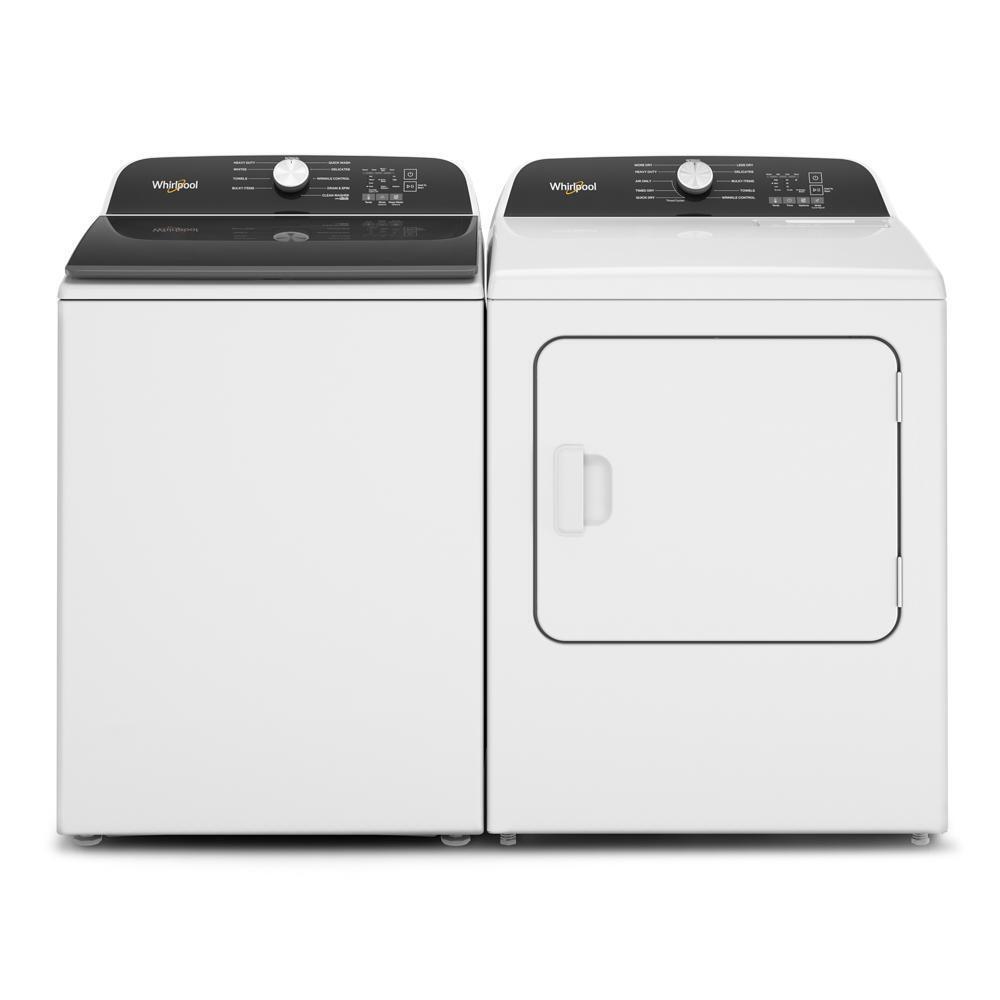

Whirlpool WTW500CMW 5.3 Cu. Ft. Large Capacity Top Load Washer

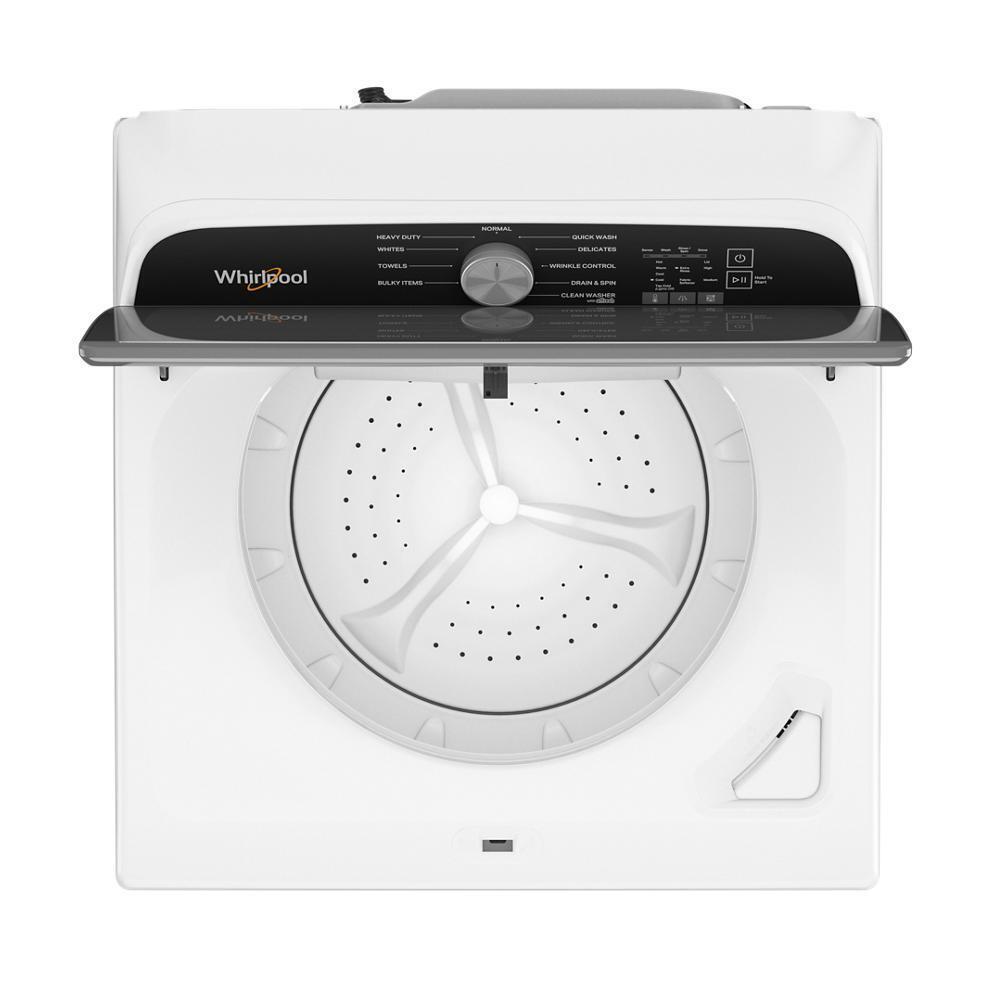

Smooth Spiral Stainless Steel Wash Basket
Help protect fabrics with this stainless steel wash basket that gently guides clothes during the wash.

Deep Water Wash Option
Get more water to help break down loose soils. This option automatically adds more water to your load, so heavily soiled clothes get an optimal clean.**Bulky Items Cycle only available with deepest water level.

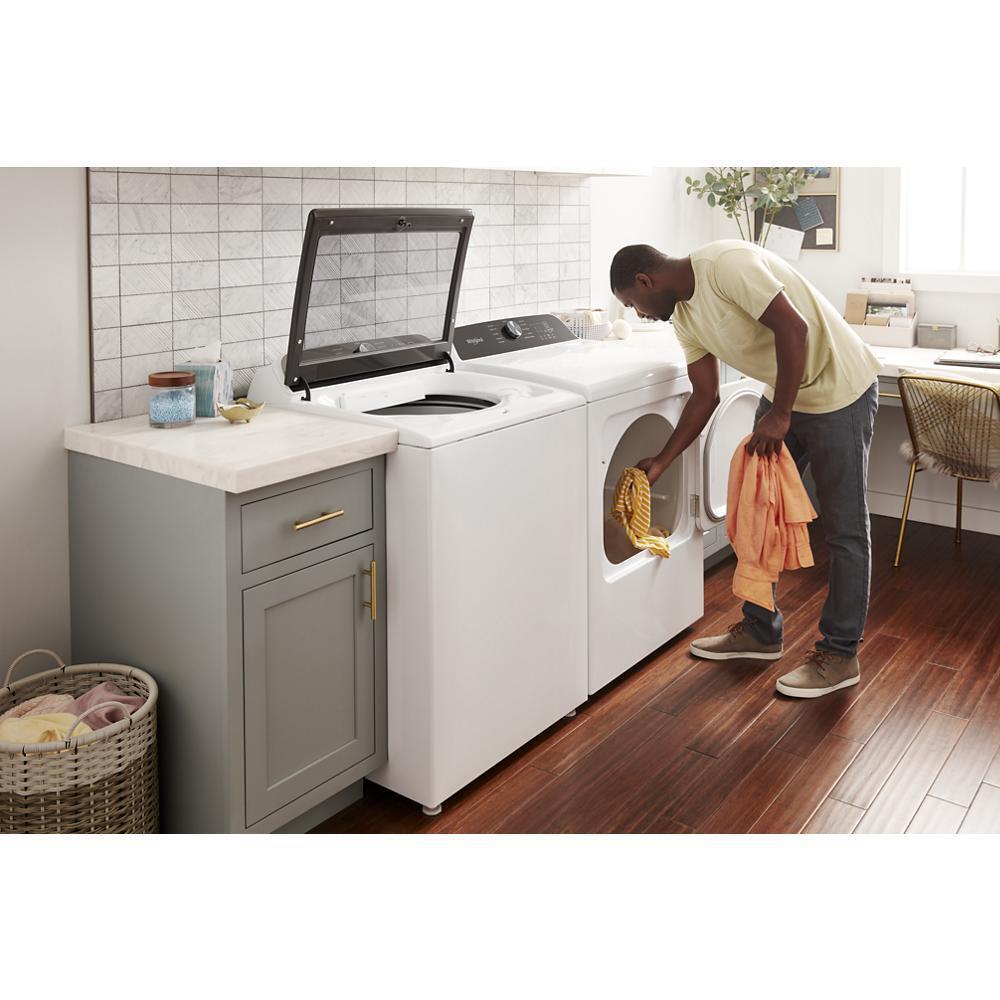

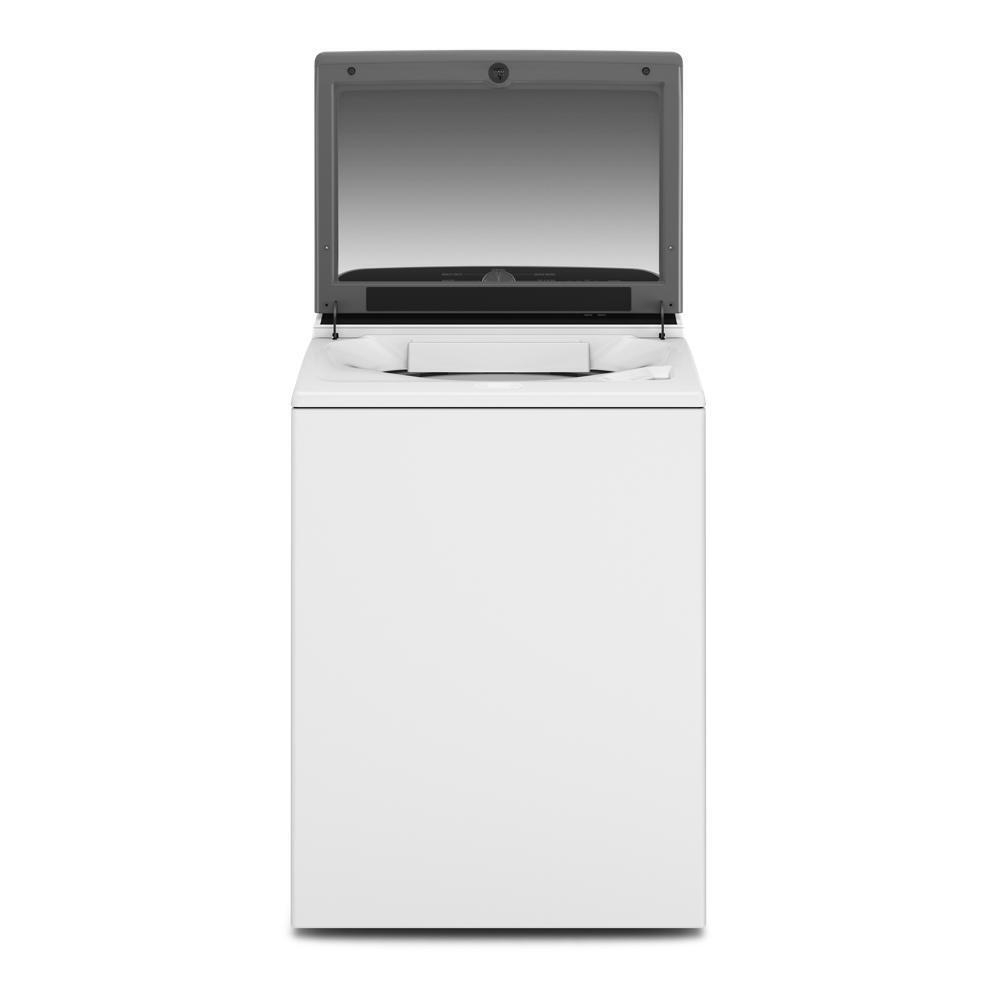

EasyView™ Full-Width Slow-Close Glass Lid
Enjoy a clean, streamlined look with the slow-close see-through lid that lets you easily check on your load while it’s washing.
Height: 37.25"
Depth: 28"
- Deep Water Wash Option
- Smooth Spiral Stainless Steel Wash Basket
- EasyView™ Full-Width Slow-Close Glass Lid
- Lid Lock
- ENERGY STAR® Certified
Options | |
Number of Washer Options | 12 |
Washer Option Selections | 1 Extra Rinse,1 Extra Rinse With Softener,2 Extra Rinses,2 Extra Rinses With Softener,Deep Water Wash,Fabric Softener,Presoak,Sales Demo Mode,Wash Temp |
Cycles | |
Number of Wash Cycles | 12 |
Washer Cycle Selections | Bulky Items,Clean Washer with affresh,Colors,Delicates,Drain & Spin,Heavy Duty,Quick Wash,Regular Light,Regular Normal,Regular Heavy,Sheets,Towels,Whites |
Details | |
Automatic Load Size Sensing Technology | Yes |
Dispense System | Detergent, Fabric Softener & Bleach |
Sound Package | No |
Wash Action | Impeller |
Motor Horsepower | 9/10 HP |
Internal Heater | No |
Drum Material | Stainless Steel |
Out of Balance Sensing | Yes |
Interior Light | No |
Maximum Spin Speed (RPM) | 850 |
Automated Dispenser | N/A |
Motor Drive Type | Direct Drive |
Advanced Vibration Control™ | Yes |
Suspension System | Hung Spring Damper |
Hoses Included | Drain Hose |
Eco Monitor/Efficiency Monitor | No |
Drum Rear/Base Material | Plastic |
Certifications | |
Energy Rating (kWh/year) | 340 |
ADA Compliant | No |
CUL | Yes |
CEE Tier | Minimum ESTAR |
DOE Energy Compliant | ESTAR |
Energy Star® Qualified | ENERGY STAR® Qualified |
IWF | 6.25 |
Prop 65 | Standard |
IMEF | 3.04 |
UL | Yes |
General | |
Accessory Relationships | Yes |
Delay Start | No |

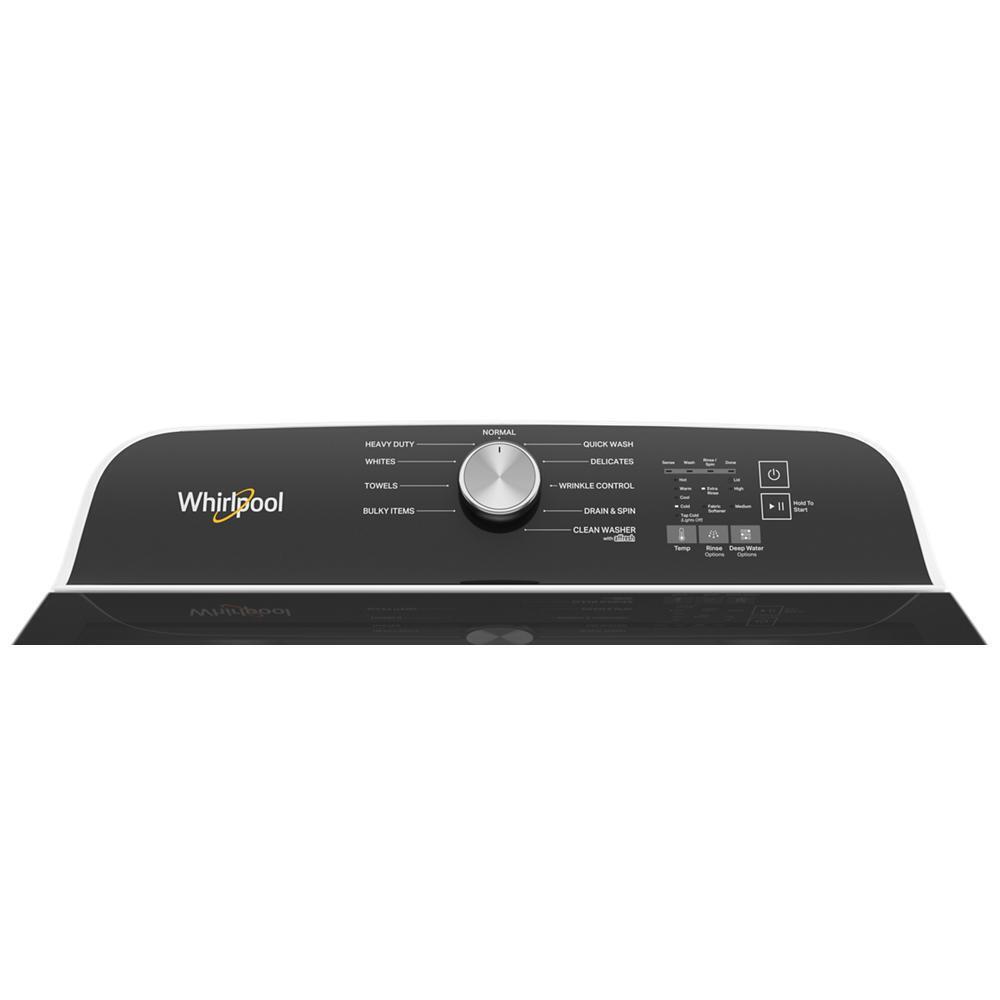

Controls | |
Automatic Temperature Controls | Yes |
Control Type | Push Button |
Control Location | Backguard |
Feedback-Status Indicators | Done,Rinse,Sensing,Spin,Wash |
LCD Touch Screen | No |
Electronic Display Type | LED |
End of Cycle Signal | No |

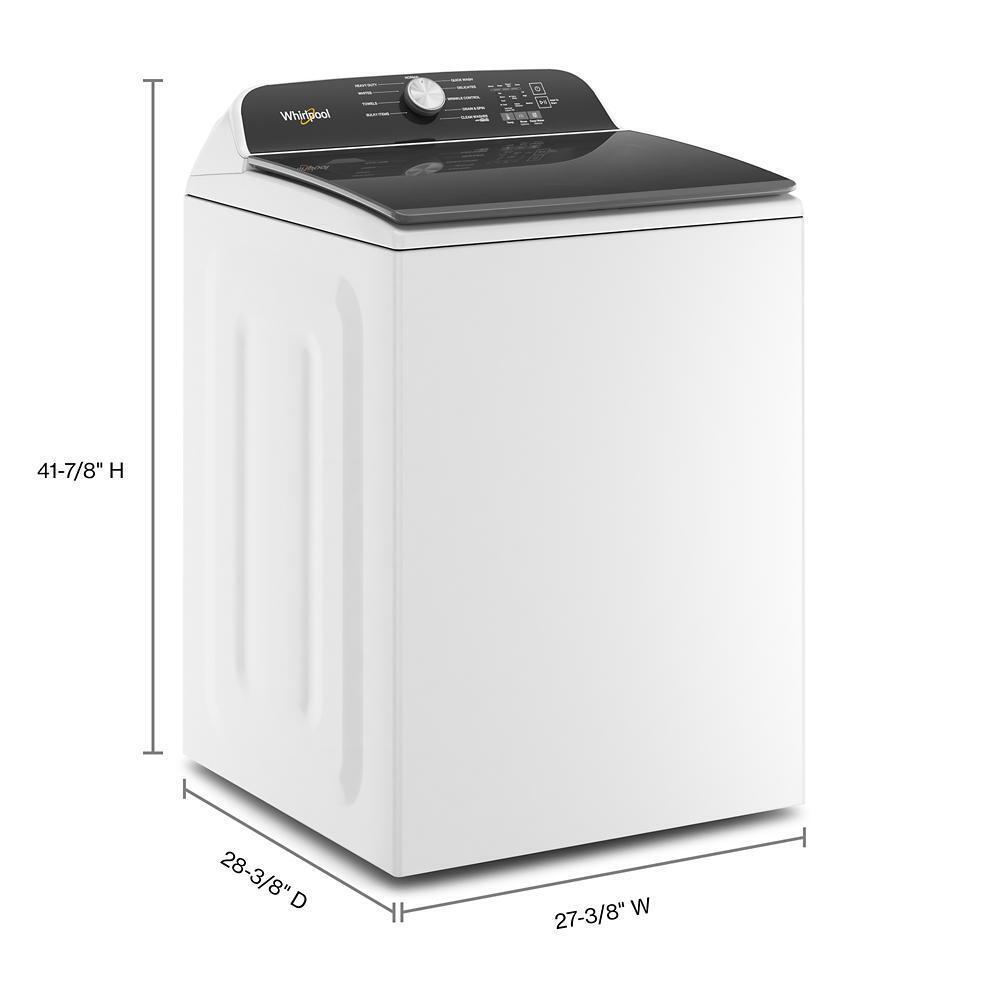

Dimensions | |
Carton Width(IN,inches) | 29 |
Depth(IN,inches) | 28 |
Height To Top Of Cabinet(IN,inches) | 38 |
Height(IN,inches) | 37 1/4 |
Height with Lid Open | 57 1/4 |
Width(IN,inches) | 27 3/8 |
Depth With Door Open 90 Degree(IN,inches) | 28 |
Carton Height(IN,inches) | 46 |
Minimum Height(IN,inches) | 41 7/8 |
Maximum Height(IN,inches) | 42 3/4 |
Capacity (DOE) US(Cu Ft) | 5.3 |
Carton Depth(IN,inches) | 29 |
Features | |
Stackable | No |
Fabric Brush | No |
Recirculation(visible) | No |
Water Faucet | No |
Electrical | |
Watts | 120 |
Volts | 120 |
Amps | 8 |
Hz | 60 |
Power Cord Included | Yes |
Compatibility | |
Connectivity | No |
Works With | No |
Exterior | |
Adjustable Feet | Yes |
Lid/Door Lock | Yes |
Lid/Door Swing | NA |
Window | Yes |
Lid/Door Finish | Glass |
Slow Close Lid | Yes |
Modifiers | |
Number of Wash/Rinse Temperatures | 5 |
Number of Rinse Options | 4 |
Rinse Temperature | 1 Rinse,2 Rinse,1 Rinse w/ Fab Soft,2 Rinse w/ Fab Soft |
Pre Soak | Yes |
Number of Spin Speeds | 0 |
Number of Water Levels | 3 |
Temperature Selections | Cold,Cool,Hot,Tap Cold,Warm |
Soil Selections | Regular - Light,Regular - Normal,Regular - Heavy |
Number of Soil Levels | 3 |
Water Levels | Auto,High,Medium |
Spin Speed Selections | N/A |
