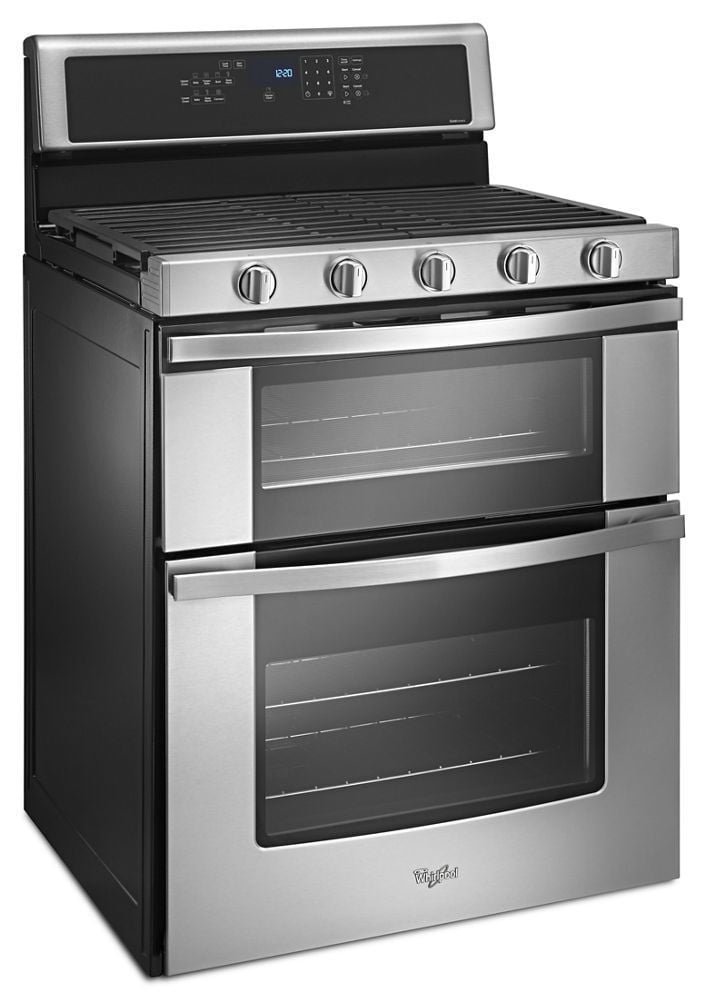

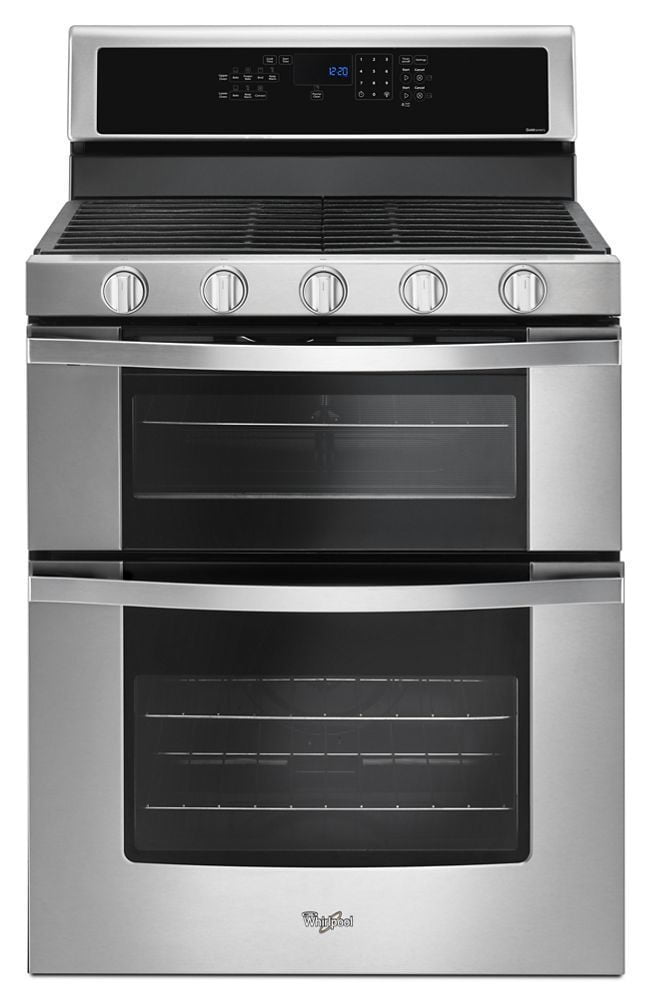

Whirlpool WGG745S0FS 6.0 Cu. Ft. Gas Double Oven Range With Ez-2-Lift Hinged Grates
Rebates &
Promotions
Frozen Bake Technology

Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster 1 .

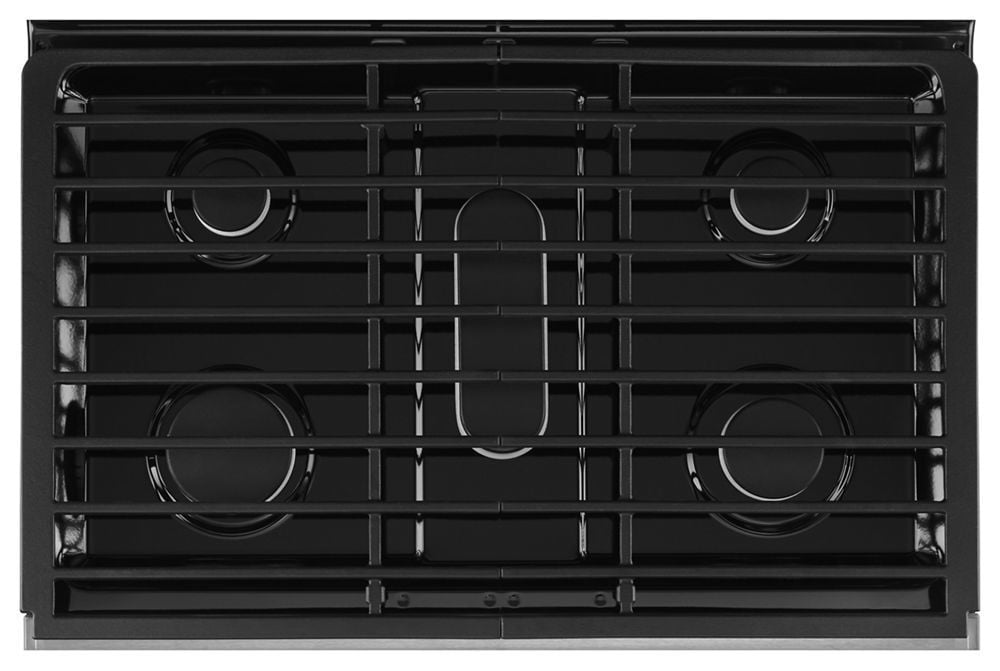

EZ-2-Lift Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-first EZ-2-Lift hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.
SpeedHeat Burner

Sear and boil quickly with the high temperatures provided by the 16,000-BTU SpeedHeat burner.
Center Oval Burner

The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.
Convection Conversion

Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
Get Dinner On The Table Quickly With This Gas Double Oven Kitchen Range. True Convection Cooking Lets You Cook Food Faster. Convection Conversion Will Do The Math For You To Adjust Cooking Times And Temperatures. Skip Preheating This Oven Range For Frozen Favorites Like Pizza, Lasagna, Chicken Nuggets, Fries Or Pies, Thanks To Frozen Bake Technology. Large Griddles And Other Longer Cookware Heat Evenly On The Range Stove With The Center Oval Burner. And If You Make A Mess, Ez-2-Lift Hinged Cast-Iron Grates Provide Quick Access To Wipe Up Spills On The Kitchen Range'S Cooktop.
- Frozen Bake Technology Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.
- EZ-2-Lift Hinged Cast-Iron Grates Get quick access to spills on the cooktop with our industry-first EZ-2-Lift hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.
- SpeedHeat Burner Sear and boil quickly with the high temperatures provided by the 16,000-BTU SpeedHeat burner.
- Center Oval Burner The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.
- Convection Conversion Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.
- True Convection Cooking True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
- Temperature Sensor A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
- Rapid Preheat (Lower Oven Only) Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly.
- SteamClean Option The SteamClean option saturates baked on messes with water and high heat so they wipe up quickly.
- 6.0 Cu. Ft. Capacity
- Dishwasher-Safe Knobs
Dimensions | |
Cutout Depth | 24.0 in |
Cutout Height | 36.0 in |
Cutout Width | 30-1/8 in |
Depth Closed Excluding Handles | 27-1/4 in |
Depth With Door Open 90 Degree | 46.0 in |
Height | 47-1/8 in |
Lower Oven Capacity | 3.9 cu. ft. |
Upper Oven Capacity | 2.1 cu. ft. |
Width | 29-15/16 in |
Fuel Type | Gas |
LP Convertible | Yes |
Range Type | Freestanding Double Oven |
Size | 30 in |
Automatic Convection Conversion Temperature Adjust | Yes |
Automatic Shut-Off | No |
Broiler Location | Top of Oven |
Door Removable | Yes |
Drawer Type | None |
Hidden Bake Element | Yes |
Interior Color | Grey |
Lower Oven Interior Width | 25.0 in |
Oven Control Location | Backguard |

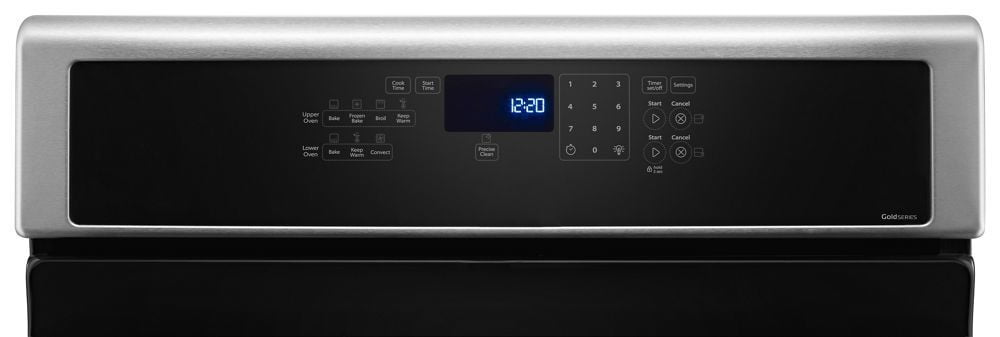

Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal Upper-Convection Lower |
Power On Indicator Light | No |
Upper Oven Interior Depth | 18-5/8 in |
Upper Oven Interior Width | 25.0 in |
Handle Material | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Color Coordinated Black on Stainless |
Grate Details | Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates, Hinged |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Number of Cooking Element-Burners | 5 |
Number of Grates | 2 |
Bake Element Power | 16,000 BTU |
Broiler Element Power | 10000 BTU-Upper |
Convection Element Type | True |
Cooktop Surface Material | Porcelain Coated Steel |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Self-Cleaning |
Oven Light Type | Incandescent |
Oven Rack Type | Standard |
Power Cord Included | No |
Features | ADA Compliant, EZ-2-Lift Hinged Grates, Frozen Bake Technology, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle |
Knob Color | Color Coordinated |
Knob Type | Weighted |
Power Outage Compatible | No |
Oven Window Size | Extra Large |
