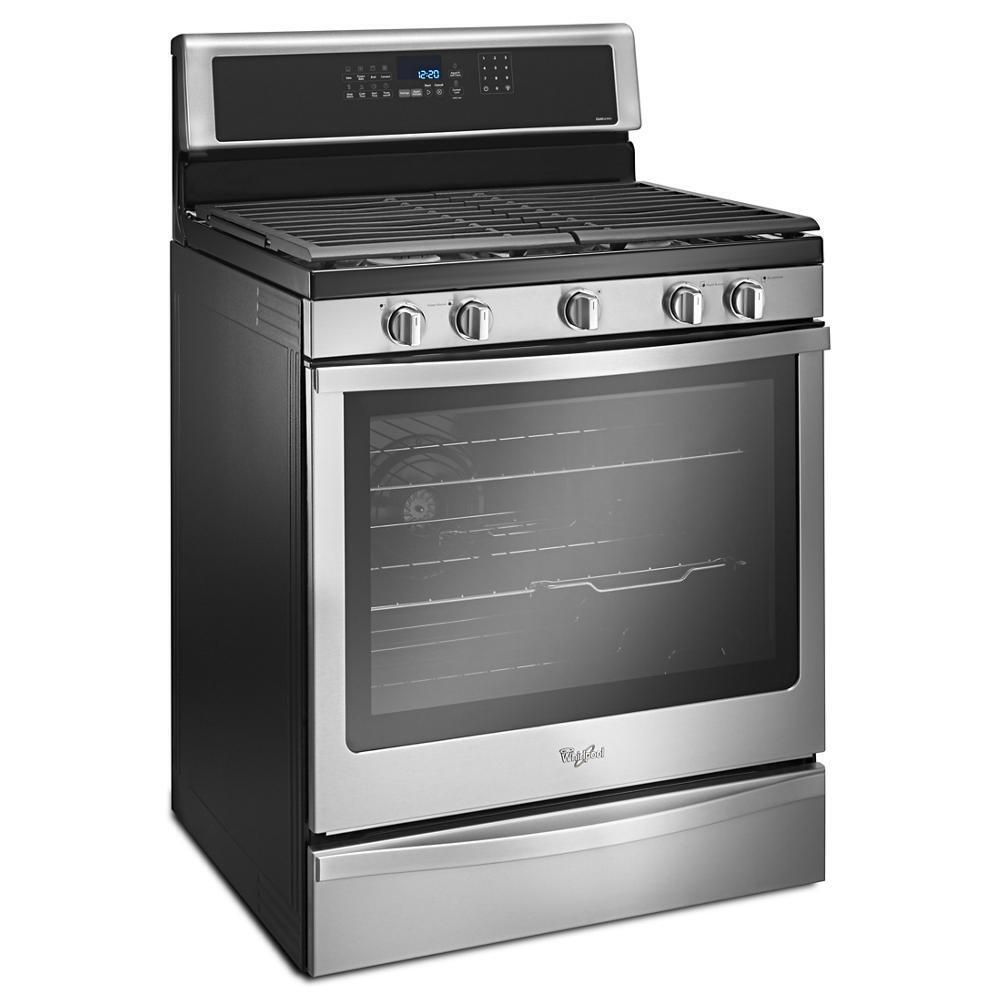

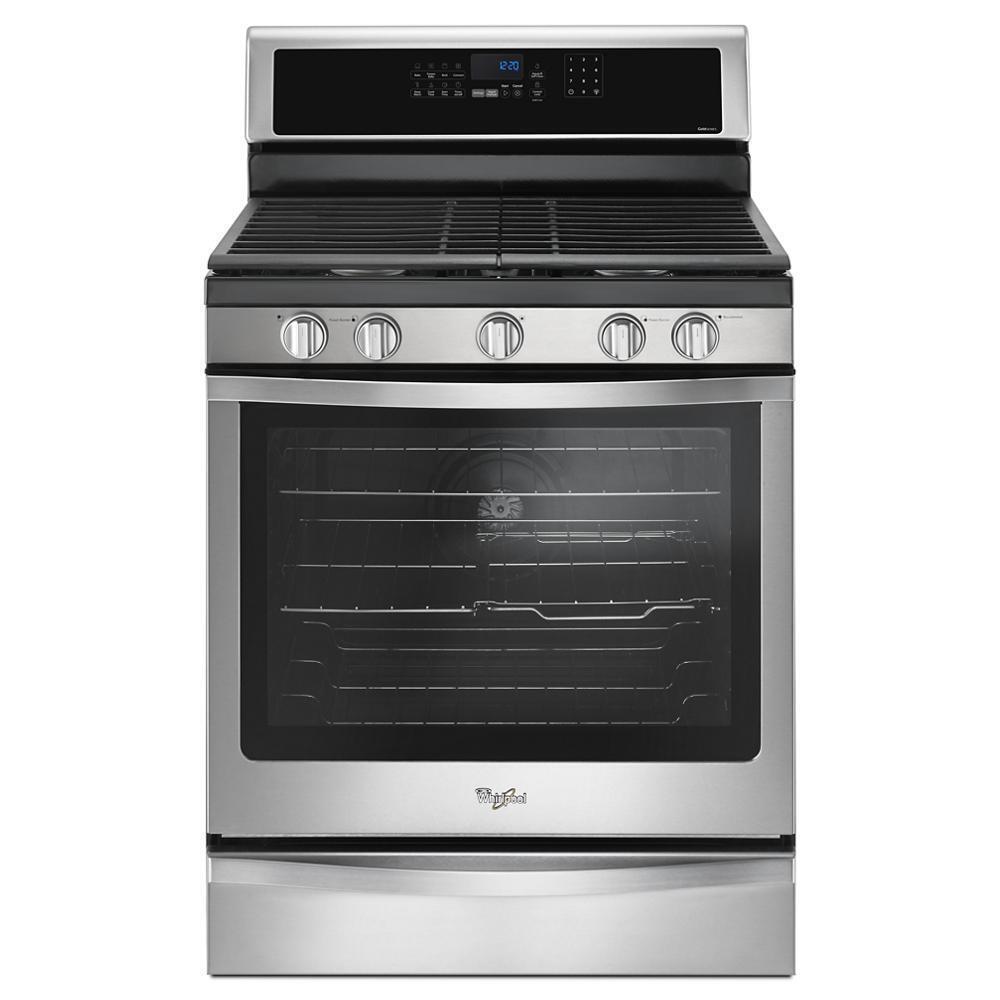

Keep dinner time from getting in the way of family time. This gas oven range's true convection cooking cooks food faster. Convection Conversion will do the math for you to adjust cooking times and temperatures. Skip preheating this kitchen range for favorites like pizza, lasagna, chicken nuggets, fries or pies with Frozen Bake™ technology.

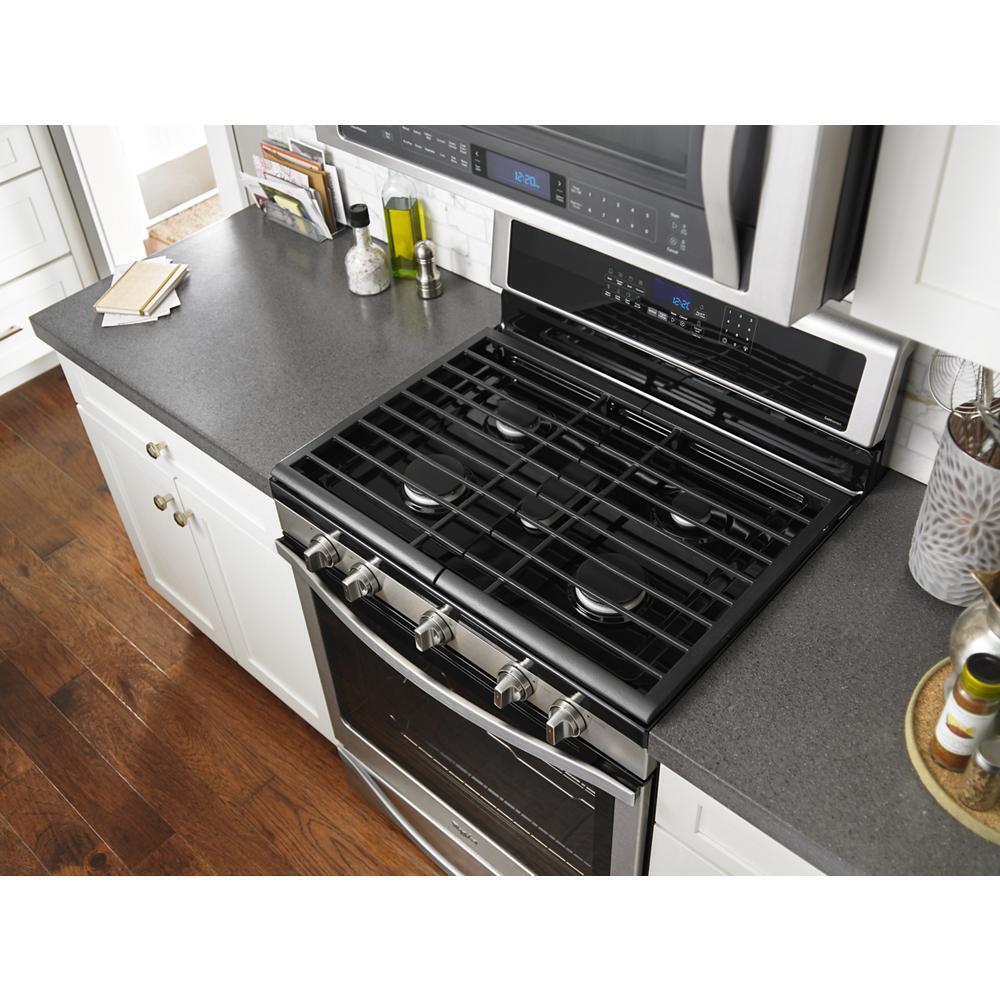

Large griddles and other longer cookware fit on the center oval burner to help them heat evenly on the range stove. And when it's time to clean up, the kitchen range's EZ-2-Lift™ hinged cast-iron grates provide quick access to wipe up spills while fingerprint-resistant stainless steel hides fingerprints and smudges on the exterior. Frozen Bake™ Technology Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster. Sabbath Mode Allows you to override the oven's automatic shut-off function, keeping it active for hours of uninterrupted cooking. This makes it possible to use the oven on the Sabbath without turning it on. EZ-2-Lift™ Hinged Cast-Iron Grates Get quick access to spills on the cooktop with our industry-exclusive EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe. True Convection Cooking True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food. SpeedHeat™ Burner Sear and boil quickly with the high temperatures provided by the 17,000-BTU SpeedHeat™ burner. Center Oval Burner Easily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the range top. AquaLift® Self-Cleaning Technology Get odor-free cleaning without harsh chemicals in only 50 minutes. AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven. Convection Conversion Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures. Temperature Sensor A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly. Rapid Preheat Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly. Now you can save time when single-rack baking with 20% faster preheating. Fingerprint-Resistant Stainless Steel 5.8 Cu. Ft. Capacity Large Oven Window Dimensions & Capacity Width: 29 7/8"
Height: 46 7/8"
Depth: 27 3/4"
First Oven Size: 5.8 cu. ft.

• Frozen Bake™ Technology

Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.

• Fingerprint-Resistant Stainless Steel
• 5.8 Cu. Ft. Capacity

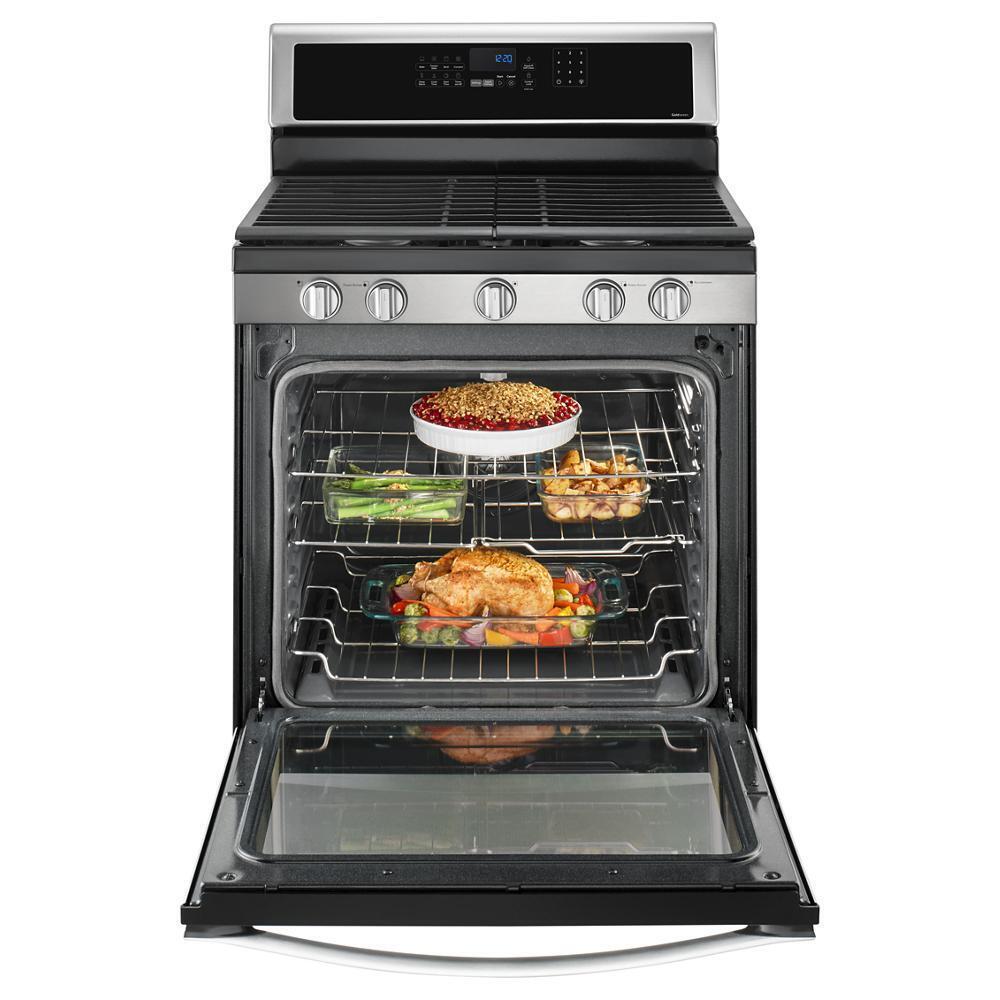

• Large Oven Window
• Sabbath Mode

Allows you to override the oven's automatic shut-off function, keeping it active for hours of uninterrupted cooking. This makes it possible to use the oven on the Sabbath without turning it on.

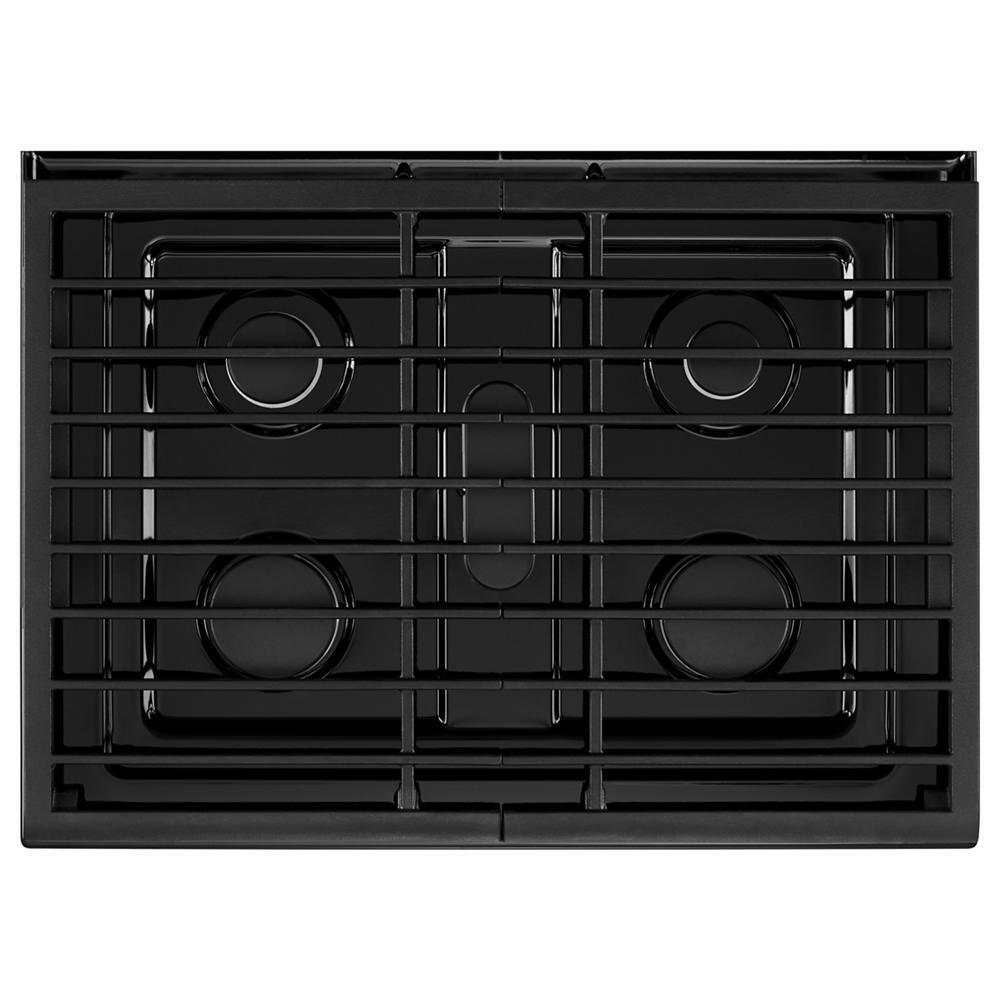

• EZ-2-Lift™ Hinged Cast-Iron Grates

Get quick access to spills on the cooktop with our industry-exclusive EZ-2-Lift™ hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.

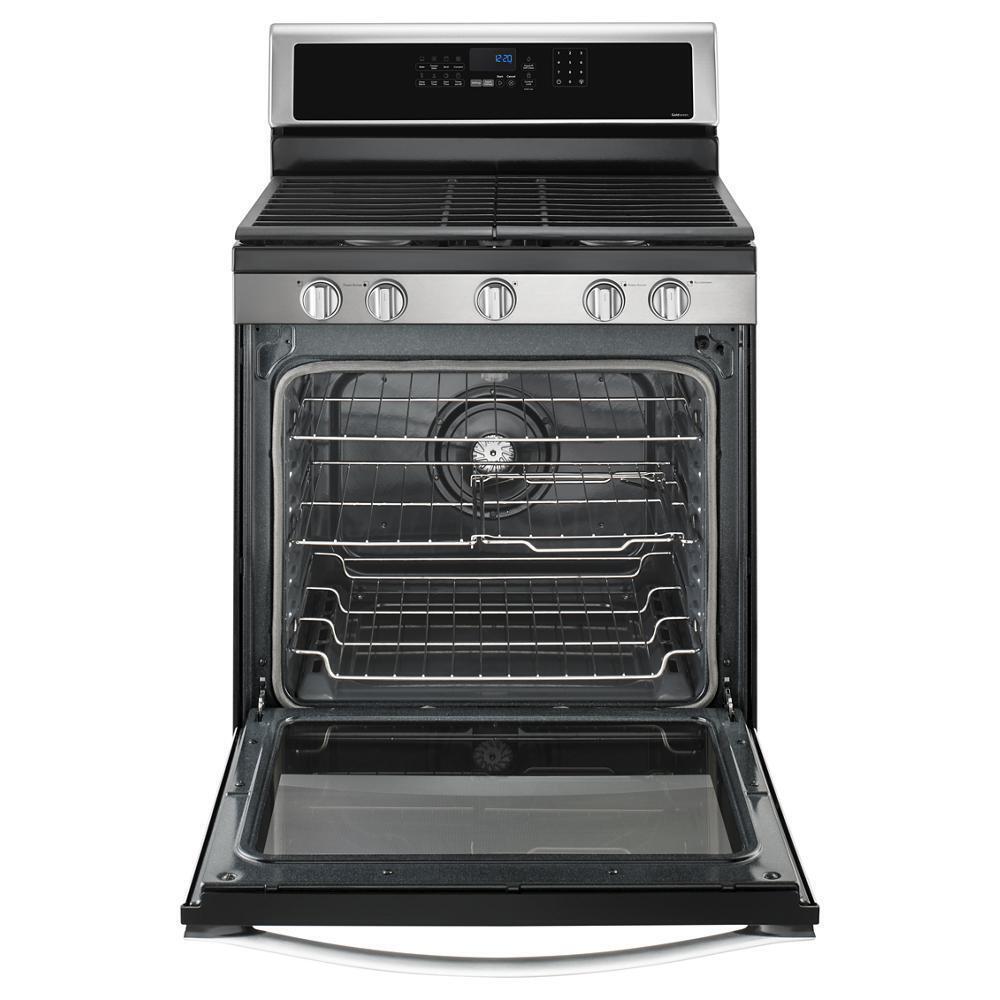

• True Convection Cooking

True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.

• SpeedHeat™ Burner

Sear and boil quickly with the high temperatures provided by the 17,000-BTU SpeedHeat™ burner.

• Center Oval Burner

Easily fit large griddles and other longer cookware on this fifth burner so they heat evenly on the range top.

• AquaLift® Self-Cleaning Technology

Get odor-free cleaning without harsh chemicals in only 50 minutes. AquaLift® self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.

• Convection Conversion

Your oven will do the math for you when you need to convert traditional recipes for convection cooking, automatically adjusting cooking times and temperatures.

• Temperature Sensor

A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.

• Rapid Preheat

Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly. Now you can save time when single-rack baking with 20% faster preheating.

Details
Bake Element Power	18,000 BTU
Number of Oven Lights	1
Convection Functions	No
Oven Light Switch Location	Oven Control
Hidden Bake Element	Yes

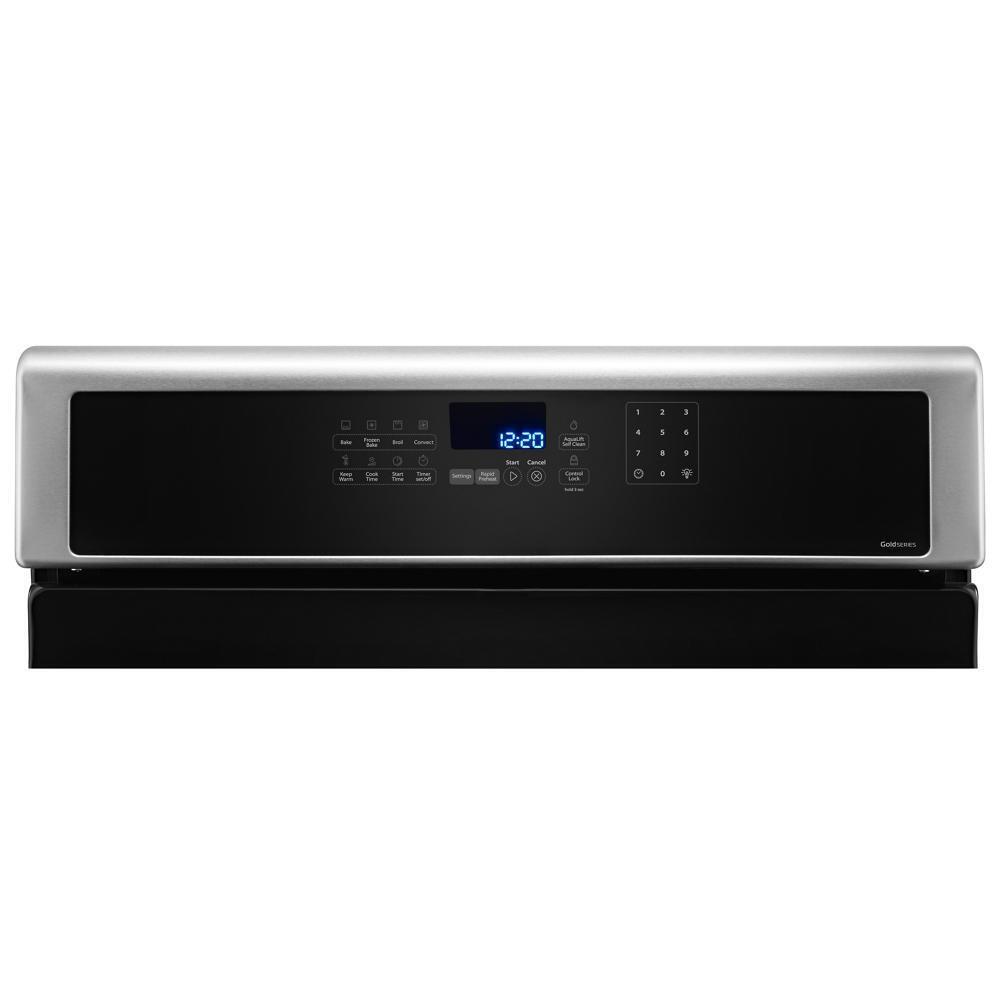

Oven Control Type	Electronic Touch
Number of Rack Guides	7
Number of Oven Racks	3
Oven Interior Height(IN,inches)	21 3/8
Oven Cleaning Type	AquaLift® Self Clean
Convection Element Type	None
Oven Interior Depth(IN,inches)	20 3/4
Oven Light Type	Incandescent
Oven Interior Width(IN,inches)	24 3/8
Broiler Element Power	11,000 BTU
Cooktop Surface Material	Porcelain Coated Steel
Oven Rack Type	2 Standard and 1 Max Capacity
Configuration
Oven Configuration	Single Oven
Range Configuration	Freestanding
Certifications
ADA Compliant	No
Prop 65	Standard
UL	Yes
Cooktop Details
Left Rear Element-Burner Power	9,500 BTU
Cooktop Control Knob Type	Weighted-Plastic
Number of Cooking Element-Burners	5
Number of Grates	2
Left Front Element-Burner Power	17,000 BTU
Cooktop Control Location	Front
Center Rear Element-Burner Type	Multi Purpose
Cooktop Surface Color	Black on Stainless
Ignition Type	Direct Spark Ignition
Right Rear Element-Burner Power	5,000 BTU
Cooktop Control Knob Color	Stainless Steel
Right Rear Element-Burner Type	Simmer
Cooktop Control Type	Knobs
Left Rear Element-Burner Type	Multi Purpose
Right Front Element-Burner Power	15,000 BTU
Left Front Element-Burner Type	High Output
Grate Details	Dishwasher Safe,Hinged,Matte Finish,Porcelain Coated Cast Grates
Center Rear Element-Burner Power	8,000 BTU
Right Front Element-Burner Type	High Output
General
Accessory Relationships	Yes
Dimensions
Gross Weight(LB,pounds)	187
Carton Height(IN,inches)	48 3/4
Capacity(FT3,cubic feet)	5.80
Carton Width(IN,inches)	32
Carton Depth(IN,inches)	29
Electrical
Power Cord Included	No
