Whirlpool WEG745H0FS 5.8 Cu. Ft. Slide-In Gas Range With Ez-2-Lift Hinged Grates
Frozen Bake Technology
Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster 1 .

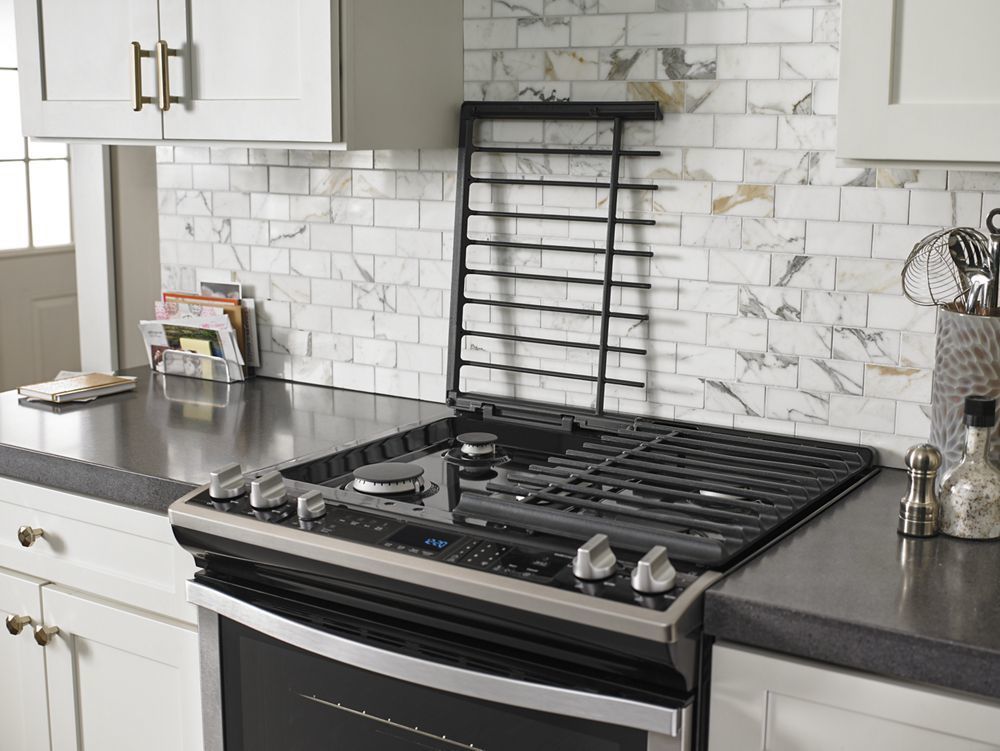

EZ-2-Lift Hinged Cast-Iron Grates 2
Get quick access to spills on the cooktop with our industry-first EZ-2-Lift hinged cast-iron grates 2 . The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.
True Convection Cooking
True convection cooking helps you cook foods faster 3 by using a third element plus a fan to distribute hot air evenly over, under and around food.

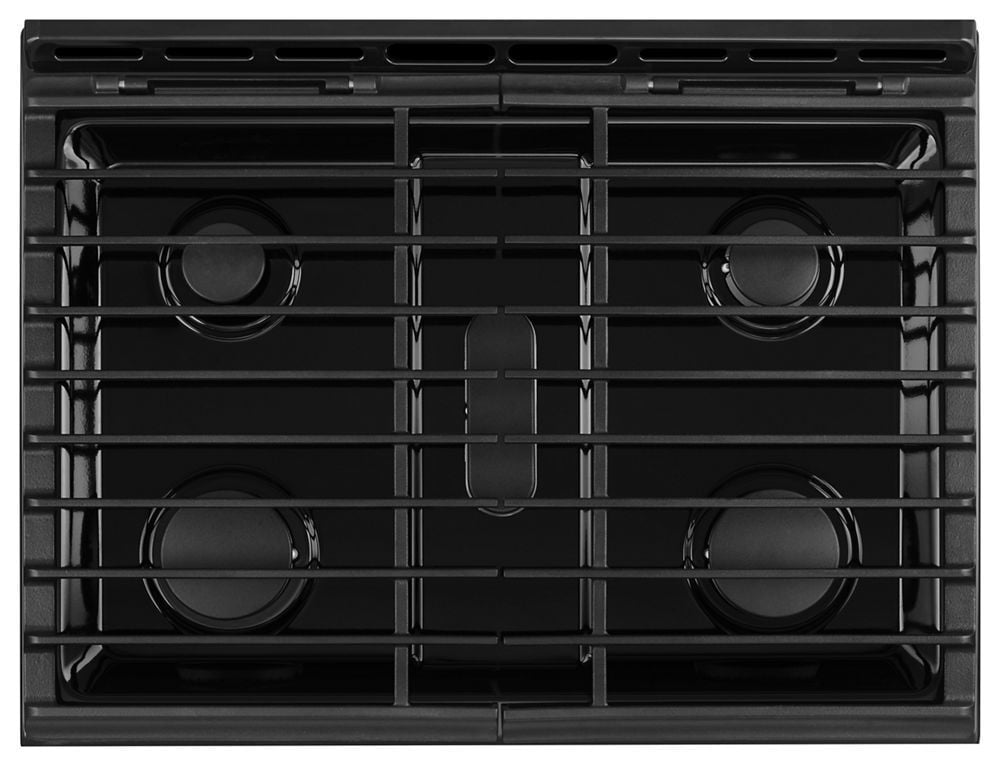

Center Oval Burner
The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.
AquaLift(R) Self-Cleaning Technology
Get odor-free cleaning without harsh chemicals in only 50 minutes. AquaLift(R) self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.
Take On Family Favorites With This Slide-In Gas Range Designed To Fit Your Kitchen And Your Cooking. Frozen Bake Technology Lets You Skip Preheating The Oven Range For Frozen Dishes Like Pizza, Lasagna, Chicken Nuggets, Fries Or Pies. Cook Food Faster With This Kitchen Range'S True Convection Cooking. Large Griddles And Other Longer Cookware Heat Evenly On The Range Stove With The Center Oval Burner. And When It'S Time To Clean Up, Ez-2-Lift Hinged Cast-Iron Grates Provide Quick Access To Wipe Up Spills On The Kitchen Range'S Cooktop.
- Frozen Bake Technology Skip preheating for favorites like pizza, lasagna, chicken nuggets, fries or pies so you can cook frozen foods faster.
- EZ-2-Lift Hinged Cast-Iron Grates Get quick access to spills on the cooktop with our industry-first EZ-2-Lift hinged cast-iron grates. The hinged design allows you to wipe up under them without removing them entirely. For a more thorough clean, the grates are also dishwasher-safe.
- True Convection Cooking True convection cooking helps you cook foods faster by using a third element plus a fan to distribute hot air evenly over, under and around food.
- Center Oval Burner The oval shape of this fifth burner fits large griddles and other longer cookware so they heat evenly on the range top.
- AquaLift(R) Self-Cleaning Technology Get odor-free cleaning without harsh chemicals in only 50 minutes. AquaLift(R) self-cleaning technology uses only water and low heat to help remove baked-on foods from the bottom of the oven.
- SpeedHeat Burner Sear and boil quickly with the high temperatures provided by the 17,000-BTU SpeedHeat burner.
- Temperature Sensor A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
- Rapid Preheat Rapid Preheat uses all of the elements and a rear fan to heat the oven quickly. Now you can save time when single-rack baking with 20% faster preheating.
- 5.8 Cu. Ft. Capacity
- Large Oven Window
- Dishwasher-Safe Knobs
Exterior | |
Oven Window Size | Extra Large |
Capacity | 5-4/5 |
Depth Closed Excluding Handles | 28-7/8 in |
Height | 36.0 in |
Width | 29-7/8 in |
Fuel Type | Gas |
Range Type | Slide-in |
Size | 30 in |
Handle Material | Metal |
Automatic Convection Conversion Temperature Adjust | Yes |
Broiler Location | Top of Oven |
Convection Functions | Bake, Broil, Roast |
Drawer Type | Storage Drawer |
Hidden Bake Element | Yes |
Interior Color | Grey |
Oven Control Location | Front |
Oven Control Type | Electronic Touch |
Oven Cooking System | Convection |
Power On Indicator Light | Yes |
Auto Re-ignition | No |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Element Style | Gas Burner |
Cooktop Surface Color | Black |
Grate Details | Dishwasher Safe, Matte Finish, Cast Iron Grates, Rear Hinged Grate |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Left Rear Element-Burner Type | Sealed Burner |
Number of Cooking Element-Burners | 5 |
Number of Grates | 2 |
Right Front Element-Burner Type | Sealed Burner |
Bake Element Power | 18,000 BTU |
Broiler Element Power | 13000 BTU |
Convection Element Type | Single-Fan |
Cooktop Surface Material | Porcelain Coated Steel |
Number of Rack Guides | 7 |
Oven Cleaning Type | AquaLift® Steam Clean |
Power Cord Included | Yes |
Features | ADA Compliant, EZ-2-Lift Hinged Grates, Frozen Bake Technology, Sabbath Mode/Star-K Certification, Self-Cleaning, True Convection, Bladed Knob, Whirlpool Handle |
Knob Color | Color Coordinated/Black on Stainless |
Knob Type | Weighted |
Power Outage Compatible | No |
HeliumSizzle_thumb
CANADA ONLY- AquaLift(R) Self-Cleaning Technology Limited Guarantee
use-and-care-w11256524-revA.pdf
FIT System
Installation Instructions
Use & Care Guide
Owner's Manual
Warranty Information
Dimension Guide
