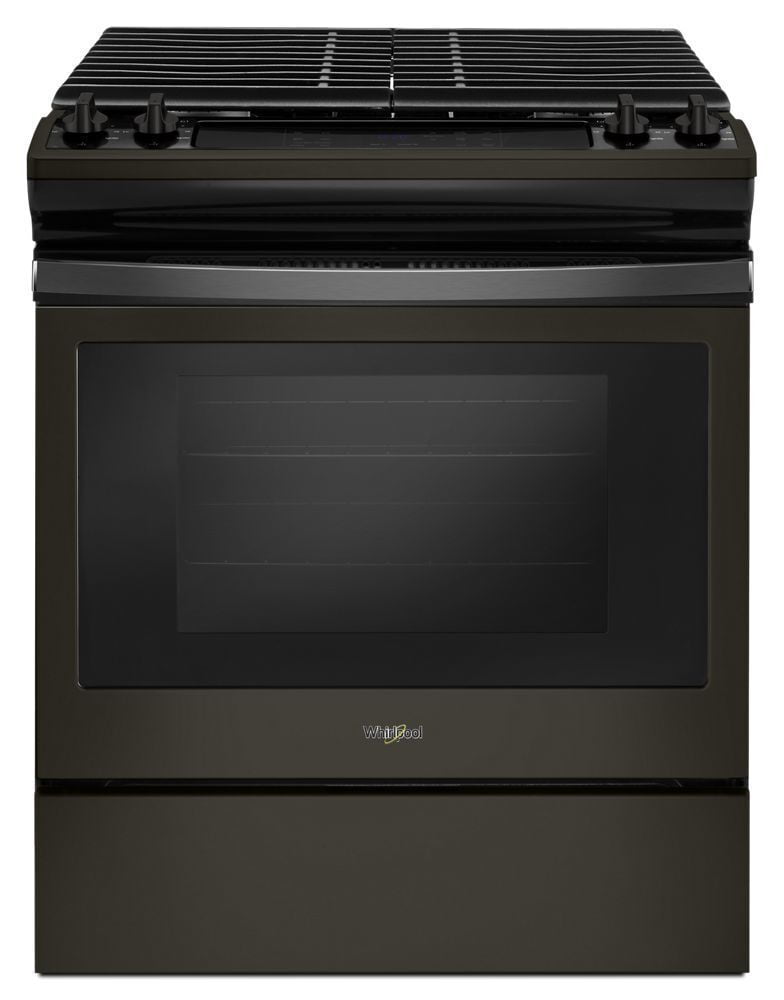

Whirlpool WEG515S0FV 5.0 Cu. Ft. Front Control Gas Range With Cast-Iron Grates
Frozen Bake Technology

Skip preheating for favorites like pizza and lasagna so you can cook frozen foods faster 1 .
Edge-to-Edge Cast-Iron Grates

Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
Cook For The Family, Even On A Hectic Schedule With Our 5.0 Cu. Ft. Front Control Gas Range With Cast-Iron Grates. This Cooking Range Is Designed With Features That Help You Get Dinner To The Table Quickly. Skip Preheating For Favorites Like Pizza And Lasagna With Frozen Bake Technology. Cleaning Your Kitchen Range Is Simple Withadjustable Self-Cleaning Settings That Take On All Kinds Of Messes.
- Frozen Bake Technology Skip preheating for favorites like pizza and lasagna so you can cook frozen foods faster.
- Edge-to-Edge Cast-Iron Grates Maximize space with cast-iron grates that extend across the entire cooktop, giving you the flexibility to place pots and pans anywhere.
- SpeedHeat Burners Sear and boil quickly with the high temperatures of the two 15,000-BTU burners.
- Adjustable Self-Cleaning Take on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.
- Temperature Sensor A built-in sensor monitors oven temperature and adjusts the cooking elements to help food bake evenly.
- 5.0 cu. ft. Capacity
- AccuSimmer(R) Burner Delivers precise temperature control just right for simmering.
- Keep Warm
Dimensions | |
Capacity | 5.00 |
Cutout Depth | 24.0 in |
Cutout Height | 36.0 in |
Cutout Width | 30-1/8 in |
Depth | 28-15/16 in |
Depth Closed Excluding Handles | 28-1/8 in |
Depth With Door Open 90 Degree | 47-3/8 in |
Maximum Height | 37.0 in |
Minimum Height | 36.0 in |
Width | 29-7/8 in |
Fuel Type | Gas |
LP Convertible | Yes - Kit Included |
Range Type | Slide-in |
Size | 30 in |
Convection Functions | No |
Door Removable | Yes |
Drawer Type | Storage Drawer |
Hidden Bake Element | Yes |
Interior Color | Grey |
Oven Control Location | Front |

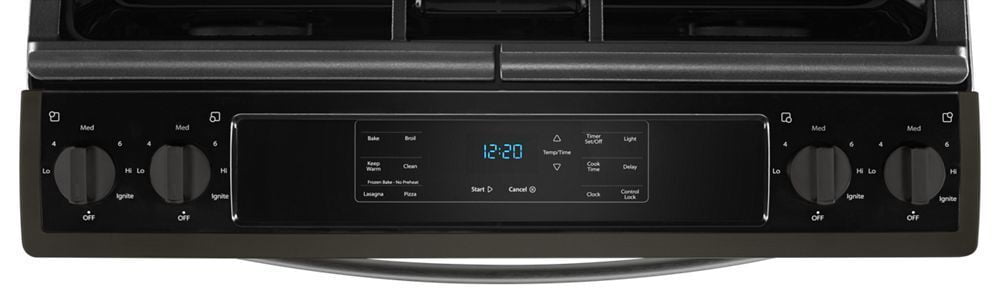

Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal |
Oven Interior Depth | 18-3/4 in |
Oven Interior Height | 18-1/8 in |
Oven Interior Width | 24-1/2 in |
Oven Light Switch Location | Oven Control |
Power On Indicator Light | Yes |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Color Coordinated Black on Stainless |
Grate Details | Dishwasher Safe, Matte Finish, Cast Iron Grates |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Ignition Type | Electronic |
Left Rear Element-Burner Type | Sealed Burner |
Number of Cooking Element-Burners | 4 |
Number of Grates | 2 |
Right Front Element-Burner Type | High Output |
Bake Element Power | 16500 BTU |
Broiler Element Power | 1300W Electric Broil |
Cooktop Surface Material | Porcelain Coated Steel |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Adjustable Self Cleaning |
Oven Light Type | Incandescent |
Oven Rack Type | Standard (Both) |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Power Cord Included | No |
Features | ADA Compliant, Frozen Bake Technology, Guided Cooktop Controls, Sabbath Mode/Star-K Certification, Self-Cleaning, Bladed Knob, Whirlpool Handle |
Knob Color | Color Coordinated/Black on Stainless |
Knob Type | Dishwasher-Safe Plastic |
Power Outage Compatible | No |
Oven Window Size | Extra Large |
Owner's Manual
Whirlpool FIT System Guarantee 2020
Installation Instructions
Warranty
Specifications Sheet
Guarantee Fit System
Wiring Sheet
Care Guide
