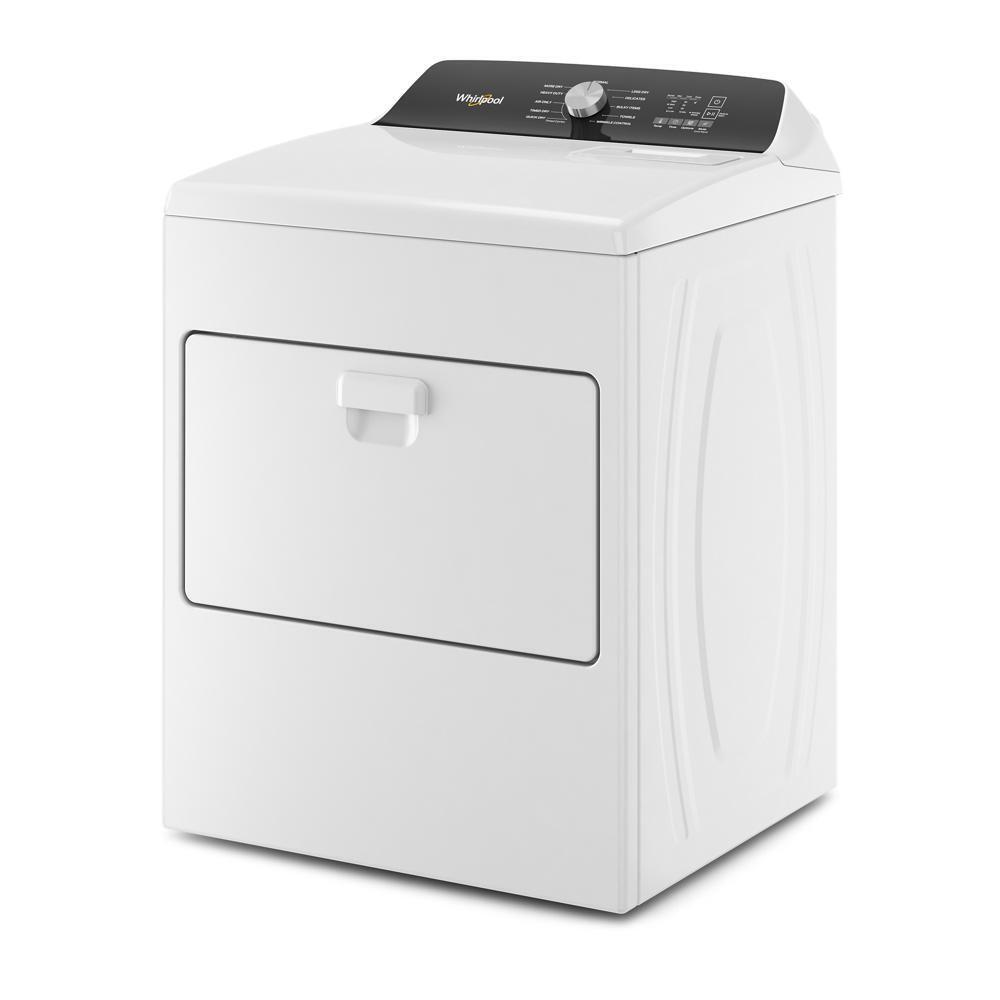

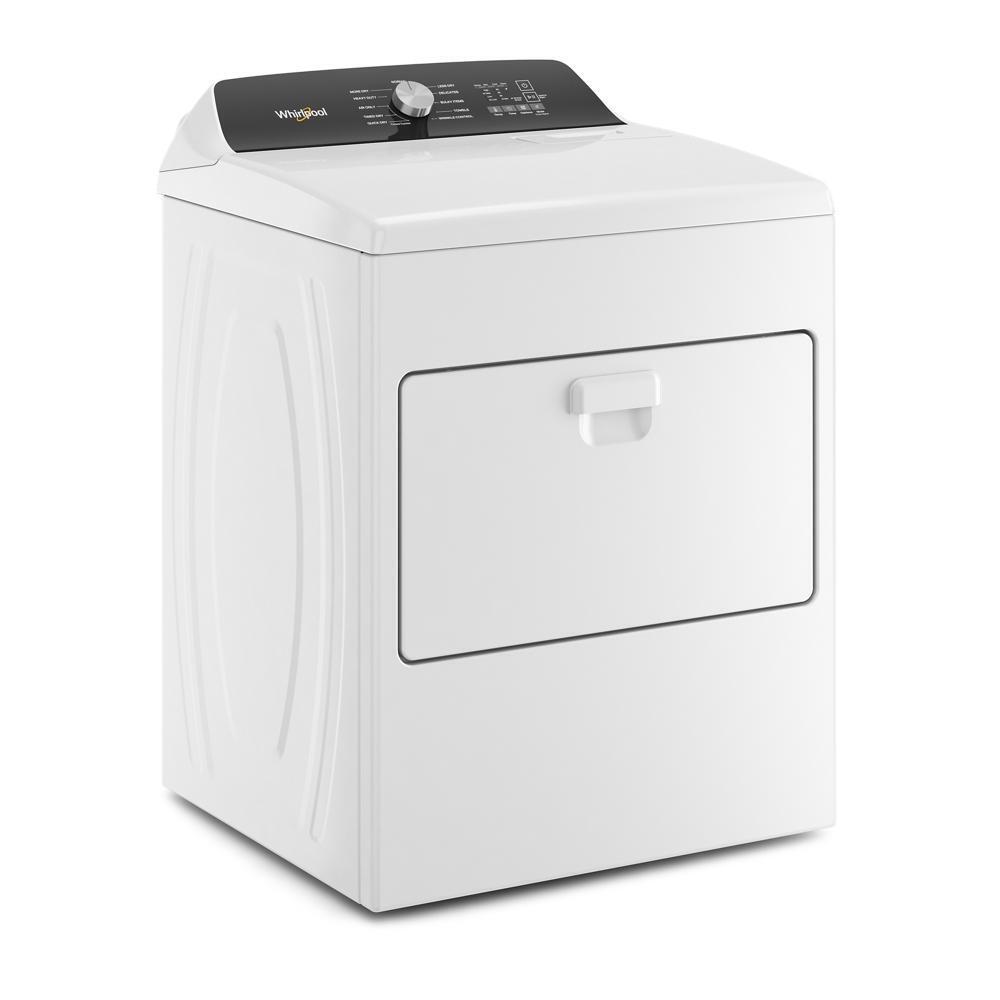

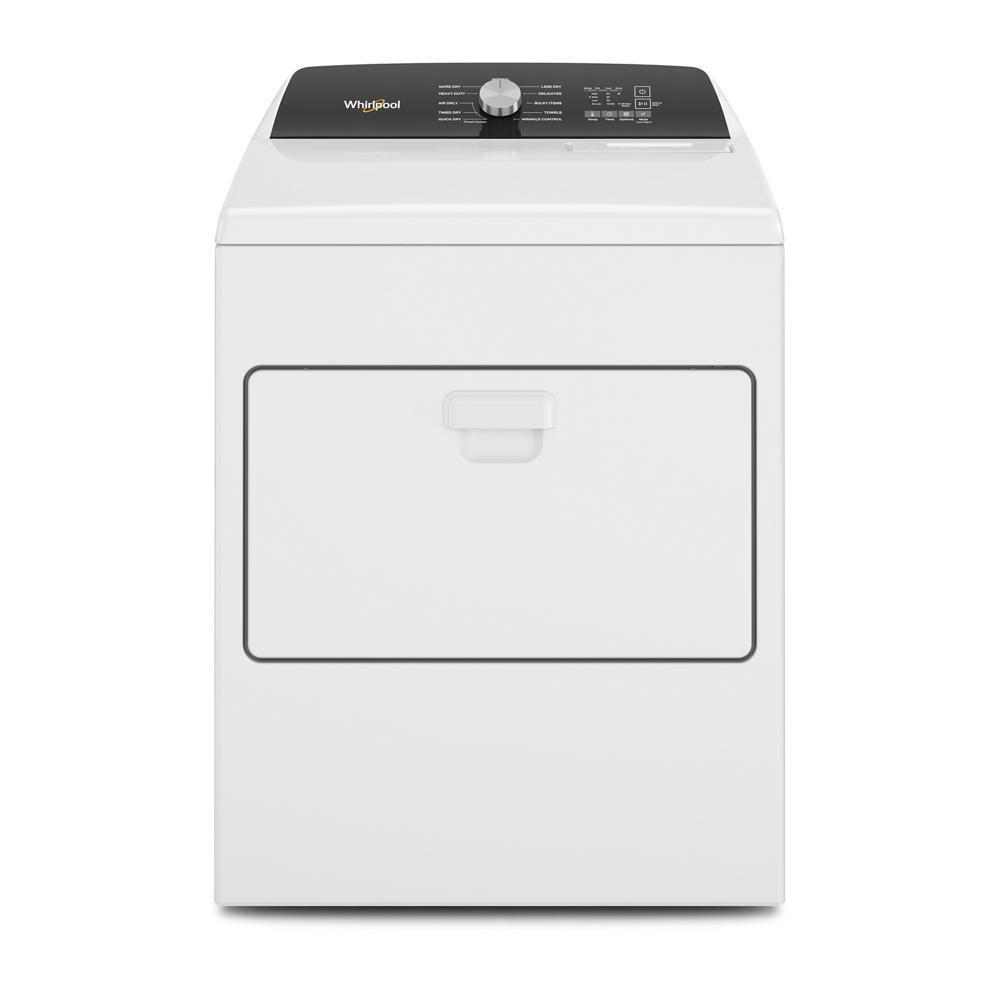

Enjoy flexible installation and ideal drying performance with this long vent dryer solution. With up to 125 feet of venting, it's a great option for apartments, condominiums or any living space with extended venting needs. You'll also get the features you want for optimal drying, like Moisture Sensing that helps prevent overdrying by stopping the cycle at just the right time. Moisture Sensing Two sensors closely monitor inside moisture and air temperatures to deliver the right results for each load. When fabrics are evenly dry and air reaches ideal temperatures, the cycle stops, helping prevent over- and under-drying. Wrinkle Control Cycle The Wrinkle Control Cycle helps to minimize wrinkles by using lower temperatures during the cycle, then defaulting to using the Wrinkle Shield™ Option for continued tumbling after the cycle ends. An American Company for Over 100 Years Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years. Wrinkle Shield™ Option After the cycle ends, help keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends or until you open the door. Timed Dry Take control of your time and the dryness level of your load. Set the control for 15, 30, 60 or 90 minutes when a damp load needs a little extra dry time or when using a drying rack. Air Only Cycle Fluff and refresh loads or air out delicates with a cycle that tumbles your items with no heat. Long Vent Design Enjoy the same great drying performance even when installation requires a longer vent system, like in apartment or condo complexes, with the increased length of the air vent in this dryer. Quick Dry Cycle Dry a small load quickly or customize settings to add more time. Plus, you can choose to remember your settings for your next load of laundry. 7.0 Cu. Ft. Capacity With a 7.0 Cu. Ft. Capacity dryer drum, there’s plenty of room to easily handle the large loads you washed in the matching top load washer. Interior Light See every item in the dryer with the Interior Light. End of Cycle Signal Know when your cycle is finished with an end of cycle buzzer. Dimensions & Capacity Width: 29"
Height: 40.5"
Depth: 28.37"

• Moisture Sensing

Two sensors closely monitor inside moisture and air temperatures to deliver the right results for each load. When fabrics are evenly dry and air reaches ideal temperatures, the cycle stops, helping prevent over- and under-drying.

• Wrinkle Control Cycle

The Wrinkle Control Cycle helps to minimize wrinkles by using lower temperatures during the cycle, then defaulting to using the Wrinkle Shield™ Option for continued tumbling after the cycle ends.

• Wrinkle Shield™ Option

After the cycle ends, help keep wrinkles from setting into clean, dry fabrics with the Wrinkle Shield™ Option. It keeps clothes tumbling for up to 150 minutes after the cycle ends or until you open the door.

• Timed Dry

Take control of your time and the dryness level of your load. Set the control for 15, 30, 60 or 90 minutes when a damp load needs a little extra dry time or when using a drying rack.

• Air Only Cycle

Fluff and refresh loads or air out delicates with a cycle that tumbles your items with no heat.

• 7.0 Cu. Ft. Capacity

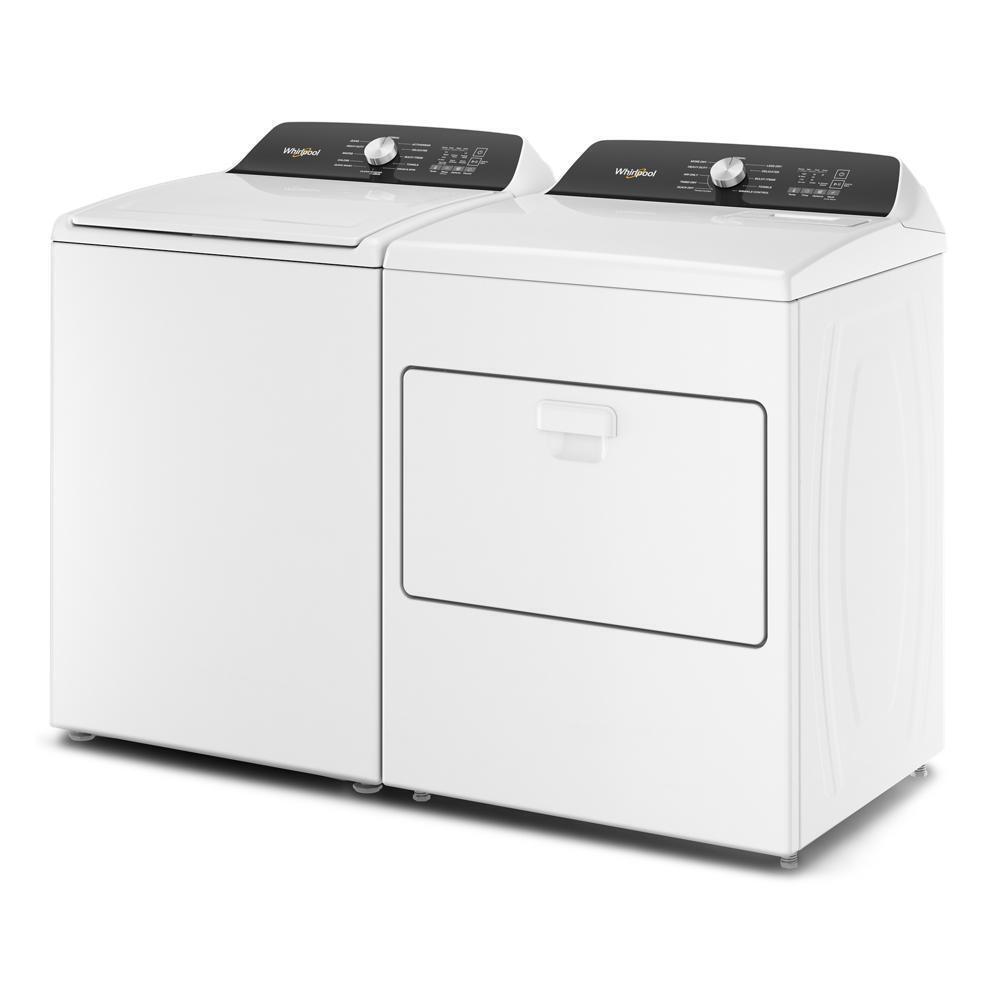

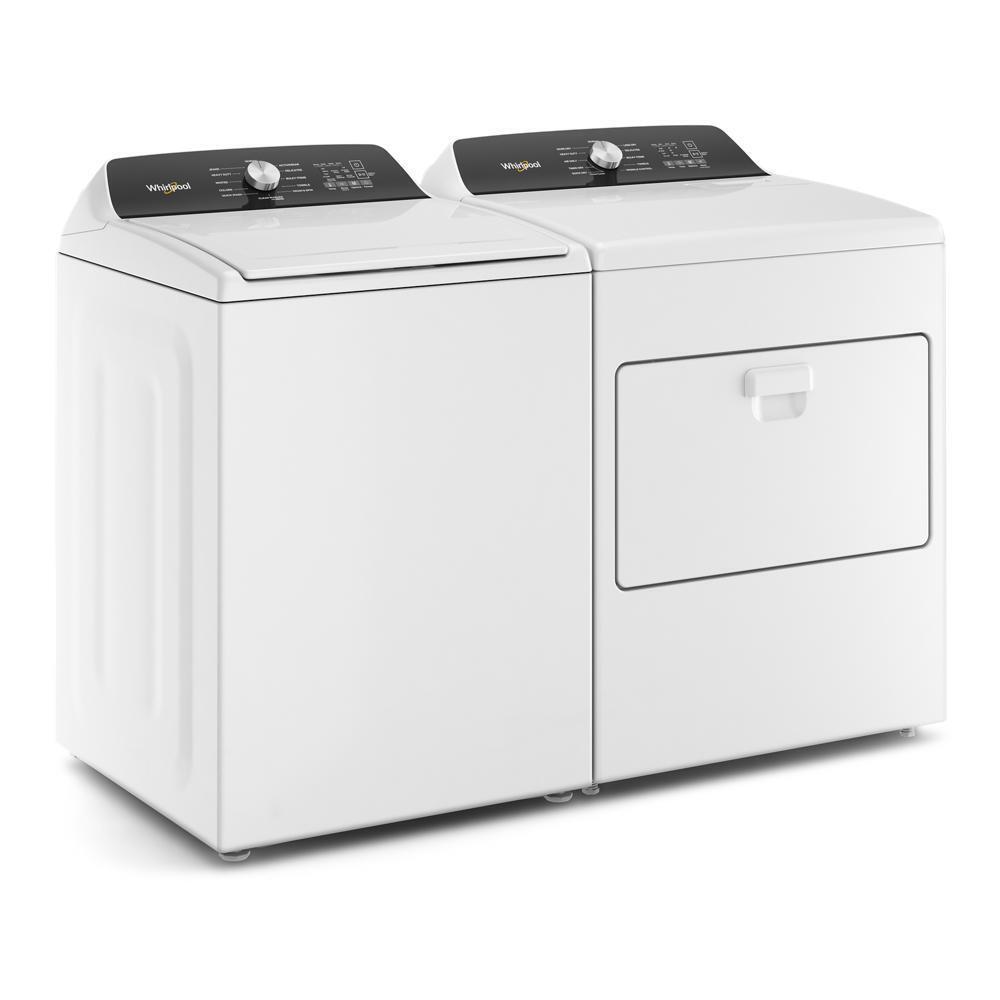

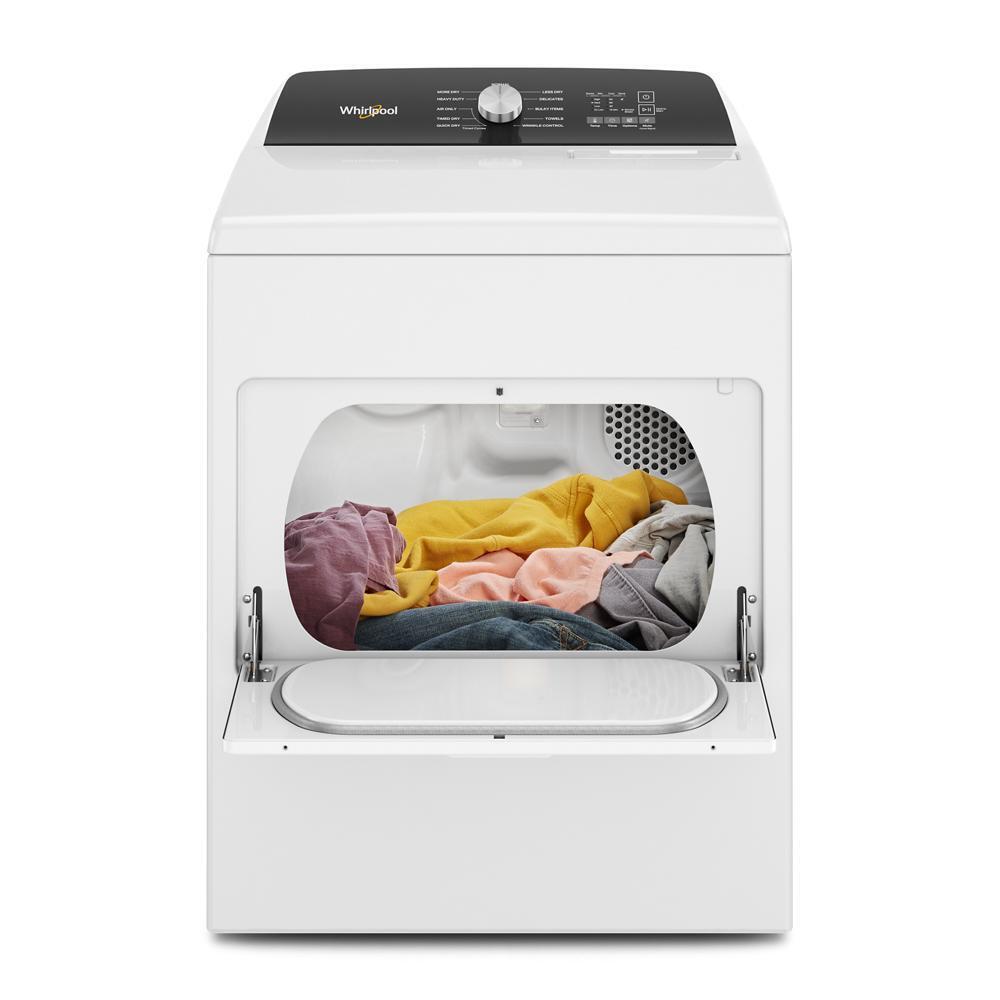

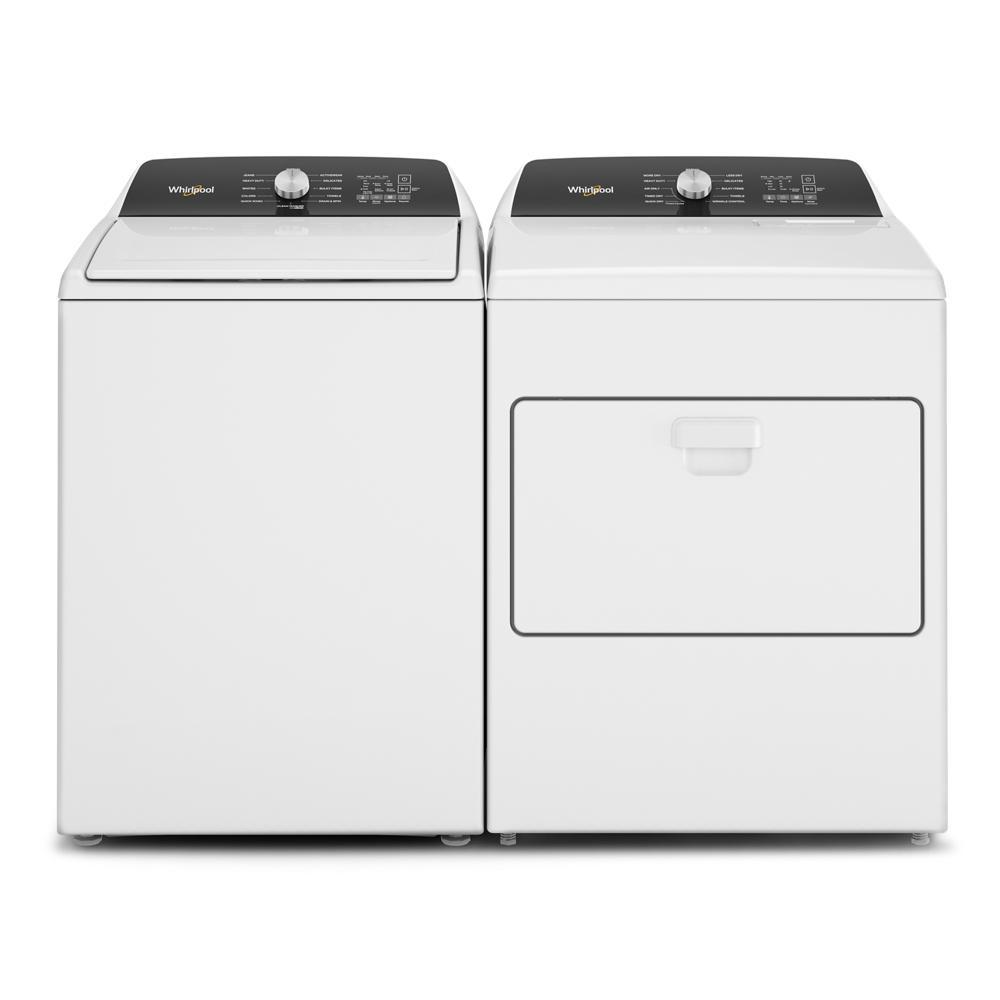

With a 7.0 Cu. Ft. Capacity dryer drum, there’s plenty of room to easily handle the large loads you washed in the matching top load washer.

• End of Cycle Signal

Know when your cycle is finished with an end of cycle buzzer.

Options
Dryer Option Selections	Static Reduce,Temperature,Wrinkle Shield™
Number of Dryer Options	3
Cycles

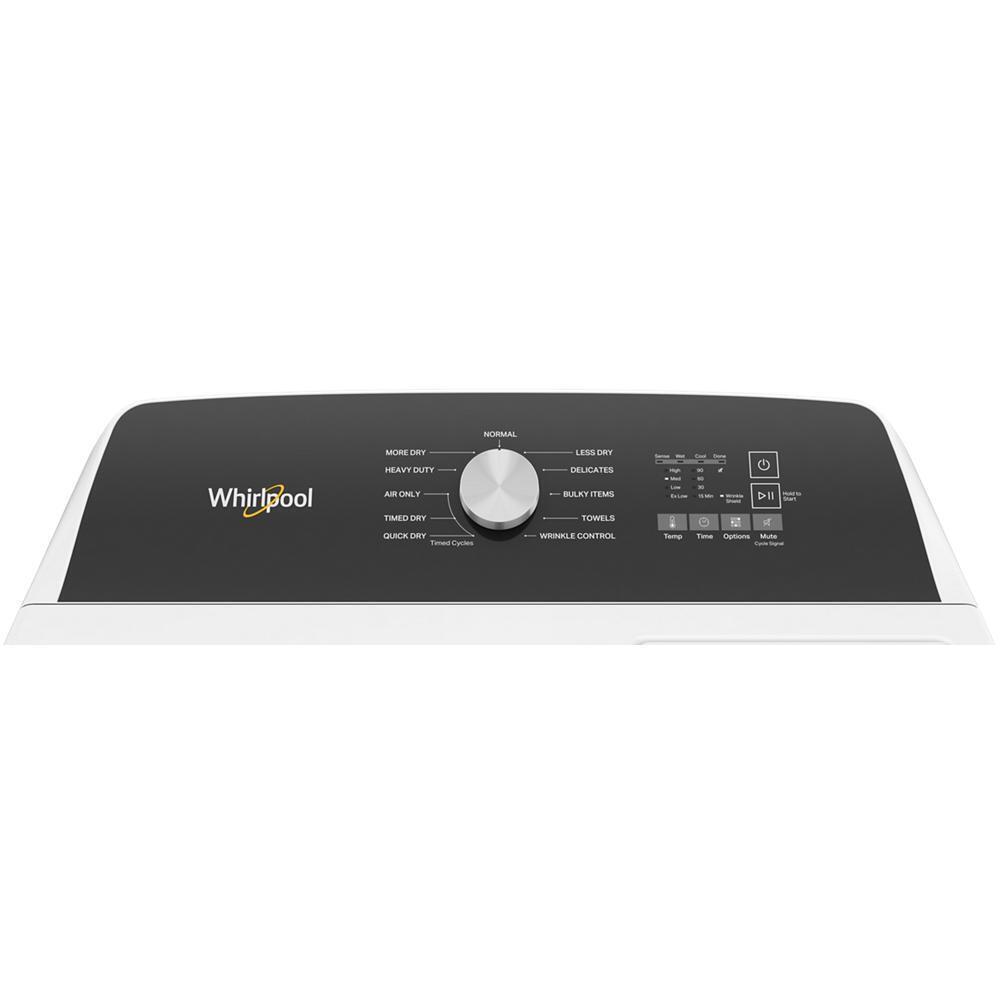

Drying Cycles Selections	Regular Normal Dry,Regular Less Dry,Regular More Dry,Bulky Items,Delicates,Heavy Duty,Quick Dry,Timed Dry,Towels/Sheets,Whites,Wrinkle Control
Number of Dryer Cycles	11
Details
Drum Material	Powder Coat
Drying Rack	No
Maytag Commercial Components	No
Quad Baffles	Yes
Lint Screen Location	Top
Steam Hose Y Connector	No
Motor Horsepower	1/4 HP
Eco Monitor/Efficiency Monitor	No
Hoses Included	No

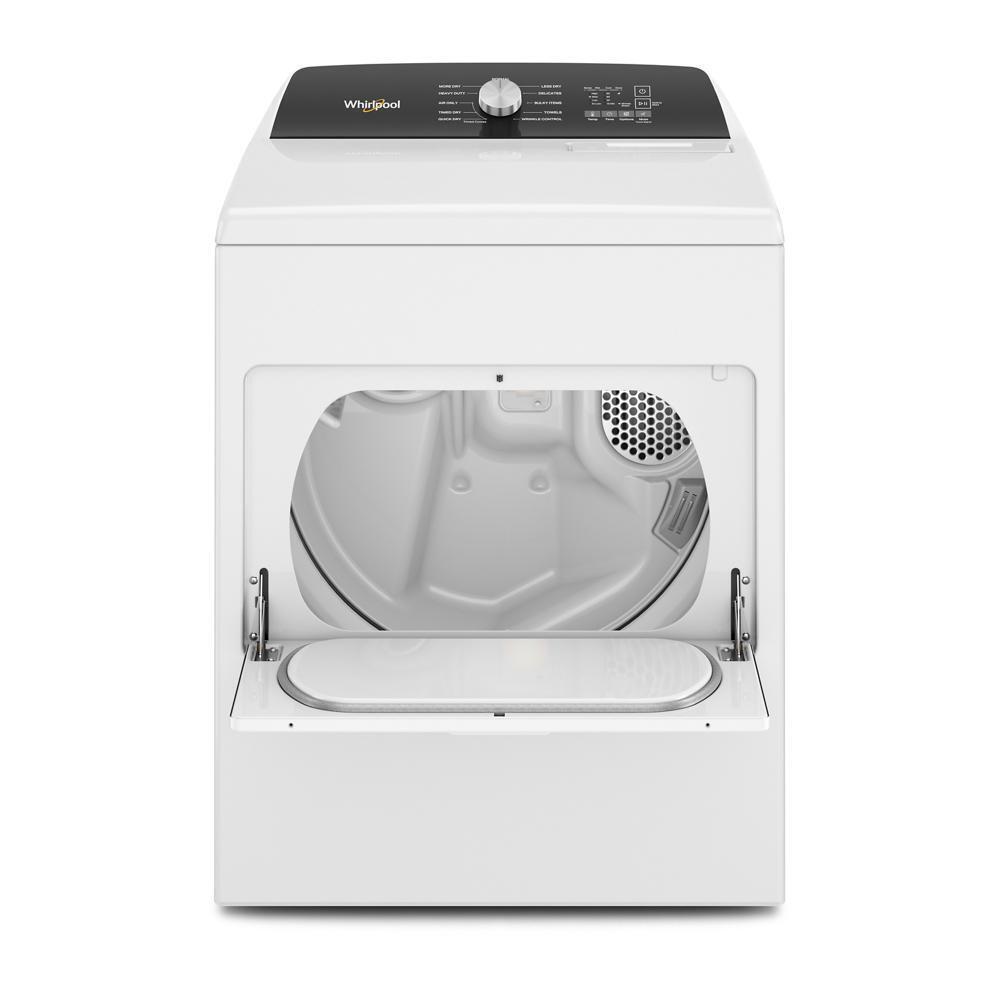

Interior Light	Yes
Certifications
ADA Compliant	No
Emerging Technology Award	No
Prop 65	Standard
Energy Star® Qualified	No
UL	Yes
General
Accessory Relationships	Yes
Number of Temperatures	4
Dryer Temperature Selections	High,Low,Medium,Air Only
Controls
Feedback-Status Indicators	Cool,Done,Sensing,Wet
End of Cycle Signal	Yes
Dimensions
Gross Weight(LB,pounds)	134
Capacity IEC CAN(FT3,cubic feet)	7.0
Carton Depth(IN,inches)	30
Carton Height(IN,inches)	44
Carton Width(IN,inches)	31
Features
Lint Filter Indicator	No
Pedestal Options	No
Sound Package	No
Cycle Time Remaining	No
EcoBoost™/Energy Saver	No
Moisture Sensor	Yes
Stackable	No
Automatic Dry Control	Yes
Secondary Lint Filter	No
LP Convertible	No
Electrical
Volts	240
Amps	30
Power Cord Included	No
Hz	60
Compatibility
Connectivity	No
Works With	No
Installation Considerations
Long Vent	Yes
Maximum Vent Length (ft.)	160
Flat Back	No

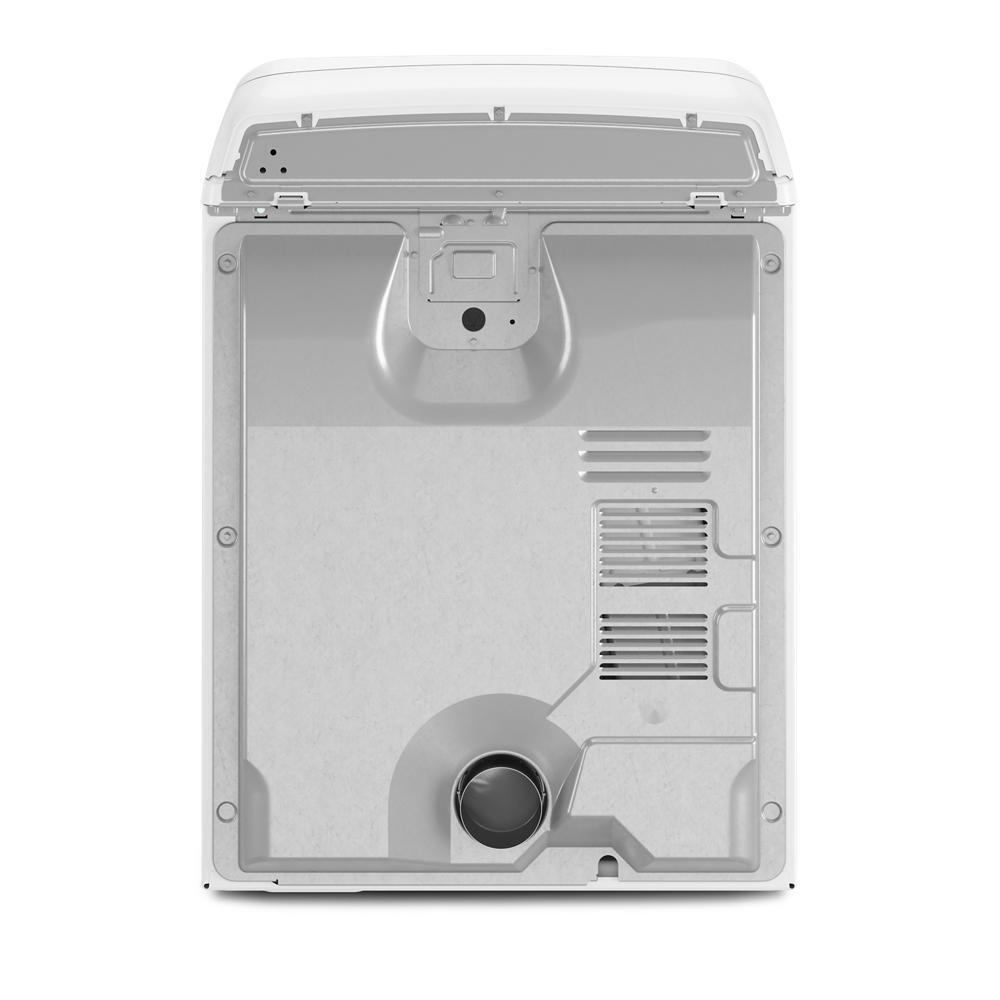

Venting Direction	Rear Only
Modifiers
Selection of Drying Levels	Regular Less Dry,Regular More Dry,Regular Normal Dry
Number of Dryness Levels	3

WED500RLW_Warranty_EN_US.pdf
