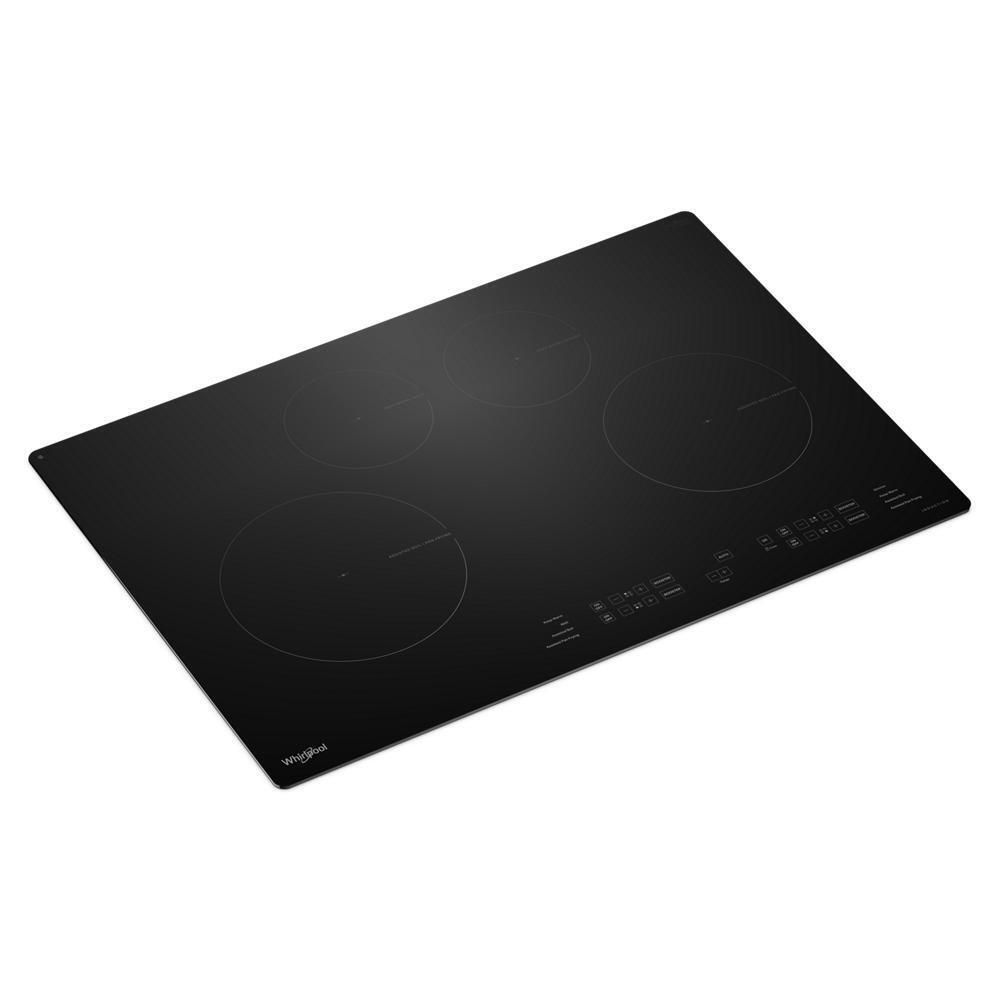

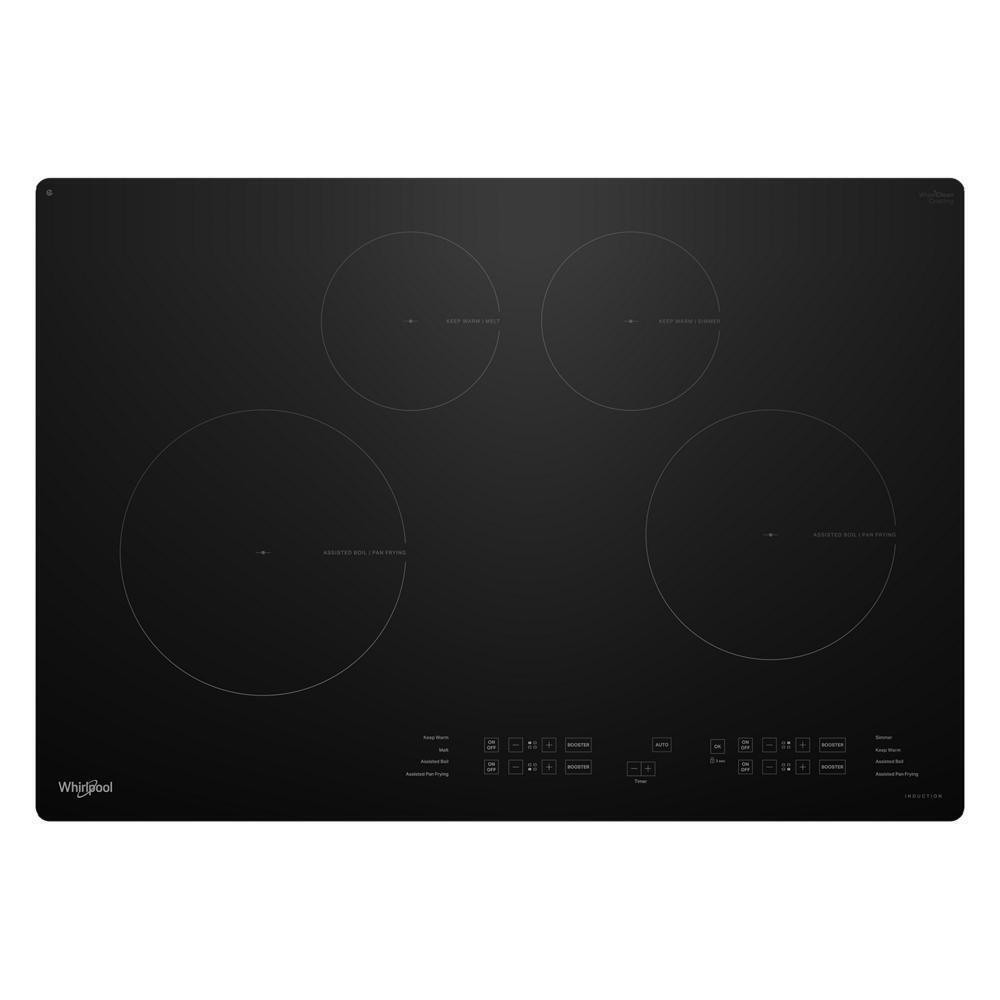

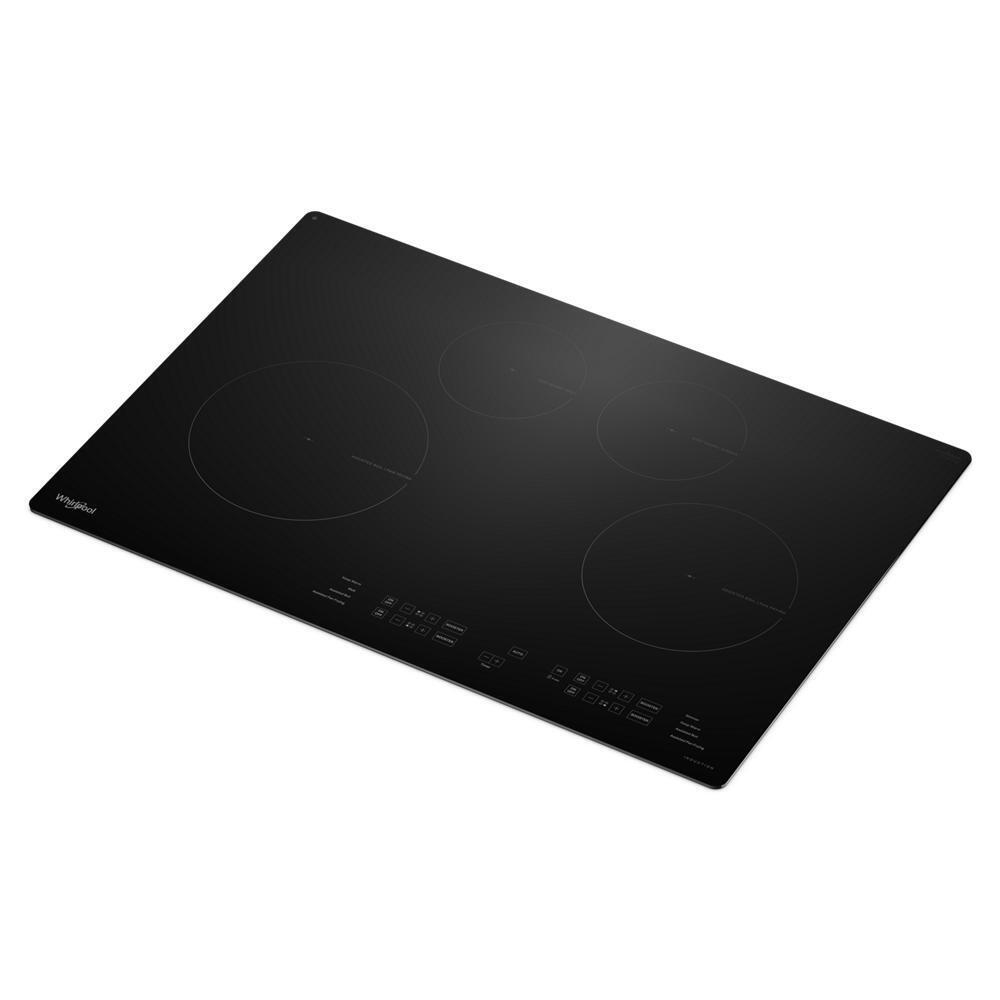

Whirlpool WCIT6030SB 30" Induction Cooktop With Wipeclean™ Coating - 4 Elements
Take On Mealtime With An Induction Cooktop That Cooks Fast Using Induction Technology. Featuring Wipeclean™ Coating, The Easiest-To-Clean Induction Cooktop Coating.* *When Compared To Cooktops With Same Heating Technology And Similar Wattages.
- Properly install with a 30 amp hookup
- Meets ADA Standards for Accessible Design

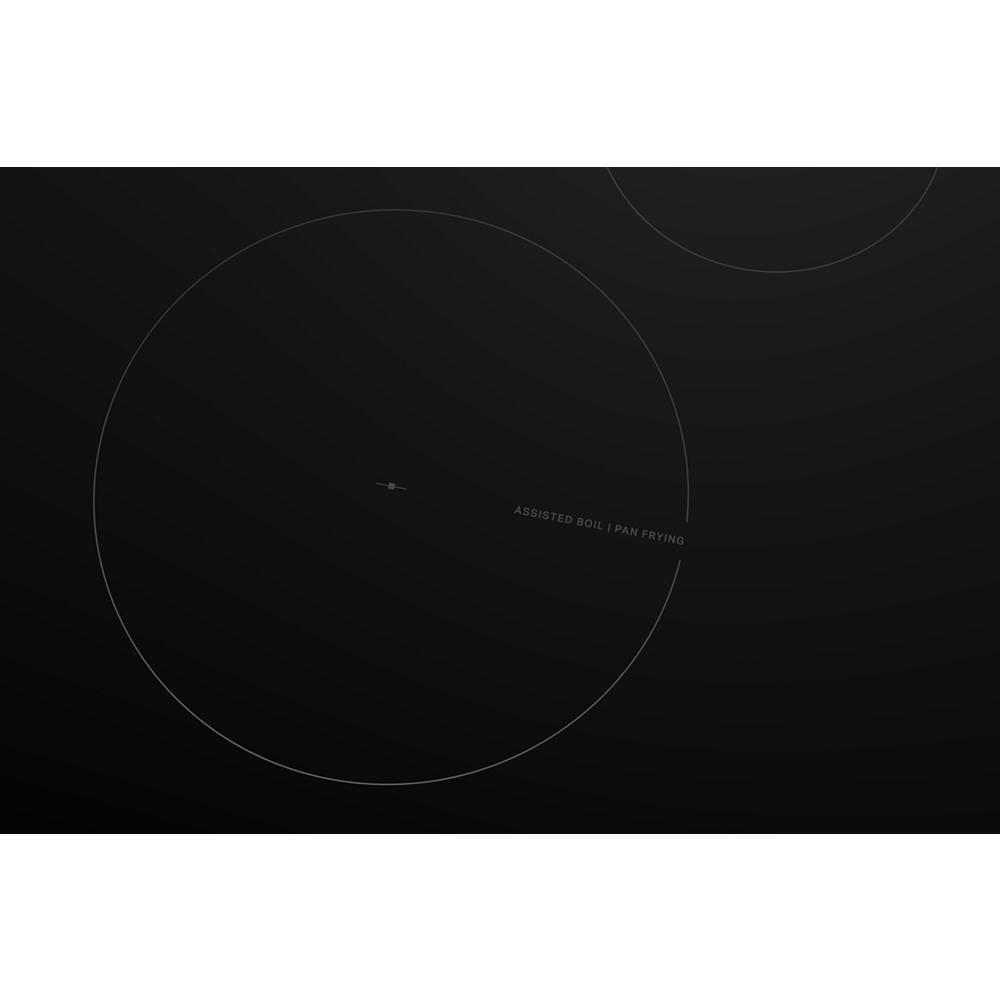

- Get helpful notifications with Assisted Boil

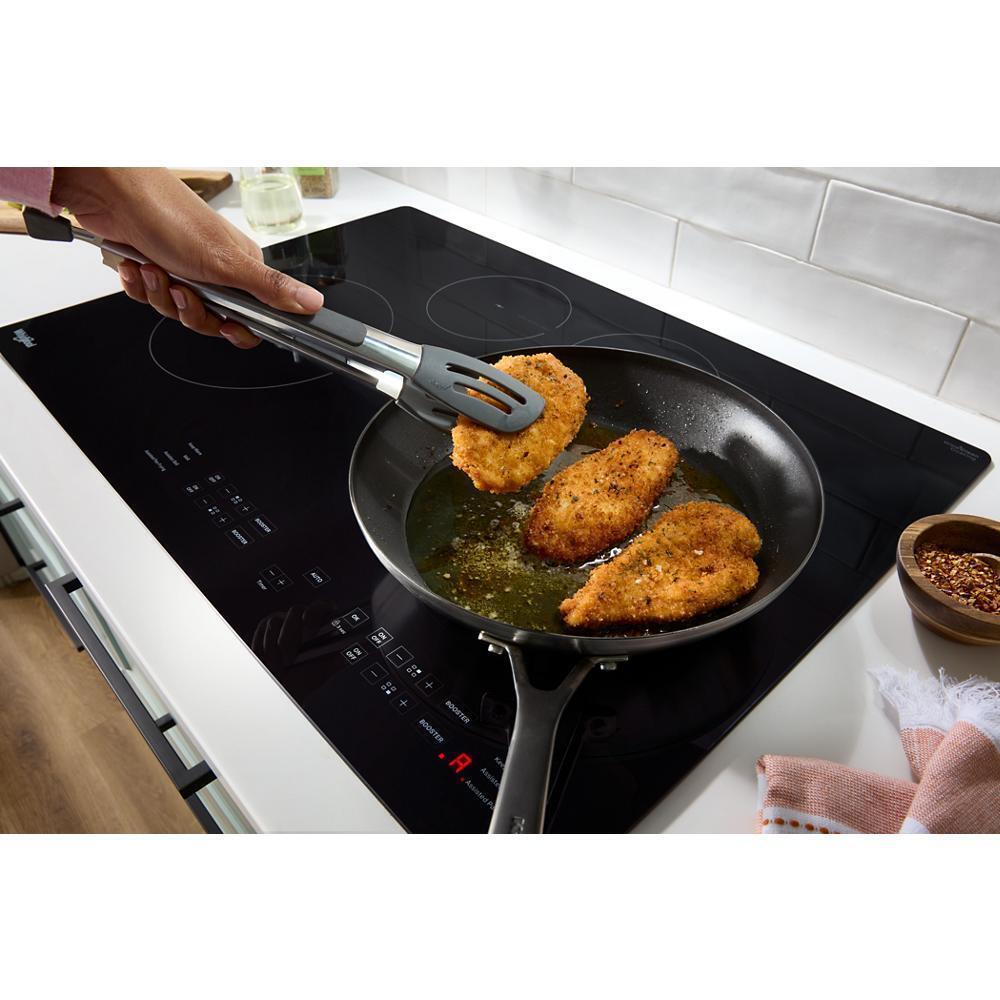

- Know when oil is ready with Assisted Pan Frying
- Easy install with the same cutout as our electric cooktops
- Avoid unintended use with Control Lock Mode

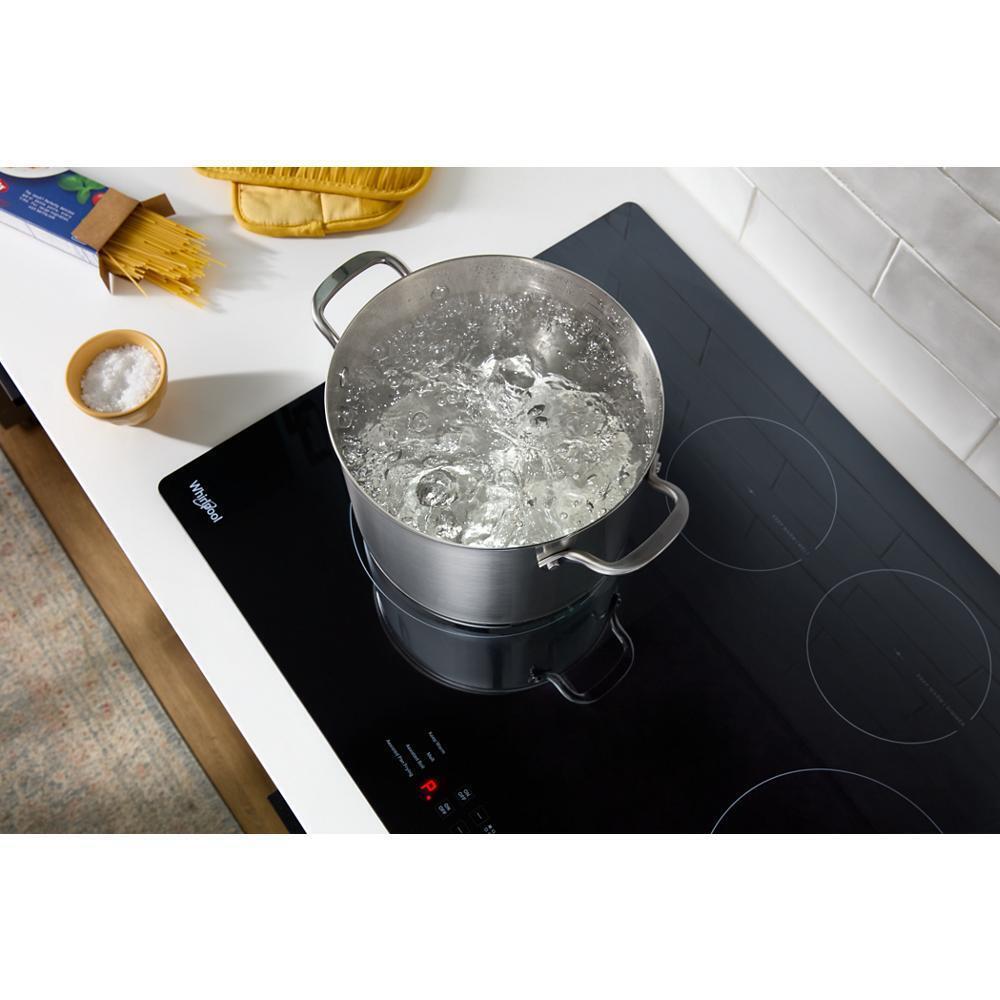

- Rapidly boil water to help you quickly get dinner on the table
- Cook and clean fast with Induction Technology
- Keep dishes warm on the cooktop while making the rest of the meal
- Keep track of cook times with an integrated Kitchen Timer

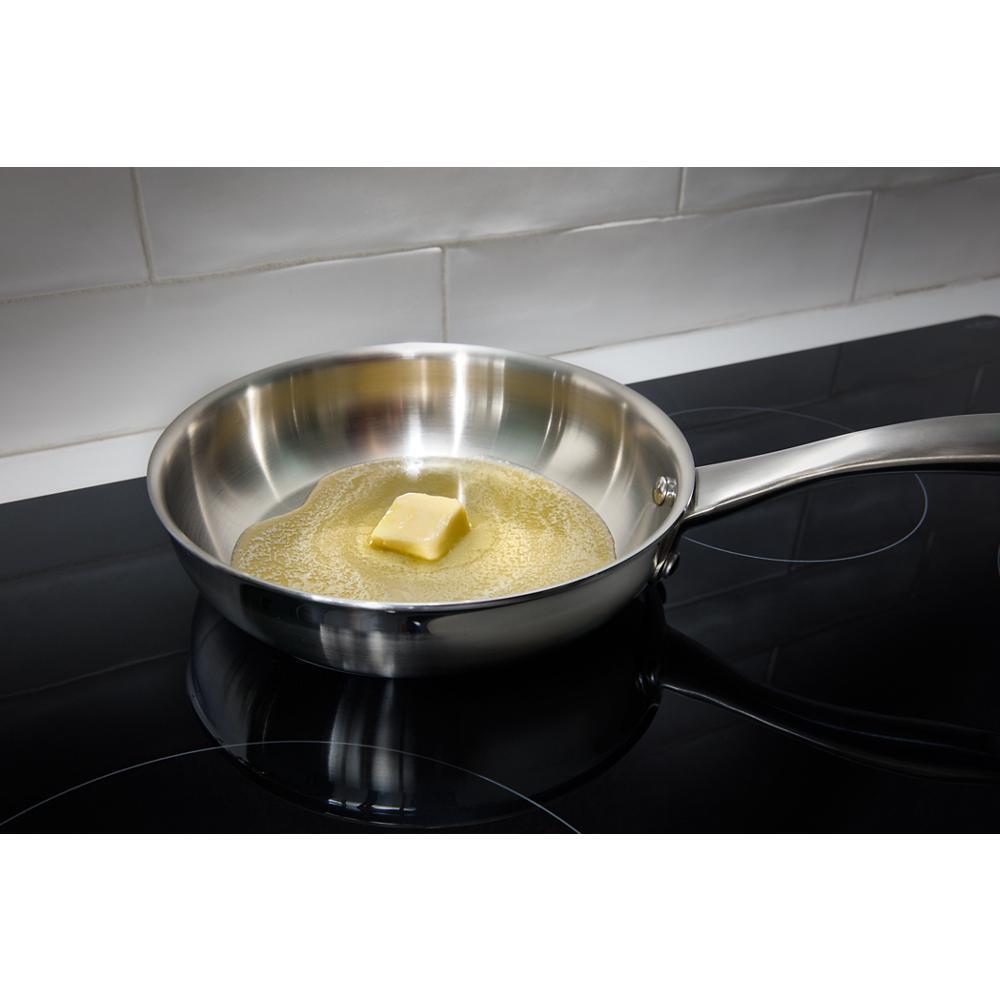

- Melt chocolate and butter without burning
- Optional Flush Installation for a seamless look
- Easily see which element is activated with Pan Detection
- Simmer sauces and soups at the right temperature
- Install on a countertop above a Whirlpool® Wall Oven or alone

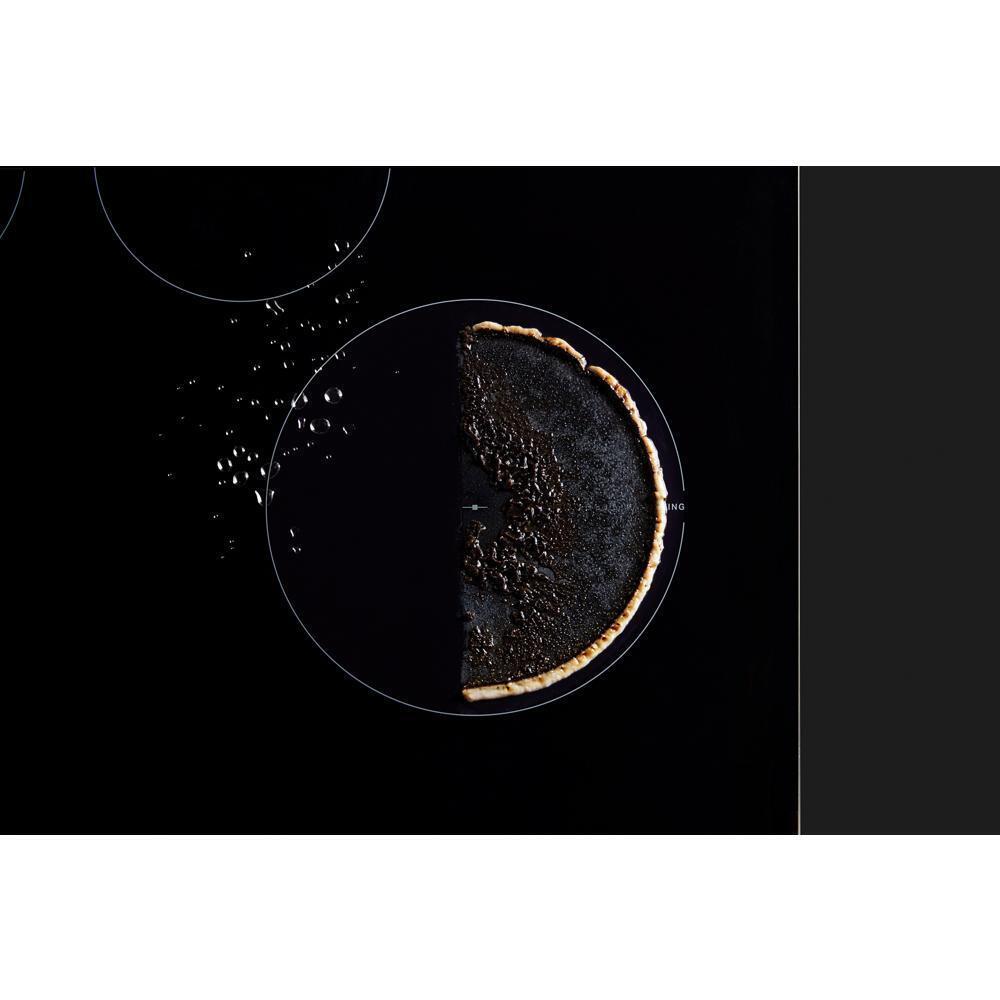

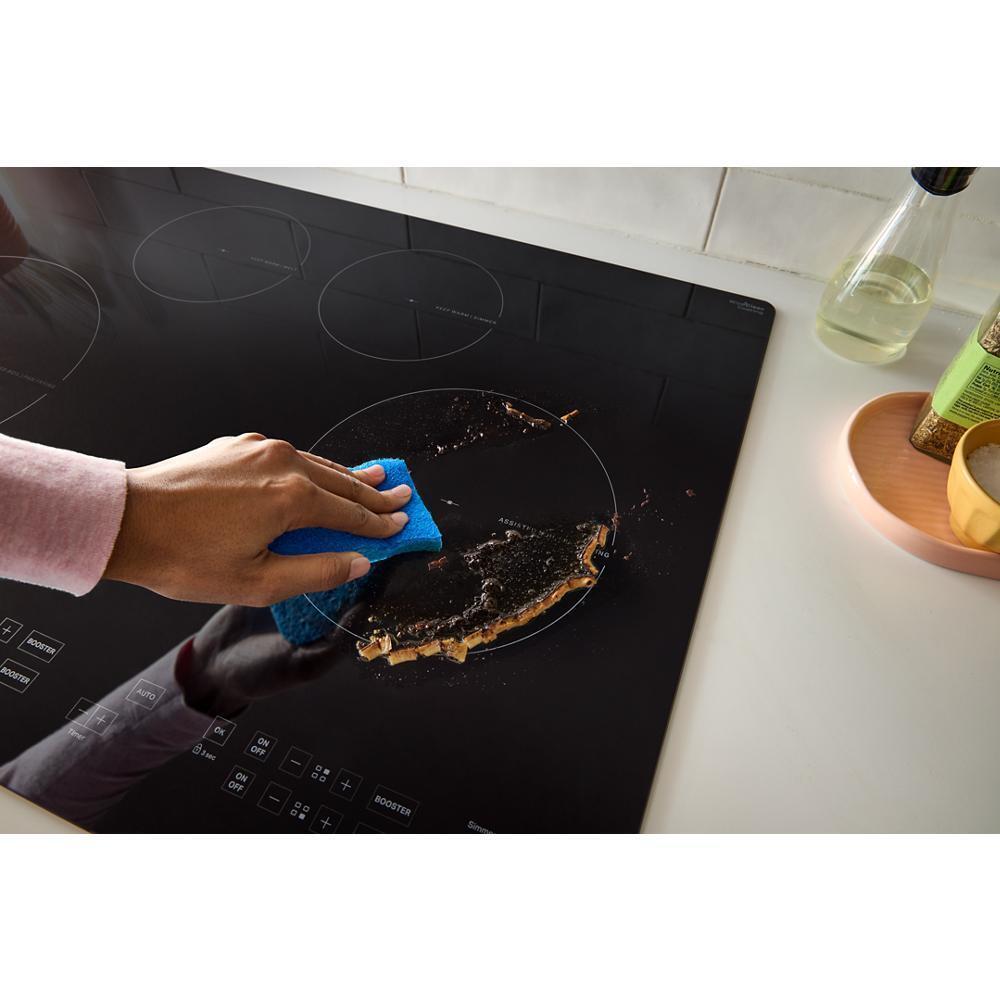

- Clean with just water, not harsh cleaners with WipeClean™ Coating
| Certifications | |
| Ada Compliant | ADA Height and Operation Compliant |
| Prop65 | CA |
| Ul | Yes |
| Controls | |
| Control Location | Front |
| Control Type | Tap Touch |
| Infinite Heat Controls | No |
| Cooktop Details | |
| Cooktop Surface Material | Glass |
| Digital Display | Yes |
| Griddle Included | N/A |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Ignition Type | Electronic Button |
| Number of Open Bays | N/A |
| Details | |
| Automatic Pan Detection | Yes |
| Automatic Pan Size Adjustment | Yes |
| Cooktop Configuration | All Burners |
| Fuel Type | Electric Induction |
| Installs Over Built-in Oven | Yes |
| Lp Convertible | No |
| Power Outage Compatible | No |

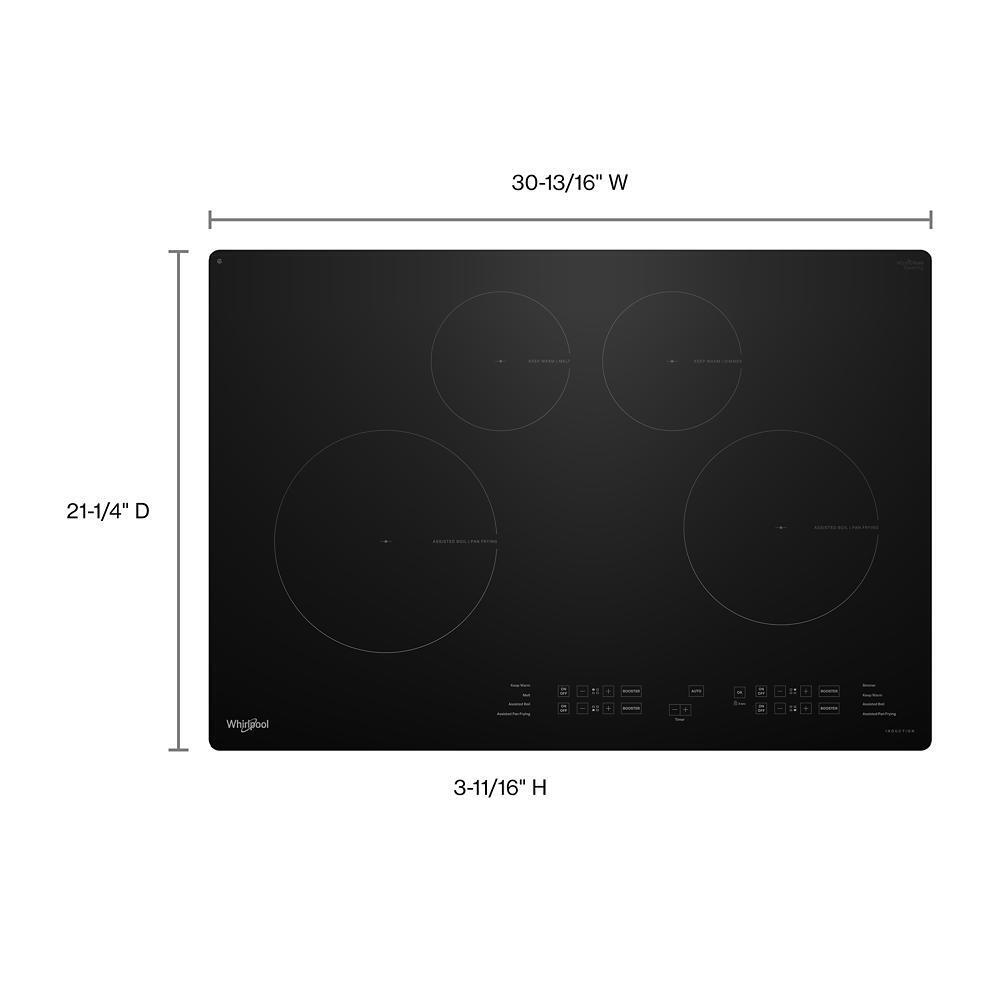

| Dimensions | |
| Product Height | 3.6875 |
| Carton Height | 8 |
| Gross Weight | 55 |
| Carton Depth | 25.25 |
| Carton Width | 35 |
| Product Depth | 21.25 |
| Cutout Depth Min | 20.5 |
| Net Weight | 47.07 |
| Product Width | 30.8125 |
| Cutout Width Min | 29.48 |
| Electrical | |
| 208v Compatible | Yes |
| Power Cord Included | Yes |
| Element/burner Details | |
| Cooktop Element Style | Induction |
| Cooktop Type | Standard |
| Left Front Element-burner Power | 2100W/ 3000W Boost |
| Left Front Element-burner Size | 10in. |
| Left Front Element-burner Type | Round |
| Left Rear Element-burner Power | 1200W/ 1600W Boost |
| Left Rear Element-burner Size | 6in. |
| Left Rear Element-burner Type | Round |
| Number of Cooking Element-burners | 4 |
| Power Boost | Yes |
| Right Front Element-burner Power | 2100W/ 3000W Boost |
| Right Front Element-burner Size | 8in. |
| Right Front Element-burner Type | Round |
| Right Rear Element-burner Power | 1200W/ 1600W Boost |
| Right Rear Element-burner Size | 8in. |
| Right Rear Element-burner Type | Round |
| General | |
| Combination Match With Oven | WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS52EM4; WOS72EC0; WOS72EC7H |
| Ventilation Details | |
| Downdraft Vent | No |
