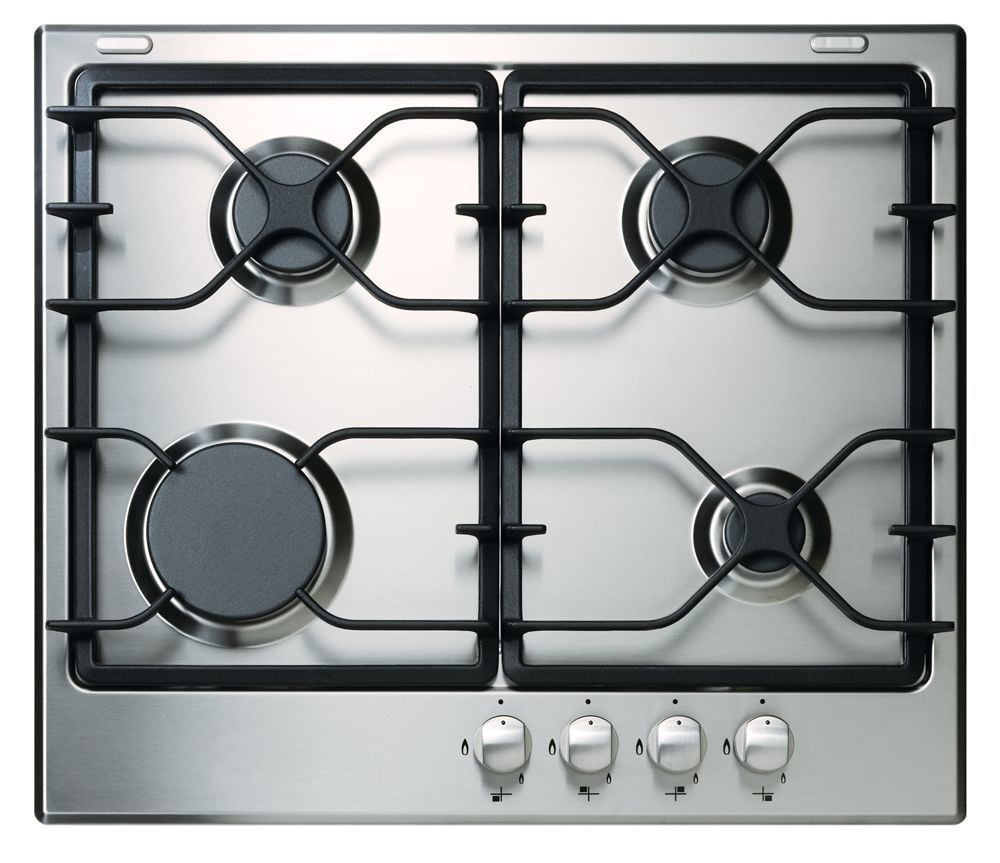

Whirlpool WCG52424AS 24-Inch Gas Cooktop With Sealed Burners
Obtain kitchen versatility in smaller spaces with this 24" wide cooktop. Separating your cooktop from your built-in oven increases the versatility and simplicity of your kitchen layout.
- Small Space Solution: Cook multiple dishes at once, even in small spaces, with a cooktop made to fit your family's needs.

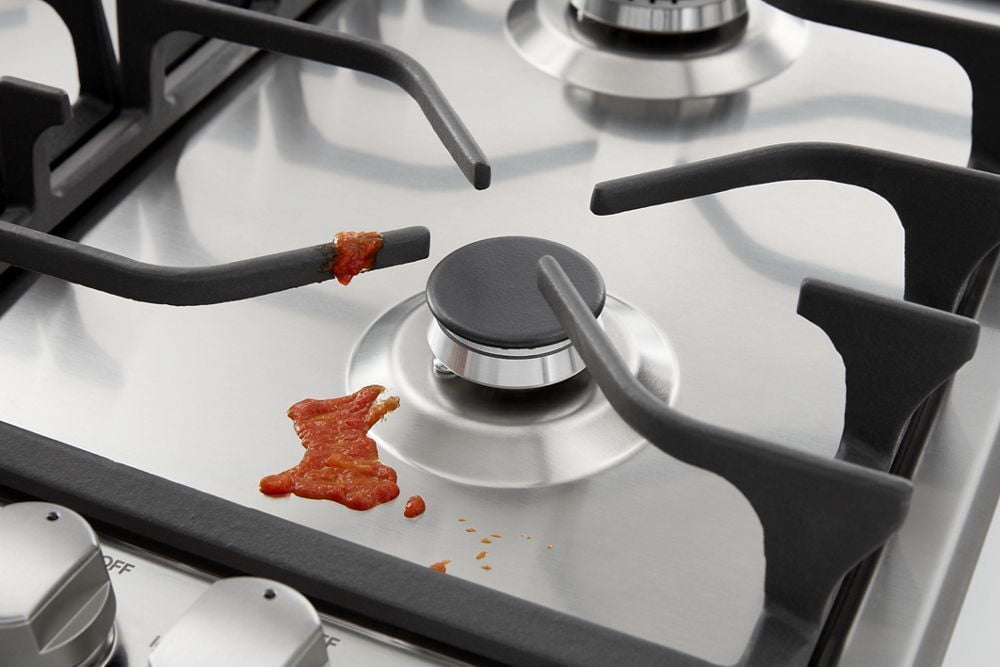

- Sealed Burners: Cut down on cleanup with burners that are sealed to prevent food from falling into them.
- AccuSimmer® Burner: Easily maintain low, even heat when cooking sauces and soups with the AccuSimmer® burner, which reduces power for better control at lower temperatures.

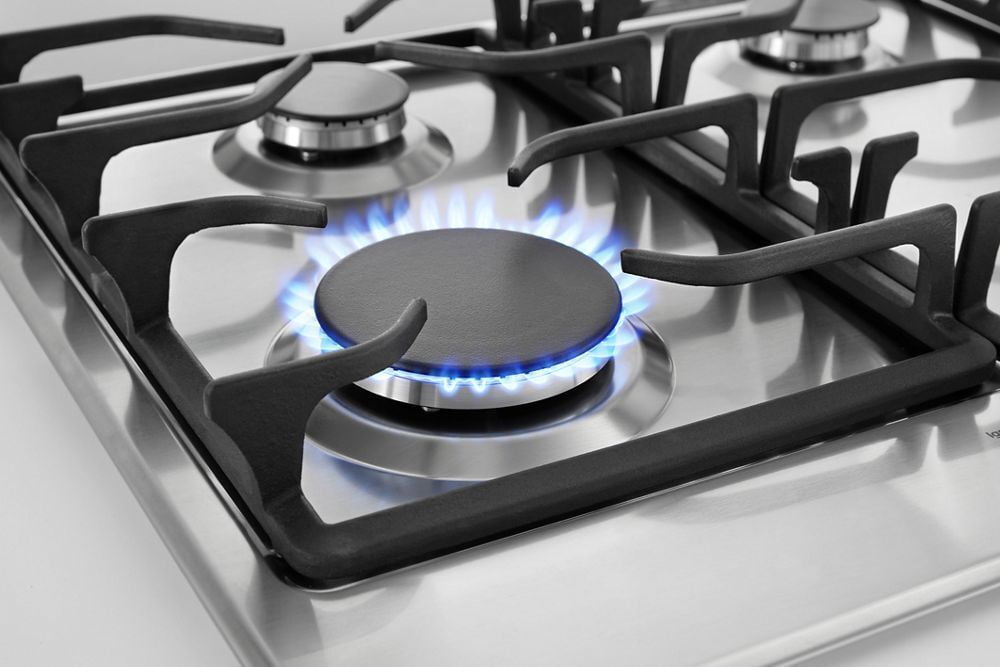

- High-Powered Burner: Quickly sear and boil with a high-powered burner when you need to serve up dinner fast.
- Dishwasher-Safe Cast-Iron Grates: Wash these cast-iron grates right in the dishwasher when they get messy, thanks to a dishwasher-safe finish that makes them easy to clean.
- Upswept SpillGuard™ Cooktop: Clean up faster with a cooktop that has raised edges to help contain spills.
Additional Features:

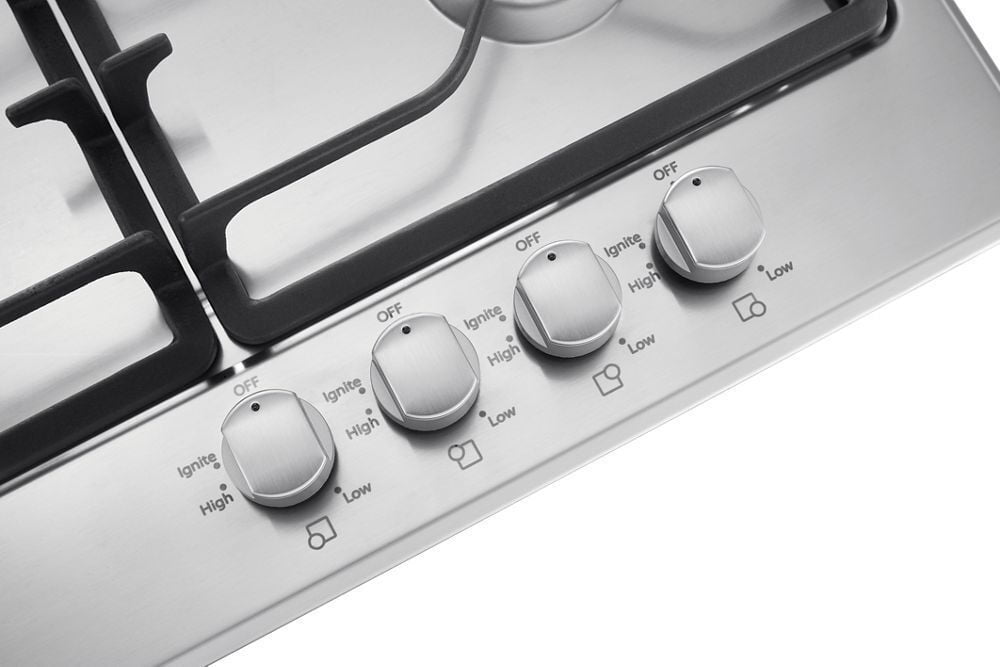

- Knob Controls

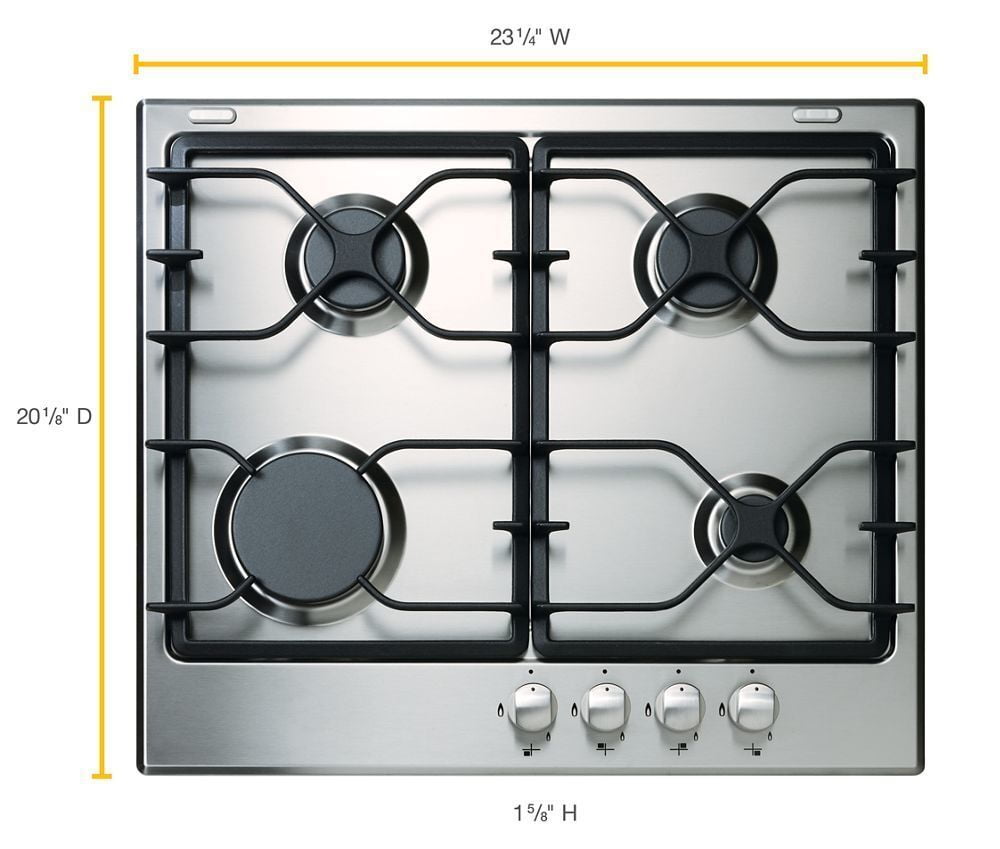

| Dimensions | |
| Cutout Depth Max | 19.0 in |
| Cutout Depth Min | 18-7/8 in |
| Cutout Width Max | 22-1/8 in |
| Cutout Width Min | 22.0 in |
| Depth | 20-1/8 in |
| Height | 1-5/8 in |
| Width | 23-1/4 in |
| Cooktop Type | Standard |
| Fuel Type | Gas |
| Installs Over Built-In Oven | No |
| LP Convertible | Yes - Kit Included |
| Power Boost | No |
| Size | 24 in |
| Infinite Heat Controls | No |
| Knob Color | Stainless Steel |
| Knob Type | Plastic |
| Location of Controls | Front |
| Automatic Pan Detection | No |
| Cooktop Element Style | Sealed Burner |
| Downdraft Vent | No |
| Grate Details | Matte Finish, Cast Iron Grates, Individual |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Left Rear Element-Burner Type | Standard |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | 4 |
| Right Front Element-Burner Type | Simmer |
| Digital Display | No |
| Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
| Power Cord Included | Yes |
| GPC Code | 10001951 |
| IsInvoiceUnit | true |
| IsOrderableUnit | true |
| Product Type | EA |
| UDEX | 1100400623 |
| isBaseUnit | true |
| isConsumerUnit | true |
| Cooktop Surface Material | Porcelain Coated Steel |
