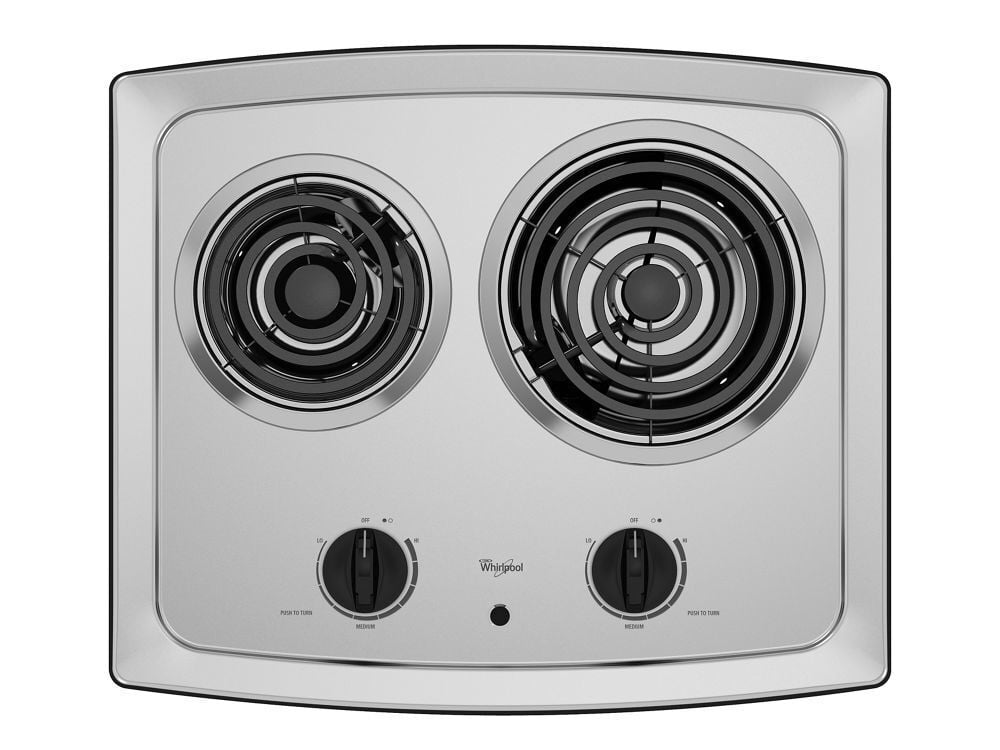

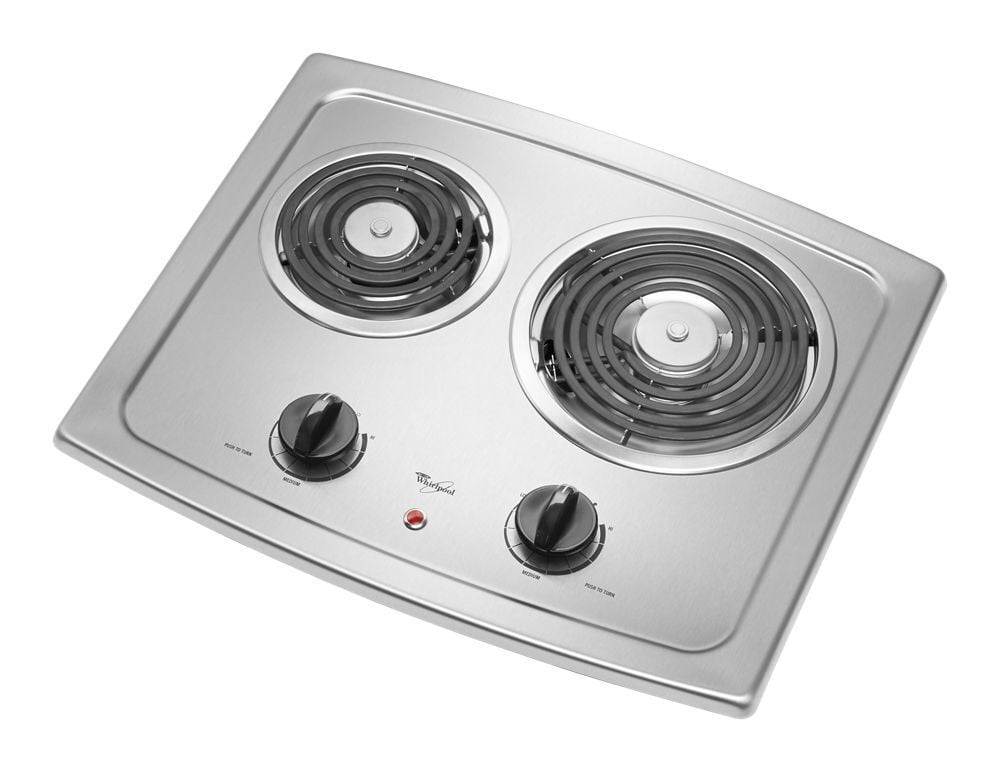

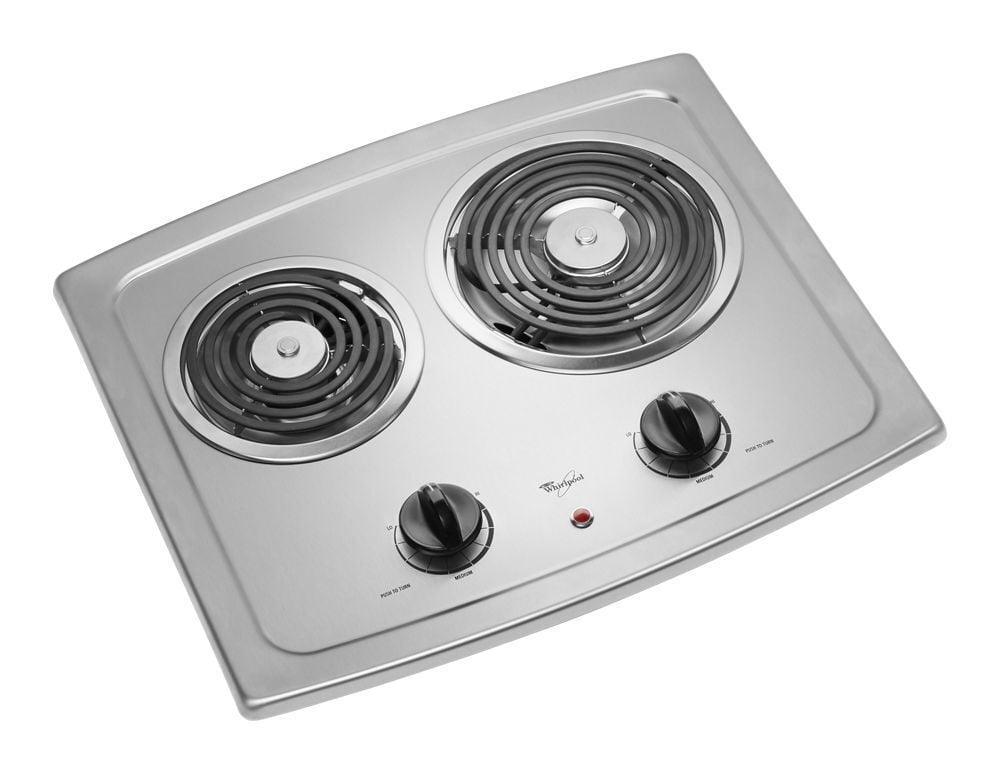

Whirlpool RCS2012RS 21-Inch Electric Cooktop With Stainless Steel Surface
Chrome Drip Bowls

Helps catch spills and wipe up easily.
Cook what you need — in a hurry. This 21-inch electric cooktop features a stainless steel surface. The infinite heat controls allow you to select a heat output ranging from low to high with several intermediate settings for more convenience. The surface unit 'ON' indicator lets you know when a burner is hot, while drip bowls contain spills and remove easily for cleaning.
- Chrome Drip Bowls: Helps catch spills and wipe up easily.
- Hot Surface Indicator: Allow you to see when the surface is still hot to touch.
Additional Features:
- 21 in. Coil Element Cooktop

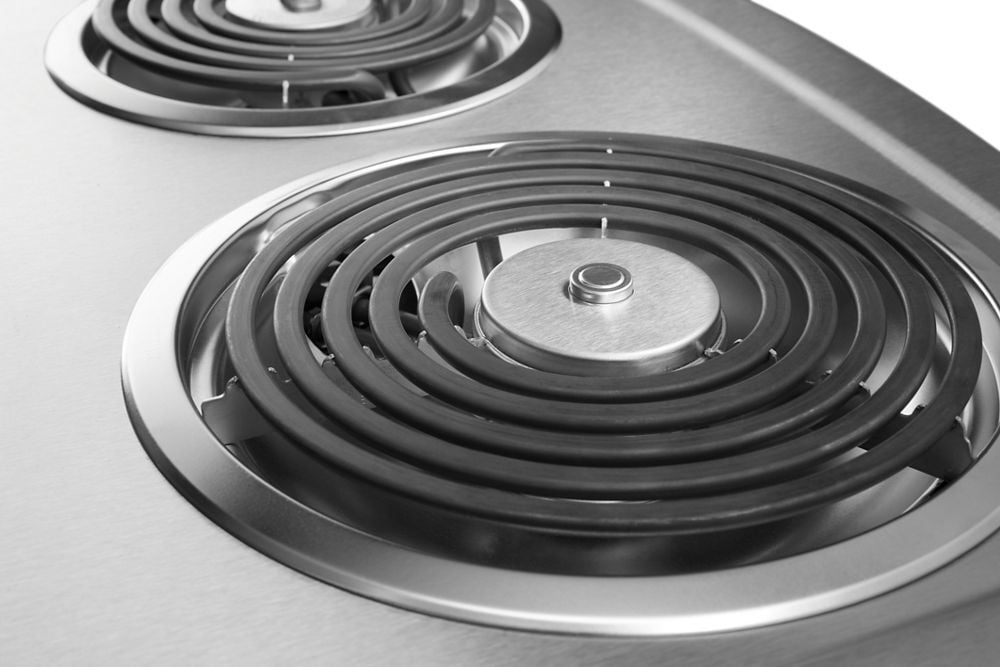

- High-Speed Coil Elements
- (1) 6 in., (1) 8 in. Element
- Left Front: 1,250/900 Watts
- Right Front: 2,100/1,575 Watts
- Chrome Drip Bowls

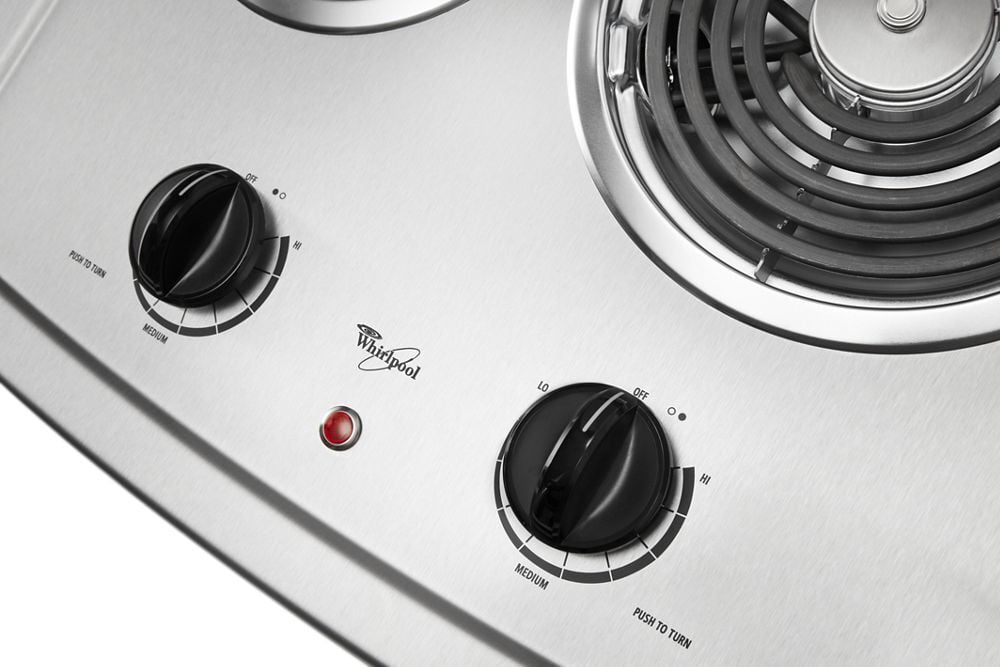

- Push-to-Turn Infinite-Heat Controls
- 240/208 Volt
Dimensions | |
Cutout Depth | 15-1/2 in |
Cutout Width | 18-5/8 in |
Depth | 16-1/2 in |
Height | 2-7/8 in |
Width | 21.0 in |
Cooktop Type | Standard |
Fuel Type | Electric |
Installs Over Built-In Oven | Yes |
Power Boost | No |
Size | 21 in |
Infinite Heat Controls | Yes |
Knob Color | Black |
Knob Type | Metal |
Location of Controls | Right Side |
Automatic Pan Detection | No |
Cooktop Element Style | Coil |
Cooktop Surface Color | Stainless |
Downdraft Vent | No |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | No |
Left Front Element-Burner Size | 6'' |
Number of Cooking Element-Burners | 2 |
Right Front Element-Burner Size | 8'' |
Right Front Element-Burner Type | Coil |
Digital Display | No |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Power Cord Included | No |
GPC Code | 10001951 |
IsInvoiceUnit | true |
IsOrderableUnit | true |
Product Type | EA |
UDEX | 1100400623 |
isBaseUnit | true |
isConsumerUnit | true |
Cooktop Surface Material | Porcelain Coated Steel |
