Five Star® Burners In A Convenient 30-Inch Footprint. The Powerful Burners Fire Up 59,000 Btus Yet Only Require 300 Cfm Venting
- Innovation
- The perfect blend of professional grade cooking with a New Contemporary Design that will fit seamlessly into any Kitchen style
- Exclusive, patented Star Burner most even heating, unsurpassed flame coverage
- Can be installed with zero inch clearance, flush against rear wall surface.
- QuickClean Base designed for easy surface cleaning
- Precision simmering capabilities as low as 100 F (375 BTU) with 2 ExtraLow Simmer burners
- Performance
- Professional style, continuous cast iron grates
- Continuous porcelain, easy to clean cooking surface
- Five burner Range with an overall output of 59,000 BTU (NG)
- Widest range of simmer options from 375 BTU to 3,000 BTU
- Star design delivers superior heat spread for any size pan
- Simmer without stirring/scorching with exclusive ExtraLow
- Powerful, 23,500 BTU bake and 20,000 BTU broil burners
- Convection Bake offers precise multi-level baking results
- Massive oven capacity of 4.4 cu.ft.
- Six rack levels for multiple item cooking
- One Full Access telescopic rack and two standard racks, all with integrated easy-grip handle
- Electronic oven control ensures precise heating
- Large oven door window for maximum viewing
- Powerful halogen lighting illuminates the oven cavity
- Sabbath mode
- Design
- Bold Professional design
- Truly Flush Mounted , 24" standard cabinet depth
- Patented Pedestal Star Burner with QuickClean Base
- Restaurant style metal knobs
- Signature blue indicator lighting
- 30" units ship standard with island trim included
Technical Specification details | |
Brand | Thermador |
SKU | PRG305WH |
UPC code | 825225925262 |
Construction type | |
Installation type | Free-standing |
Energy source | Gas |
Installation Type | Freestanding appliance |
Size and weight | |

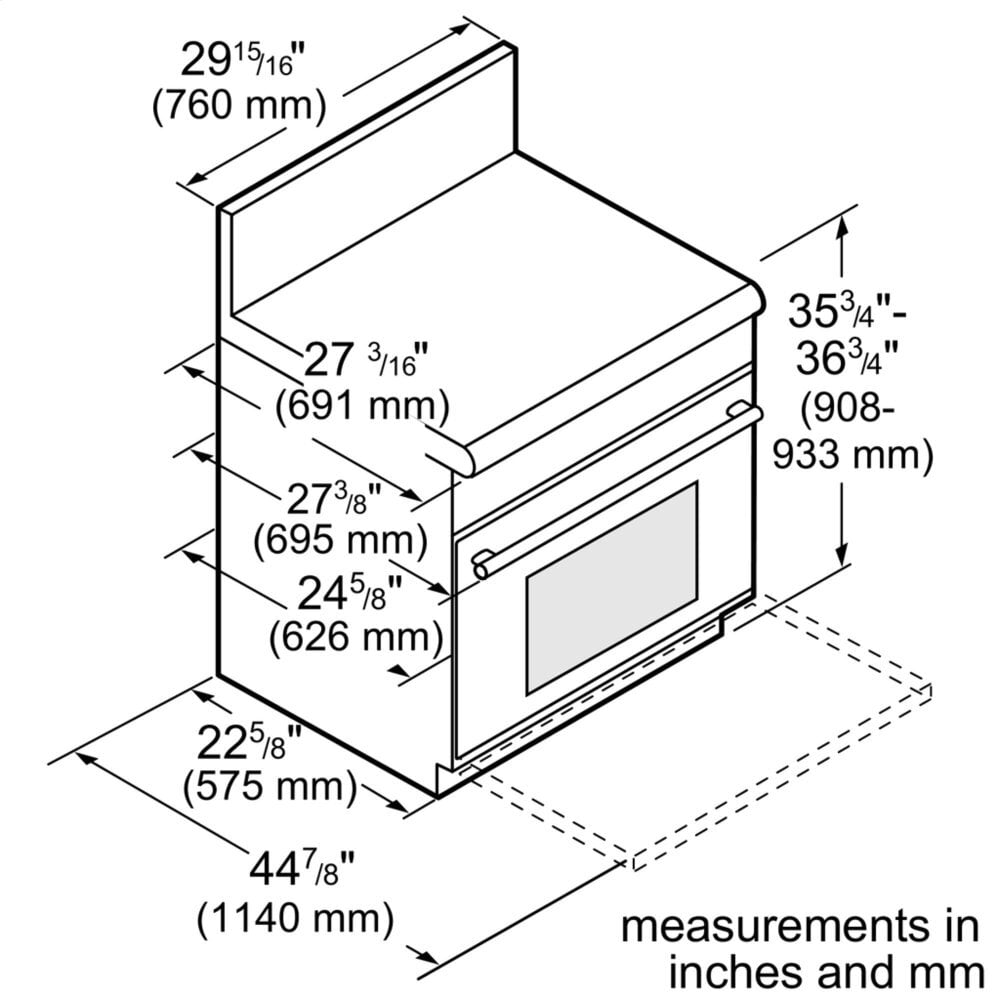

Overall appliance dimensions (HxWxD) (in) | 35 7/8'' x 29 15/16'' x 24 5/8'' |
Size | 30 Inch |
Required cutout size (HxWxD) (in) | 30'' width slide-in |
Net weight (lbs) | 368.000 |
Cavity capacity (cu ft) | 4.4 |
Cavity dimensions (in) | 16 1/4'' x 25'' x 18 5/8'' |
Oven | |
Cooking mode | Centre-area grill/broiler, Convection Bake, Gas multifunction, Gas top/bottom heat, Special baking setting |
Comfort | |
Optional accessories - primary cavity | PA12CHPBLK, PA30WLBH, PAALTKITHW, PAGRIDDLE, PAKNOBLUWH, PALPKITGW5, PARKB3XHY, PWOKRINGHC |
Connection | |
Power Cord Length | 65 |
Current (A) | 15 |
Watts (W) | 100 |
Plug type | 120V-3 prong |
Volts (V) | 120 |
Instructions for Use
Instructions for Use
Instructions for Use
Instructions for Use
Instructions for Use
Instructions for Use
Product Spec Sheet
HC Home Connect leaflet
Installation instructions
Installation Instruction
Installation Instruction
Installation Instruction
Free and Open Source Software Licence
Instructions for Use
Instructions for Use
Instructions for Use
Instructions for Use
Instructions for Use
Product Spec Sheet
HC Home Connect leaflet
Installation instructions
Installation Instruction
Installation Instruction
Installation Instruction
Free and Open Source Software Licence
Description
Five Star® Burners In A Convenient 30-Inch Footprint. The Powerful Burners Fire Up 59,000 Btus Yet Only Require 300 Cfm Venting
Features
- Patented Star(R) Burner is 56% longer than a round burner of the same size, enabling a superior flame spread for even heating
- Truly Flush Mounted(TM), 24" standard cabinet depth
- QuickClean Base(R) designed for easy surface cleaning
- Convection Bake offers precise multi-level baking results.
- ExtraLow(R), the widest simmer temperature control as low as 100(degree)F
Specifications
Technical Specification details | |
Brand | Thermador |
SKU | PRG305WH |
UPC code | 825225925262 |
Construction type | |
Installation type | Free-standing |
Energy source | Gas |
Installation Type | Freestanding appliance |
Size and weight | |
Overall appliance dimensions (HxWxD) (in) | 35 7/8'' x 29 15/16'' x 24 5/8'' |
Size | 30 Inch |
Required cutout size (HxWxD) (in) | 30'' width slide-in |
Net weight (lbs) | 368.000 |
Cavity capacity (cu ft) | 4.4 |
Cavity dimensions (in) | 16 1/4'' x 25'' x 18 5/8'' |
Oven | |
Cooking mode | Centre-area grill/broiler, Convection Bake, Gas multifunction, Gas top/bottom heat, Special baking setting |
Comfort | |
Optional accessories - primary cavity | PA12CHPBLK, PA30WLBH, PAALTKITHW, PAGRIDDLE, PAKNOBLUWH, PALPKITGW5, PARKB3XHY, PWOKRINGHC |
Connection | |
Power Cord Length | 65 |
Current (A) | 15 |
Watts (W) | 100 |
Plug type | 120V-3 prong |
Volts (V) | 120 |
