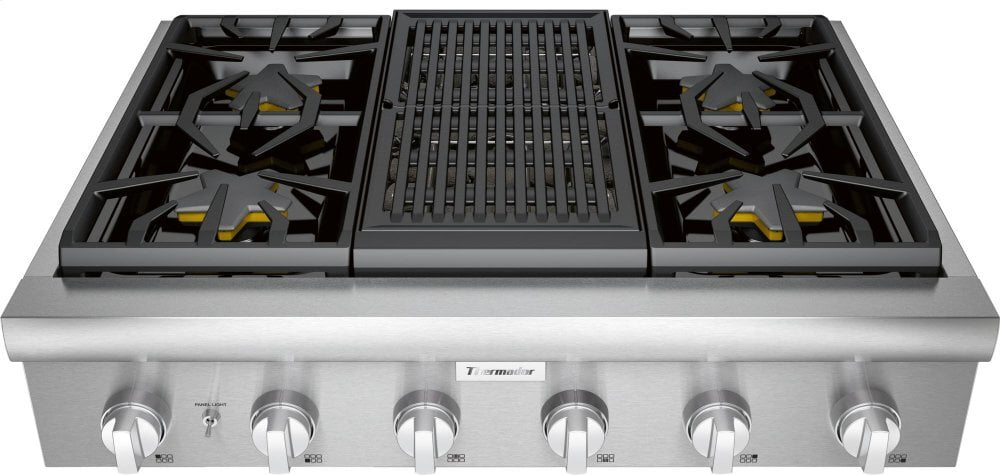

Thermador PCG364WL 36-Inch Professional Rangetop
Indoor Pro Grill And Star® Burners With Quickclean Base® Deliver Superior Power And Heat Distribu... Read more...
SKU:PCG364WL
UPC:825225934820
Indoor Pro Grill And Star® Burners With Quickclean Base® Deliver Superior Power And Heat Distribution With Effortless Cleaning
- Innovation
- Exclusive, patented Star Burner most even heating, unsurpassed flame coverage
- QuickClean Base designed for easy surface cleaning
- Precision simmering capabilities as low as 100 F (375 BTU) with 2 ExtraLow Simmer burners
- Performance
- Professional style, continuous cast iron grates
- Continuous porcelain, easy to clean cooking surface
- Widest range of simmer options from 375 BTU to 3,000 BTU
- Star design delivers superior heat spread for any size pan
- Simmer without stirring/scorching with exclusive ExtraLow
- Superior grilling results, 1630 watt electric grill
- Design
- Bold Professional design
- Patented Pedestal Star Burner with QuickClean Base
- Restaurant style metal knobs
- Every front burner 18,000 BTU (NG)
- Easy grill clean up of grates and briquette box
- Grill is convertible to griddle with optional accessory
| Technical Specification details | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Stainless steel, Stainless Steel |
| Color of surface | Stainless steel, Stainless Steel |
| Installation type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Type of frame | Professional, Standard frame |
| Number of gas burners | 4 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

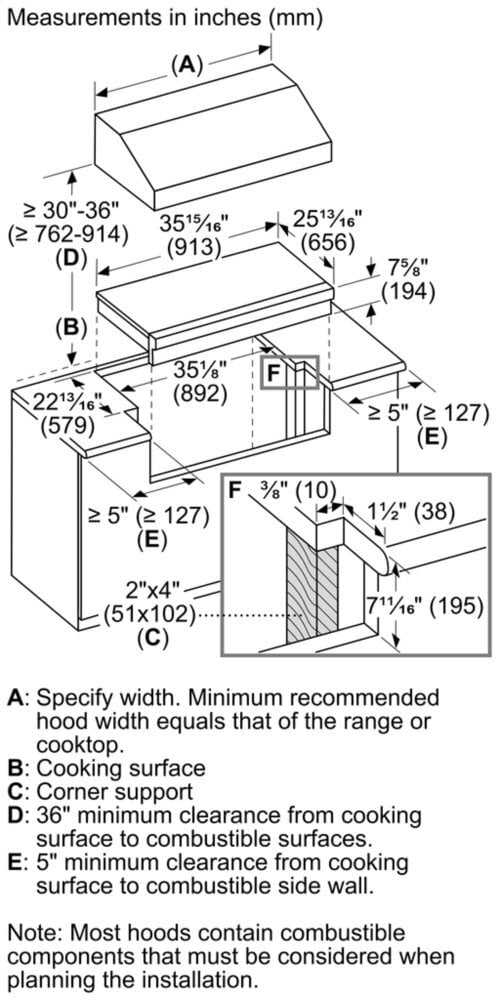

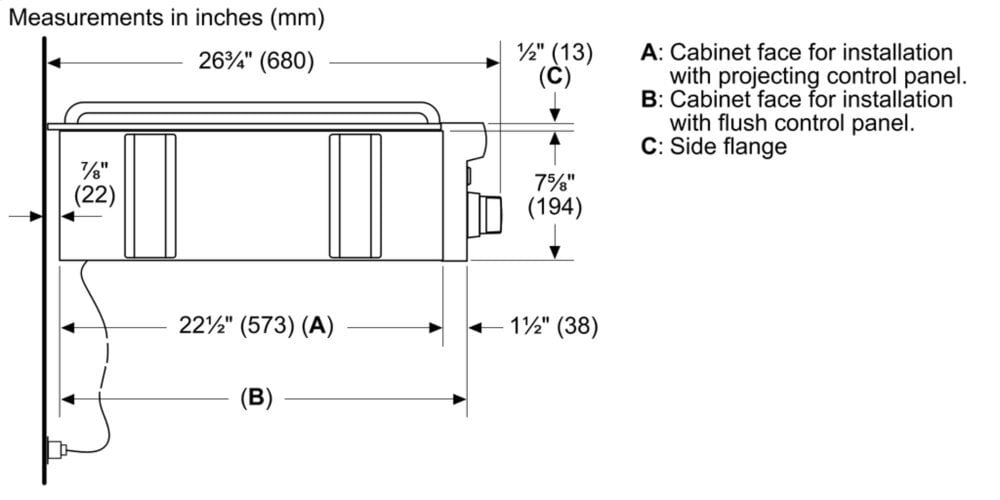

| Overall appliance dimensions (HxWxD) (in) | + 10 9/16'' x 35 15/16'' x 25 13/16'' |
| Net weight (lbs) | 172.000 |

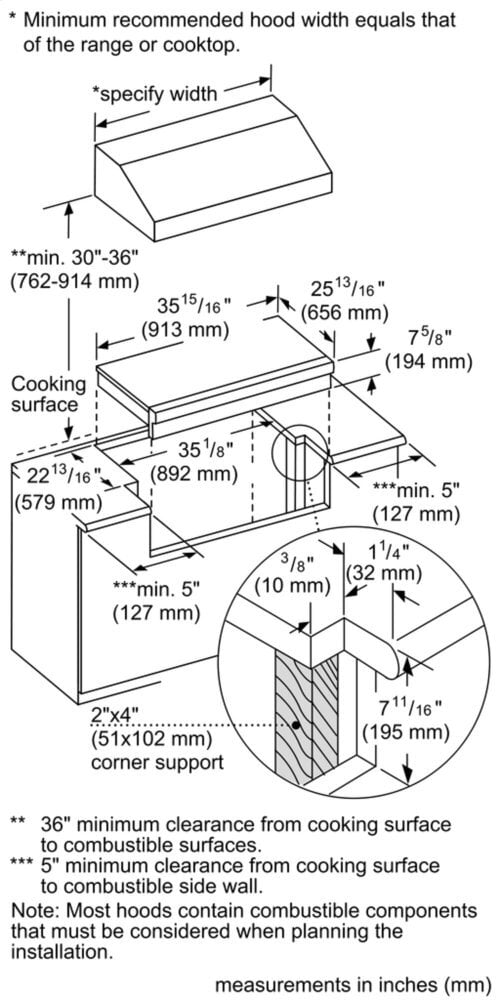

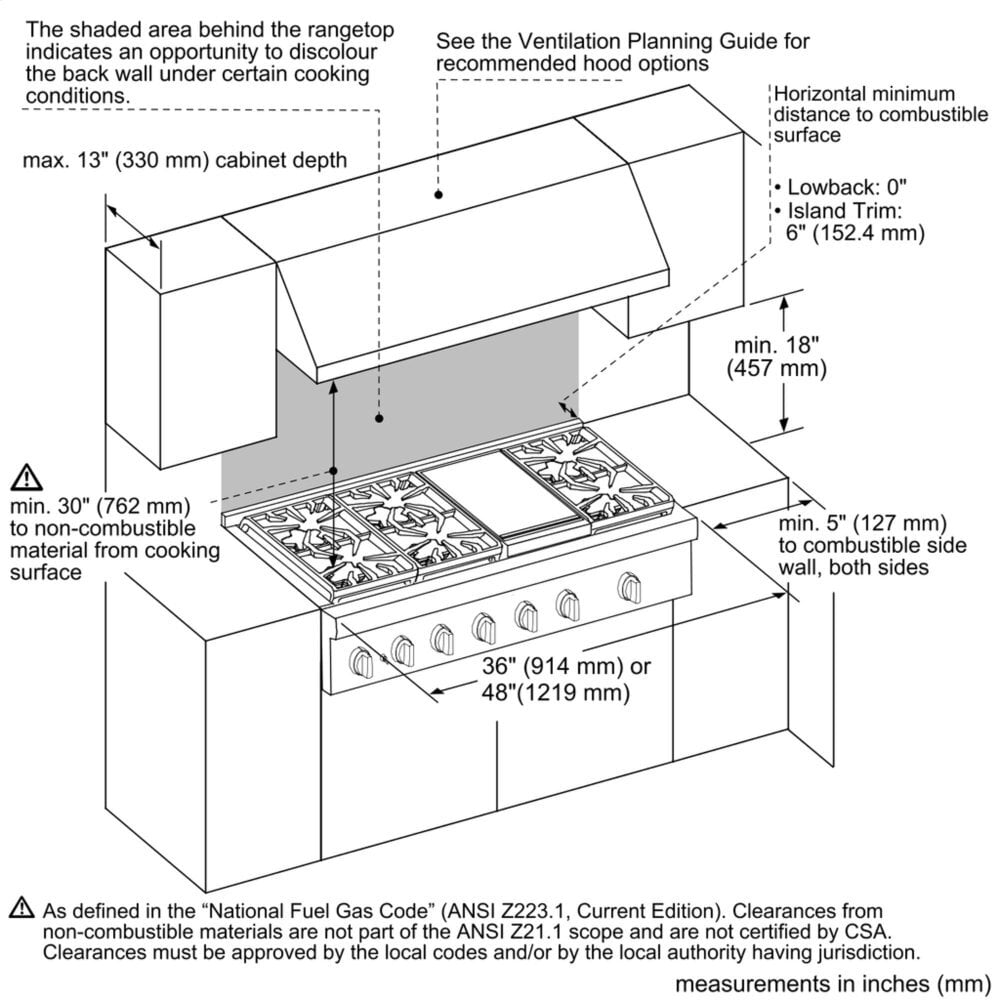

| Minimum distance from rear wall (in) | 12'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Power of 9th heating element (kW) | 1.63 |
| Type of 9th heating element | Radiant heating |
| Safety | |
| Type of safety device for gas | Without |
| Power on indicator | Yes |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Connection | |
| Gas connection rating (W) | 21,080 |
| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 96'' |
| Accessories | |
| Included accessories | 1 x island trim |
Description
Indoor Pro Grill And Star® Burners With Quickclean Base® Deliver Superior Power And Heat Distribution With Effortless Cleaning
Features
- Patented Pedestal Star(R) Burner with QuickClean Base(R) designed for easy surface cleaning and superior heat spread for any size pan
- LED Downlighting - hidden descretely above the control panel provides functional and stylish illumination
- Precision simmering capabilities as low as 100(degree)F (375 BTU) with 2 ExtraLow(R) Simmer burners
- Superior grilling results, thermostatically controlled for even heating
- 18,000 BTU (NG) Star(R) Burners across the front of rangetop
Specifications
| Technical Specification details | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Stainless steel, Stainless Steel |
| Color of surface | Stainless steel, Stainless Steel |
| Installation type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Type of frame | Professional, Standard frame |
| Number of gas burners | 4 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | + 10 9/16'' x 35 15/16'' x 25 13/16'' |
| Net weight (lbs) | 172.000 |
| Minimum distance from rear wall (in) | 12'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Power of 9th heating element (kW) | 1.63 |
| Type of 9th heating element | Radiant heating |
| Safety | |
| Type of safety device for gas | Without |
| Power on indicator | Yes |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Connection | |
| Gas connection rating (W) | 21,080 |
| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 96'' |
| Accessories | |
| Included accessories | 1 x island trim |
